Evolution Door
par Dachora
Fichiers imprimables (8)
-
stlEvolution_Door_-_Sliding_Door_1.stl
17 Ko · 1 313 téléchargements
-
stlEvolution_Door_-_Sliding_Door_2.stl
18 Ko · 1 357 téléchargements
-
stlEvolution_Door_-_Flip_Door_1.stl
114 Ko · 1 330 téléchargements
-
stlEvolution_Door_-_Flip_Door_2.stl
116 Ko · 1 320 téléchargements
-

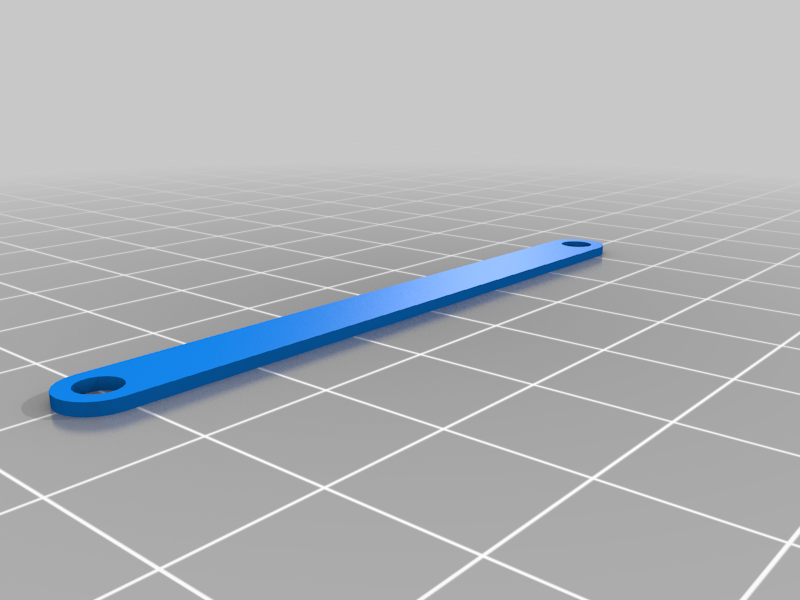

stlEvolution_Door_-_Link.stl
12 Ko · 1 309 téléchargements
-
stlEvolution_Door_-_Post.stl
11 Ko · 1 316 téléchargements
-

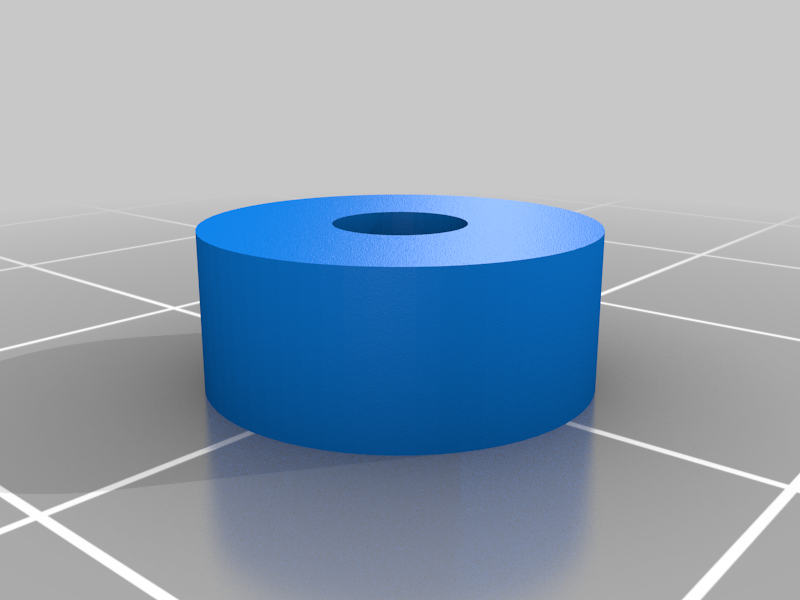

stlEvolution_Door_-_Washer_Thick.stl
20 Ko · 1 310 téléchargements
-
stl
Evolution_Door_-_Washer_Thin.stl
21 Ko · 1 354 téléchargements
Description
These are three designs for an "Evolution Door," an artistic type of door based off the works of Klemens Torggler.
The hinges on the flip doors are print-in-place, but everything else will require assembly with M3 screws and nuts.
Sliding Door BOM:
1x Sliding Door 1
1x Sliding Door 2
2x Link
1x Post
2x Washer Thick
Approx 5x Washer Thin (Or more)
6x M3 Nut
2x M3x12mm screw
3x M3x8mm screw
1x M3x5mm screw
Flipping Door BOM:
2x Flip Door 1 (or 2x Flip Door 2)
1x Post
2x Washer Thick
2x M3x15mm screw
1x M3x8mm screw
You may need slightly longer/shorter screws that what I've listed here or more/fewer thin washers to get a smooth motion.
