Phidgets mounting system
par SyzygyBlue
Fichiers imprimables (10)
-
stlElectronics_generic_mount_plate.stl
19 Ko · 183 téléchargements
-
stlelectronics_cleat.stl
60 Ko · 188 téléchargements
-
stlElectronics_Pin.stl
16 Ko · 189 téléchargements
-
stlElectronics_SSR_mount_plate.stl
44 Ko · 190 téléchargements
-
stl
Electronics_1x_Thermocouple_mount_plate.stl
42 Ko · 188 téléchargements
-
stl
Electronics_pH_mount_plate.stl
69 Ko · 185 téléchargements
-
stl
Electronics_single_relay_mount_plate.stl
69 Ko · 186 téléchargements
-
stlElectronics_SSR_mount_plate.stl
44 Ko · 159 téléchargements
-
stl
Electronics_VINT_HUB_mount_plate.stl
65 Ko · 190 téléchargements
-
stl
Electronics_Voltage_Input_mount_plate.stl
68 Ko · 185 téléchargements
Description
My mounting system for Phidgets. It includes three common pieces to every mount:
- electronics cleat -- goes against whatever you are mounting to.

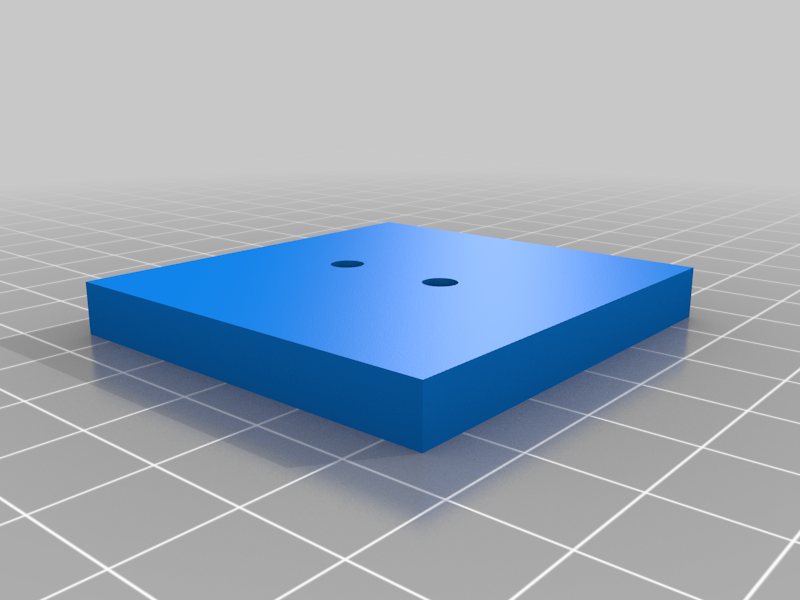

- Electronics generic mount plate -- slides down over the cleat, has two holes for pinning the item-specific device to it (you can use glue if you desire, but it seems to fit pretty tight

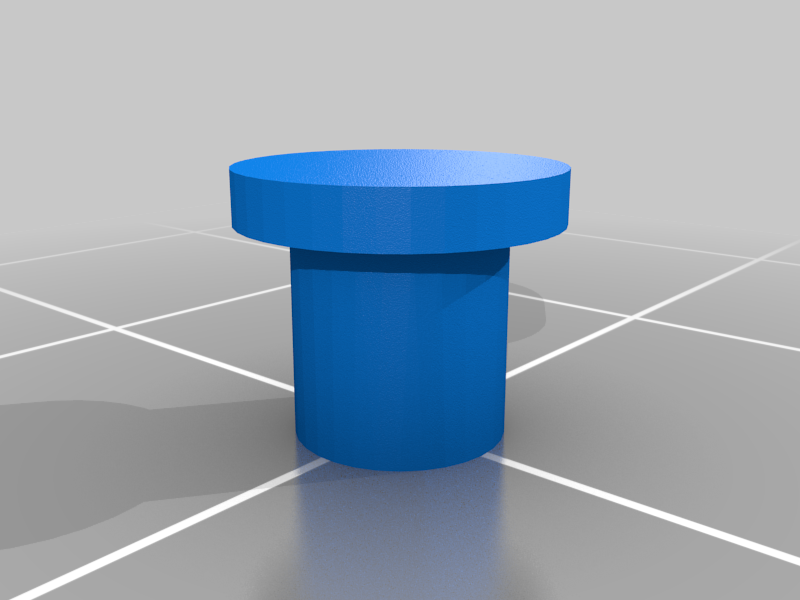

- Electronics Pin -- you'll need two of these to connect the device-specific plate to the generic mount plate.
it is pretty easy and self-explanitory, I pretty much just got tired of velcro and zip ties and wanted something sexy and slick to mount my devices with.
I'll add new items as I make them.
Compatibility (That I have verified):

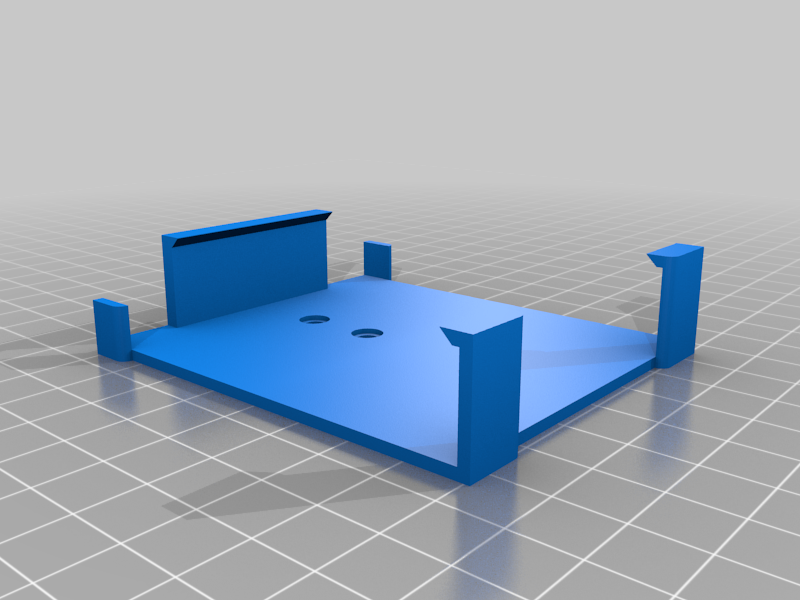

Electronics_SSR_mount_plate.stl works with DAQ1301_0 and REL1101_0
Electronics_VINT_HUB_mount_plate.stl works with HUB0000_0 and DAQ1200_0 and DCC1002_0
