Porsche Button box

par 3DSIMMAKER

Fichiers imprimables (5)

  • stl

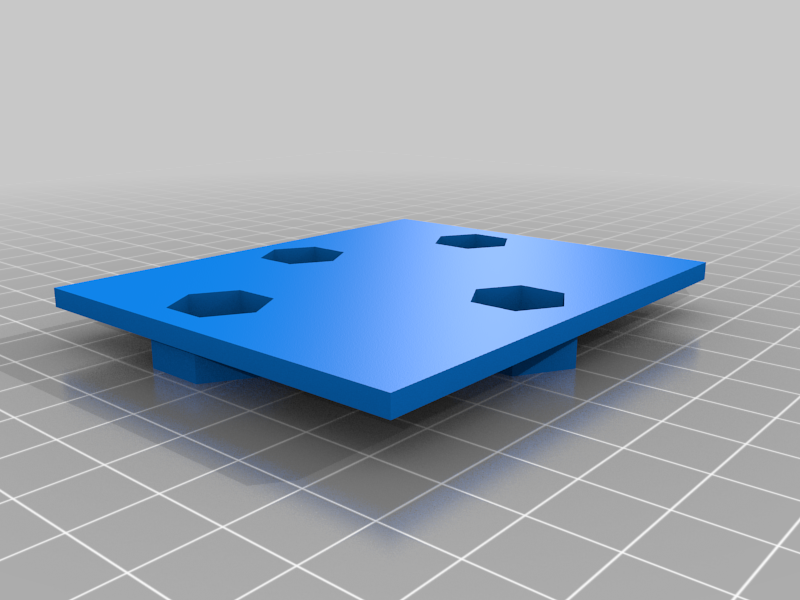

    sujeta_tuercas.stl

    59 Ko · 1 213 téléchargements

    Télécharger
  • stl

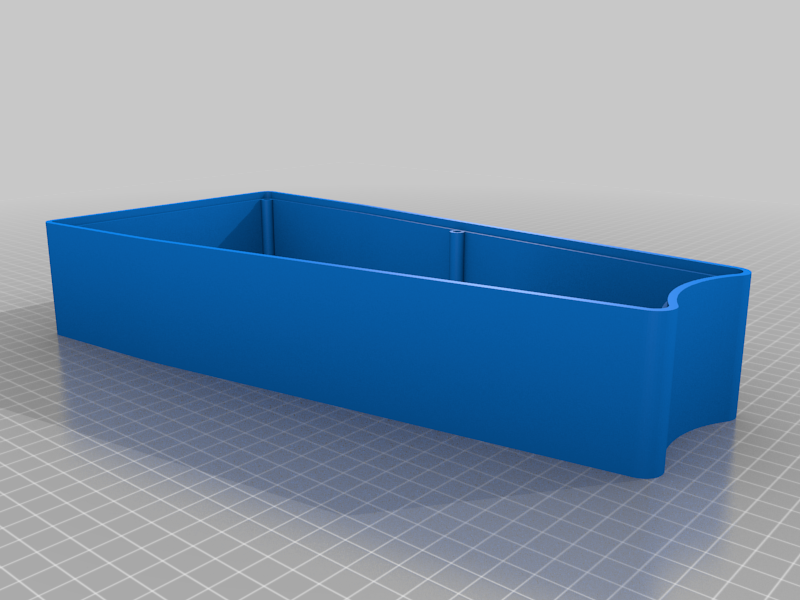

    caja.stl

    294 Ko · 1 344 téléchargements

    Télécharger
  • stl

    sujeta_botonera.stl

    211 Ko · 1 221 téléchargements

    Télécharger
  • stl

    tapa_frontal.stl

    234 Ko · 1 279 téléchargements

    Télécharger
  • stl

    tapa_trasera.stl

    104 Ko · 1 243 téléchargements

    Télécharger

Description

Posche button box version with 4 rotary encoders, 1 12-position rotary switch, 1 power switch, a motor start button, 5 pushbuttons and 4 2-position toggle pushbuttons.

---------------------------BOM-------------------------

Rocker - > https://es.aliexpress.com/item/32859557724.html?spm=a2g0s.9042311.0.0.274263c01sVHlS

Engine button ->https://es.aliexpress.com/item/32996687768.html?spm=a2g0s.9042311.0.0.274263c01sVHlS

electronic board (cables and connectors)->https://makelab.es/es/electronica/30-pack-electronica-stm32.html?src=link&ref=m0hUE0bEzZ000N11

electronic board (Just the pcb+stm32) ->https://makelab.es/es/electronica/21-pcb-universal-stm32.html?src=link&ref=m0hUE0bEzZ000N11

Funky switch -> https://makelab.es/es/electronica/24-funky-switch-7-en-1.html?src=link&ref=m0hUE0bEzZ000N11

Rotary switch 12 position ->https://makelab.es/es/electronica/23-rotary-switch-12-posiciones.html?src=link&ref=m0hUE0bEzZ000N11

Rotary encoder ->https://es.aliexpress.com/item/32872039030.html?spm=a2g0s.9042311.0.0.274263c0ID6xc7

Push button ->https://es.aliexpress.com/item/32842544957.html?spm=a2g0s.9042311.0.0.274263c01sVHlS
