CNC Touch Probe

par natester

Fichiers imprimables (5)

  • stl

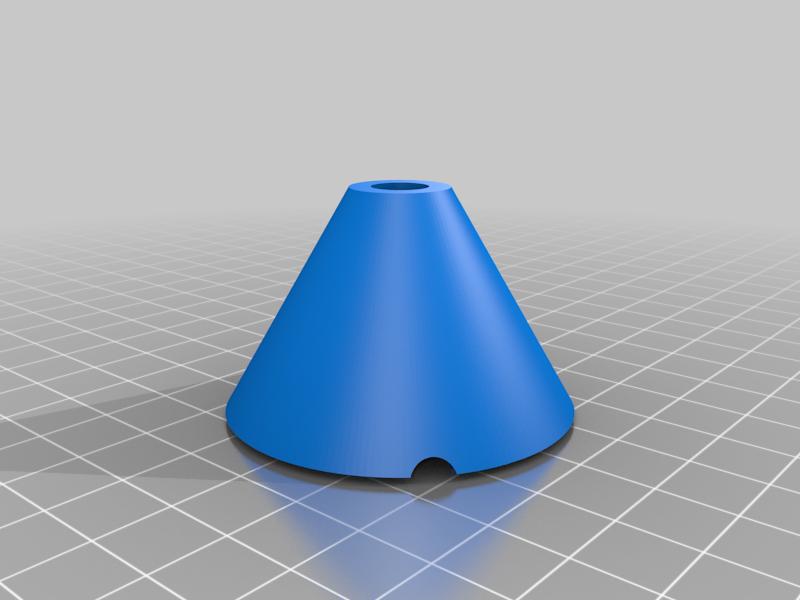

    touch-top-cutout.stl

    226 Ko · 351 téléchargements

    Télécharger
  • stl

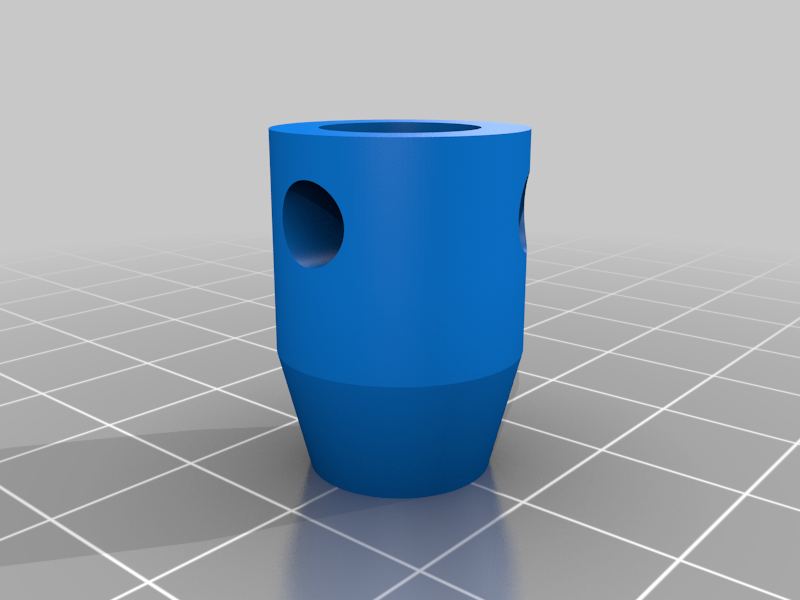

    touch-center.stl

    241 Ko · 351 téléchargements

    Télécharger
  • stl

    touch-center.stl

    241 Ko · 344 téléchargements

    Télécharger
  • stl

    touch-top-cutout.stl

    226 Ko · 344 téléchargements

    Télécharger
  • stl

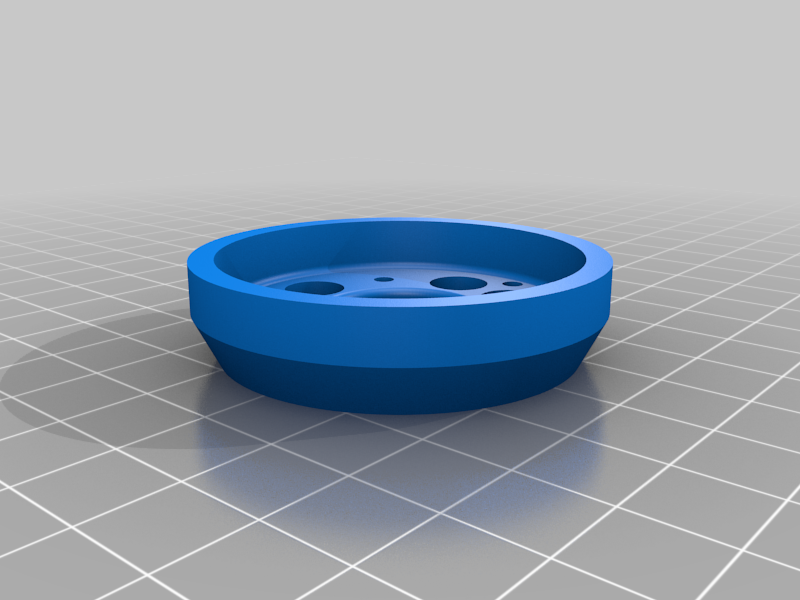

    touch-body.stl

    650 Ko · 346 téléchargements

    Télécharger

Description

A simple 3D printed CNC touch probe. This is part of my g0704 CNC mill conversion: https://www.nathantsoi.com/blog/from-3d-printing-to-machining-metal-parts/index.html#probing

It functions as a normally closed switch. When the probe contacts material in any direction, it breaks this connection and the switch opens.

Printing:

I printed this in PETG (https://amzn.to/38AbG5Y), but ABS or PLA should be fine as well.

Required Hardware:

  • 6x 8mm steel balls: https://amzn.to/3lxxwva

  • 5mm diameter x 50mm steel rod

  • 8mm diameter x ~6mm rod for the probe end

  • 8mm diameter x ~50mm (I used steel) rod for the probe shaft (to mount inside the collet). I turned down a 1/2" steel rod, so I could use a 1/2" collet

  • 10mm diameter spring

Tags

#cnc #probe #tool #touchprobe
