POLY555 Synth
par oskitone
Fichiers imprimables (6)
-

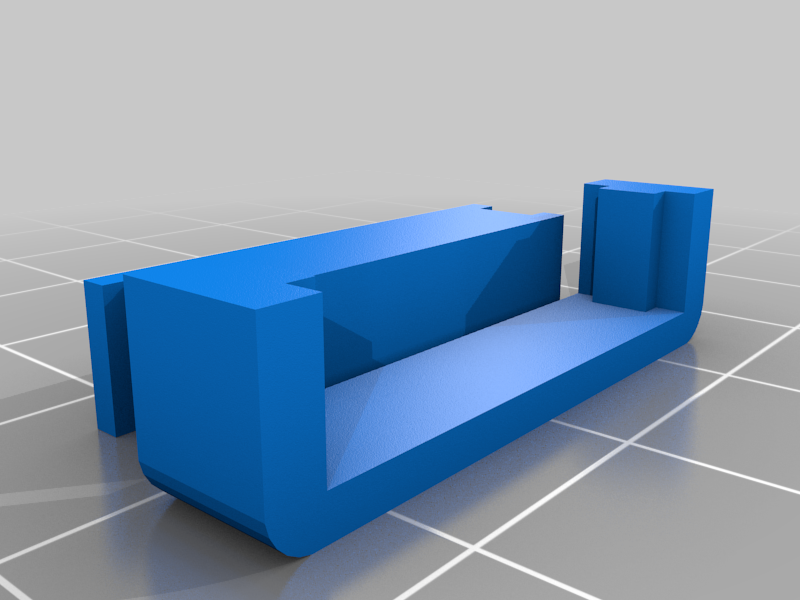

stlp5-reduced_test_case-1631647000-2f51d3a.stl
23 Ko · 209 téléchargements
-

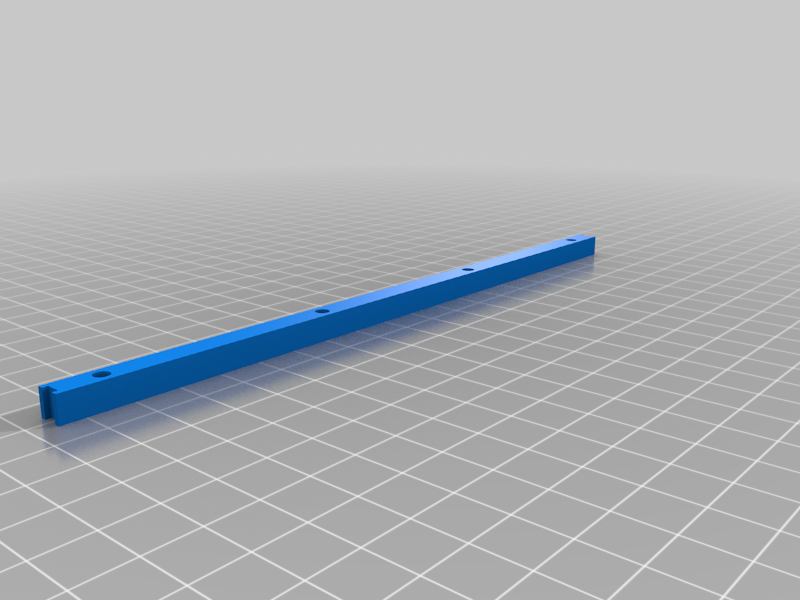

stlp5-mounting_rail-1631647000-2f51d3a.stl
70 Ko · 212 téléchargements
-

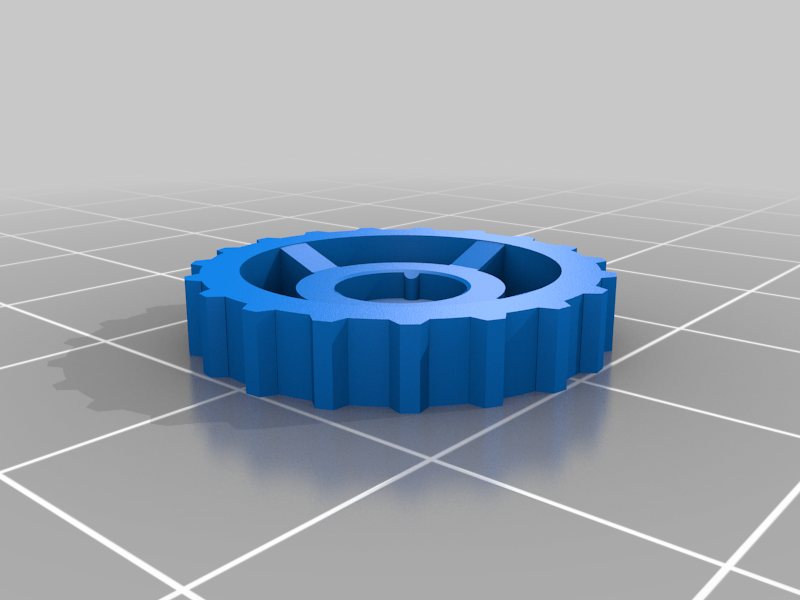

stlp5-volume_wheel-1631647000-2f51d3a.stl
575 Ko · 214 téléchargements
-

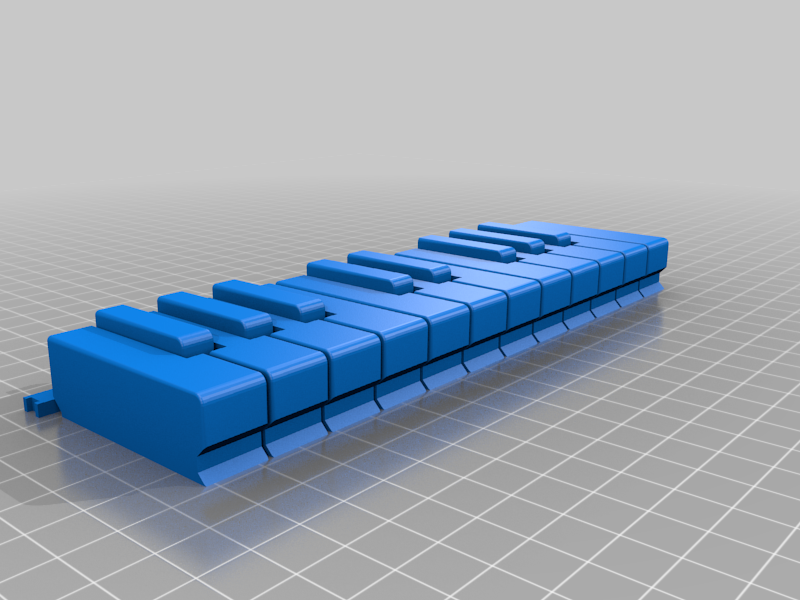

stlp5-keys-1631647000-2f51d3a.stl
2.2 Mo · 245 téléchargements
-

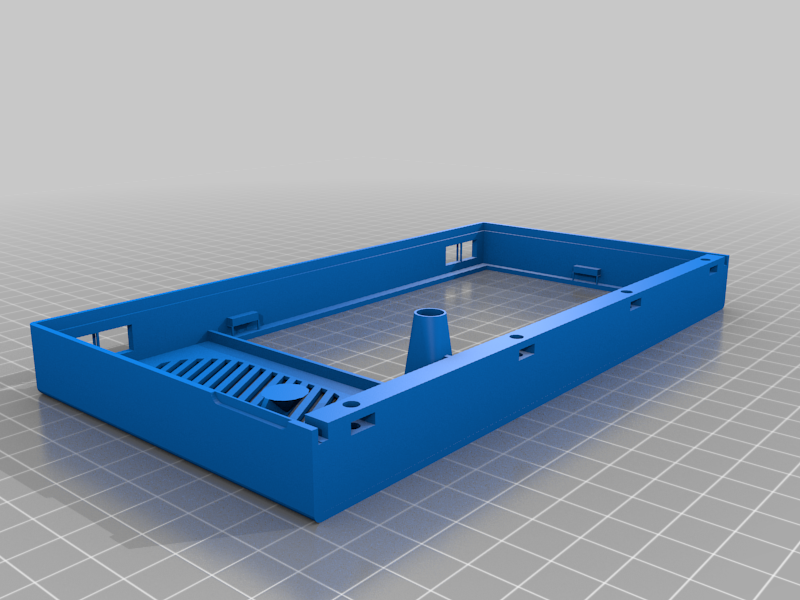

stlp5-enclosure_top-1631647000-2f51d3a.stl
3.3 Mo · 214 téléchargements
-

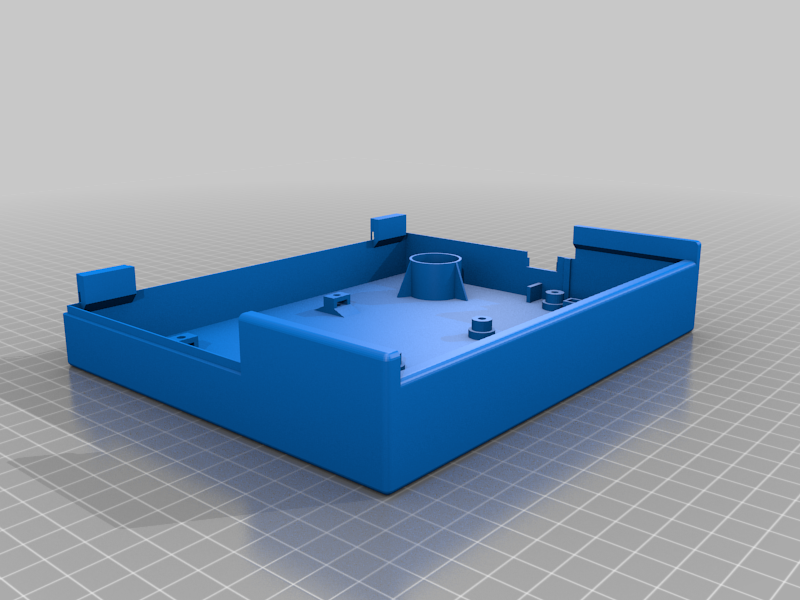

stlp5-enclosure_bottom-1631647000-2f51d3a.stl
3.7 Mo · 227 téléchargements
Description
The POLY555 is a polyphonic, analog, square wave synth based on the 555 timer chip.
- Polyphonic: Multiple notes can be played simultaneously. This is opposed to "monophonic," where only one note at a time can be played.
- Analog: There are no computers, microcontrollers, sound samplers, or anything digital involved. The sound you hear is the sound of a speaker being abused by discrete electronic components like capacitors and resistors and logic chips.
- Square-wave: When its output is viewed on an oscilloscope, its wave resembles a square. It’s a “hard” sounding wave type, commonly associated with chiptune music and old video games
These are the 3D models for the POLY555 Synth DIY Kit from Oskitone.
Assembly Guide
Find a detailed assembly guide with printing and soldering instructions at
https://oskitone.github.io/poly555/
Updates
- January 23, 2021: Added reduced_test_case
- November 2, 2021: Chamfer headlocking cavity on trimpot_knob
