Parallel guide

par inspace2036

Fichiers imprimables (3)

Description

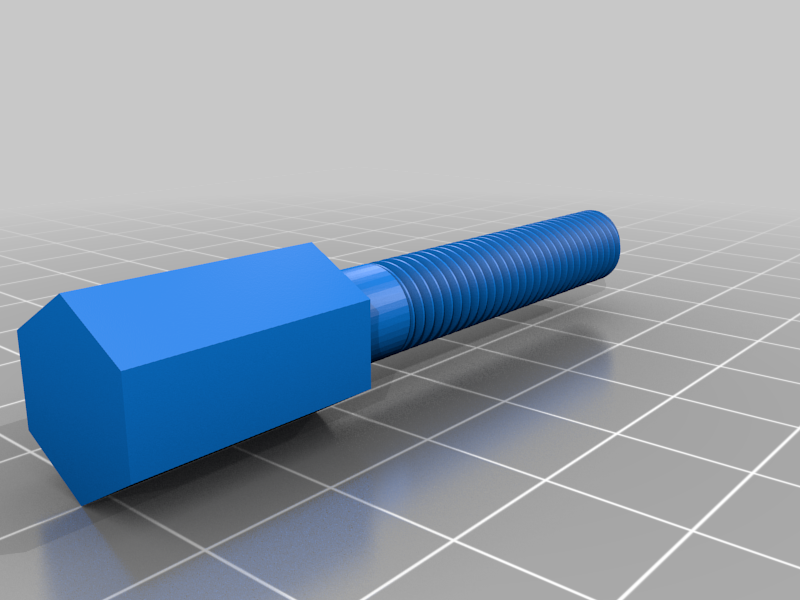

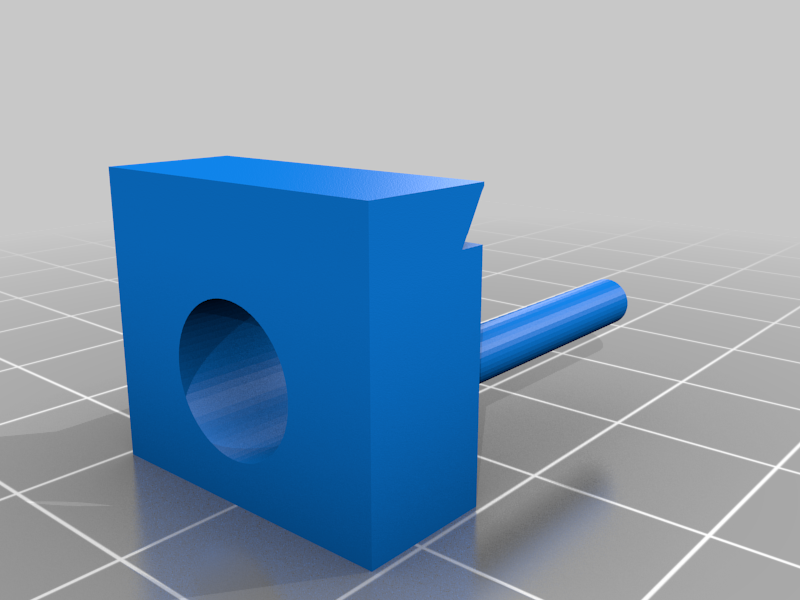

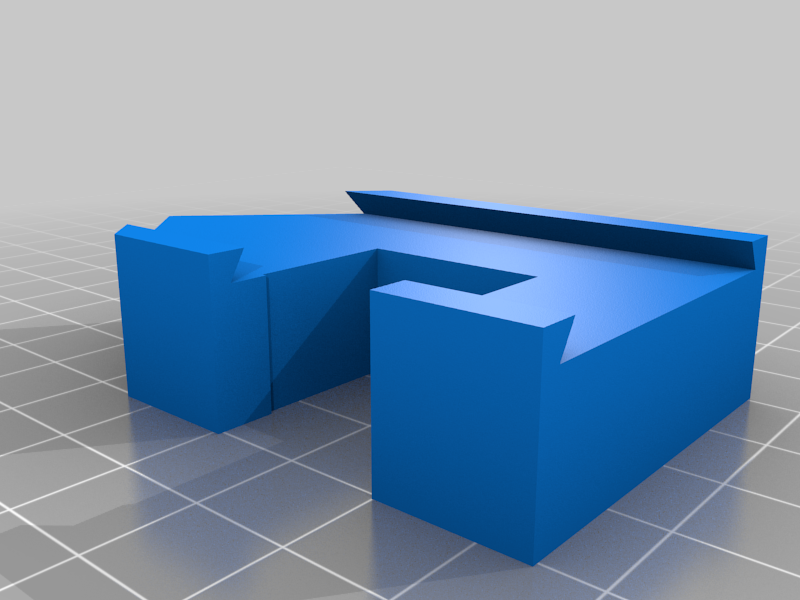

Use rulers width from 32 mm to 19mm. Insert the ruler into the slot and fix.
Align the flat surface to straight edge ( Eg. Table side ) then adjust ruler to require length that will parallel with the straight edge, Draw while slide the parallel guide,
You can also mark 45 degree lines.
Include fusion 360 files just in case you want to modify it.
