Pi Zero Case
par swintera
Fichiers imprimables (9)
-
stlFace_Plain__v1.0.stl
139 Ko · 652 téléchargements
-
stlFace_Camera__v1.0.stl
183 Ko · 615 téléchargements
-
stlShim_Spacer__v1.0.stl
159 Ko · 641 téléchargements
-
stlShim_Board__v1.1.stl
519 Ko · 743 téléchargements
-
stlBase_Std__v1.1.stl
215 Ko · 706 téléchargements
-
stlFace_PiZero__v1.0.stl
326 Ko · 628 téléchargements
-
stlFace_TFT__v1.0.stl
137 Ko · 598 téléchargements
-

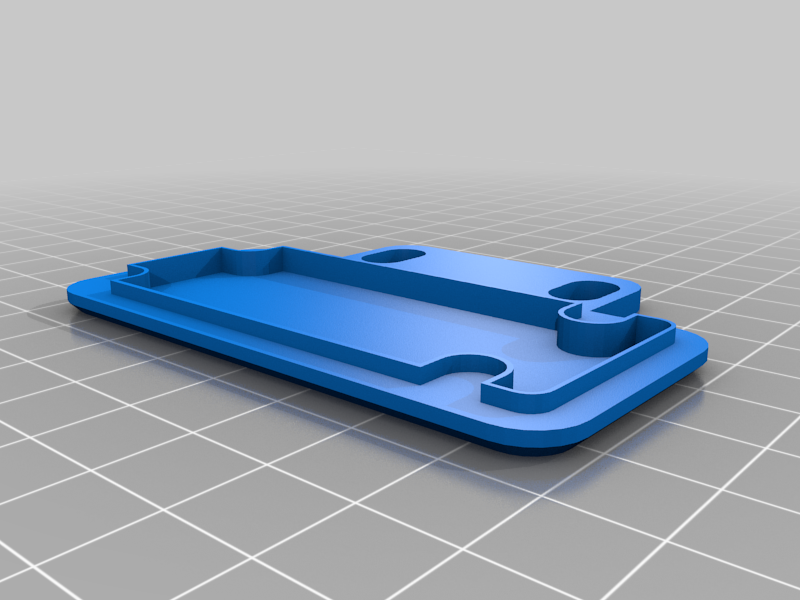

stlBase_RackMount__v1.0.stl
332 Ko · 600 téléchargements
-
stlFace_Header__v1.0.stl
144 Ko · 365 téléchargements
Description
Raspberry Pi Zero Case
Updated 18/04/2022 - New face (by request). The new face will give you access to the GPIO header.

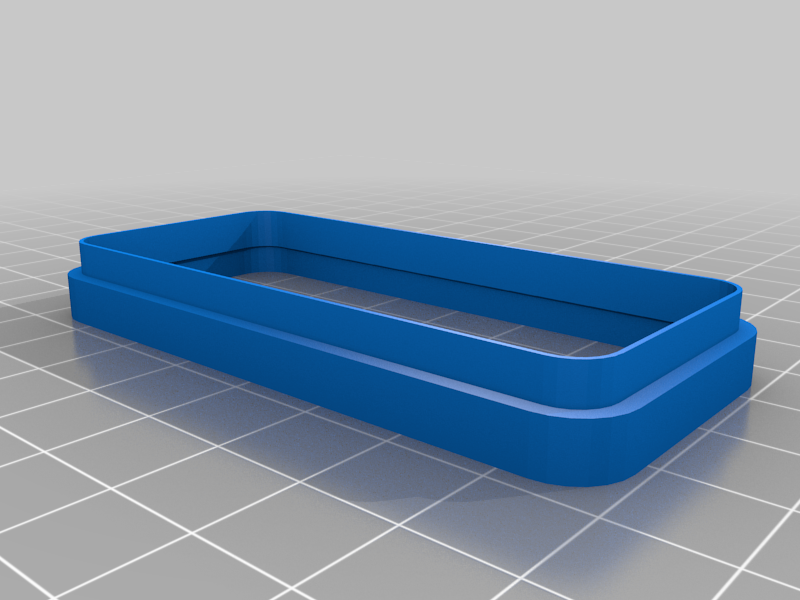

Screwless, snap fit case for Raspberry Pi Zero - tested on the Pi Zero W and Pi Zero WH. Case is modular and comes with an optional spacer shim to allow you to cram more into the case!

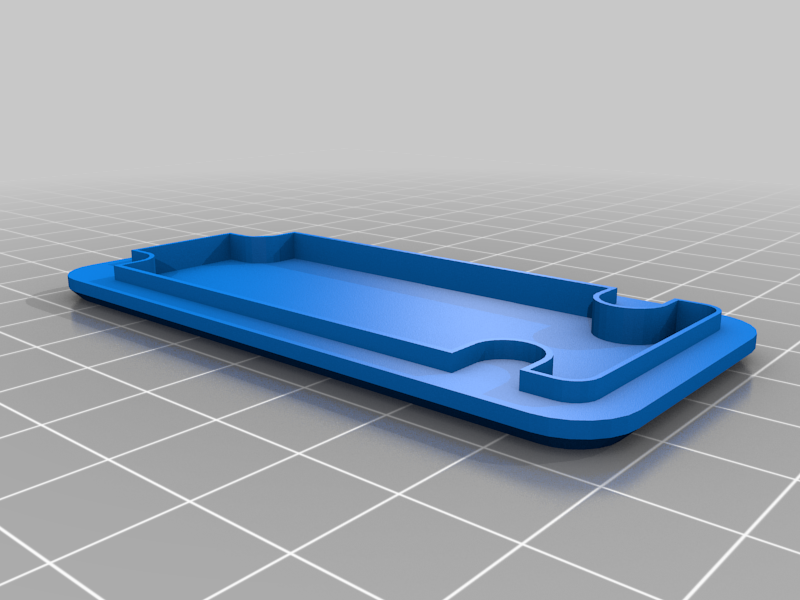

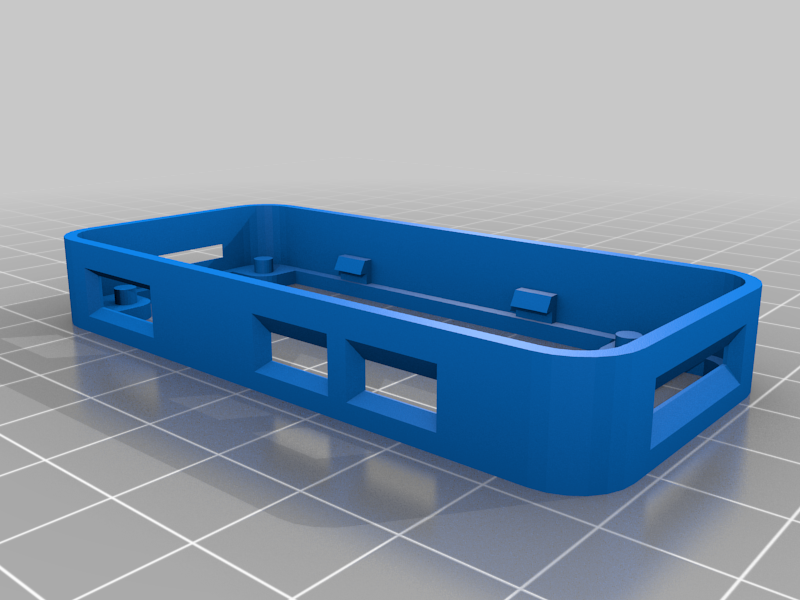

You need a base, board shim and face to make a complete case. There is access to both USB's and HDMI port as well as SD card slot and CSI camera connector.
Currently there are FIVE faces available:
- Plain

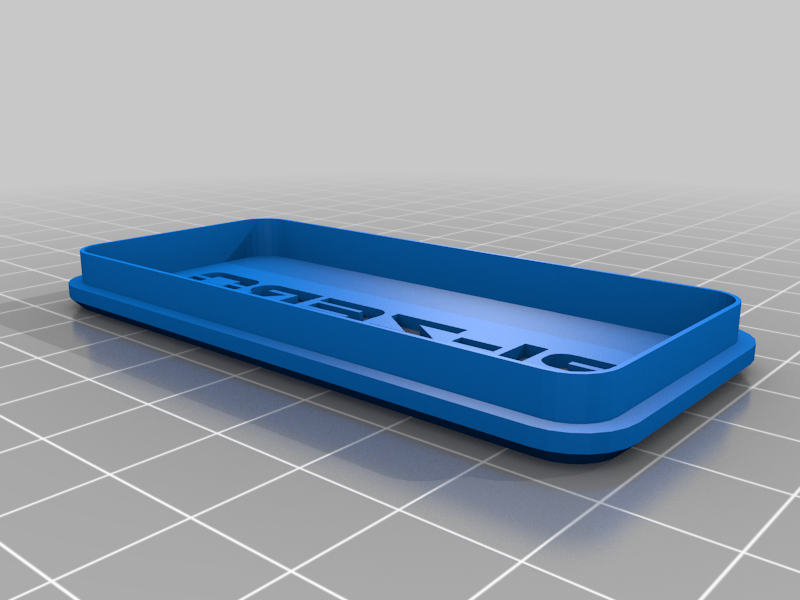

- Pi Zero

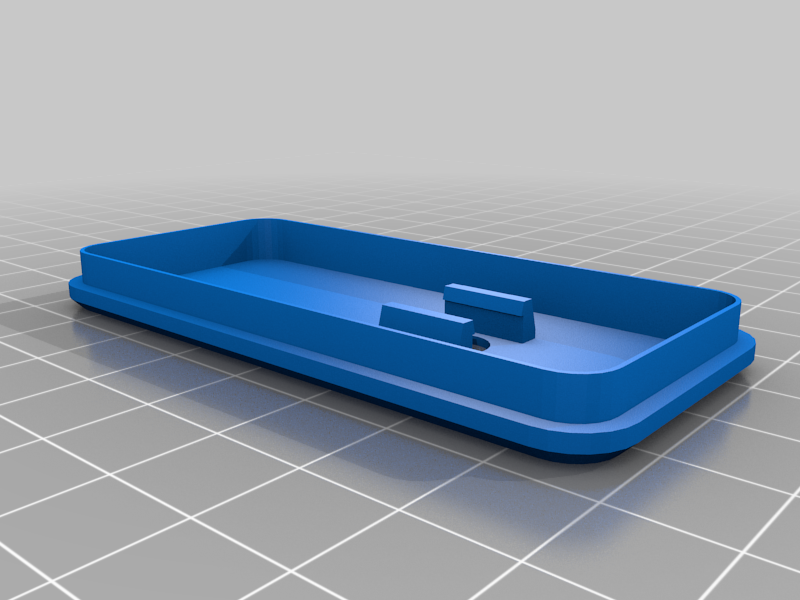

- Camera

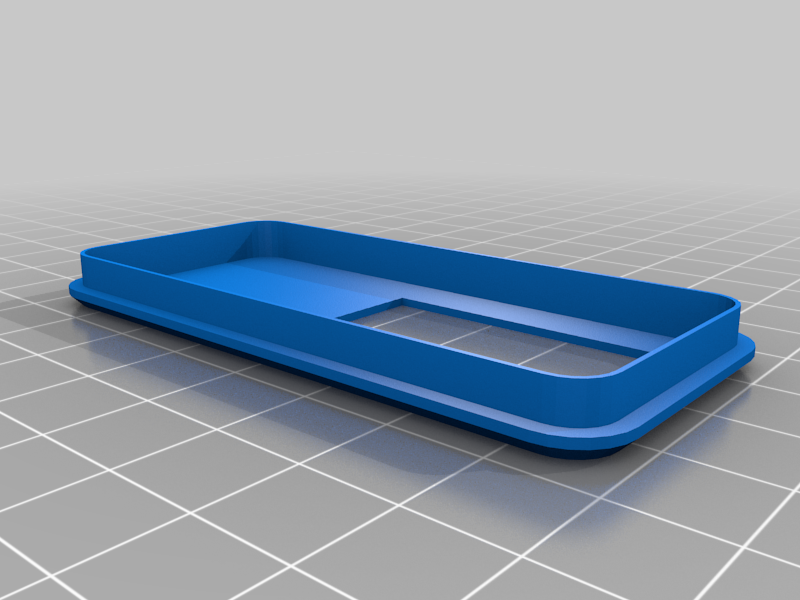

- TFT (Adafruit Mini PiTFT - 135x240 Color TFT)

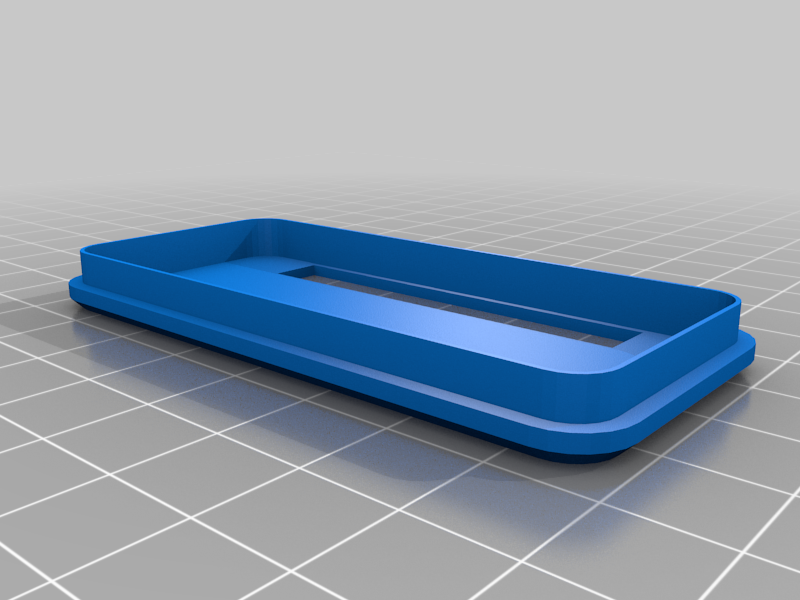

- GPIO Header
