Small Rugged Box
par Firebird
Fichiers imprimables (5)
-
stlundercut_latch.STL
48 Ko · 6 665 téléchargements
-
stlClip_Rev000.STL
8 Mo · 7 328 téléchargements
-
stl
Box_Lid_Rev000_to_print.STL
62.9 Mo · 7 755 téléchargements
-

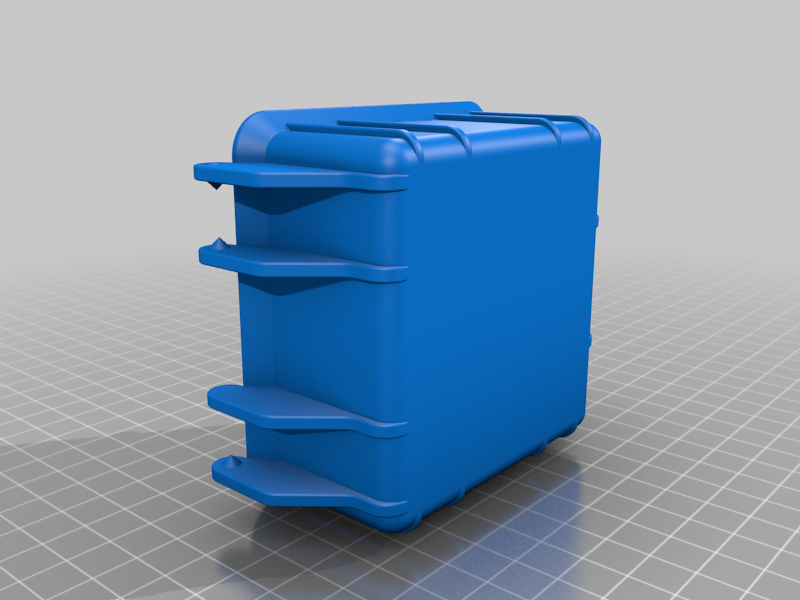

stlBox_bottom_to_print_Rev000.STL
58 Mo · 7 058 téléchargements
-

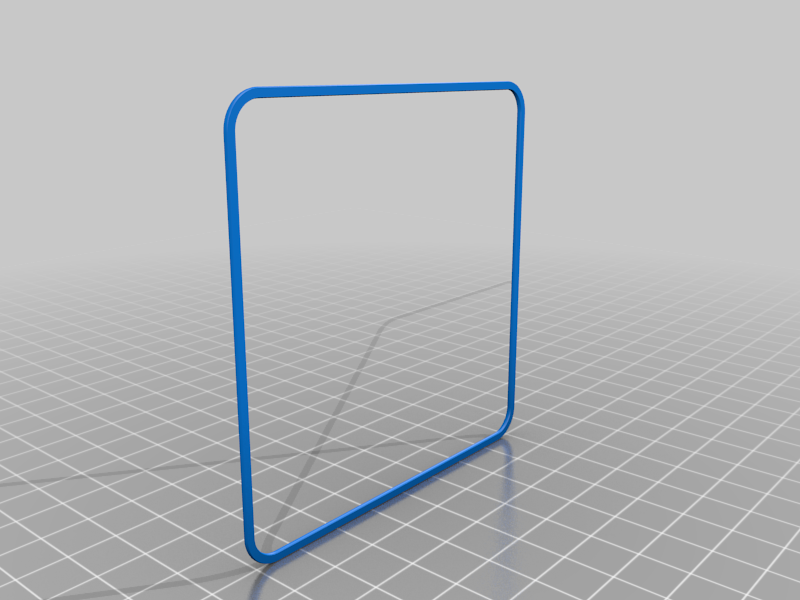

stlTPU_Seal_-_Optional.STL
2.2 Mo · 3 619 téléchargements
Description
This is a small box I printed for a friend.
It is designed to be printed with no support material and clip together.

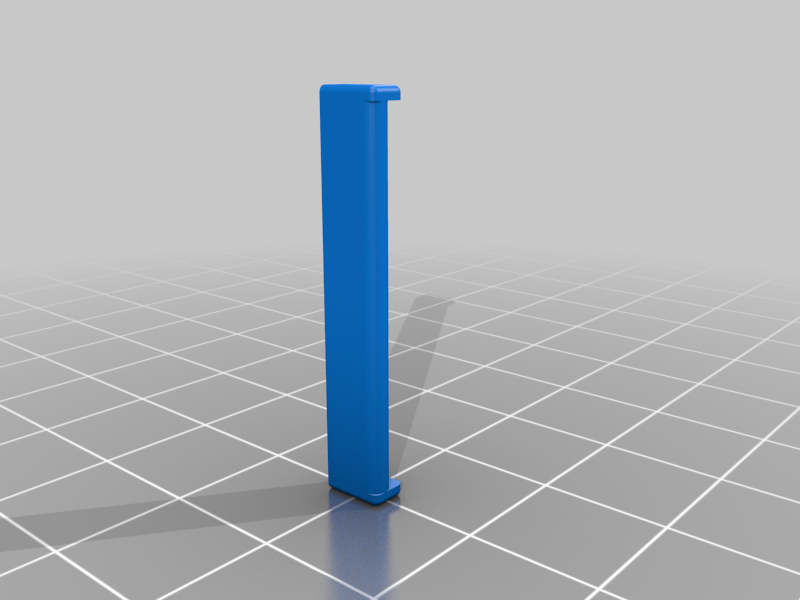

In order to remove all undercuts I had to cut out the feature that retains the clip.
This will have to be printed separately and glued in place.
There are four recessed bosses inside the case for mounting a panel or PCB, the max size for the panel is 76x76 and the bosses are 67mm from centre to centre.
I have included a detail PDF drawing for all the parts so you can see the size before you commit to printing.
Enjoy!
