Sharpening Stone Rolling Guide
par mdwyn85
Fichiers imprimables (5)
-

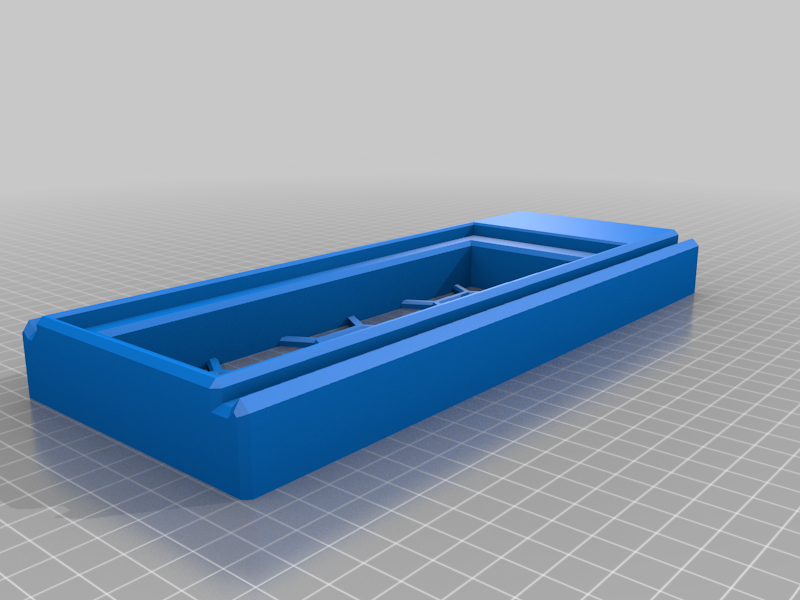

stlBASE_MAIN_V3.STL
89 Ko · 572 téléchargements
-

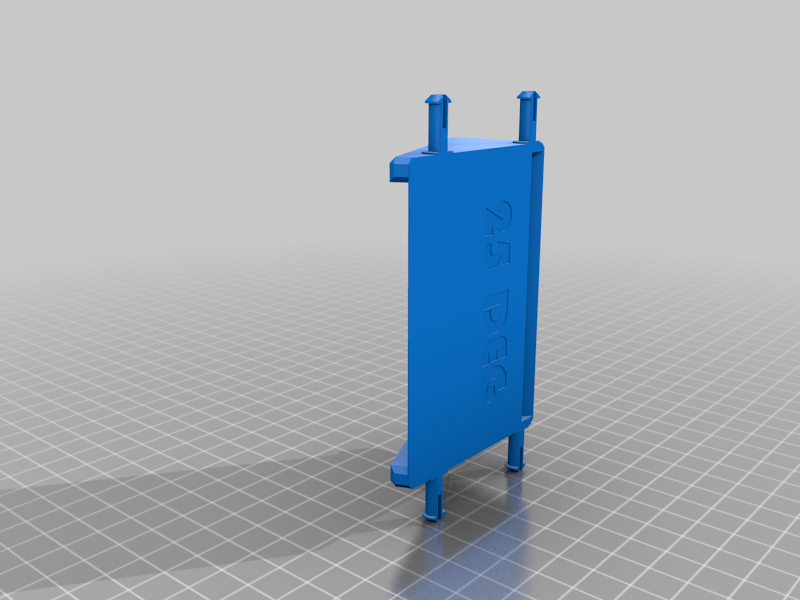

stl25_DEG_SLIDER_V3.STL
162 Ko · 541 téléchargements
-

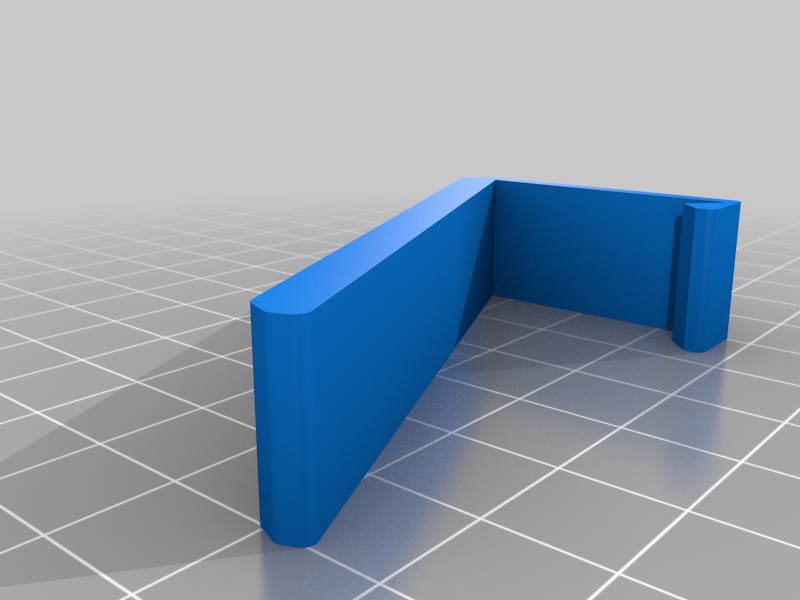

stl25_DEG_15mm_EXTENDER.STL
12 Ko · 537 téléchargements
-

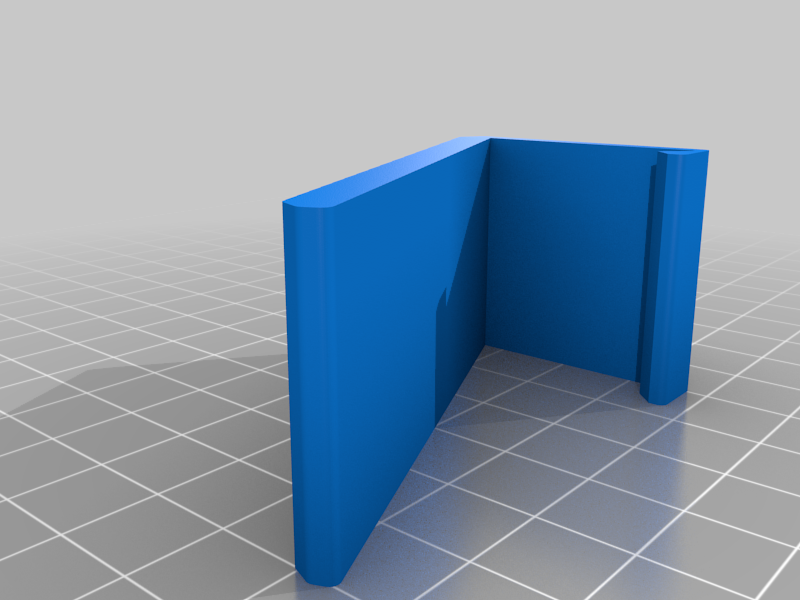

stl25_DEG_30mm_EXTENDER.STL
12 Ko · 540 téléchargements
-

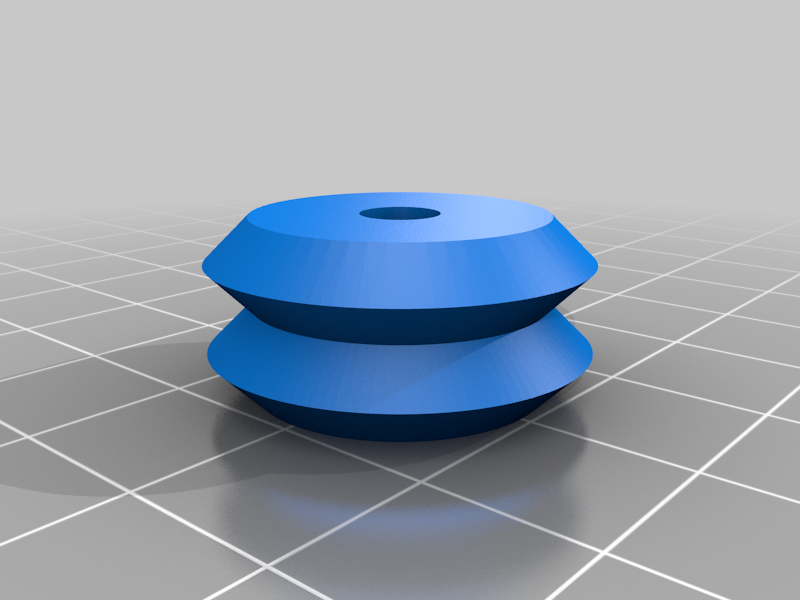

stlV-GROOVE-BEARING-POMPULLY.STL
54 Ko · 148 téléchargements
Description
I got inspiration from the listed below Thingiverse file as well as the Veritas sharpening tool that I own.
I designed these parts in Solidworks and it is still currently a work in progress. I'm wanting to improve on the slider still.
The Main Base was designed to work with two different types of sharpening stones. Either the Diamond Stones or the Whetstones from Seido. (links below)
the wheels for the slider were purchased from Amazon (link below)... I've also added a 3D model of these wheels if you wanted to just print them out. They obviously don't move as well if they are not bearings.
I also attached rubber feet to the bottom to help keep it in place while using (link below)
This is a remix from https://www.thingiverse.com/thing:4626160
Links:
Wheels:
https://www.amazon.com/gp/product/B08QTPCGMR/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
Diamond Stone:
https://www.amazon.com/gp/product/B01FPSUNY4/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
Wet Stones:
https://www.amazon.com/gp/product/B010TQ3N0I/ref=ppx_yo_dt_b_search_asin_title?ie=UTF8&psc=1
