PiEnclosure
par SubChief08
Fichiers imprimables (7)
-

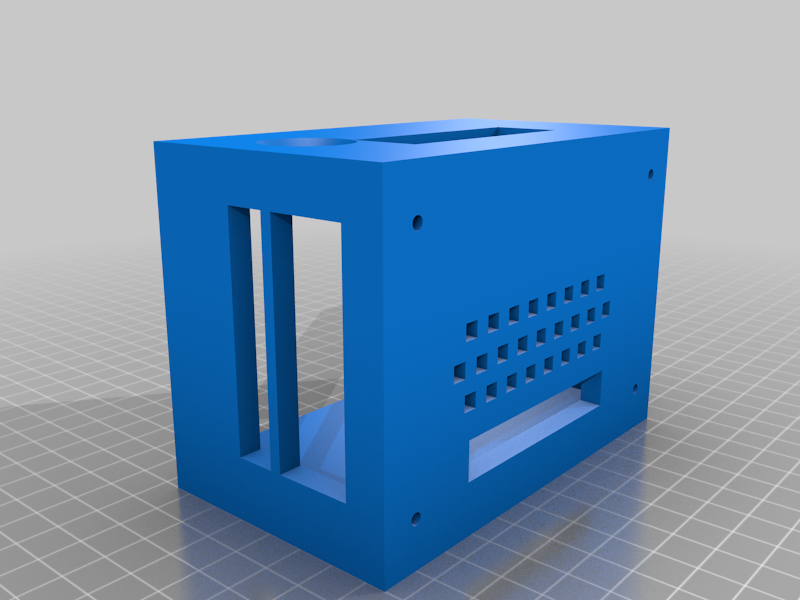

stlv4_Enclosure.STL
294 Ko · 234 téléchargements
-

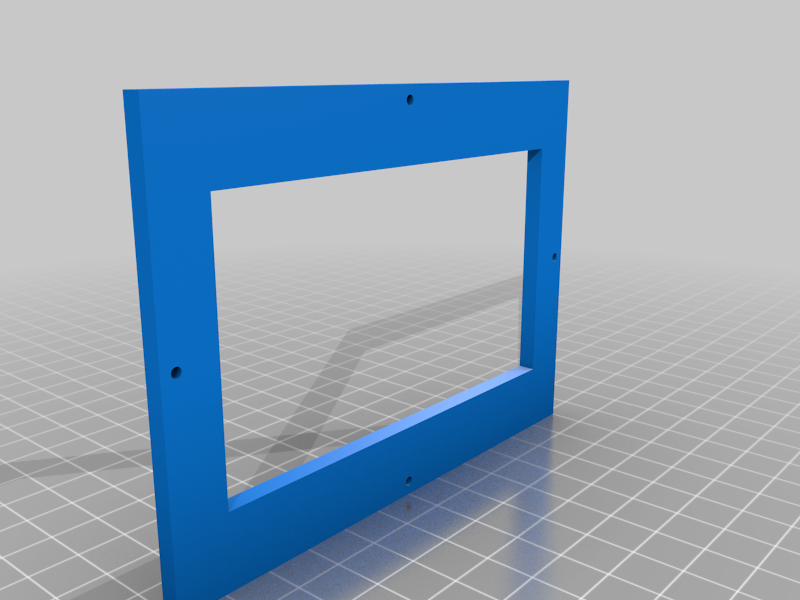

stlv1_Top_Plate.STL
102 Ko · 231 téléchargements
-
step4.3_Inch_DSI_LCD.stp
94 Ko · 202 téléchargements
-
step
Raspberry_Pi_4_B.step
29.8 Mo · 202 téléchargements
-
step
18650_RPI_charger.step
10.9 Mo · 198 téléchargements
-
step
M3_x_6mm_A-F_x_25mm_Hexagon_Male-Female_Threaded_Pillar.STEP
758 Ko · 199 téléchargements
-
step
M2.5_x_5mm_A-F_x_ST2-2_x_12mm_Hexagon_Self_Tapping_Male-Female_without_Undercut_Threaded_Pillar.STEP
820 Ko · 197 téléchargements
Description
This is a custom case I created for the Raspberry Pi 4 board when its mounted to a Waveshare (Brand) DSI (Connection type) 4.3 inch touchscreen and stacked with a dual 18650 battery UPS. The 2 files for the case are "v4_Enclosure.STL" and "v1_Top_Plate.STL". The other files are the 3D files of the components, I included them in case someone needed them as well.
