Marking Gauge
par JonnyGreenThumbs
Fichiers imprimables (7)
-

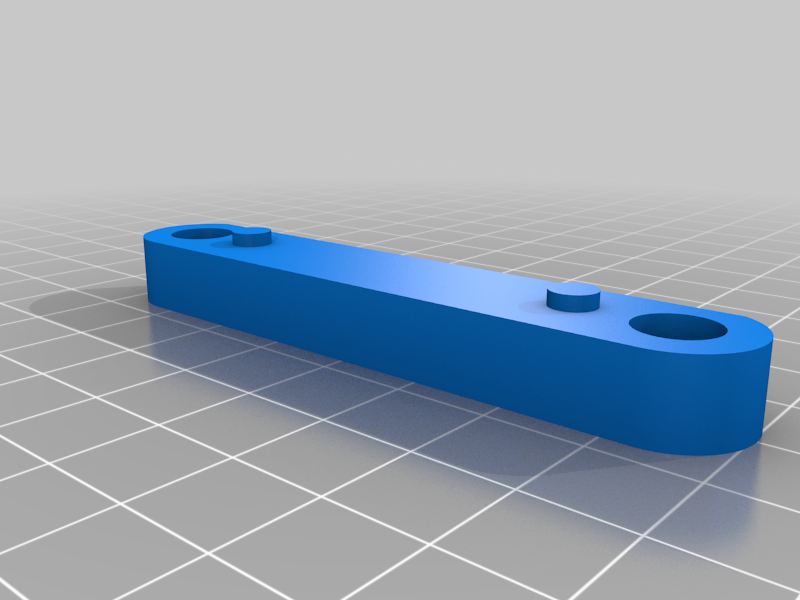

stlbutt.stl
2.5 Mo · 4 214 téléchargements
-
stepmarking_gauge_metric.stp
3.8 Mo · 4 106 téléchargements
-
step
marking_gauge_imperial.stp
4.1 Mo · 4 009 téléchargements
-
stlmarking_gauge_metric_6in.stl
2.9 Mo · 2 357 téléchargements
-
stlmarking_gauge_imperial_6in.stl
2.9 Mo · 2 296 téléchargements
-
stlmarking_gauge_metric.stl
6.7 Mo · 2 351 téléchargements
-
stlmarking_gauge_imperial.stl
6.5 Mo · 2 260 téléchargements
Description
There are a few of these already posted but I did not like the style, assembly, or precision of some previous models. Post processing alignment is not necessary. Use a filament with a low coefficient of thermal expansion such as PLA (I used PETG). This model's STP has been included if you would like to remix this design.
Requires:
- Glue- Print Bed >= 242mm OR Print Bed >= 125mmUpdate 3/4/2021
- Indy500fan requested a smaller design. New additional files are 125mm in length.
Update 3/27/2021
- ReallyJustJan and SrBocanegra pointed out that the 6in metric design had flawed numbers and the files were updated.
- The STL files were optimized to use less space.
