Universal Connector System
par mishkin2
Fichiers imprimables (4)
-

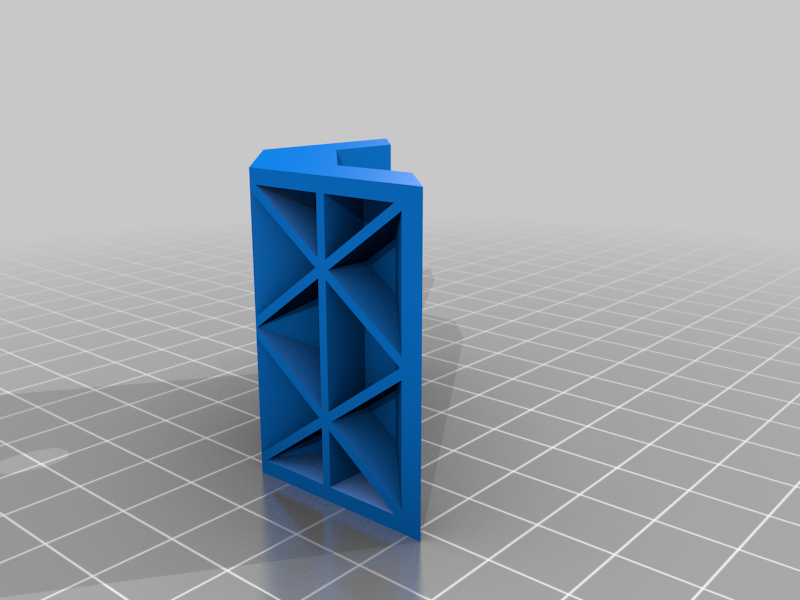

stlClamping_bar.stl
70 Ko · 4 353 téléchargements
-

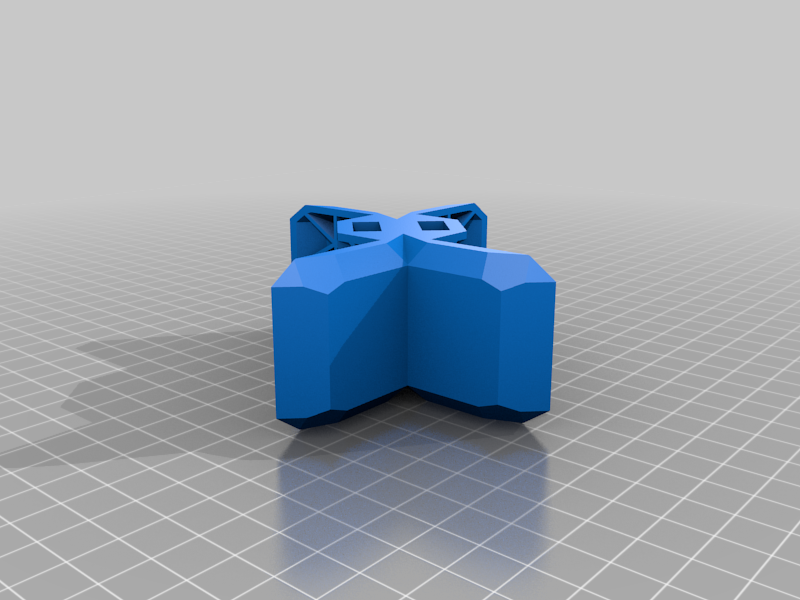

stlCross_connect.stl
155 Ko · 4 270 téléchargements
-

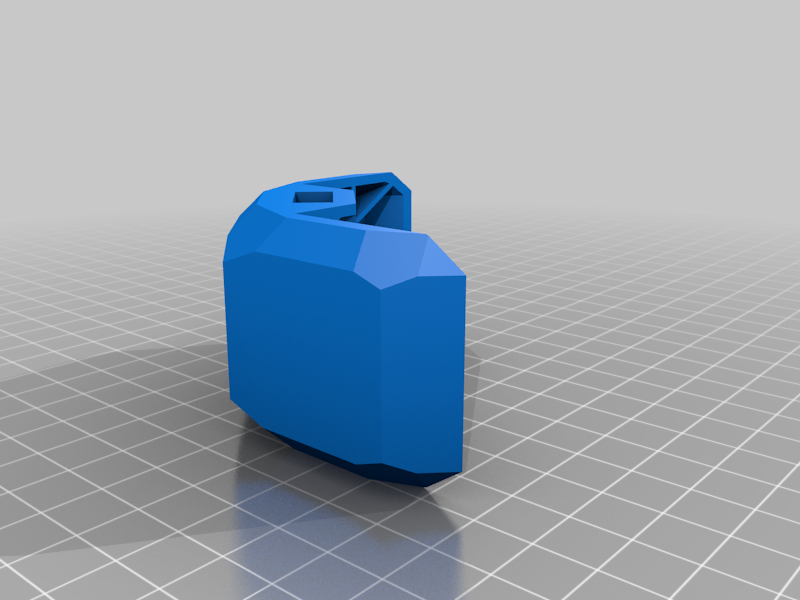

stl90_bracket.stl
101 Ko · 4 328 téléchargements
-

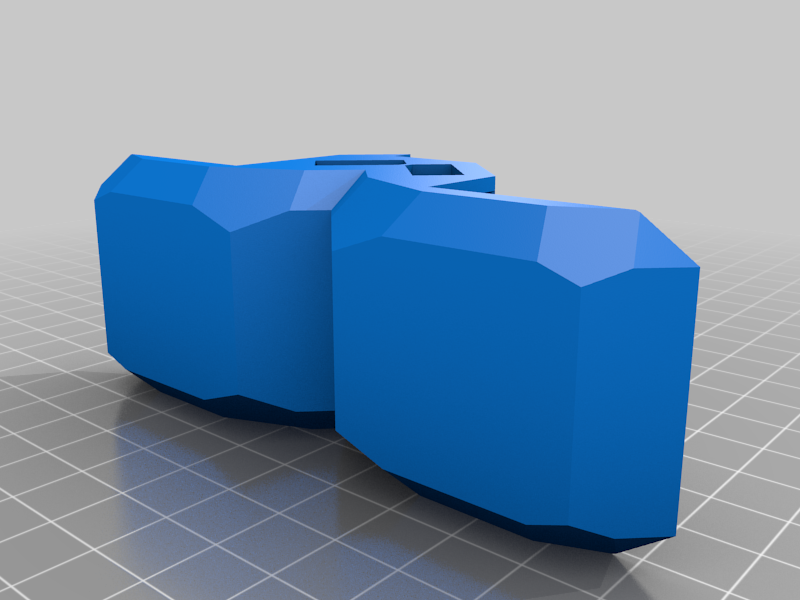

stlT-Shape.stl
148 Ko · 4 266 téléchargements
Description
Do you want to update your furniture, improve the layout without significant costs?
These are universal connectors that will allow you to assemble modular furniture of various shapes. You will be limited only by your imagination. The advantage of a modular system is that you can change the shape at any time. You can always add or remove one or more sections.
Shelf, rack, cabinet, coffee table, bookcase, playpen, etc. all can be easily assembled. And if necessary (for example, when moving) just as easy to disassemble.
You will need:
- panels wood or MDF or OSB or bilaminated from 16mm to 22mm thickness (optimal 18 mm)
- countersunk Head Screws M8 x 30 mm DIN 7991 / ISO 10642 hexagon socket and hex nuts M8
