Rope Pull with Bracket
par jjrchaps
Fichiers imprimables (3)
-
stlRope_Pull_Handle.stl
478 Ko · 295 téléchargements
-

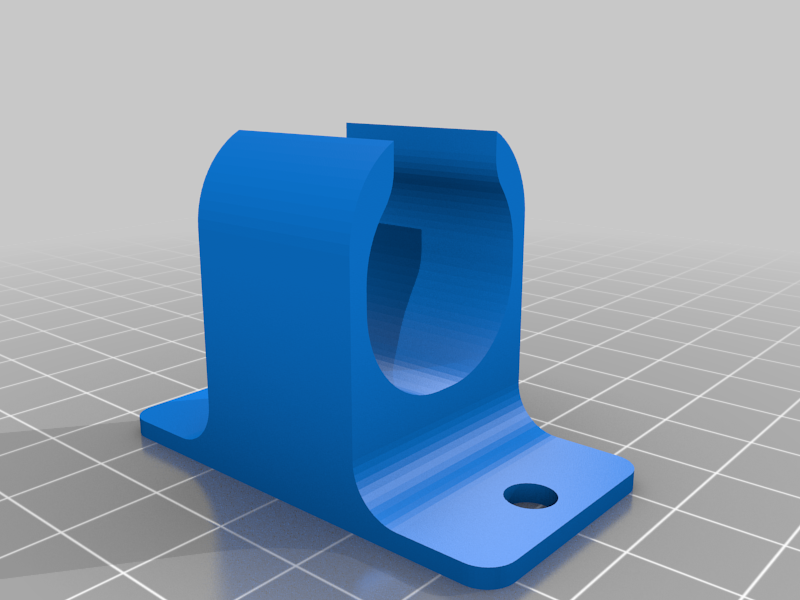

stlRope_Pull_Bracket.stl
46 Ko · 229 téléchargements
-
stlRope_Pull_Handle_Big_Hole.stl
445 Ko · 178 téléchargements
Description
General utility rope pull with wall bracket. I'm using it with a pulley system that opens a garbage bin lid, but can be used anywhere.
Insert the rope through the tip of the handle, and tie a knot at the bottom to stop it from sliding of the rope (knot can come to rest inside of handle for a clean look). The bracket isn't necessary, but I use it to stop the handle from blowing around in the wind.
May 10, 2021: Added handle with bigger hole for thicker ropes.
