Infinity Mirror

Simple Description
12" Square Infinity Mirror

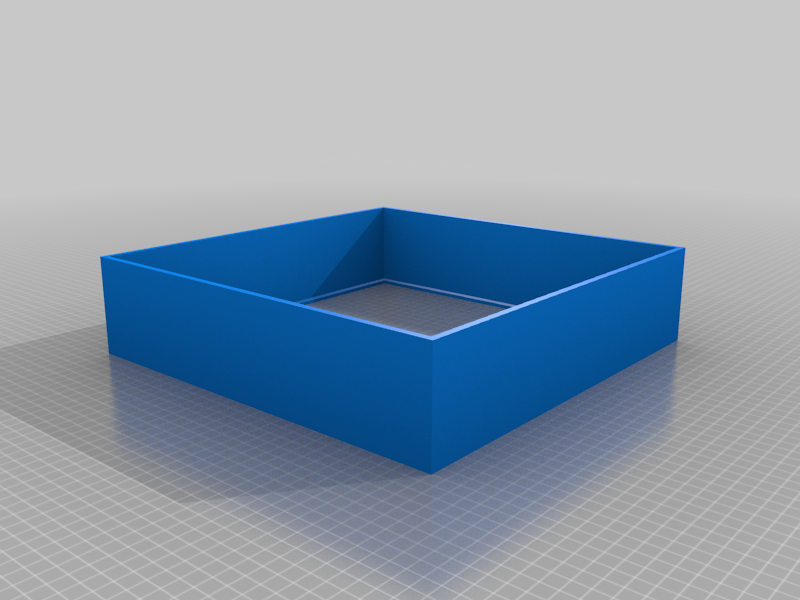

Frame Thin 12.5" x 12.5" x 3"

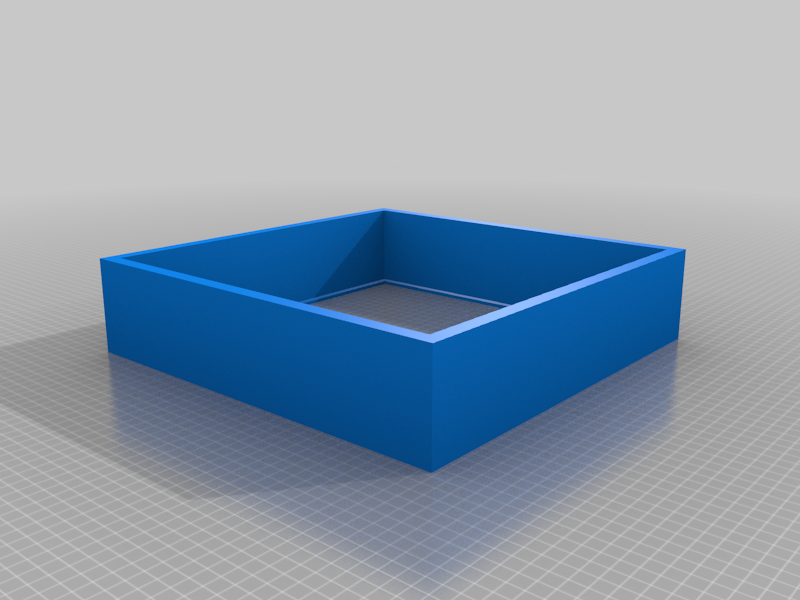

Frame Thick 13" x 13" x 3"
Uses an ESP8266, 72x WS2812 (60px/m) Pixels, and WLED

Power Requirements
5V, 4.5A, 22W for full white at full brightness.
Works just fine at 5V, 2A, 10W
Can be powered by USB through the ESP8266 (not recommended, but it works)

Helpful Links
(https://www.youtube.com/results?search_query=esp+home+flasher+wled)
(https://learn.adafruit.com/adafruit-neopixel-uberguide/best-practices)

Downloads
WLED - https://github.com/Aircoookie/WLED
Esp Home Flasher - https://github.com/esphome/esphome-flasher

Shopping list:

Esp8266 - https://www.amazon.com/dp/B081CSJV2V?psc=1&ref=ppx_yo2_dt_b_product_details

WS2812 (60px/m) 72px total - https://www.amazon.com/BTF-LIGHTING-Flexible-Individually-Addressable-Non-waterproof/dp/B01CDTEJBG?ref_=ast_sto_dp&th=1

Power Supply - https://www.amazon.com/JOVNO-Converter-Transformer-100-240V-5-5x2-5mm/dp/B08762BC1K/ref=sr_1_3?crid=WZQLHZW11GL5&dchild=1&keywords=5a+5v+power+supply&qid=1620463344&refinements=p_72%3A1248879011&rnid=1248877011&s=electronics&sprefix=5a+5v%2Caps%2C213&sr=1-3

12" Mirror - https://www.ikea.com/us/en/p/lots-mirror-40507262/ https://www.homedepot.com/p/Glacier-Bay-12-in-W-x-12-in-H-Frameless-Square-Flush-Mount-Bathroom-Vanity-Mirror-in-Silver-81175/205513215

12" Acrylic - https://www.amazon.com/dp/B08NVWHGQ2?psc=1&ref=ppx_yo2_dt_b_product_details

12" x 36" Glass (Optional, need to cut) - https://www.homedepot.com/p/12-in-x-36-in-x-0-094-in-Clear-Glass-91236/300068351

Film - https://www.amazon.com/RABBITGOO-Removable-Decorative-Control-Privacy/dp/B07BMLCWR8/ref=sr_1_15?dchild=1&keywords=window+film&qid=1620461637&sr=8-15

Filament - https://www.amazon.com/dp/B00ZAUQZTA?psc=1&ref=ppx_yo2_dt_b_product_details
