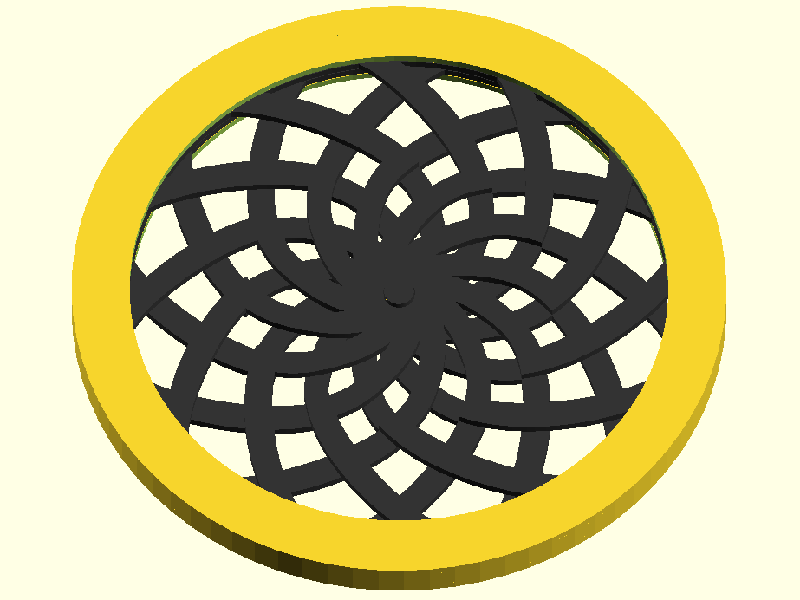

Moiré - Interference wheel
par gaellafond
Fichiers imprimables (4)
-

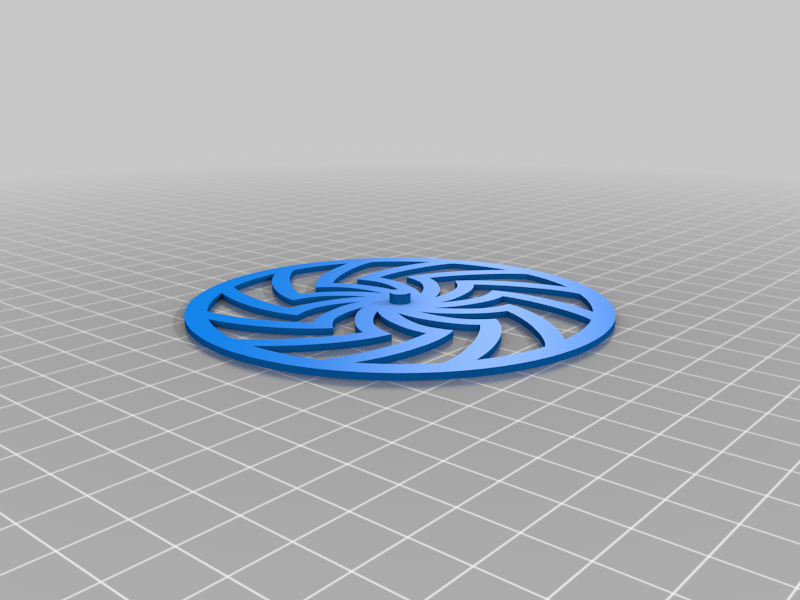

stlinterference-wheel_bottom.stl
1.8 Mo · 366 téléchargements
-

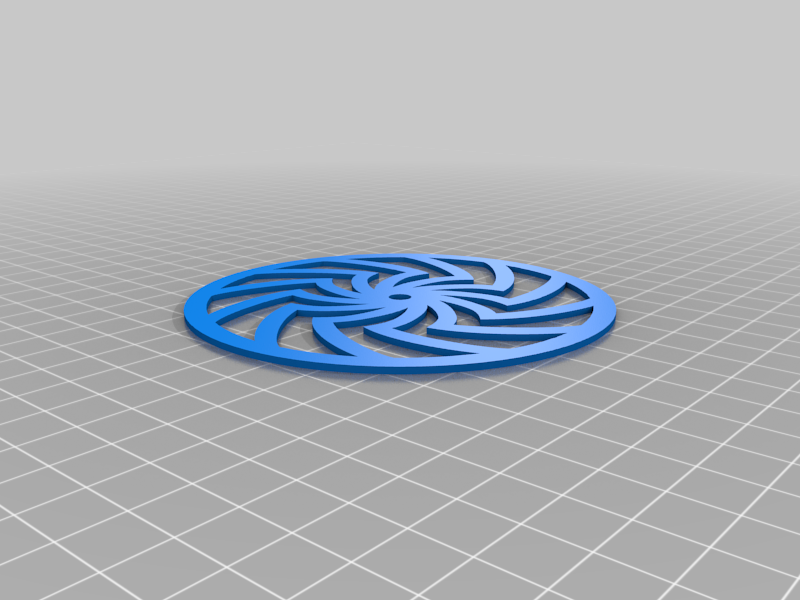

stlinterference-wheel_top.stl
1.8 Mo · 365 téléchargements
-

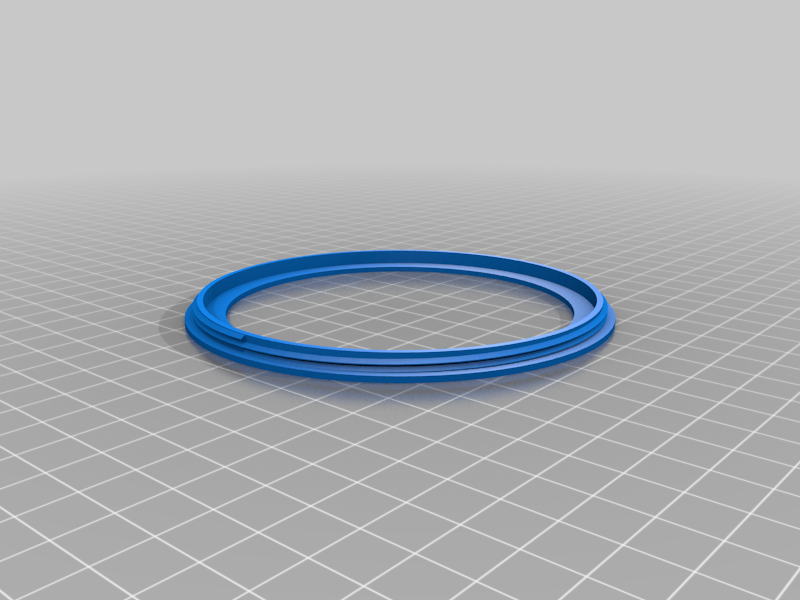

stlinterference-wheel_box-bottom.stl
932 Ko · 342 téléchargements
-

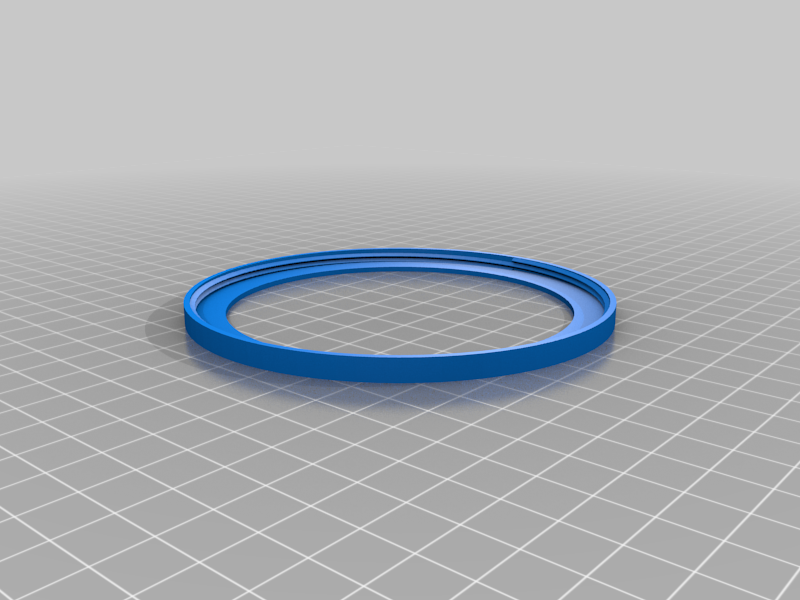

stlinterference-wheel_box-top.stl
1 Mo · 339 téléchargements
Description
I had this idea while watching this video:
https://youtu.be/zIAT1Z8z-24?t=98
The effect is very interesting and I though it would be easy to reproduce using OpenSCAD.
The frame (aka "box") is optional.
[2021-05-31] Doubled the clearance of the frame (aka box) to facilitate movement of the wheel, increased threads clearance.
