ESP32 Protoboard

par nicopetru

Fichiers imprimables (2)

  • stl

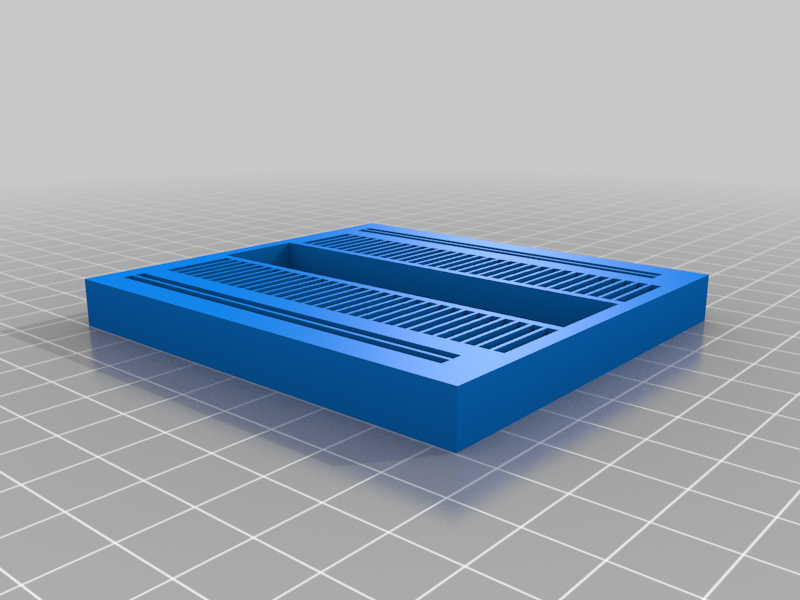

    ESP32_protoboard.stl

    684 Ko · 293 téléchargements

  • stl

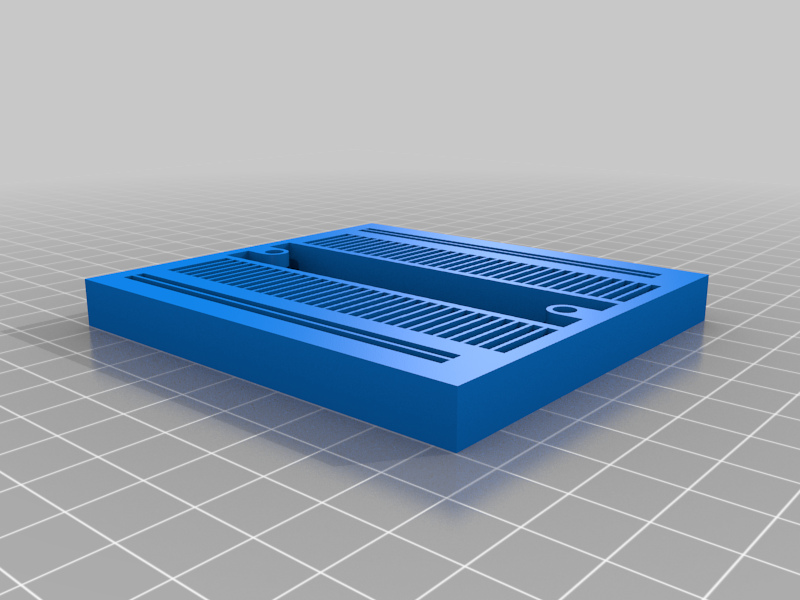

    ESP32_protoboard_with_holes.stl

    708 Ko · 270 téléchargements

Description

Since I have the ESP32 and try to build circuits I have problems because I only have one free space left to connect to the standard breadboard. So I decided to make a version so that this plate is in the first column and free up space.
On the internet I did not find the connectors used in breadboards, so I disassembled one to use them.

Printing:

The file with holes needs supports.


Desde que tengo el ESP32 e intento armar circuitos tengo problemas porque solo me queda un solo espacio libre para conectar en el protoboard standard. Por eso dedicí hacer una versión para que esta placa quede en la primer columna y libere espacio.
En internet no encontré los conectores que se usan en los protoboards, por eso desarme uno para usarlos.

Para imprimir:

El archivo con agujeros necesita soportes.
