Drill Bit Depth Stop (Customizable Remix)
par jdegenstein
Fichiers imprimables (17)
-
stl3_mm_drill_stop.stl
745 Ko · 545 téléchargements
-
stl4_mm_drill_stop.stl
766 Ko · 550 téléchargements
-
stl5_mm_drill_stop.stl
777 Ko · 558 téléchargements
-
stl6_mm_drill_stop.stl
787 Ko · 553 téléchargements
-
stl7_mm_drill_stop.stl
789 Ko · 529 téléchargements
-
stl8_mm_drill_stop.stl
792 Ko · 571 téléchargements
-
stl9_mm_drill_stop.stl
789 Ko · 530 téléchargements
-
stl10_mm_drill_stop.stl
793 Ko · 547 téléchargements
-
stl11_mm_drill_stop.stl
797 Ko · 526 téléchargements
-
stl12_mm_drill_stop.stl
807 Ko · 529 téléchargements
-
stl13_mm_drill_stop.stl
804 Ko · 527 téléchargements
-
stl14_mm_drill_stop.stl
805 Ko · 523 téléchargements
-
stl15_mm_drill_stop.stl
810 Ko · 529 téléchargements
-
stl0.125_in_drill_stop.stl
750 Ko · 511 téléchargements
-
stl0.25_in_drill_stop.stl
787 Ko · 512 téléchargements
-
stl0.375_in_drill_stop.stl
793 Ko · 512 téléchargements
-
stl0.5_in_drill_stop.stl
805 Ko · 517 téléchargements
Description
Wanted a fully customizable version of the really nice thing:4861011. This version was redesigned from the ground up using CadQuery (2.1) in CQ-editor (0.2). The source code is included as cq_drill_depth_stop.py. CadQuery is similar to OpenSCAD but runs on top of python and has some very powerful features.
You can customize the shape on CadHub.xyz at this direct link without installing anything:
Direct Link to Code @ CadHub.xyz
CQ-editor (which is precompiled, static, and available for multiple platforms) can be downloaded from here:
https://github.com/CadQuery/CQ-editor/releases
Thanks Jack for design ideas/suggestions!
Here are the changes in this version:
- Redesigned in CadQuery and included source code
- Made as parametric as possible based on drill bit diameter

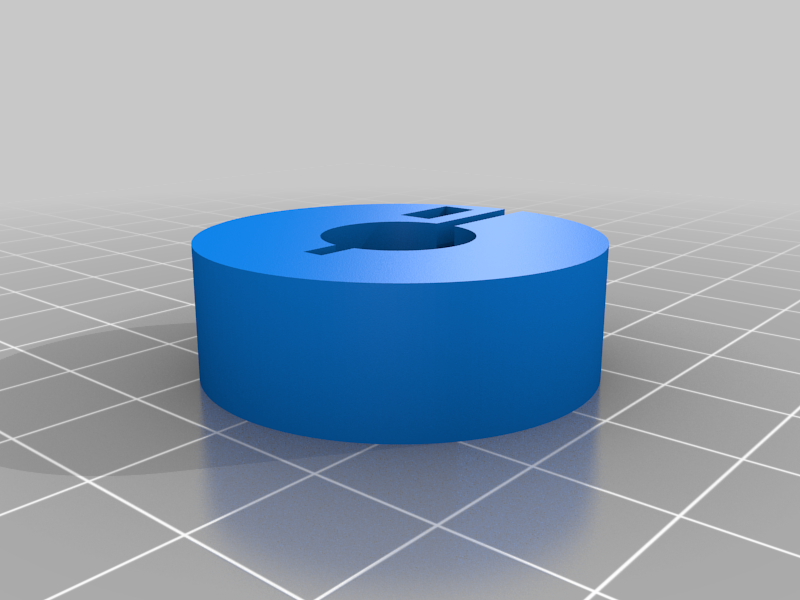

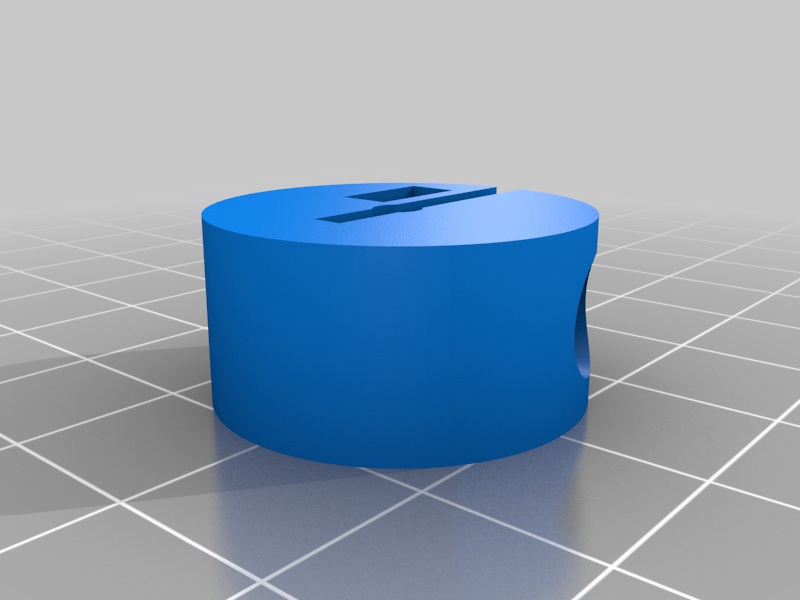

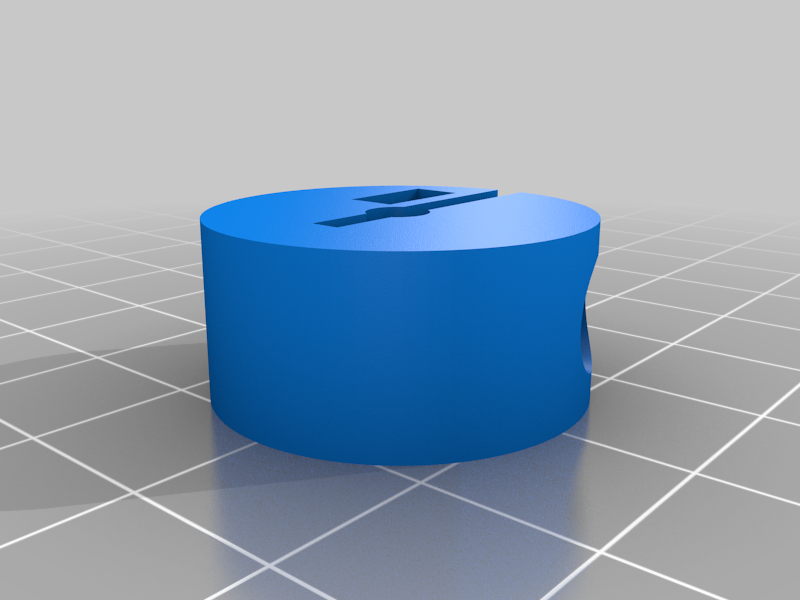

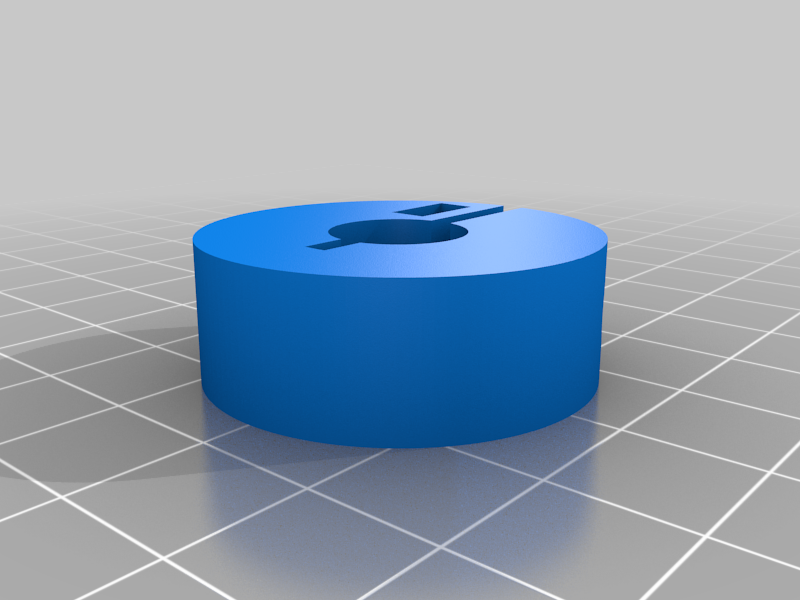

- Included 3mm to 15mm drill bit sizes in 1mm increments (the beauty of CadQuery)
- Included imperial 1/8" to 1/2" in 1/8" increments (4 total)
- Uses M4 bolt and M4 hex nut (instead of square, because this is what I have on hand)
- M4 hardware is used across all sizes and both metric and imperial versions
