Copy stand
par frank1927
Fichiers imprimables (3)
-

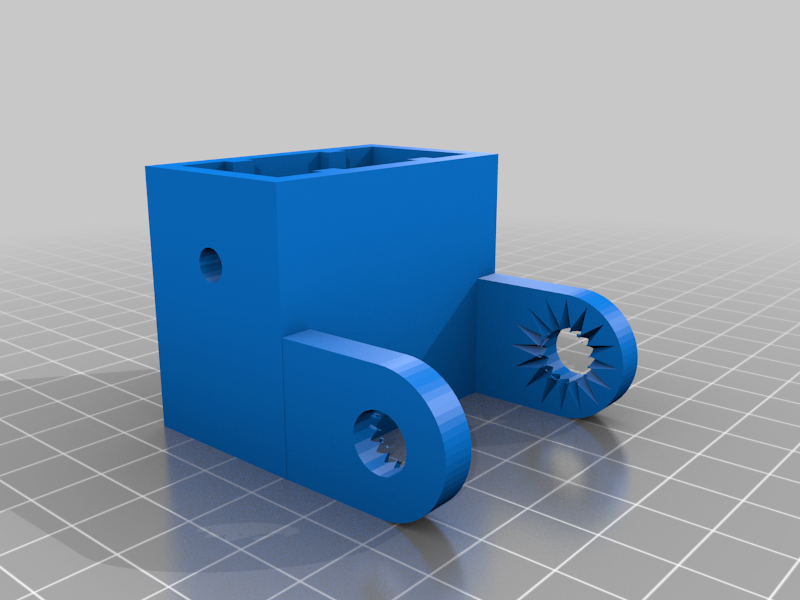

stl20x40_mount4.stl
922 Ko · 173 téléchargements
-

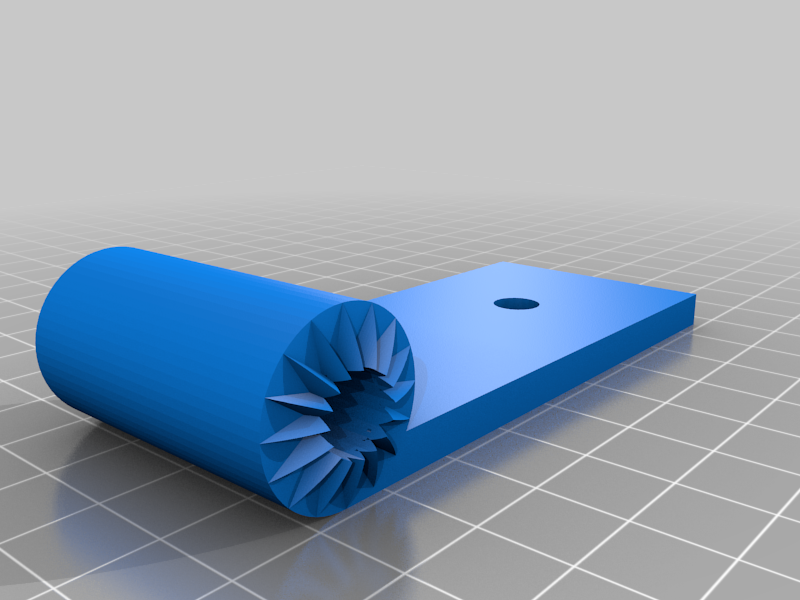

stl20x40_mount3.stl
1.1 Mo · 840 téléchargements
-

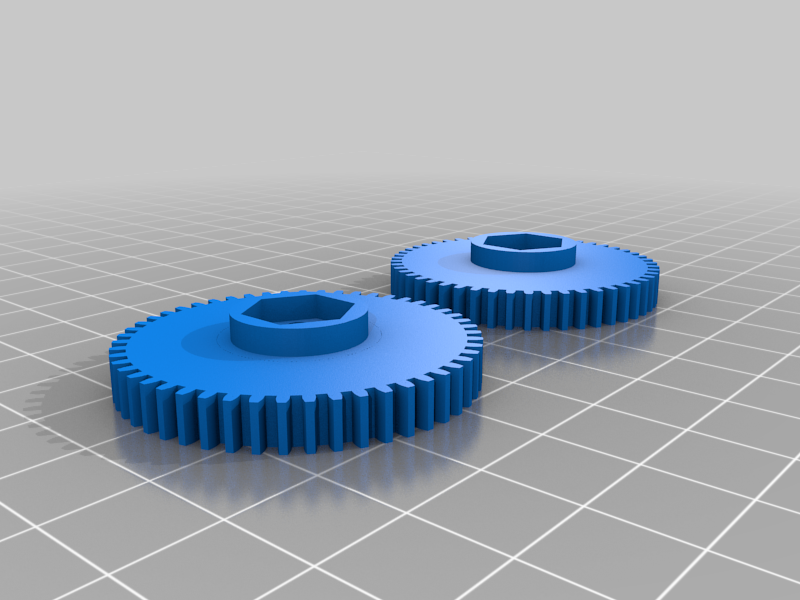

stl1_4_20_knob2.stl
2.6 Mo · 838 téléchargements
Description
I wanted a copy stand to digitize film. So I made one.
Stuff to get:
3 12" 20x20 v-slot extrusions
1 12" 20x40 v-slot extrusion
4 double corner brackets
18 m4 cap screws and v-nuts
1 1/4 20 bolt (2 1/2")
1 1/4 20 bolt (3/4)
1 1/4 20 nut
The thumb wheels are purposely very tight. I used my vice to press fit the nut and bolts.
Assembly is pretty straight forward, just look at pics.
lightboard can be found here;
https://www.amazon.com/gp/product/B08CXX3GXS/ref=ppx_yo_dt_b_asin_title_o08_s00?ie=UTF8&psc=1
for fine focus macro attach one of these
https://www.amazon.com/gp/product/B07FSKRRX9/ref=ppx_yo_dt_b_asin_title_o00_s00?ie=UTF8&psc=1
