[NETA] customizable ceiling lamp

par spc

Fichiers imprimables (8)

Description

NETA is a customizable ceiling lamp to be used with G45 LED bulbs and E27 holders with a nut (around M10).

I printed with 0,6 mm nozzle at 0,3 mm layer height.

neta_shade - vase mode, bottom thickness 2 mm, print 3 pcs.

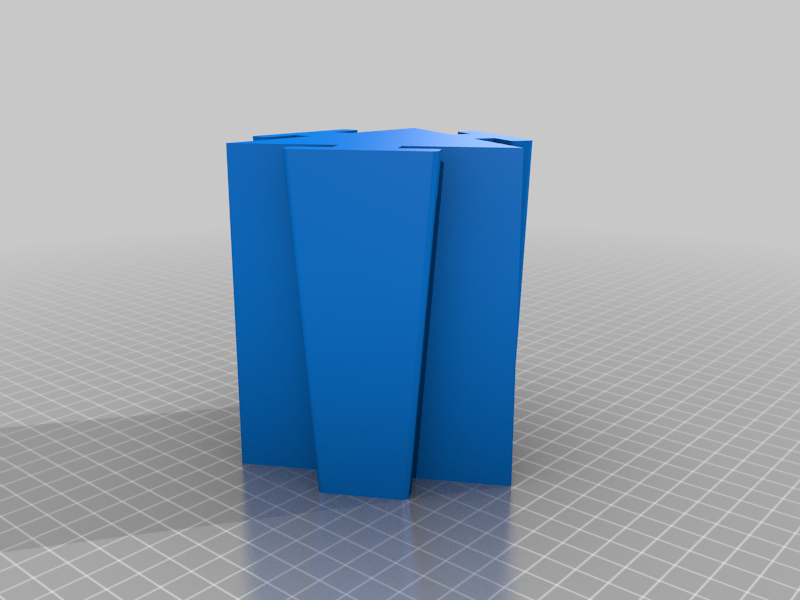

neta_hub_top - vase mode, bottom thickness 2 mm, print 1 pcs

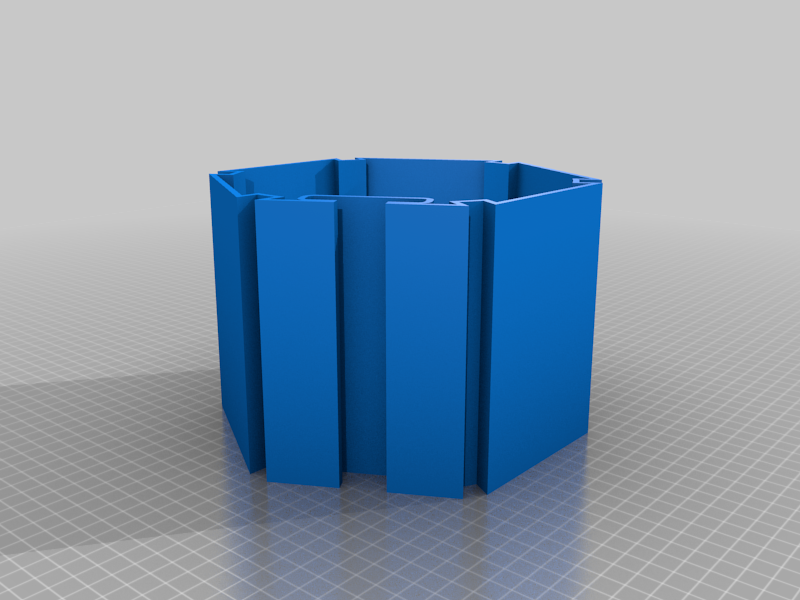

neta_reflect - vase mode, bottom thickness 0,6 mm, print 3 pcs.

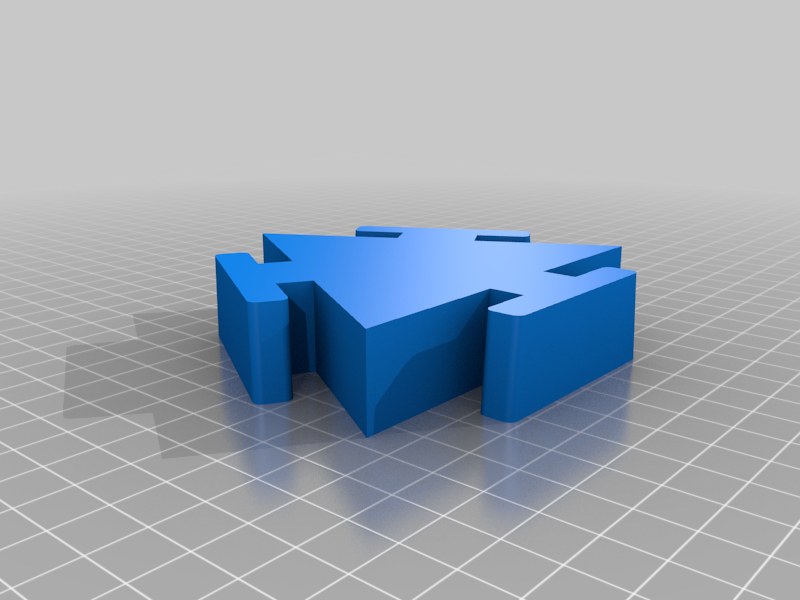

neta_hub_btm - 10-15% infill, print 1 pcs.

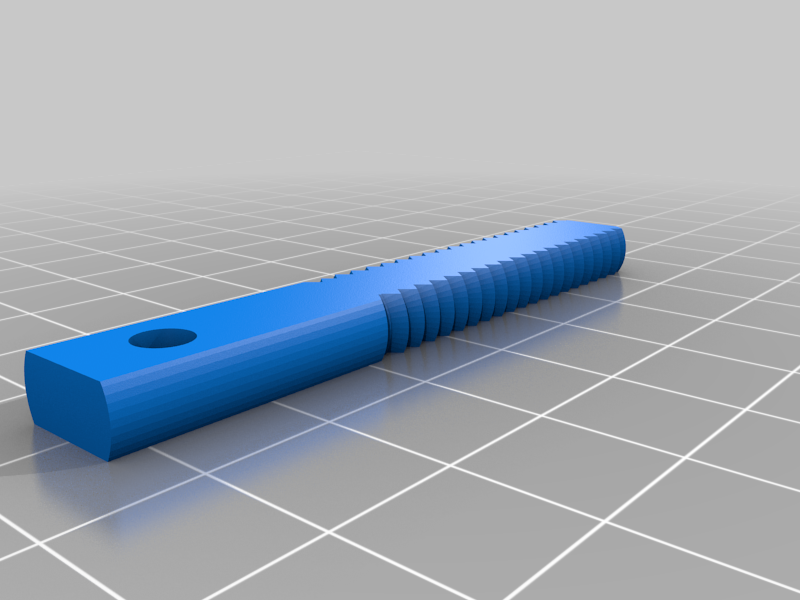

neta_rod - 30-35% infill, print 1 pcs, optional.

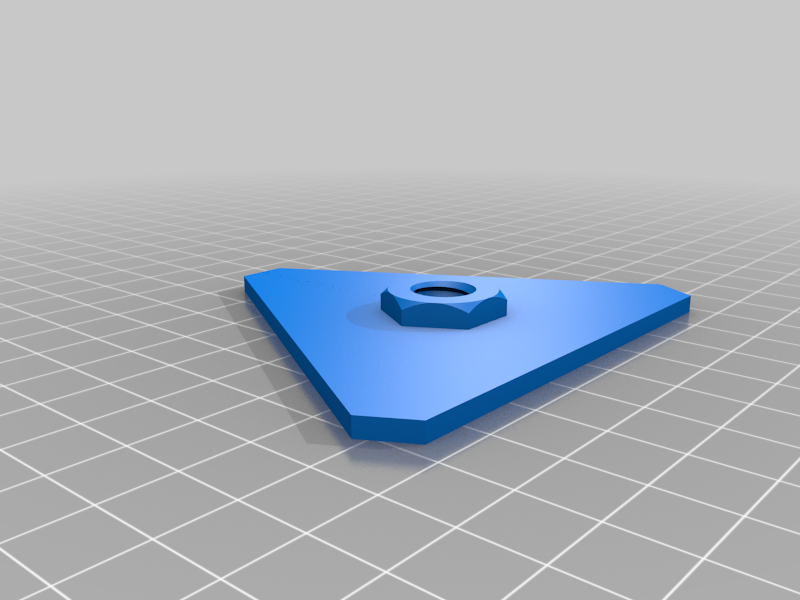

neta_nut - 30-35% infill, print 1 pcs, optional.

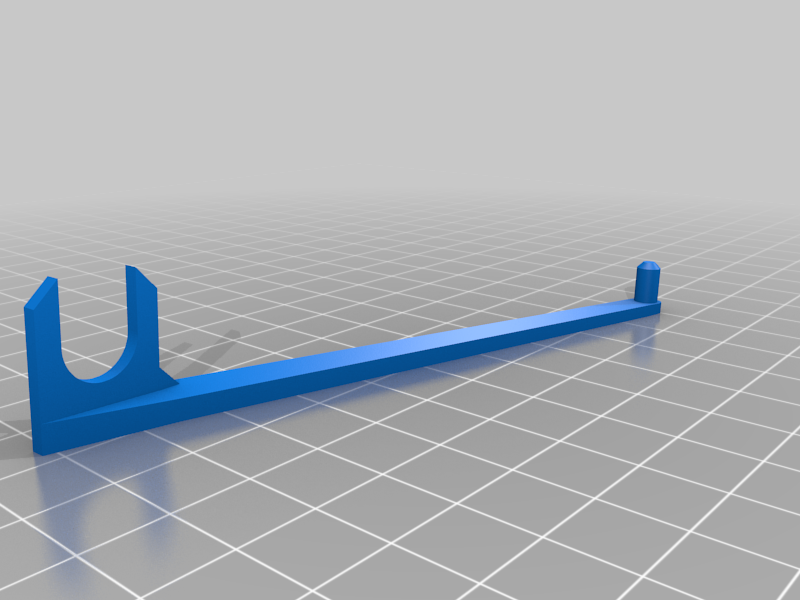

neta_sup_arm - 30-35% infill, print 3 pcs, optional.
neta_spacer - 30-35% infill, print 1 pcs, optional.

Ceiling mount is a custom and may not fit your needs, that is why its parts (neta_rod, neta_nut, neta_spacer, neta_sup_arm) are optional. You can design your own keeping in mind that neta_hub_top has 10 mm hole.

Insert neta_reflect upside down.

Please note that I printed NETA with 0,6 mm nozzle. I am not sure that clearance between parts will work for larger nozzles.

See video for details.
