Airbus FCU knobs
par ErikLiljeroth
Fichiers imprimables (4)
-
stlALT_over.stl
218 Ko · 493 téléchargements
-
stlHDG.stl
477 Ko · 501 téléchargements
-
stlALT_under.stl
385 Ko · 481 téléchargements
-
stlSPD_VS.stl
941 Ko · 490 téléchargements
Description
Designed the Airbus FCU knobs including:

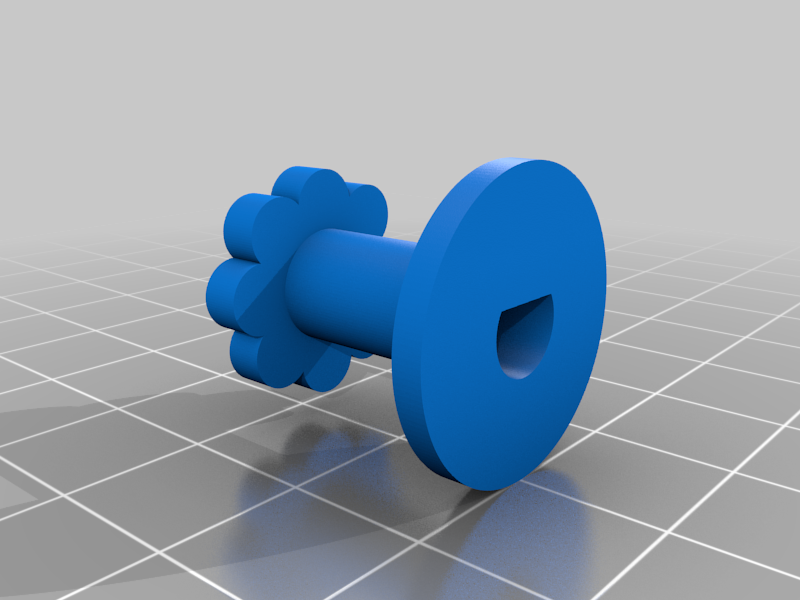

- Heading knob

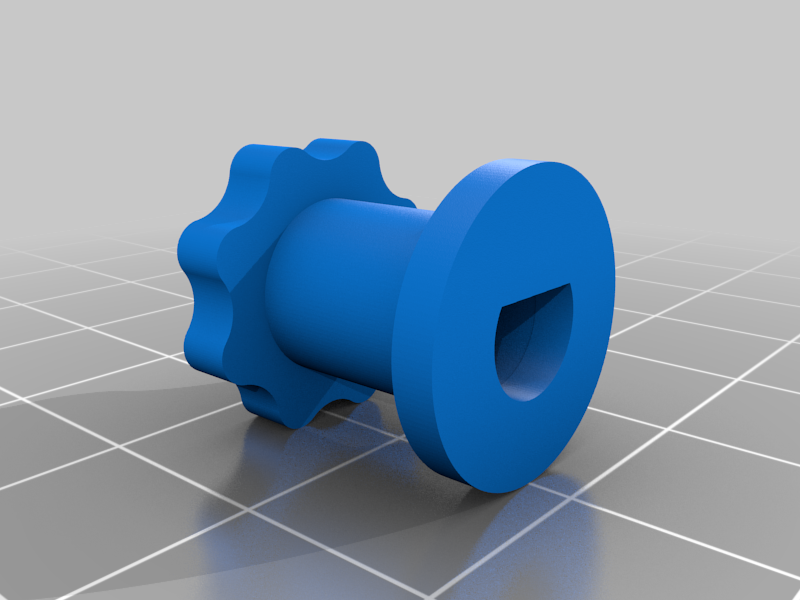

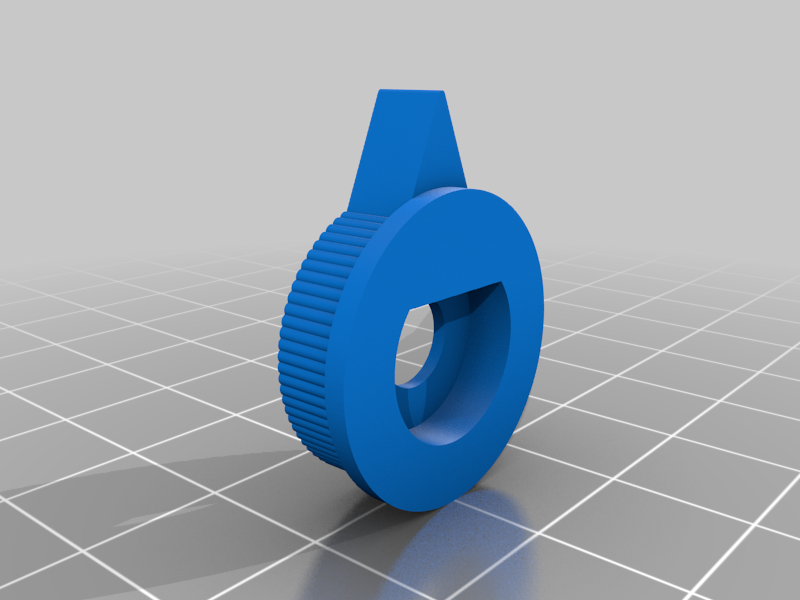

- Altitude knobs (lower for setting increment 100 or 1000, and the dial knob)

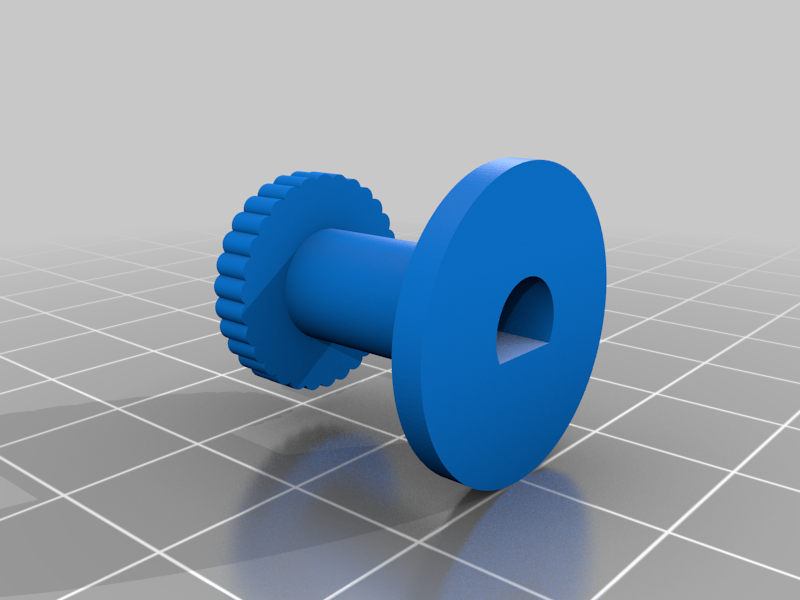

- Speed and V/S knob (identical, print two of them)
The dial knobs are designed to fit on a D-shaped axis with circular diameter 6mm. The lower "altitude increment" knob is designed to fit on a D-shaped axis with circular diameter 12mm.
