DJI Ground Unit
par macourteau
Fichiers imprimables (4)
-

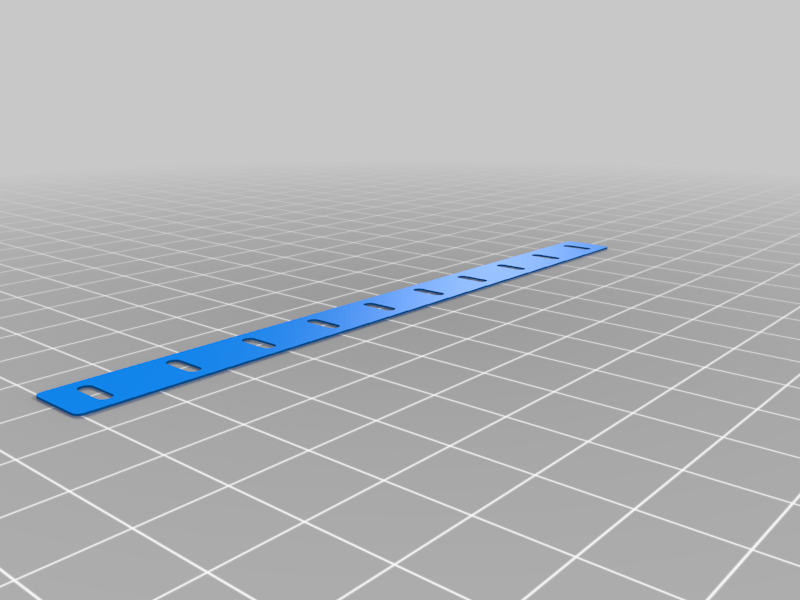

stlDJI_Air_Unit_holder_cable_puller.stl
84 Ko · 182 téléchargements
-

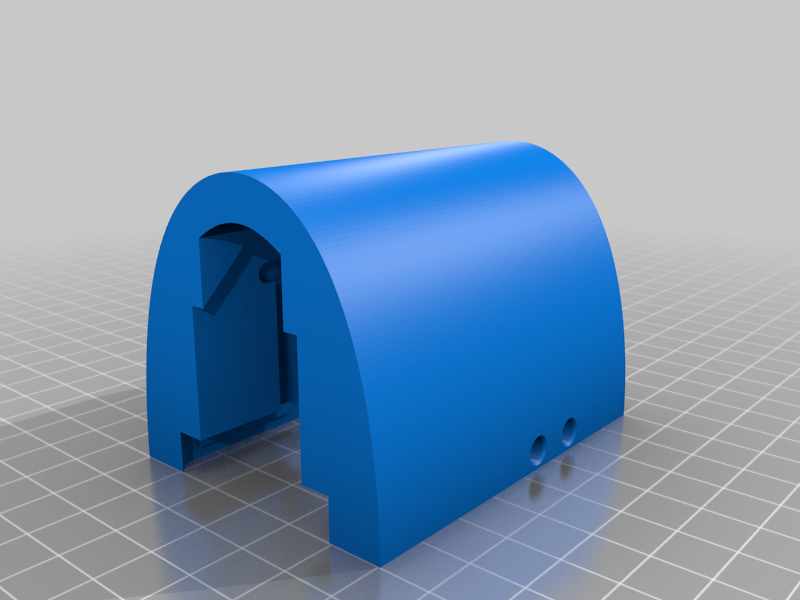

stlDJI_Air_Unit_holder_cover.stl
285 Ko · 184 téléchargements
-

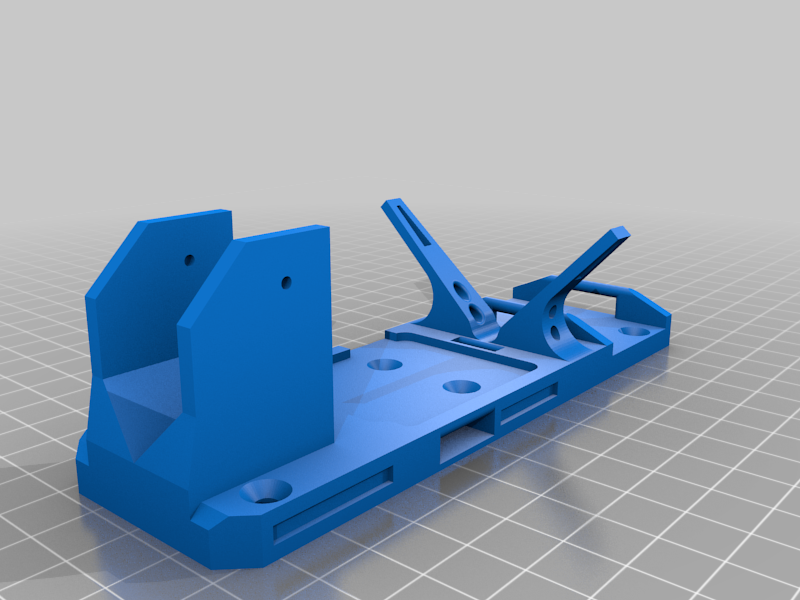

stlDJI_Air_Unit_holder.stl
686 Ko · 185 téléchargements
-

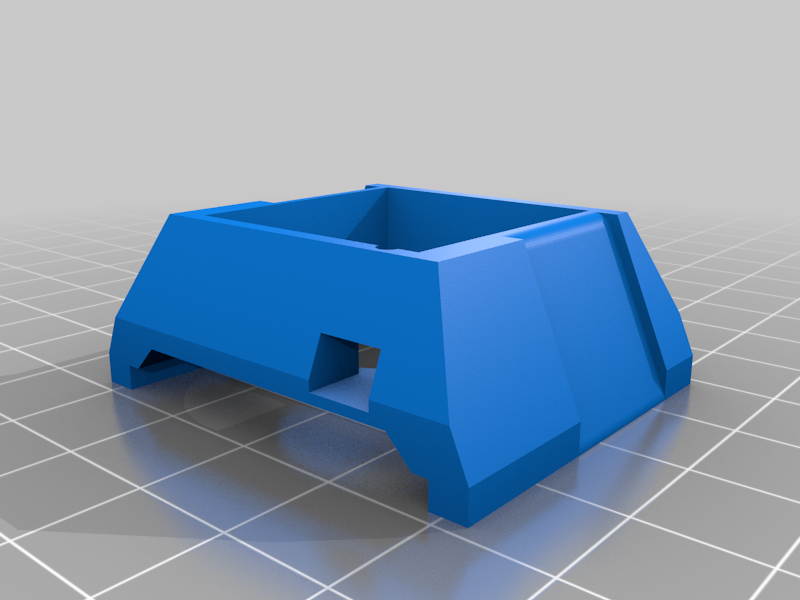

stlDJI_Air_Unit_fan_holder.stl
69 Ko · 188 téléchargements
Description
This is a remix of a few great things. It's a holder for a DJI Air Unit, for ground RC applications. A few of the changes from the originals:
- The fit of the air unit is tighter;
- There are countersunk holes for M3 screws to mount the holder;
- The antennas are 90 degrees apart;
- There is a channel to feed the electrical wires through (and a cable puller to pull the cables through the channel);
- There is a slot for a battery and a short strap;
- The 25mm fan holder's side hole is large enough for a PH2.0 connector.
(shown in the photos, mounted on a Tarmo4 with a modified battery box)
