Hackers MultiBench

par JohnJJG

Fichiers imprimables (4)

  • stl

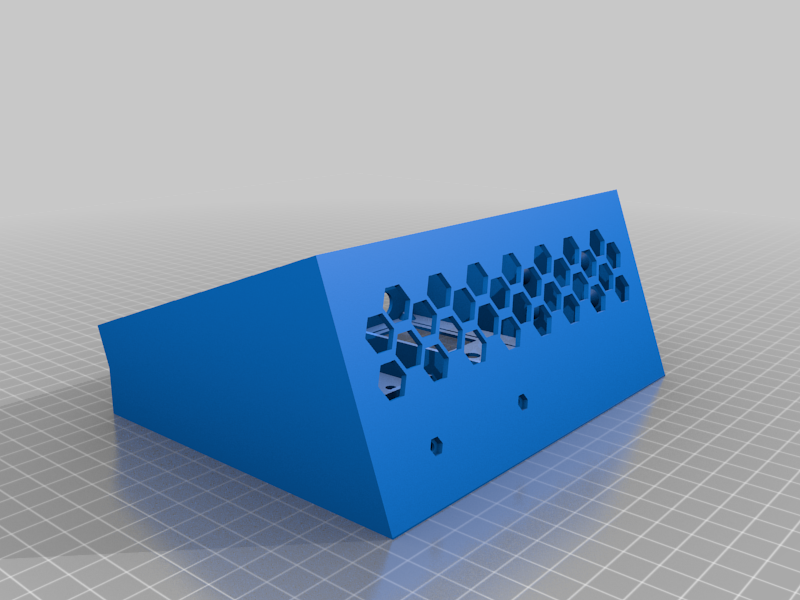

    MultiBench_Face.stl

    700 Ko · 320 téléchargements

    Télécharger
  • stl

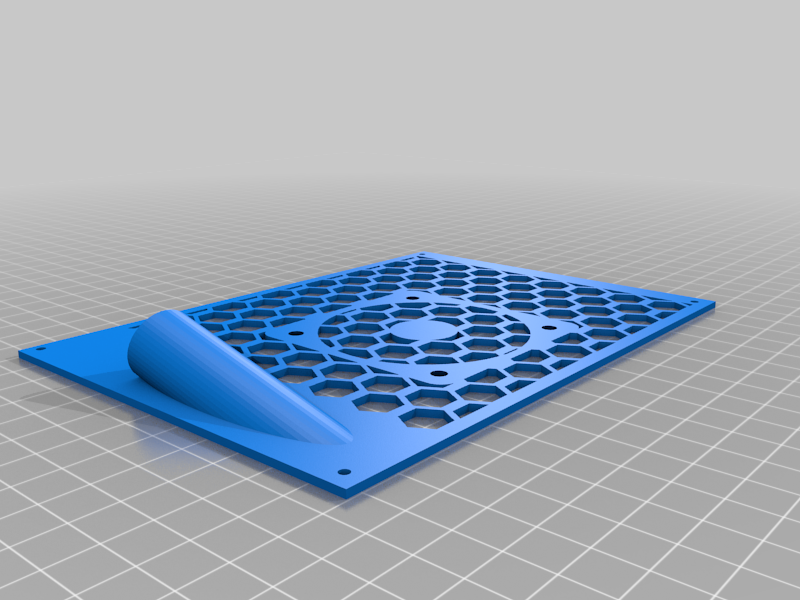

    MultiBench_Back_Jack.stl

    353 Ko · 106 téléchargements

    Télécharger
  • stl

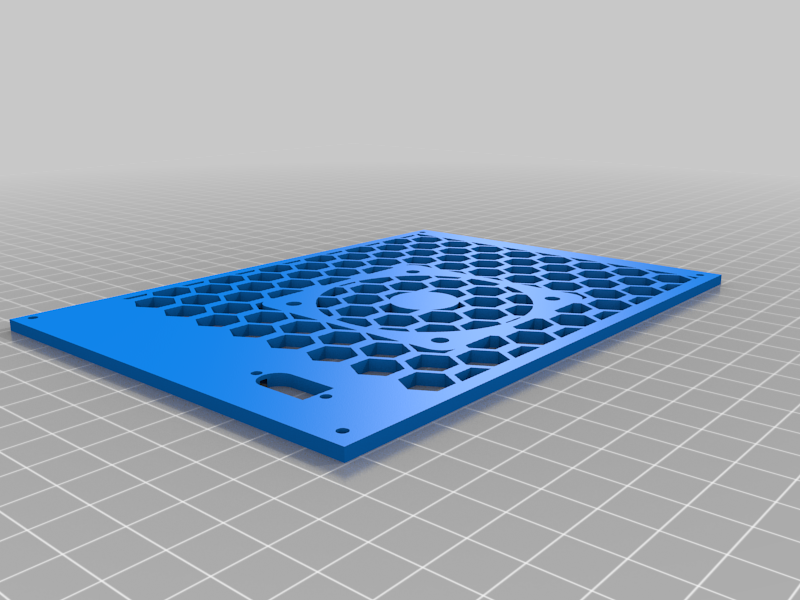

    MultiBench_Back.stl

    353 Ko · 312 téléchargements

    Télécharger
  • stl

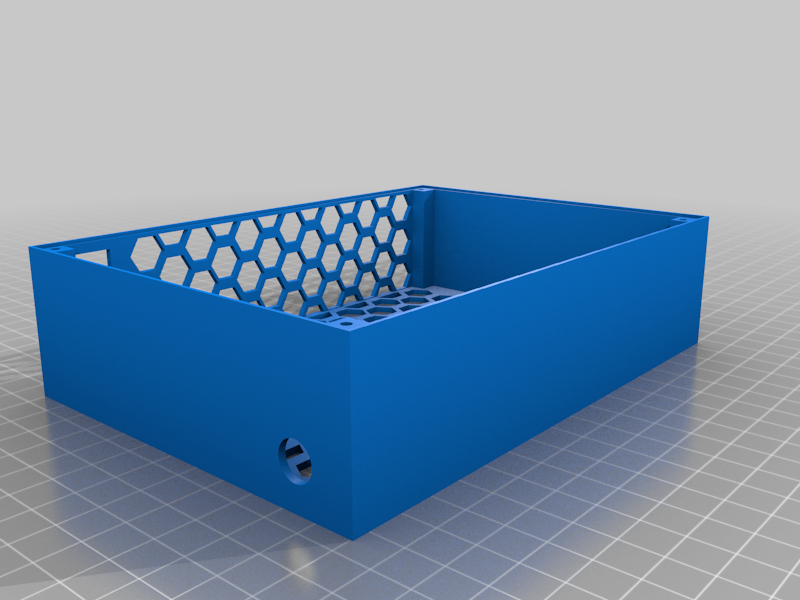

    MultiBench_PSU.stl

    381 Ko · 312 téléchargements

    Télécharger

Description

A one stop shop with fixed 5V/12V/24V/USB metered power, adjustable power supply, voltmeter, continuity tester and basic oscilloscope.

There is an accompanying article on Hackaday.io with the title Basic Hacker MultiBench.

https://hackaday.io/project/182016-basic-hacker-multibench

You can either power internally or externally. For an external power brick (24V 5A) just print out eh face and back with a jack. For internal swap the back and print out the extra PSU case
