Angle Measuring Tool
par johnyHV
Fichiers imprimables (4)
-

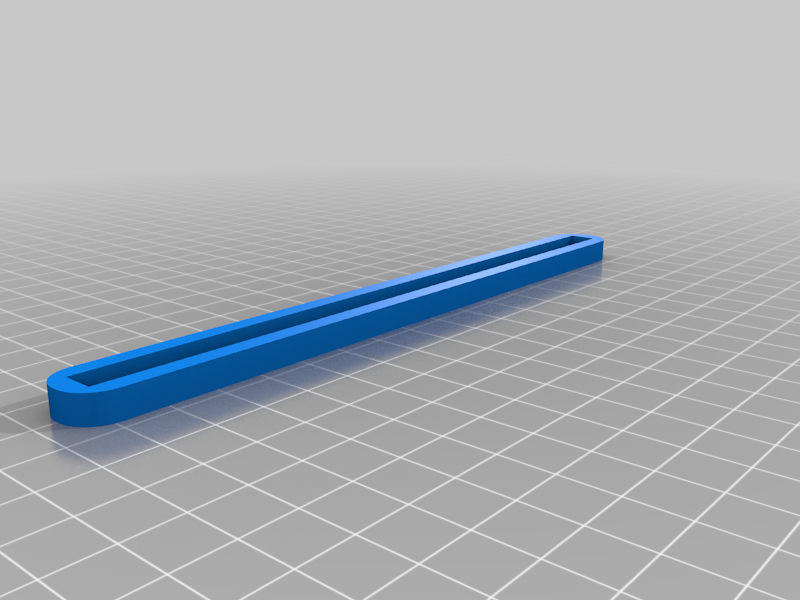

stlarm.stl
9 Ko · 467 téléchargements
-

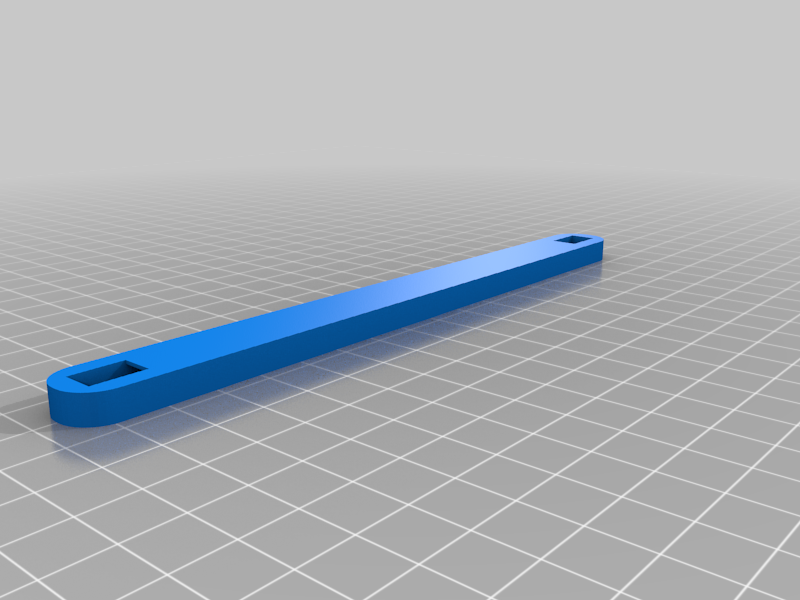

stlarm_screw.stl
10 Ko · 466 téléchargements
-

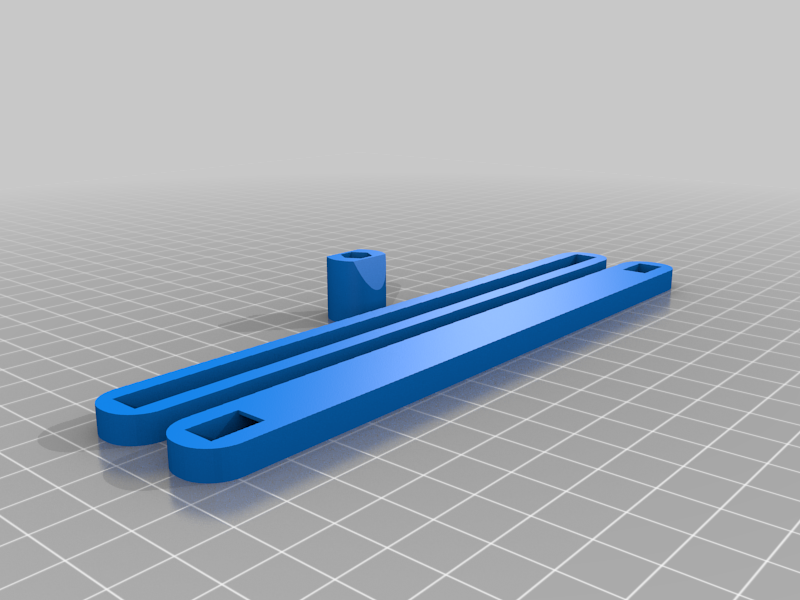

stlall.stl
70 Ko · 480 téléchargements
-

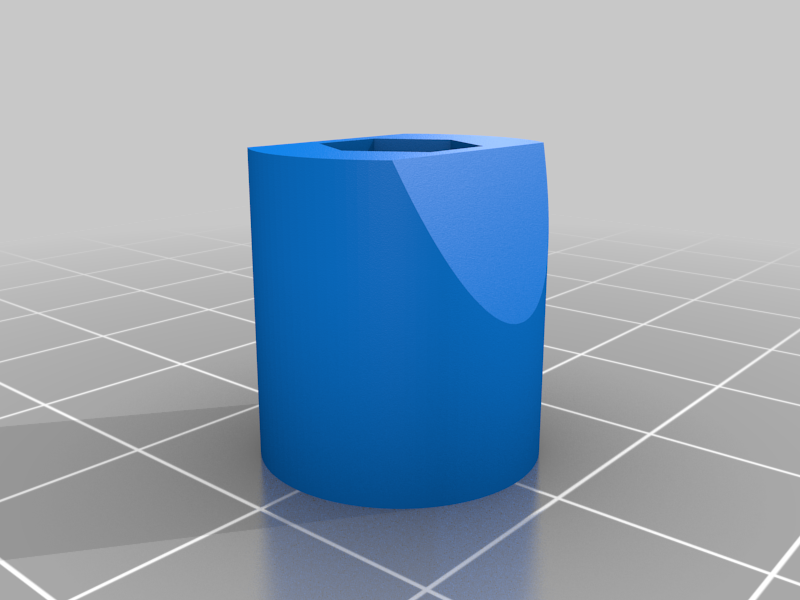

stlFastener_nut.stl
51 Ko · 471 téléchargements
Description
Angle Measuring Tool
The construction has been modified, which helped to better fix the position with the nut. The screw don't rotate around its axis when the position is fixed.
Print:
- 2x Arm_screw
- 2x Arm
- 3x Fastener_nut
Mechanical:
- Hex square screw M4x20
- M4 Nuts
No support required. PET-G, 0.4mm noze
