Description

Modular sorting case with removable storage boxes that lock into place when inside the box. The boxes fit into a grid pattern that is both on the bottom and in the lid which prevents the storage boxes from moving around and prevent them from "leaking" parts. This box design was inspired by Alexandre Chappel's Assortment case (https://www.alch.shop/shop/p/assortment-case) (https://www.youtube.com/watch?v=VntGnLuwoeY)

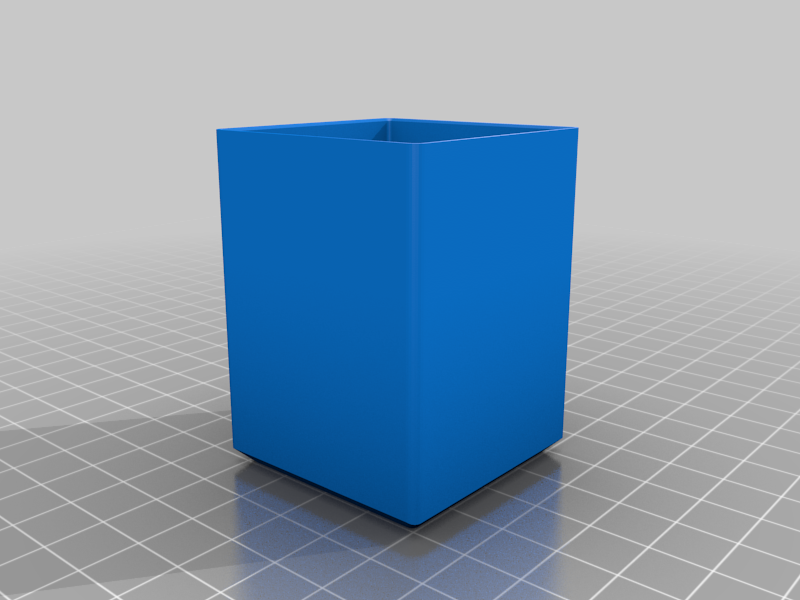

The boxes fit into a 45mm x 45mm grid array, and each size increments by 45mm. Every possible size for a box is provided. The internal volume of a 1x1 box is 42.1mm x 42.1mm x 57.8.

Total Required printer build volume to print: 230mm x 204mm

Printed Parts:

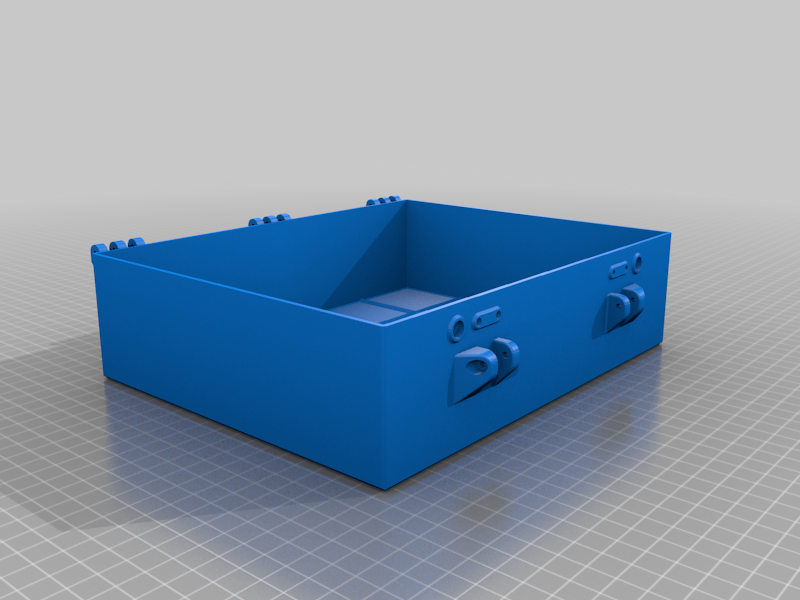

1x ModuCase5x4.stl

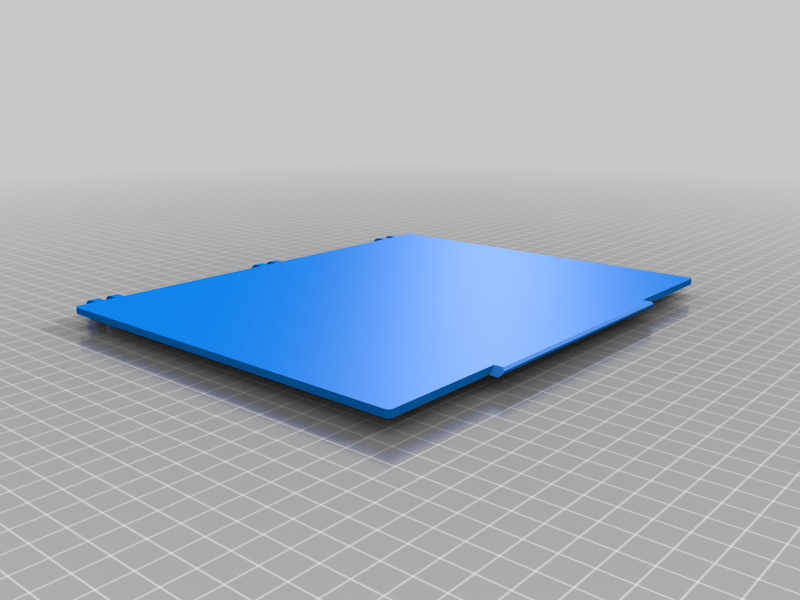

1x ModuCaseLid.stl

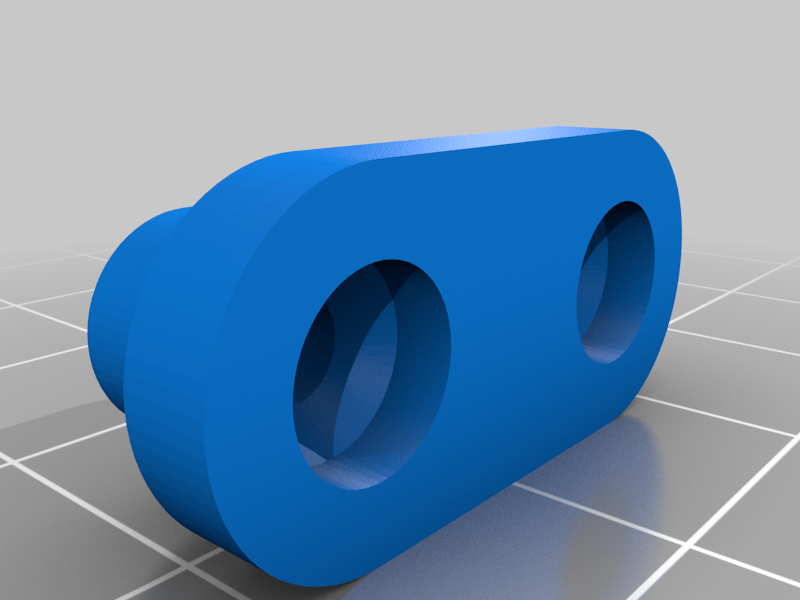

2x ModuSlideSlot.stl

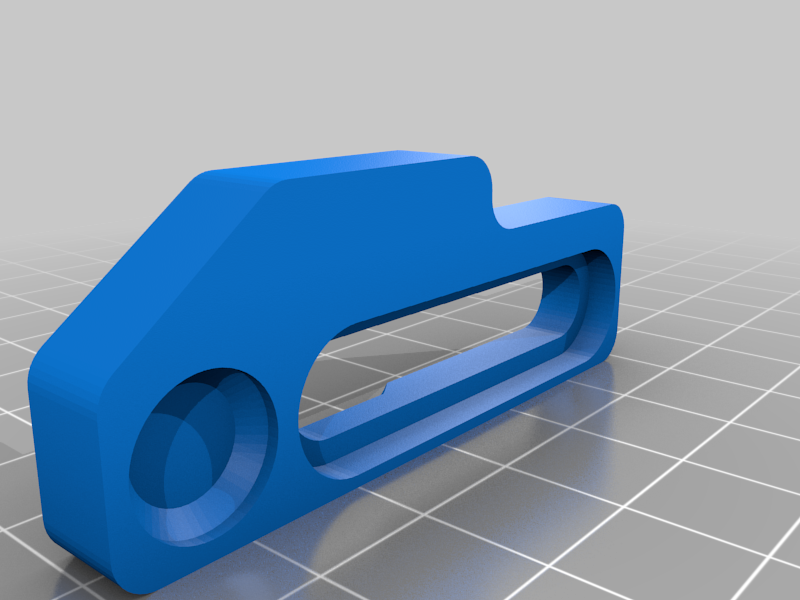

1x ModuSlide.stl (needs support, print larger slot opening down)
1x ModuSlide(Mirror).stl (needs support, print larger slot opening down)

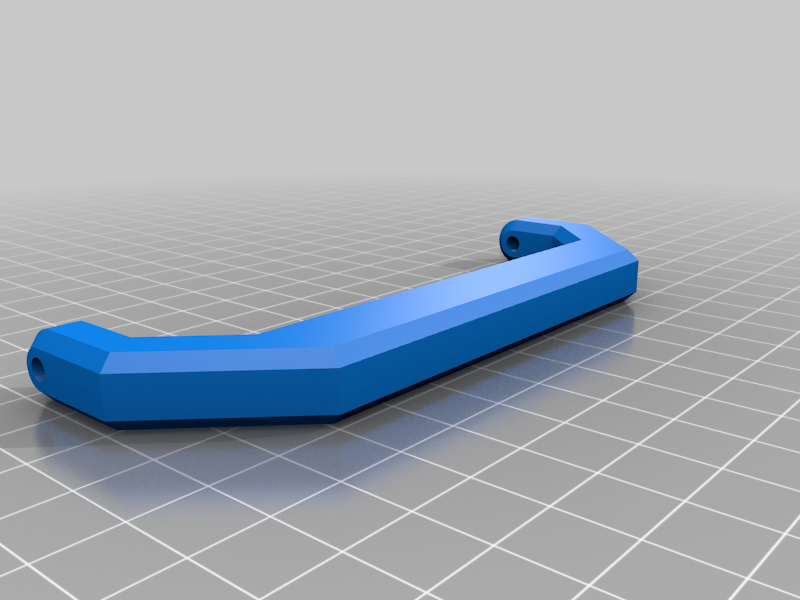

1x ModuHandle.stl

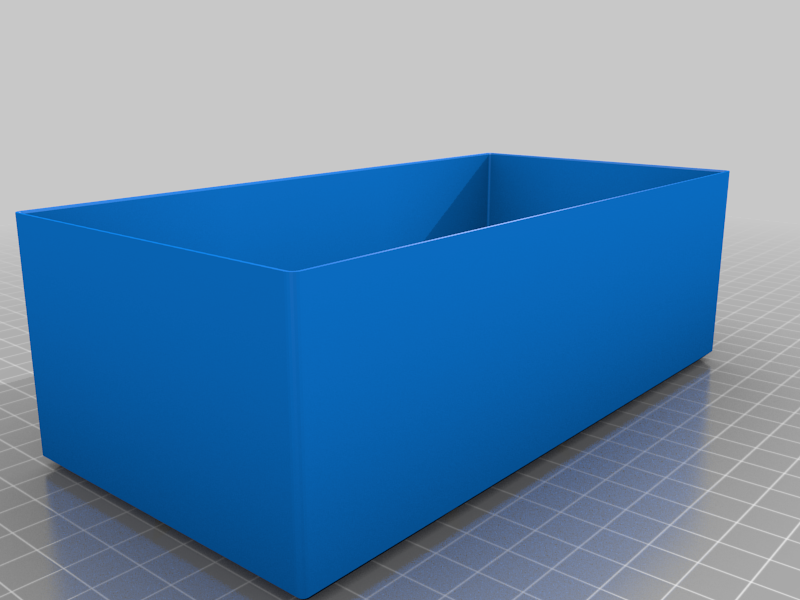

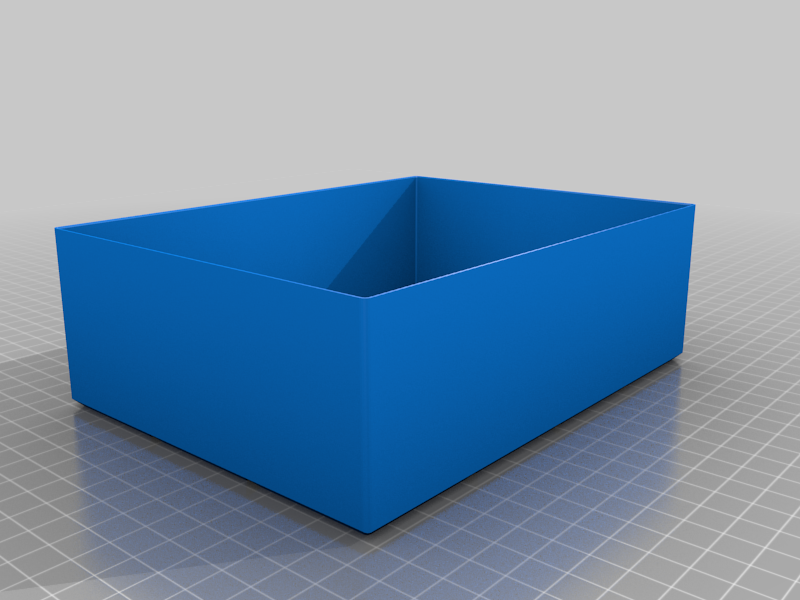

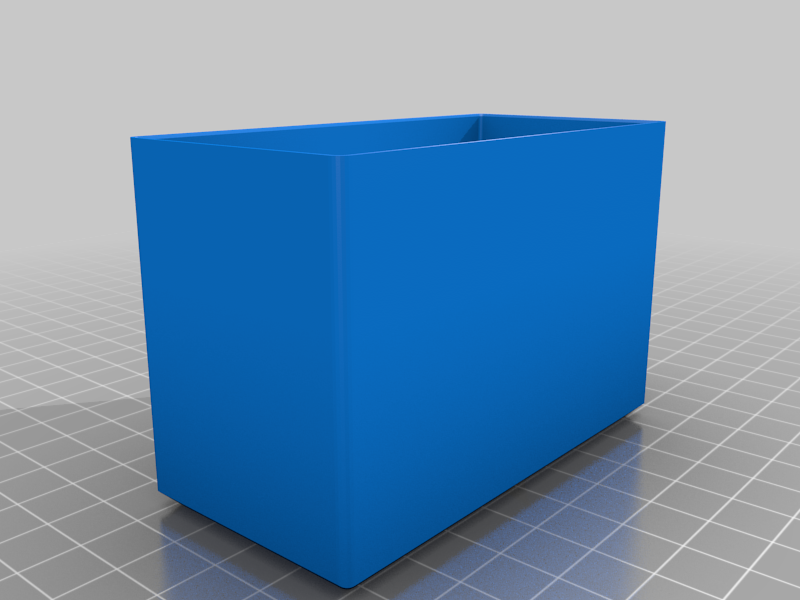

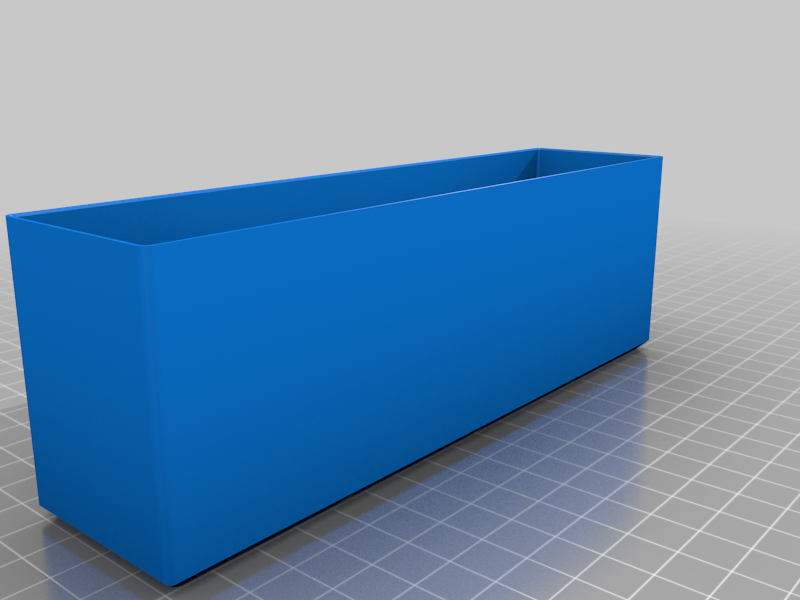

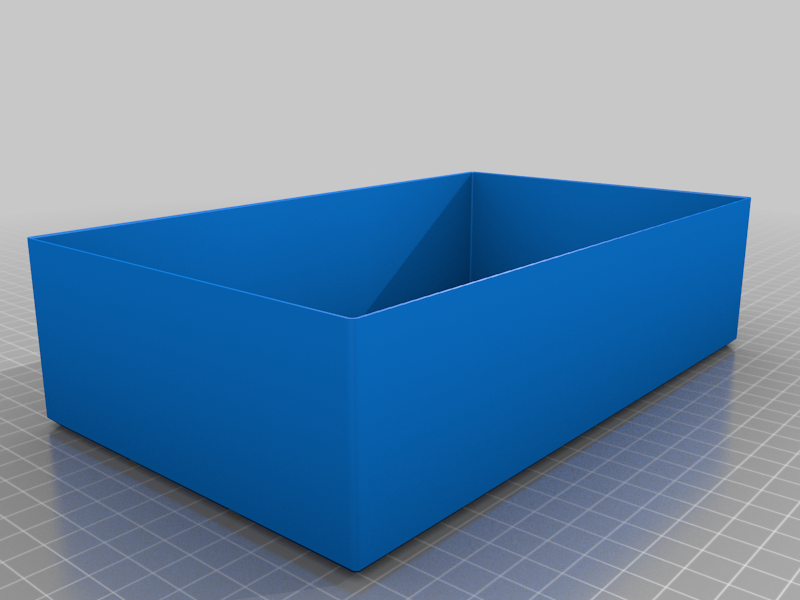

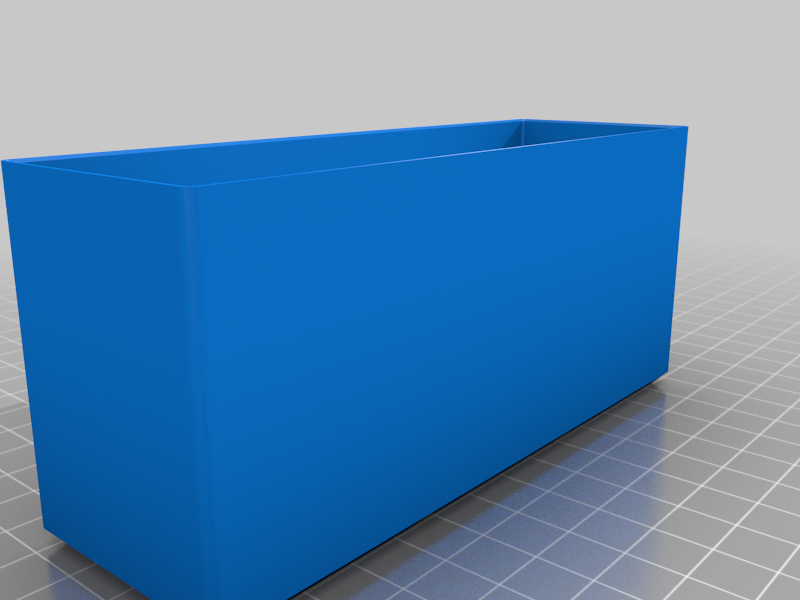

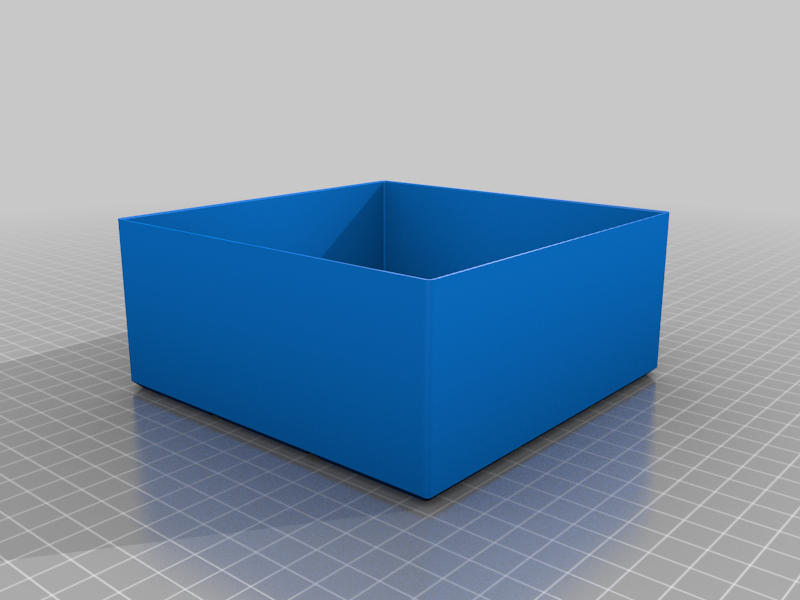

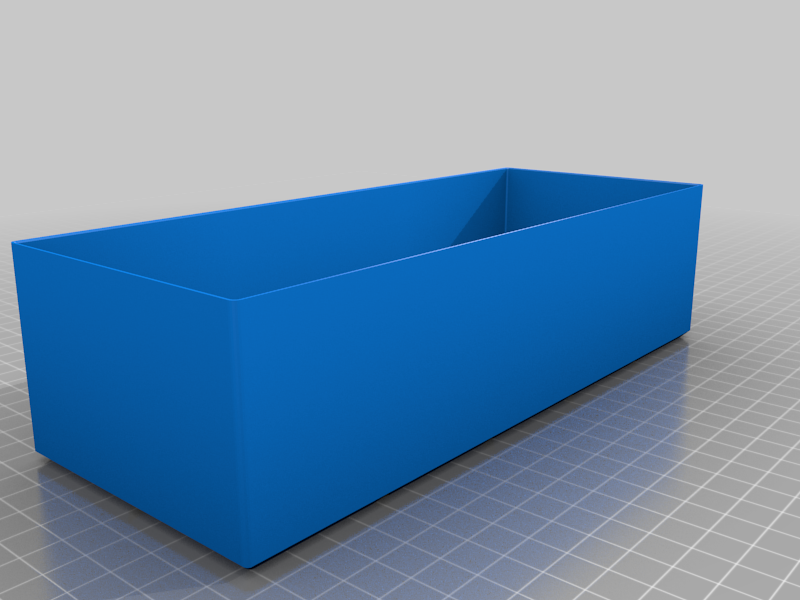

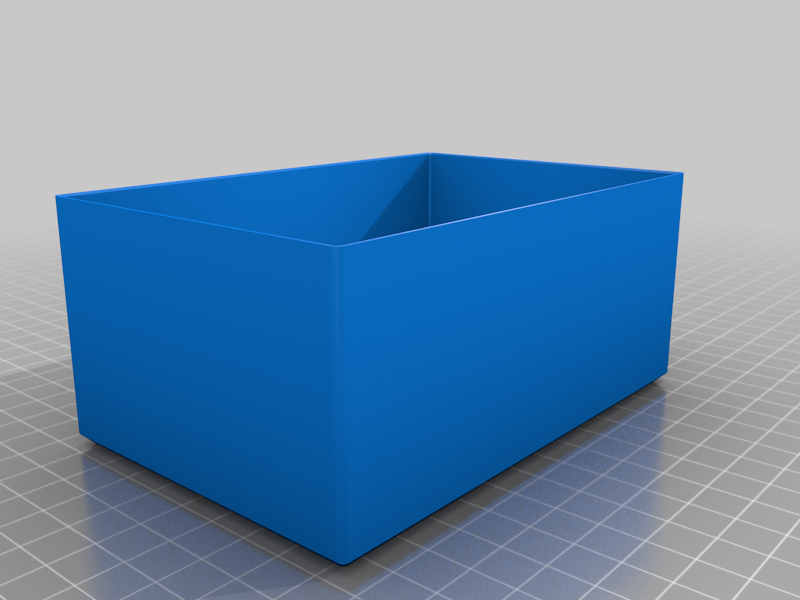

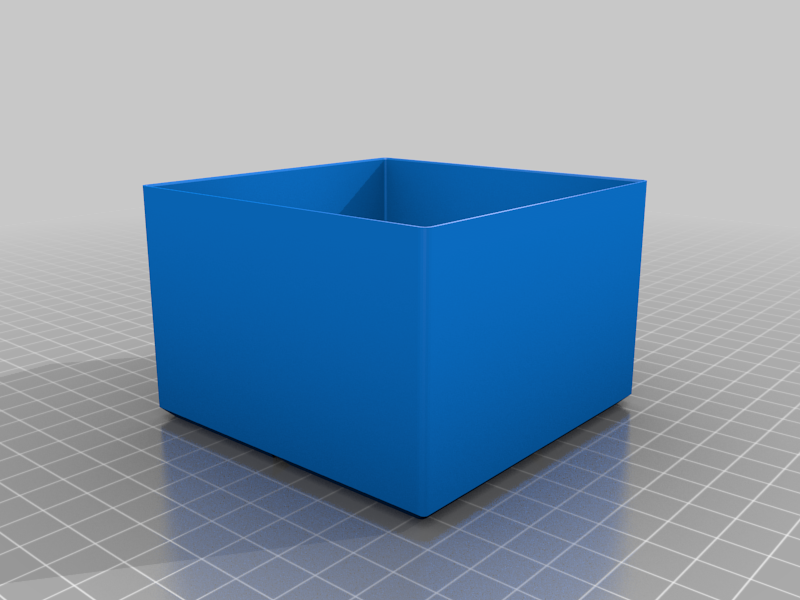

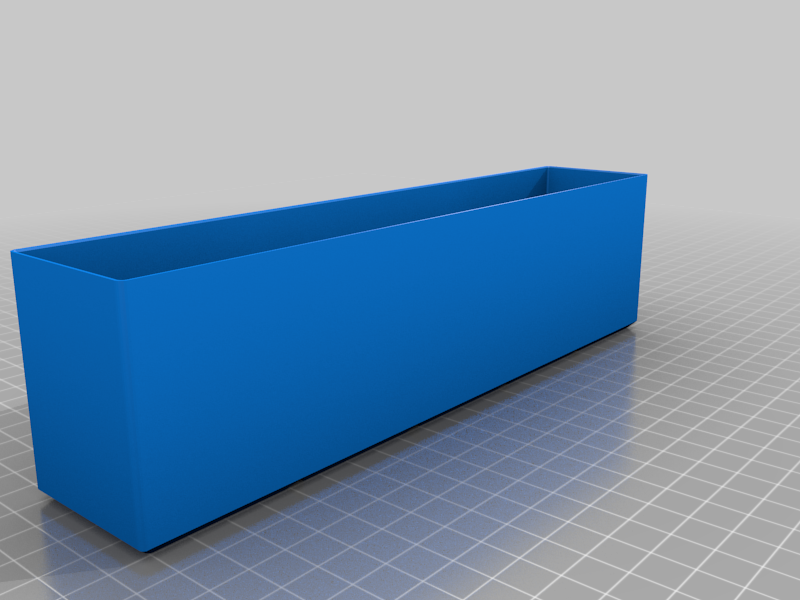

Any configuration of the ModuBox#x#.stl that fits your needs.

Hardware:
2x M3x20 Screw
3x M3x25 Screw
4x M3x8 Screw
4x 6.5mm dia x 2.5mm round neodymium magnet

-cjben
