Monolithic Digital Clock / 7-segment Display Unit
par shiura
Fichiers imprimables (6)
-

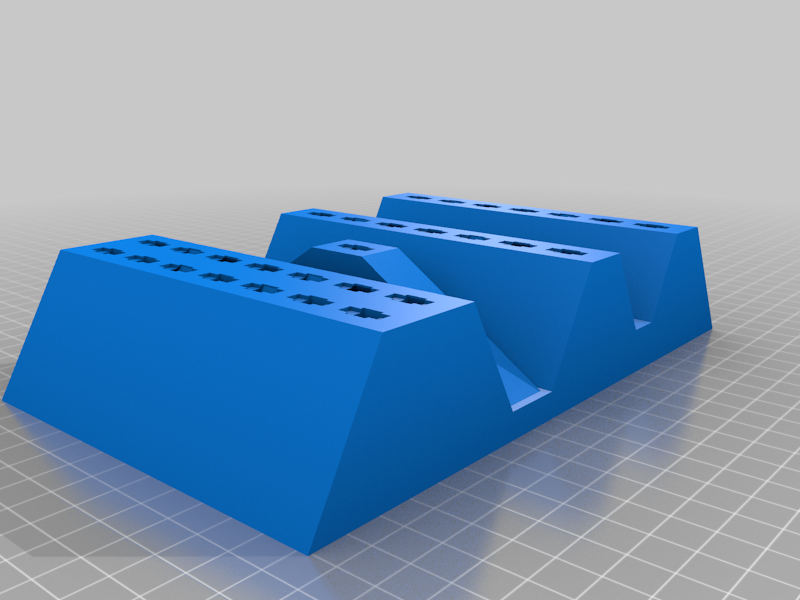

stlmonolithic-body.stl
229 Ko · 337 téléchargements
-

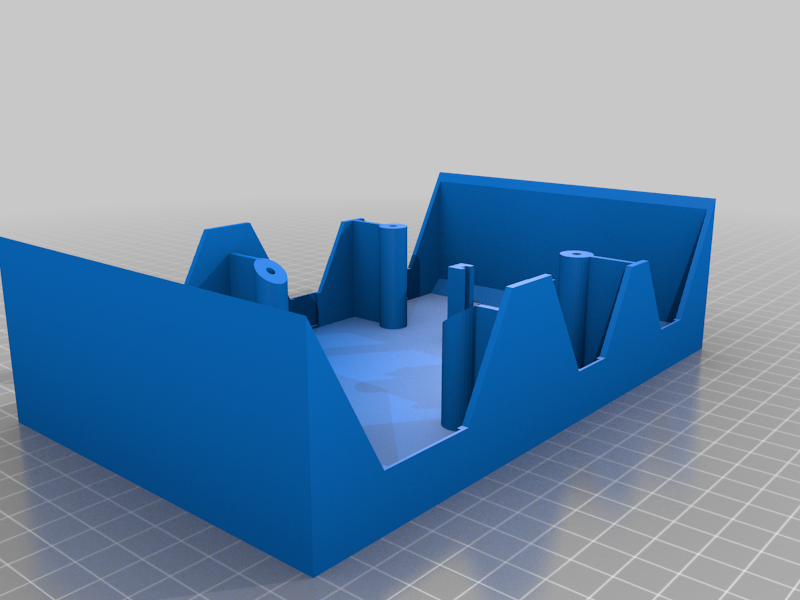

stlcover.stl
235 Ko · 312 téléchargements
-

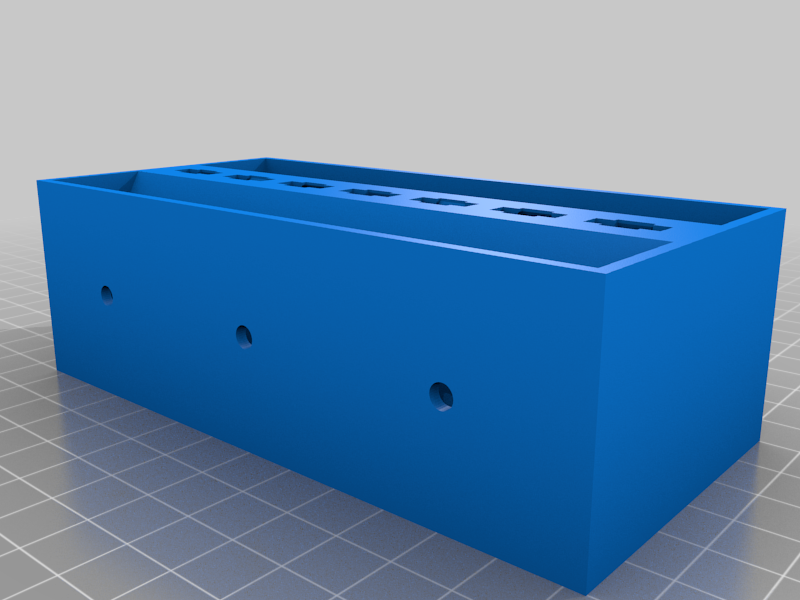

stlsingle-digit.stl
141 Ko · 312 téléchargements
-

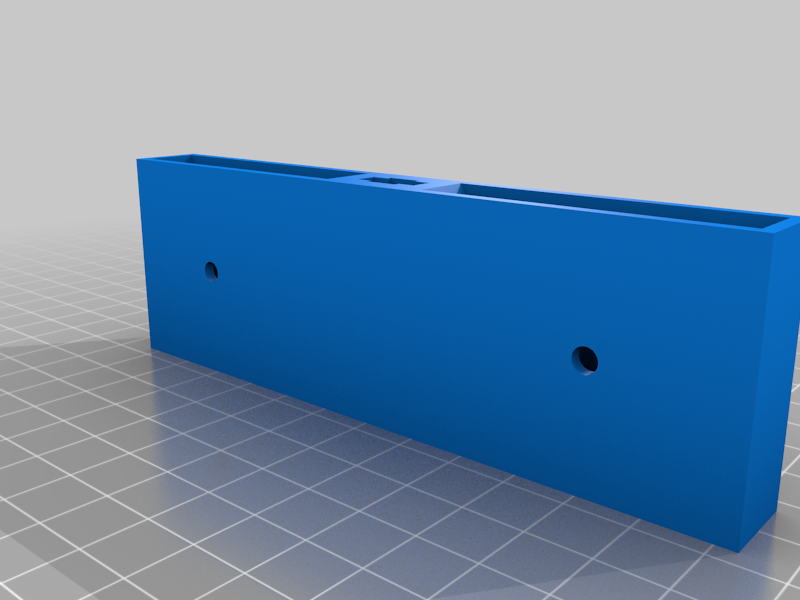

stlcolon.stl
207 Ko · 292 téléchargements
-

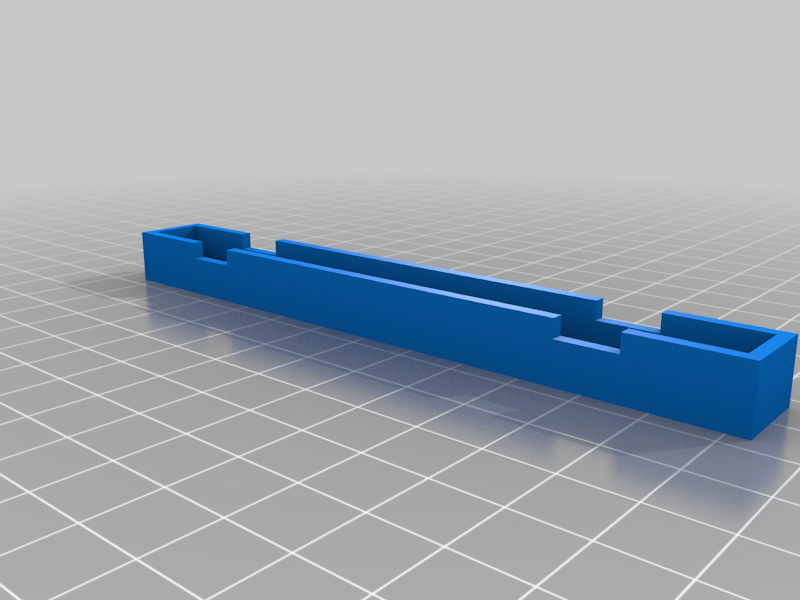

stlcolon-cover.stl
11 Ko · 268 téléchargements
-

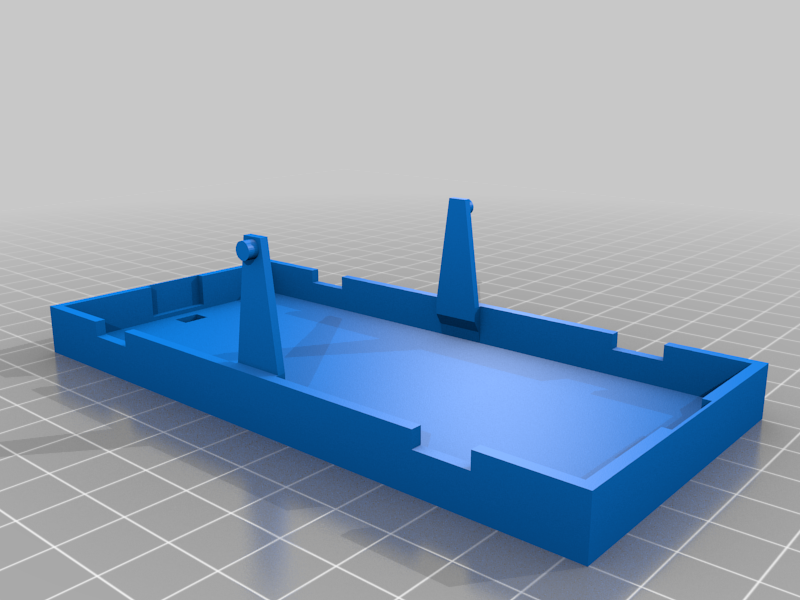

stlsingle-digit-cover.stl
28 Ko · 273 téléchargements
Description
Easy to make, beautiful digital clock with WiFi time acquisition.
- Monolithic structure : It consists of only one functional part (except rear cover)
- Monolithic appearance : when power is off, it looks like a marble brick
Maximum part size : 200 x 125mm
Update Jan 17, 2022
- WiFi setting from your smartphone is now possible. Use smartConfig.ino for your ESP32 microcomputer.
Update Jan 18, 2022
- Multi-purpose single digit and colon units (STL files) are added. You can use them for various projects, such as 24hours clock, subscription counter or huge calculator. It has no backpanel. You can connect multiple units each other with holes at both sides.
Update Nov. 7, 2023
- Program is modified to handle DST (Daylight Saving Time, aka. summer time).
