Mini "Peg" Chess Set
par ElizabethWisotzki
Fichiers imprimables (9)
-

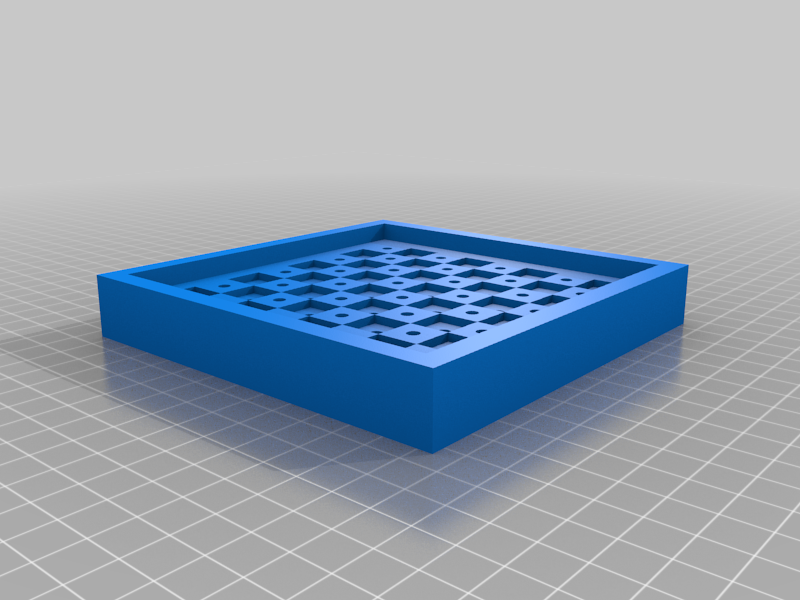

stlMini_Chess_Base.stl
322 Ko · 1 030 téléchargements
-
stlver1_6x6_GTMiniChess.stl
12 Ko · 878 téléchargements
-

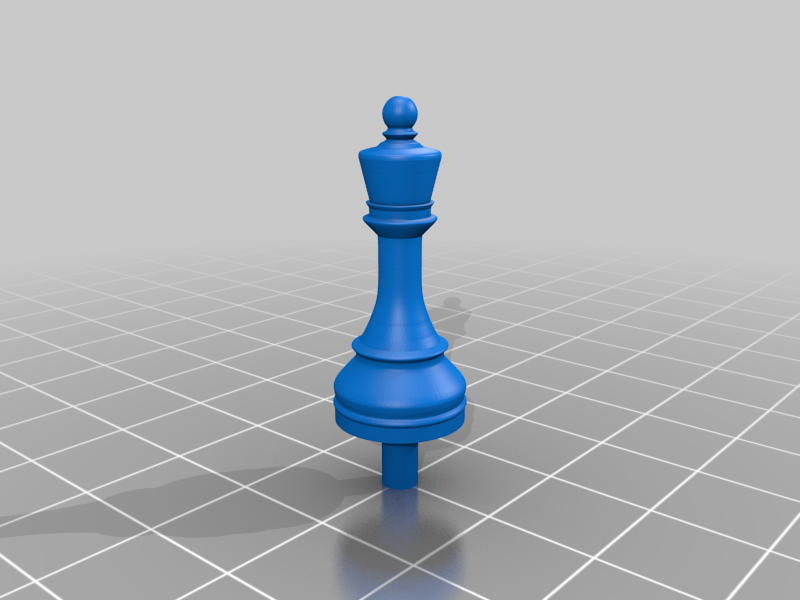

stlKing.stl
2.2 Mo · 917 téléchargements
-

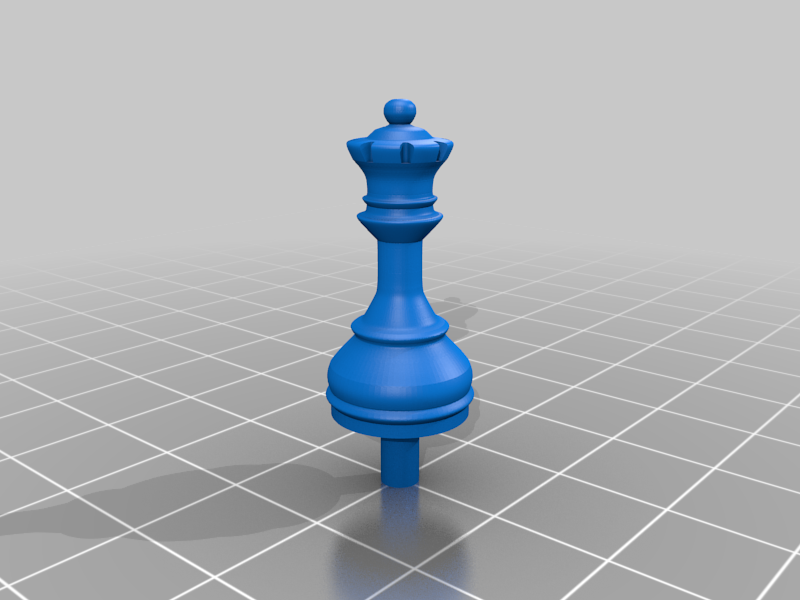

stlQueen.stl
3 Mo · 908 téléchargements
-
stlBishop.stl
2.5 Mo · 899 téléchargements
-

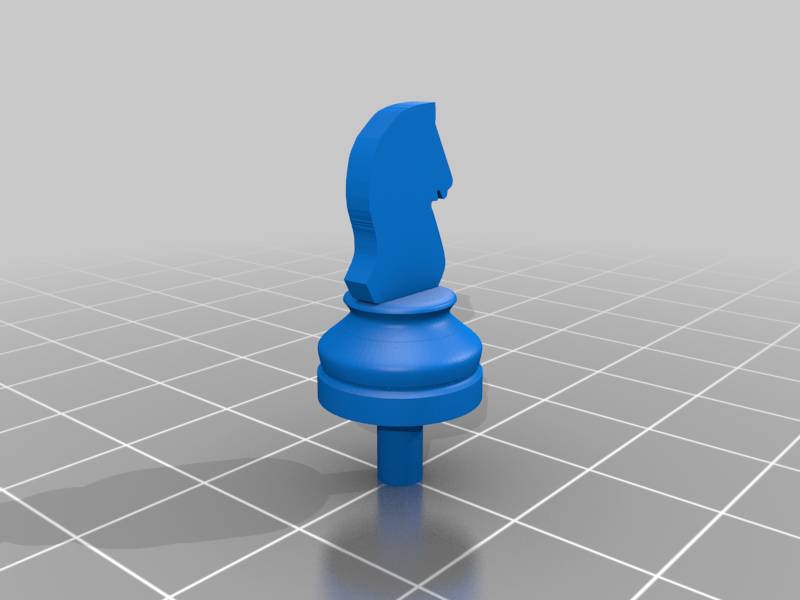

stlKnight.stl
1.5 Mo · 896 téléchargements
-

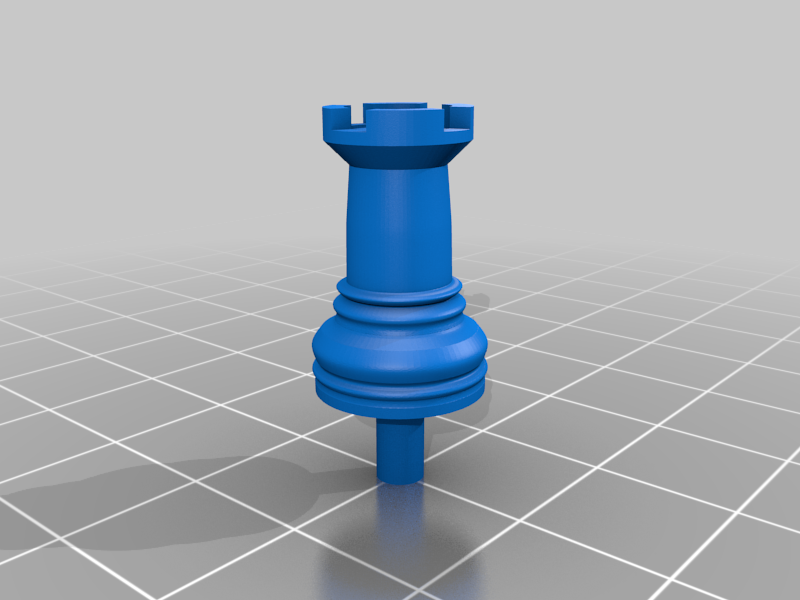

stlRookv2.stl
1.9 Mo · 898 téléchargements
-

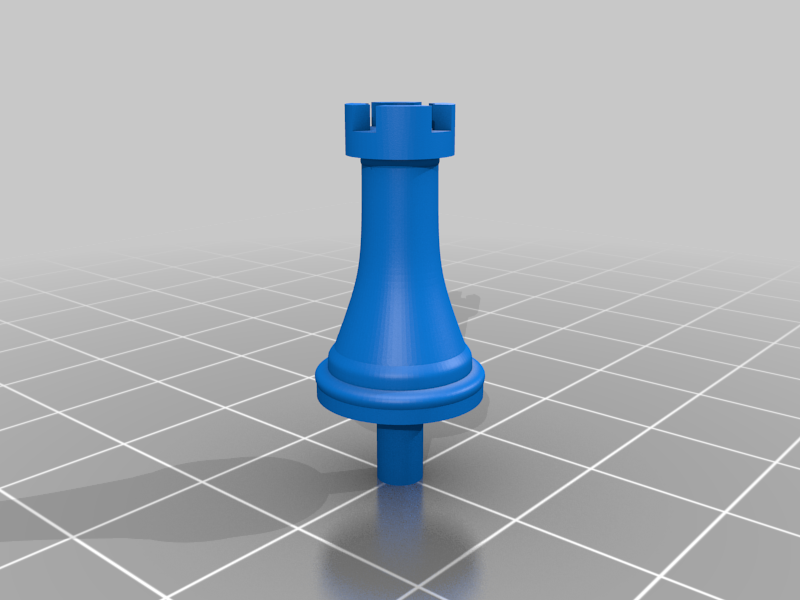

stlRook.stl
871 Ko · 813 téléchargements
-

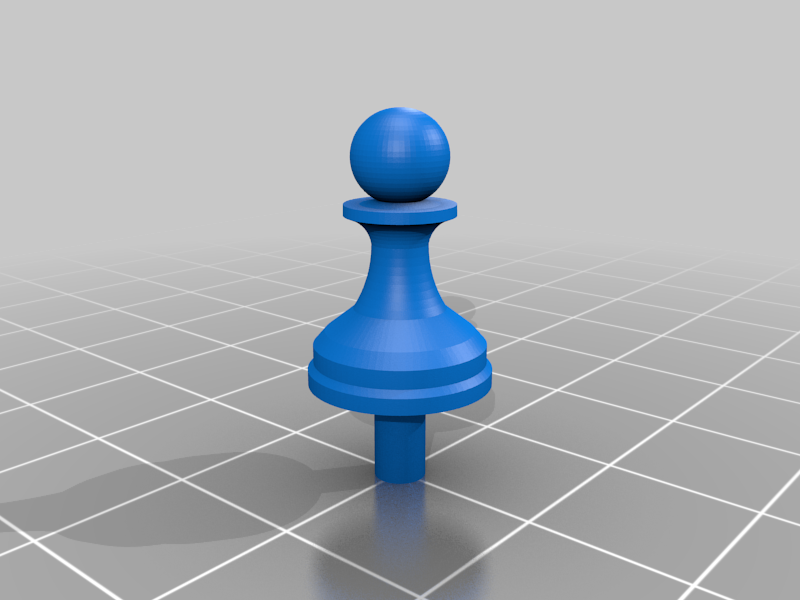

stlPawn.stl
393 Ko · 932 téléchargements
Description
Abstract:
Model is a mini, portable chess set intended for individual studying. Features a "peg" design to ensure that all chess pieces remain secure during gameplay, and will soon include a closeable clam-shell style lid to save and resume games at any time.
Assembly Instructions:
There are 64 pieces total - 32 chess pieces and 32 tiles. The tolerances were designed so that, once the tiles snap into place, they cannot easily be moved. However, if any are loose, they can also be glued into place. Two different filament colors recommended, dual extruder printer not required.
Design Specifications:
• Chess board (playable area): 4”x 4”
• Size: 5”x 5”
• Tile size: 0.5”
• King Height: 1.35”
• Peg diameter: 0.12”
• Peg length: 0.24”
Future additions:
• 3D-printed closeable clam-shell lid secured by a pin-style hinge.
• Extra tile spaces to serve as placeholders for captured chess pieces.
• All chess pieces will be rescaled to the same height to accommodate lid.
Updates:
• (1/07/2022) - Added a new Rook version.
