USB Flash Drive
par tom26
Fichiers imprimables (6)
-
stlUSB_Case_Parts.stl
975 Ko · 1 024 téléchargements
-
stepUSB_Case.step
616 Ko · 745 téléchargements
-

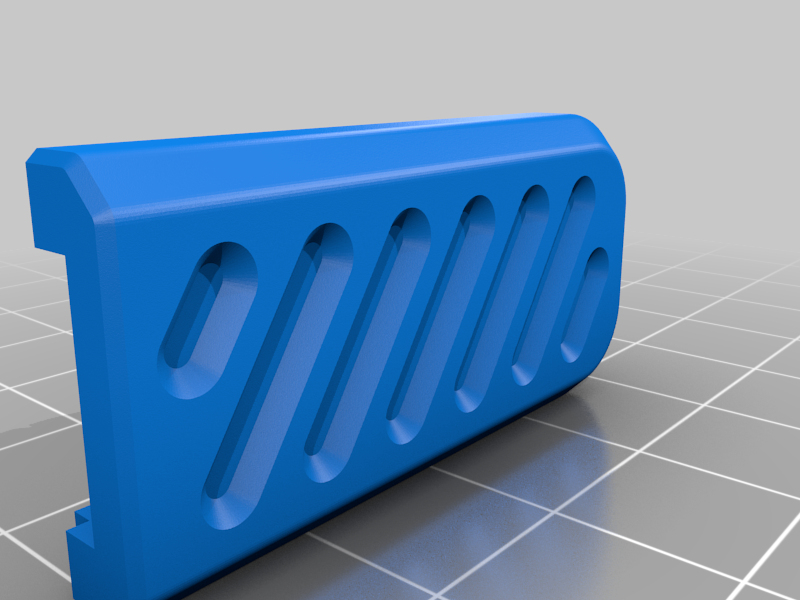

stlUSB_Case_Bottom.stl
251 Ko · 1 170 téléchargements
-

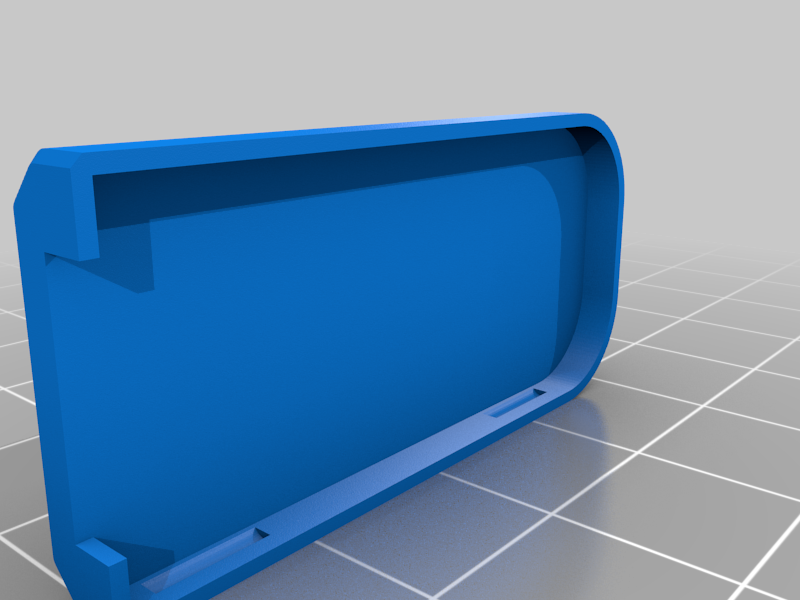

stlUSB_Case_Top.stl
213 Ko · 941 téléchargements
-

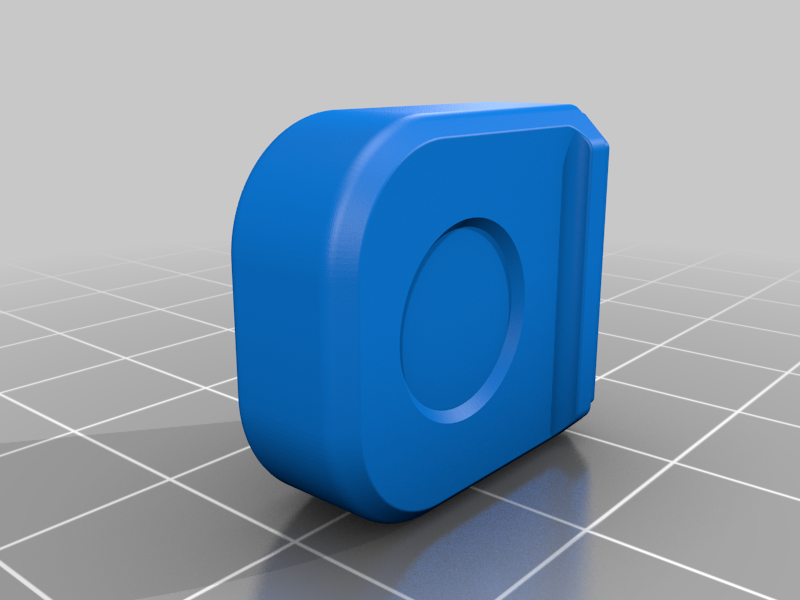

stlUSB_Case_Cap.stl
511 Ko · 900 téléchargements
-
step
USB_Case_Electronics.step
542 Ko · 358 téléchargements
Description

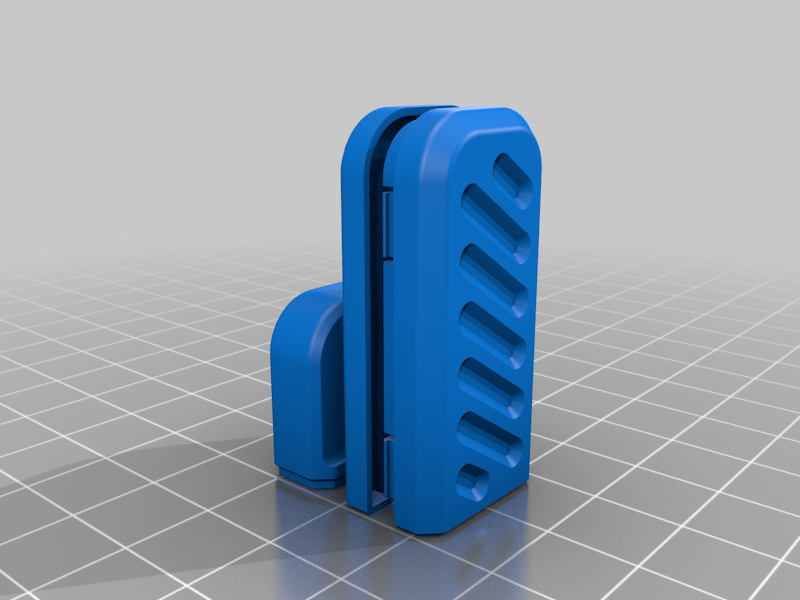

3D printable case for a USB thumb drive. Designed to be printed in three parts. The internal features and clasping mechanism are copied from an old drive. The models are intended to be printed vertically, with supports. A small layer height is recommended, I printed mine at 0.1mm. Designed in Fusion 360.
Warning the cap and the other parts might have to be changed, and printed multiple times to get a good fit.
I made a better version which can be found under remixes. The only change I made was to the cap to make it a tighter fit and easier to print.
