Pinecil Case
par ssombra
Fichiers imprimables (6)
-
stlCase_Bottom.stl
912 Ko · 452 téléchargements
-

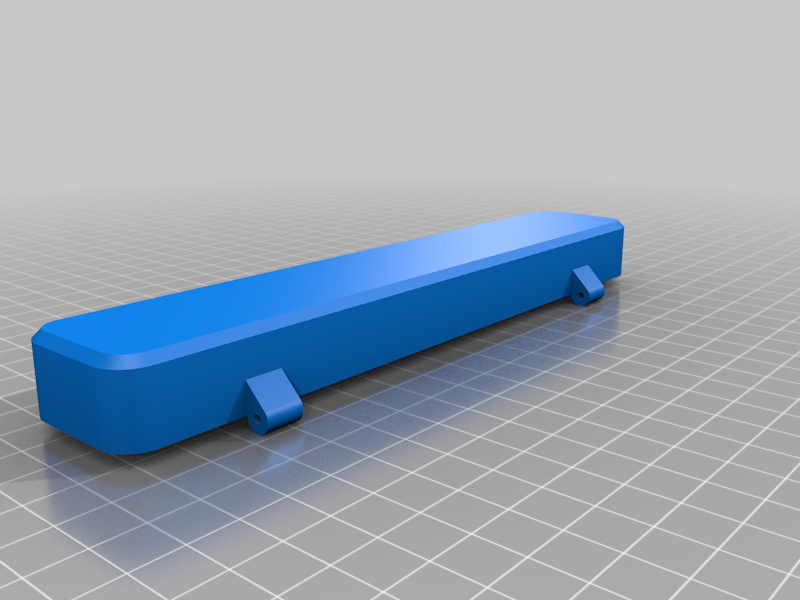

stlCase_Top.stl
958 Ko · 452 téléchargements
-
stepCase_Top.step
140 Ko · 345 téléchargements
-
step

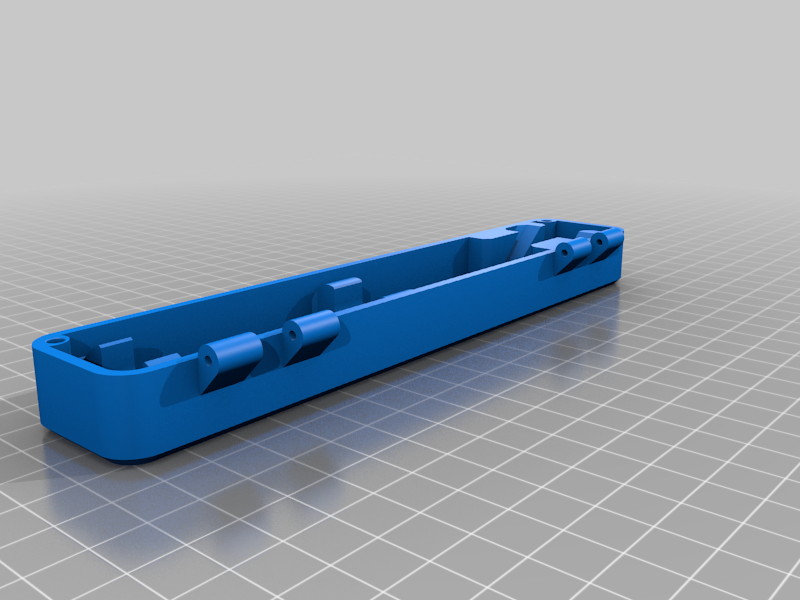

Case_Bottom.step
197 Ko · 336 téléchargements
-
step

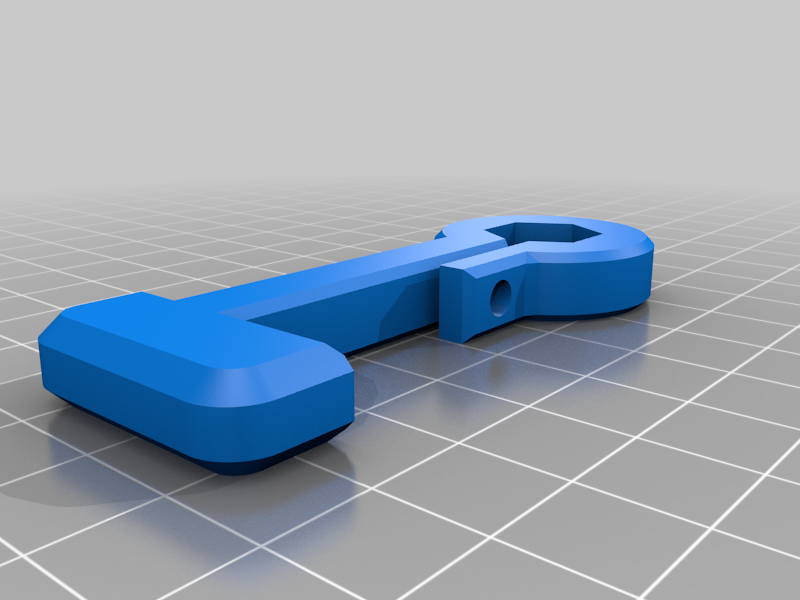

case-holder-nut.step
73 Ko · 183 téléchargements
-
stlcase-holder-nut.stl
190 Ko · 310 téléchargements
Description
This is a remix of Olvin's case for the Pinecil soldering iron. I used his CAD files and also the Pinecil 3D model available here:
https://github.com/kohkohwastaken/3D-Models/tree/main/Pine64
Besides adapting it for the Pinecil I made other small changes:
- Use of magnets for closing
- I removed the holes for the screws
- I changed the location of the hole for the hex tool
I used some 3mm x 1.75mm magnets I already had. Please download the Pinecil holder from the original design.
I am also sharing the STEP files in case someone needs to modify the case.
