mini hydroponic tower
par turboprint3D
Fichiers imprimables (14)
-

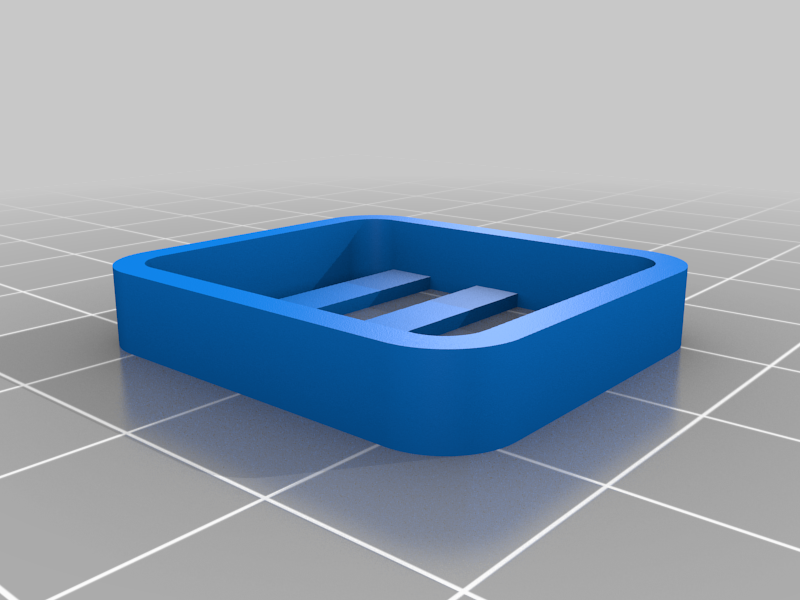

stlair_lift_pump_filter_screen_no_tabs.stl
48 Ko · 1 253 téléchargements
-

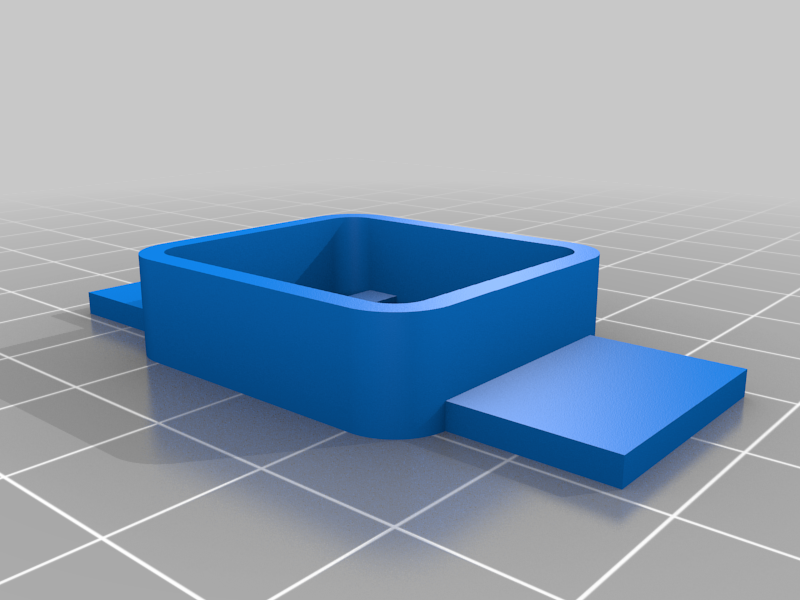

stlair_lift_pump_filter_screen_with_tabs.stl
71 Ko · 1 254 téléchargements
-
stlgrow_tower_jar_lid_bottom_cap.stl
1.1 Mo · 1 392 téléchargements
-

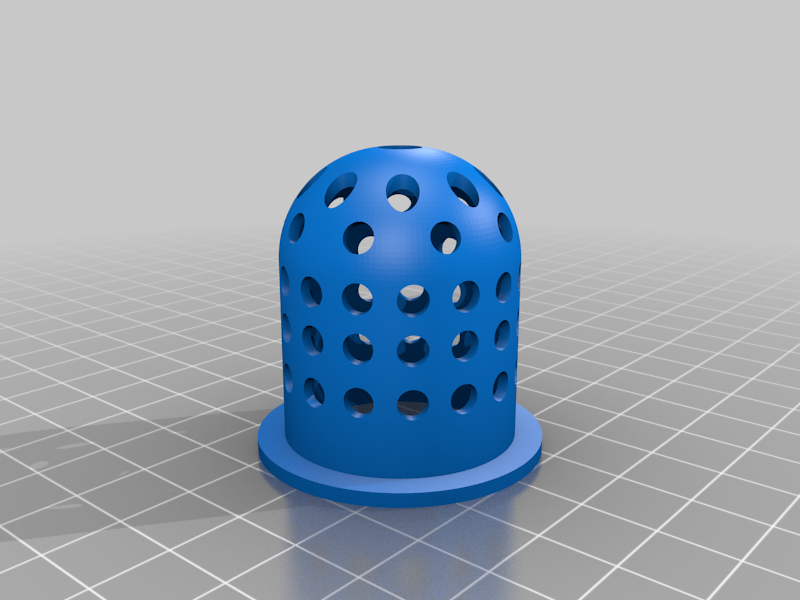

stltaller_net_pot_for_grow_tower.stl
1.6 Mo · 1 491 téléchargements
-
stlgrow_tower_stand_alone_bottom_cap.stl
2.6 Mo · 1 353 téléchargements
-

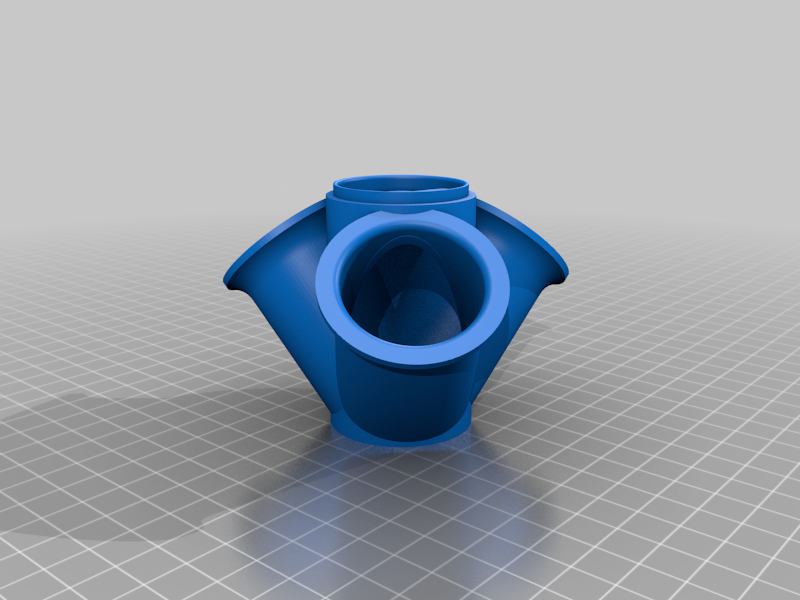

stlgrow_tower_3x_pot_holder.stl
1.4 Mo · 1 646 téléchargements
-

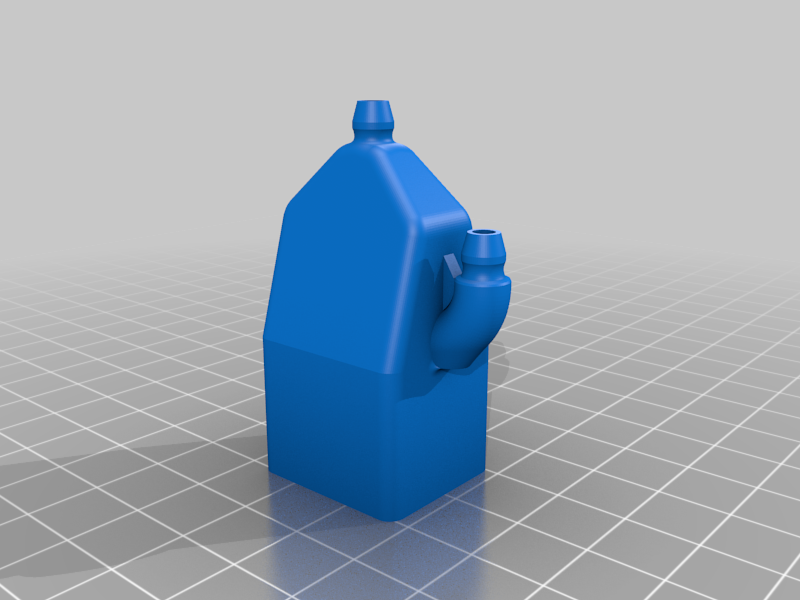

stlbest_air_lift_pumpso_far.stl
3.1 Mo · 1 294 téléchargements
-
stlair_lift_pump_bottom_ir_tube_holes.stl
2.1 Mo · 1 246 téléchargements
-
stlgrow_tower_stand_alone_base_screw_down_taller.stl
174 Ko · 1 204 téléchargements
-

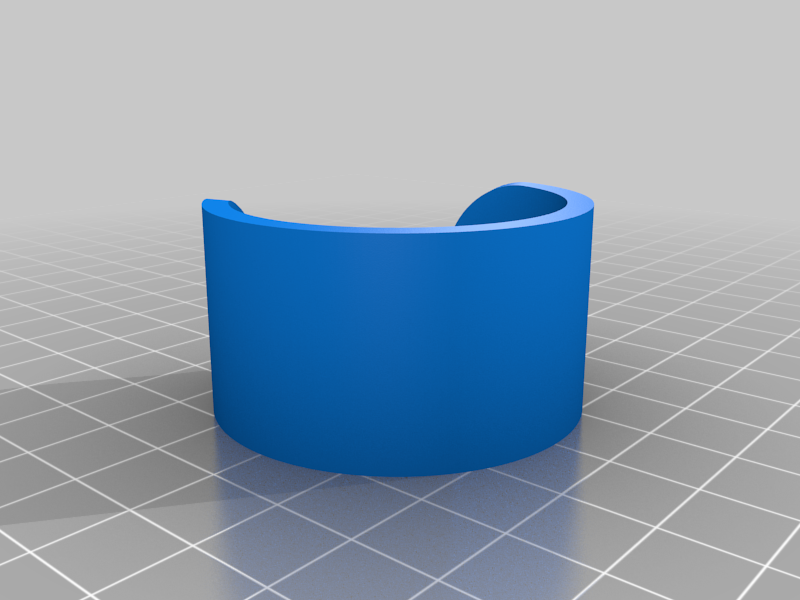

stlgrow_tower_stand_alone_base_screw_down_Shorter.stl
141 Ko · 1 201 téléchargements
-
stlring_grow_tower.stl
105 Ko · 1 230 téléchargements
-
stllarger_water_filter.stl
308 Ko · 1 187 téléchargements
-

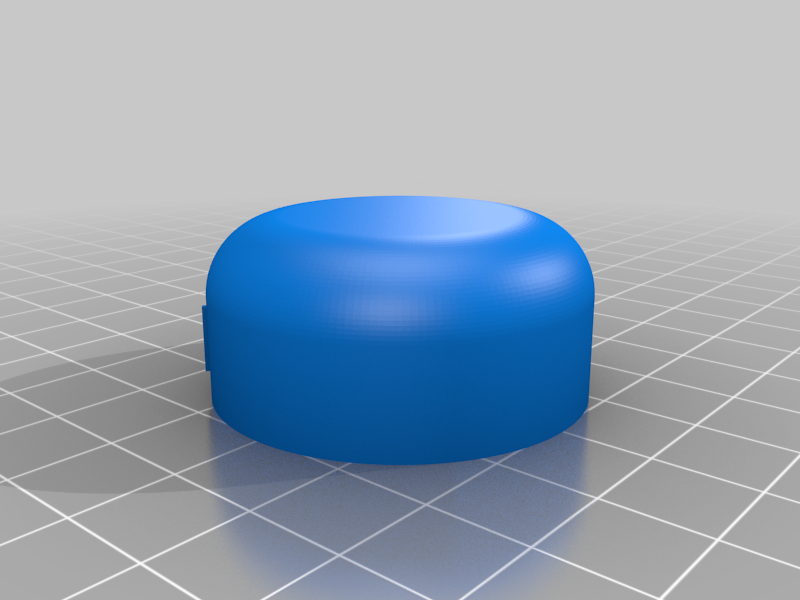

stlmini_grow_tower_drip_cap_interal_tube.stl
3.3 Mo · 1 332 téléchargements
-
stlgrow_tower_cap_different_hole_setup.stl
2.8 Mo · 1 285 téléchargements
Description
With the way food prices are going , i wanted to increase my growing area , while taking up no more space. I have seen hydroponic towers online before but this is my design( version) its a lot smaller than most and could be placed as a centre piece to a table or on a counter top, wherever you want .
There are 2 version but most of the parts are the same.

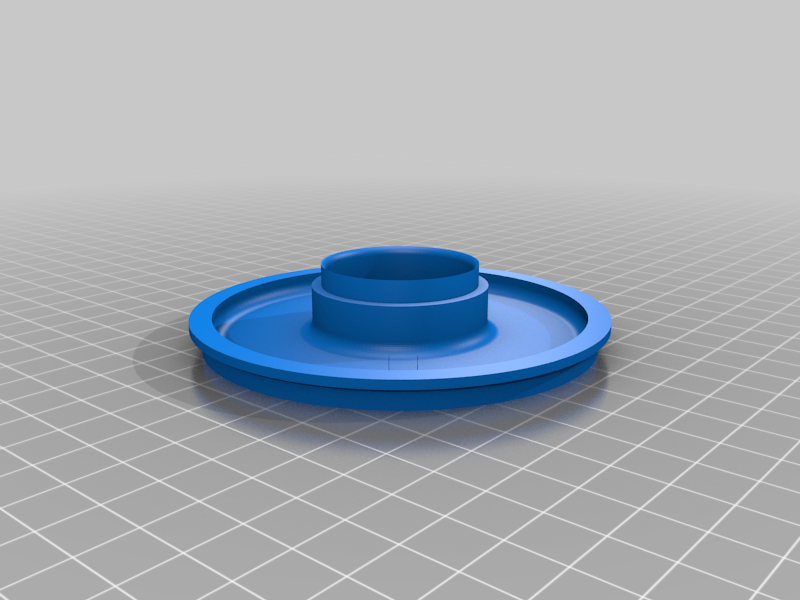

1 the jar lid mount , fits on a 1 L glass jar from the dollar store that usually comes with a metal lid.

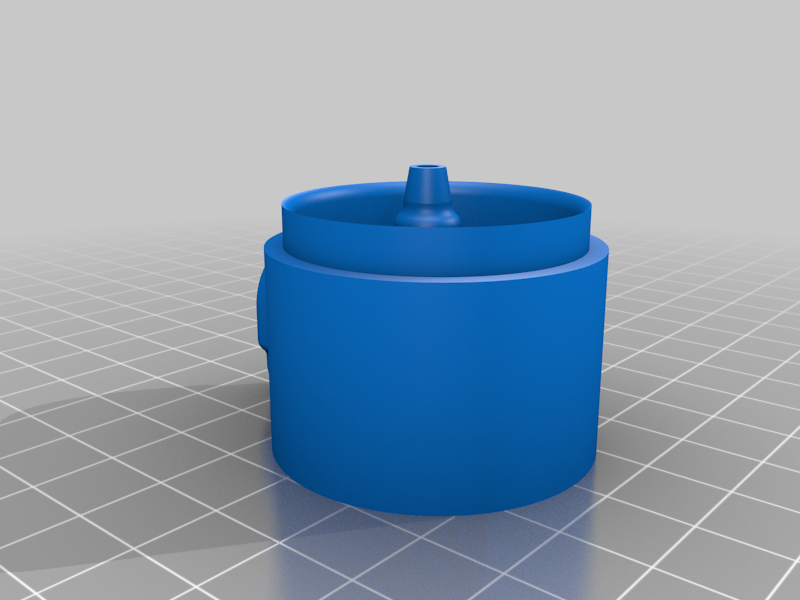

2 stand alone tower, that has a remote tank for water and nutrients( would work better with aquaponics ) this currently has a g1/4 female port on the side of the base cap to allow the system to drain. I have yet to dsign the stand for the stand alone version but this will come soon.
all parts are press together , and can be glued .
requires an air pump ( aquarium )
preferable an adjustable air system to adjust the pump for the most flow( too much air slows the water pump)
can be assembled as tall as one wants. ( there may be a limit to the lift abilities of the pump.)

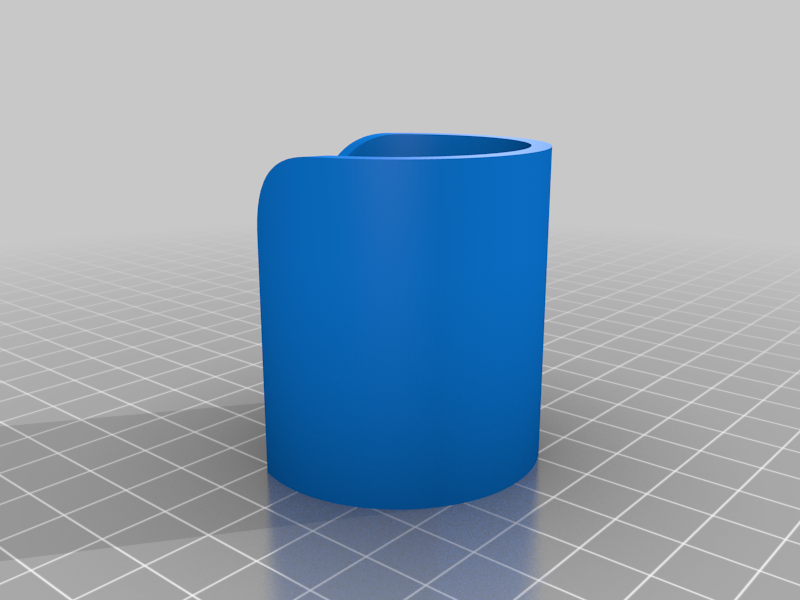

update: 2022-04-11 : 2 screw down mount bases for the stand alone tower.

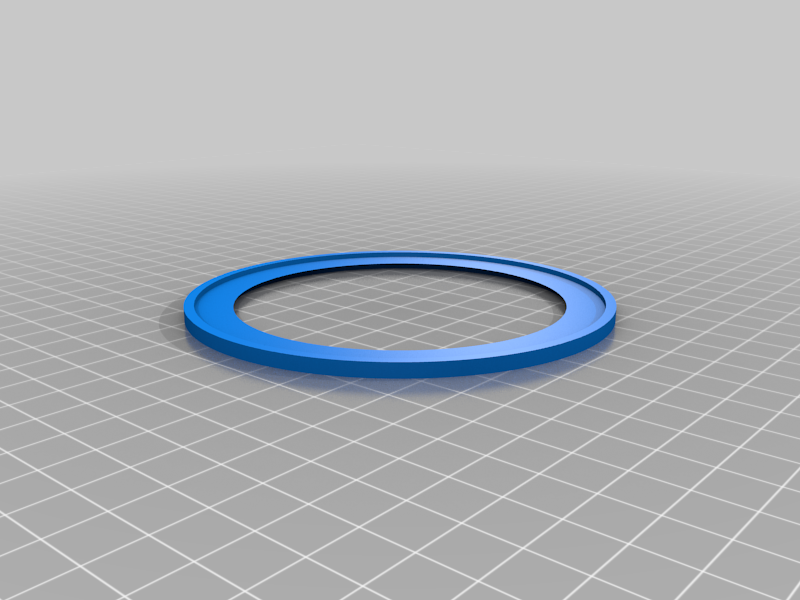

ring to glue to original lid threads
update : 2022-04-14 : cleaned up the cap a bit , fixed the barb .

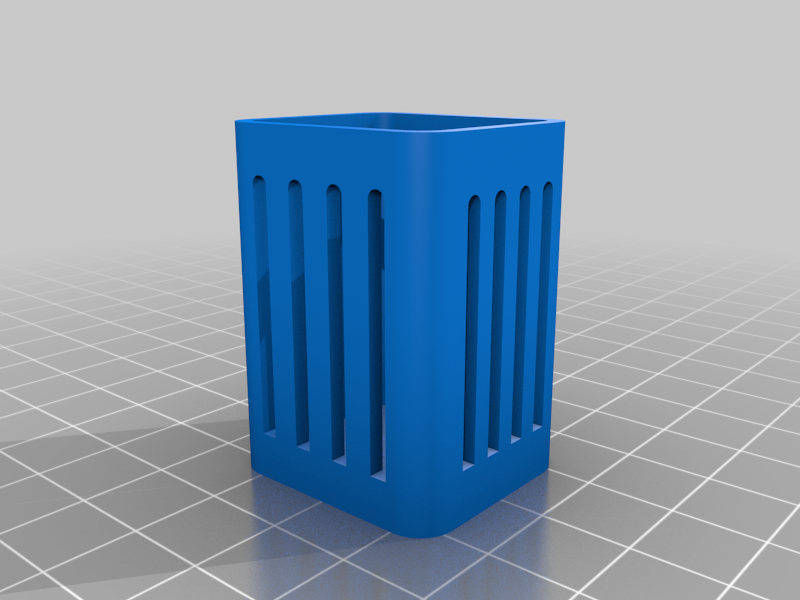

update: 2022-04-20 : larger filter for the water intake added
added break down ass ably drawings of both setups , (not limited to just 2 pods)
Update 2022-04-21 : opened up some holes in the cap a bit to prevent clogging and adding extra back pressure on the pump.
Update 2022-04-23: added new cap with different hole arrangement ( seems to lower back pressure) not required if the other cap has no issues but different printers and slicers may have issue and plug the holes .
more updates to come , let me know any suggestions you may have
video on the topic : https://youtu.be/r0vHMtopIyE
take a look at my youtube channel ( video on this to come soon)
