Toggle Latch with CAD
par Lucidwolf
Fichiers imprimables (4)
-
stlLatchModel_Assembly.stl
247 Ko · 347 téléchargements
-

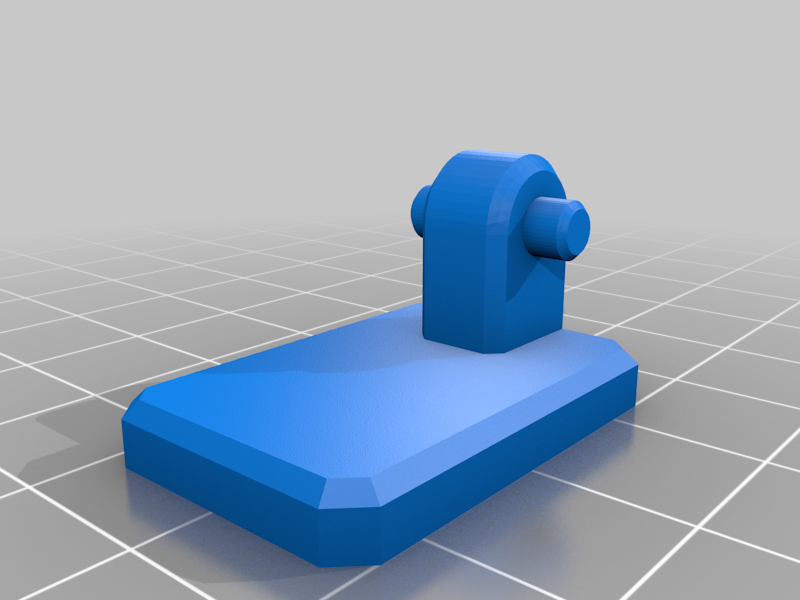

stlLatchModel-Hinge.stl
53 Ko · 354 téléchargements
-

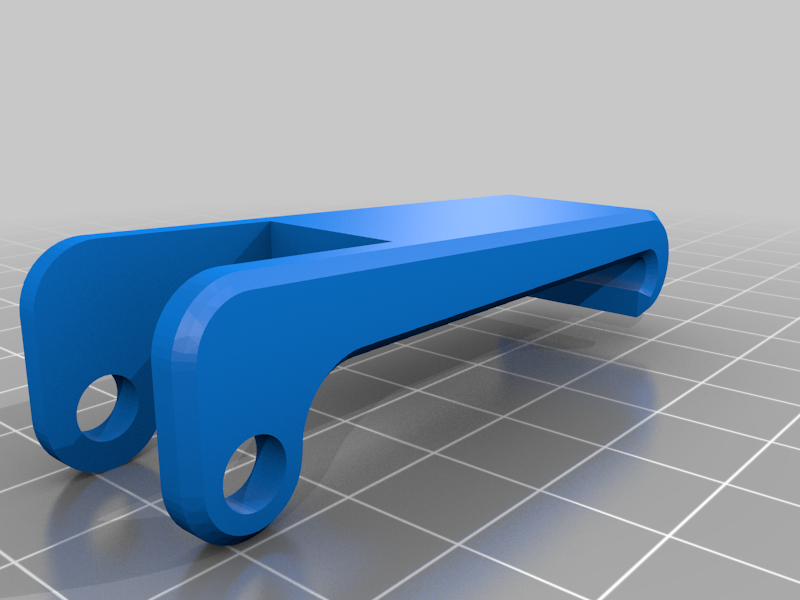

stlLatchModel-LongArm.stl
79 Ko · 357 téléchargements
-

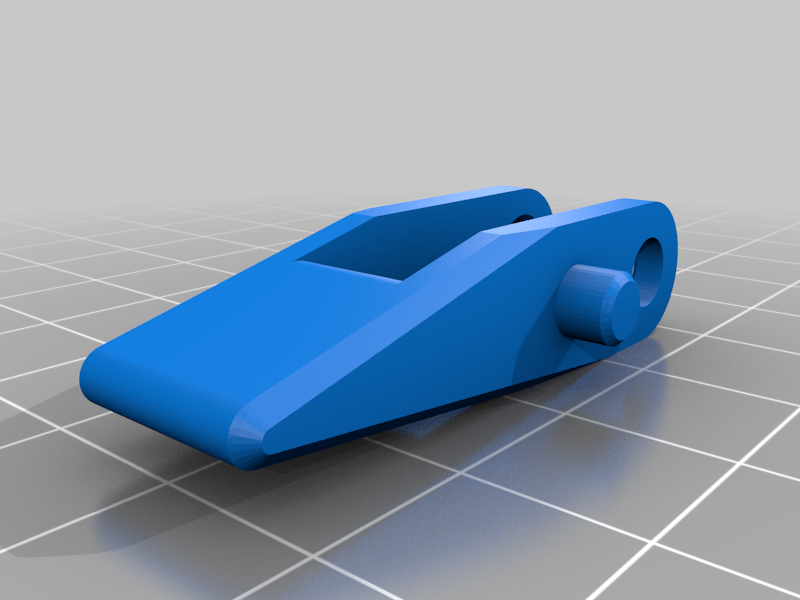

stlLatchModel-Cam.stl
116 Ko · 356 téléchargements
Description

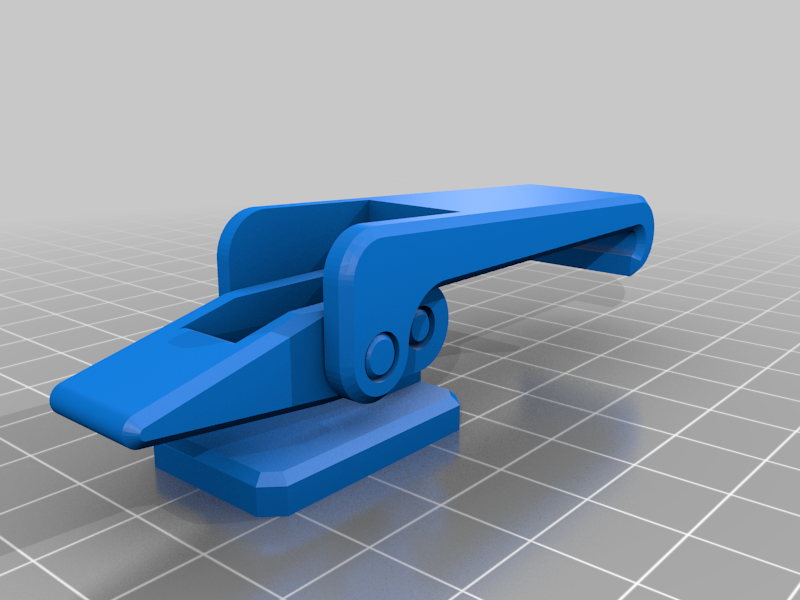

Needed a Toggle Lock for a Thein Baffle Vacuum monstrosity but did not see anything that fit so took inspiration from Syzguru's STLs and mocked something up quickly in FreeCAD.
FreeCAD file included so you don't have to start too far in the weeds. I as always am pretty lazy on my own stuff so lots of primitives before chamfers. So just moving those primatives around will break the chamfer so might be best to delete the chamfers modify and then add back what sleek chamfers you want.
