4" Long Range
par TechnicianSC
Fichiers imprimables (7)
-

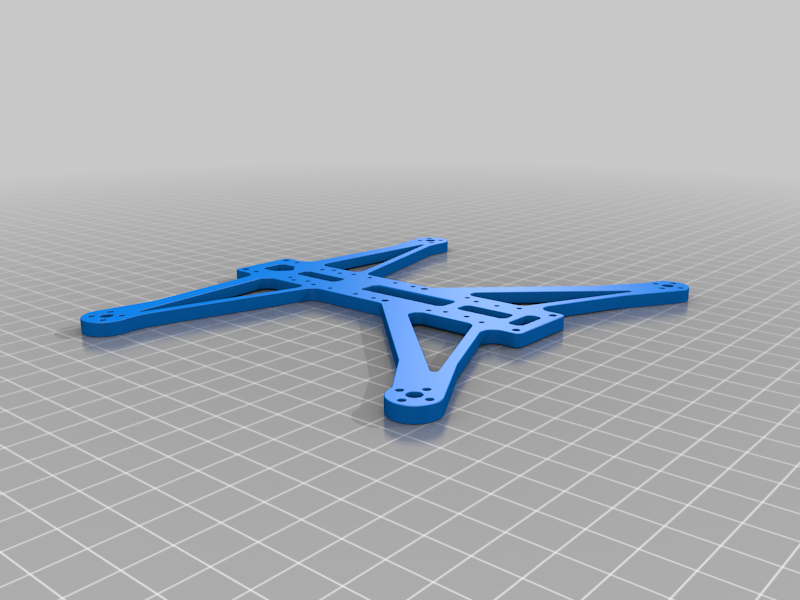

stlFrame_Bottom_1404fit_.stl
19.1 Mo · 635 téléchargements
-

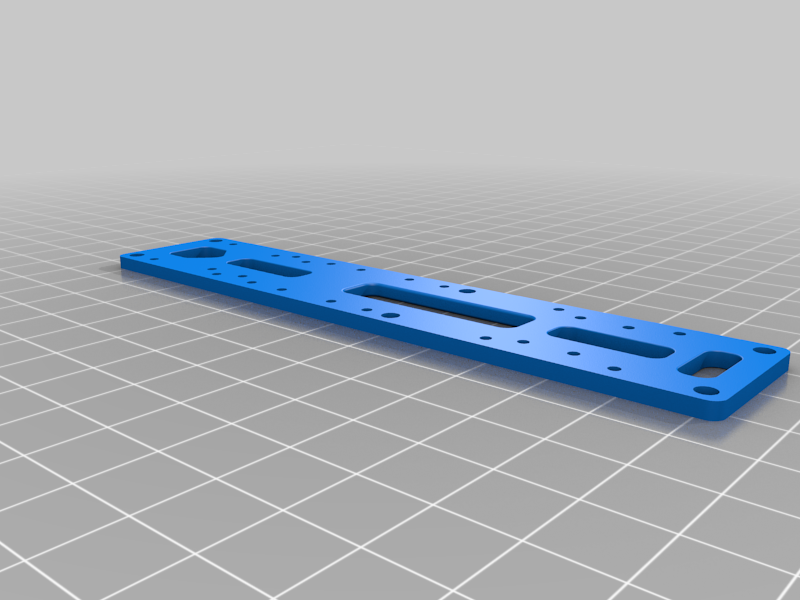

stlTop_Frame_25mm.stl
2.8 Mo · 557 téléchargements
-

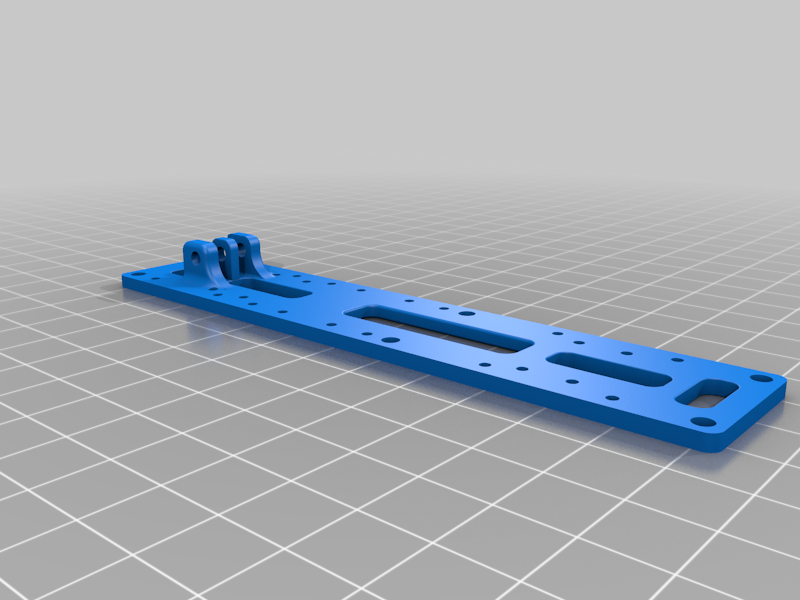

stlTop_Frame_cam_mount.stl
4.8 Mo · 554 téléchargements
-

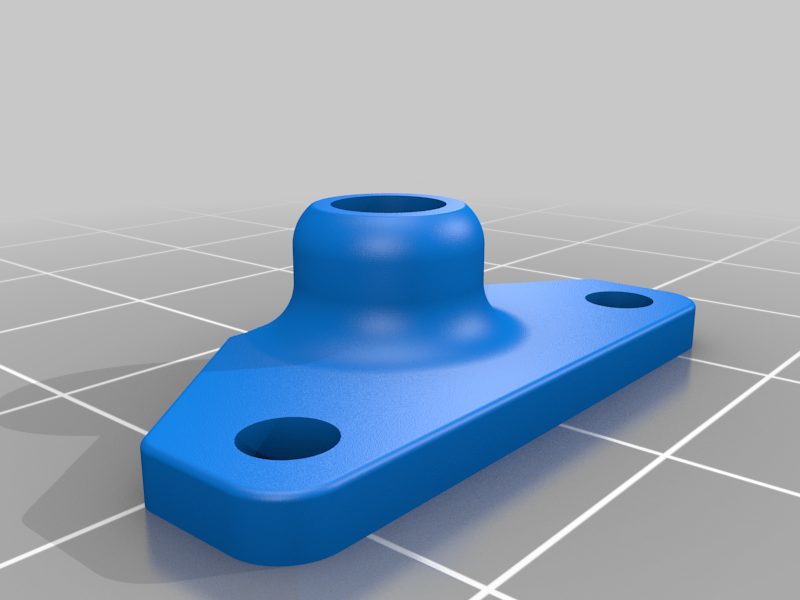

stlvtx_antennenhalter.stl
1.8 Mo · 550 téléchargements
-

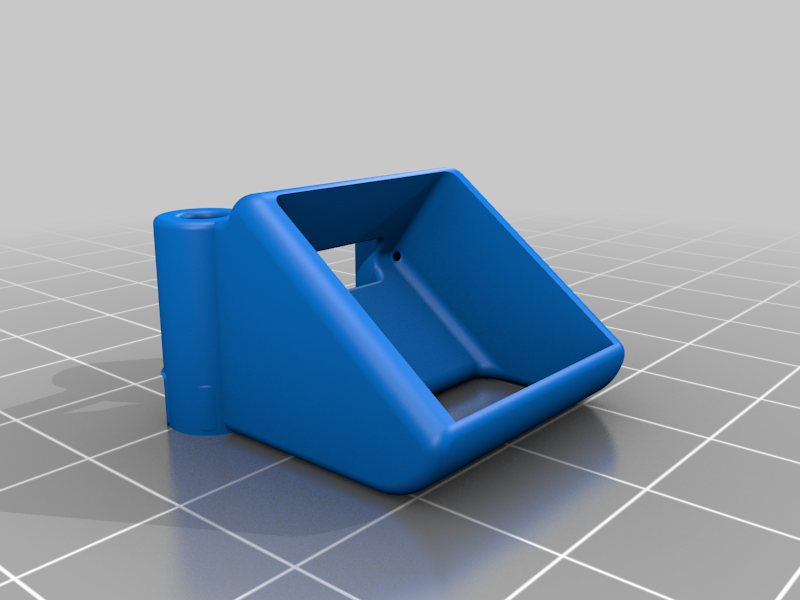

stlgps_mount_.stl
3.8 Mo · 559 téléchargements
-

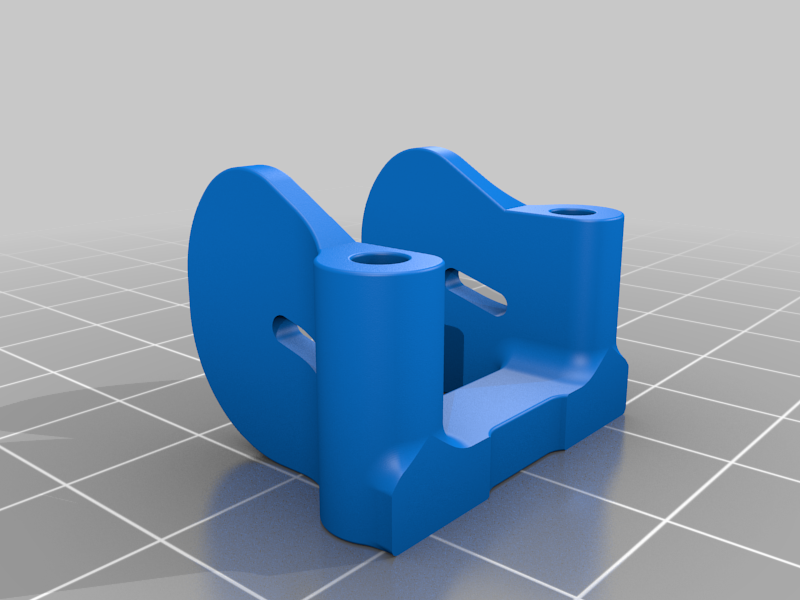

stlcam_mount_.stl
3.5 Mo · 566 téléchargements
-
stlFrame_prop_guard_1.stl
23.9 Mo · 467 téléchargements
Description
Hi Guys,
Here my 4inch long range FPV drone.
Its not designed for racing but "light" freestyle is possible.
I designed for long flying fun and cruising. It can carry easily a runcam thumb or similar...
Weight is about 220g. In my case i can fly 20min on two 18650 VTC6 cells.
You can build it under 200g !
- Motor: 1104 4300Kv or maybe 1405 4600kv
- Prop: 4024 Gemfan ( for the 1405 you can try 3blade)
- Fc: Mamba F405 MK2
- ESC: 15A 4in1 or 20A 4in1 Also you can use AIO FC, like Zeus10, but its designed for 20x20
- Cam: Caddx Ant
- VTX: standard cheap 20x20mm VTX of your choice
- RX: what ever you prefer ;-)
- GPS: Designed for BN-180
- Battery Mount for 18650 cells (2x)
- Battery: 2S ( 2x Quality 18650 cells like VTC6 3000mAh )
If you like you can Tip ;-)
Its for my friends the FPV RACING RODGAU
