Combination Safe 00 (Cryptex)
par SavageRodent
Fichiers imprimables (12)
-
stlLid_v2.STL
864 Ko · 110 335 téléchargements
-

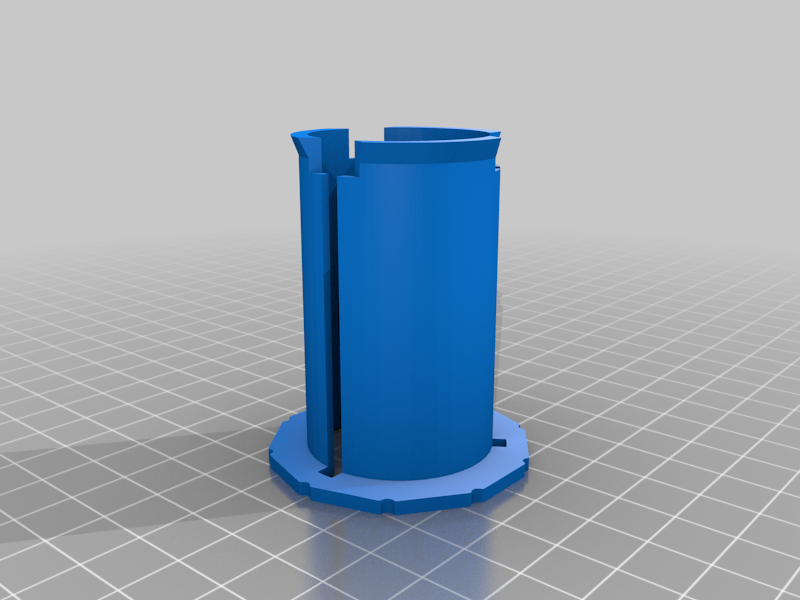

stlInner_Shaft.STL
101 Ko · 115 468 téléchargements
-
stlInner_Ring_v2.STL
86 Ko · 111 433 téléchargements
-
stlOuter_Ring_v1.STL
144 Ko · 115 793 téléchargements
-

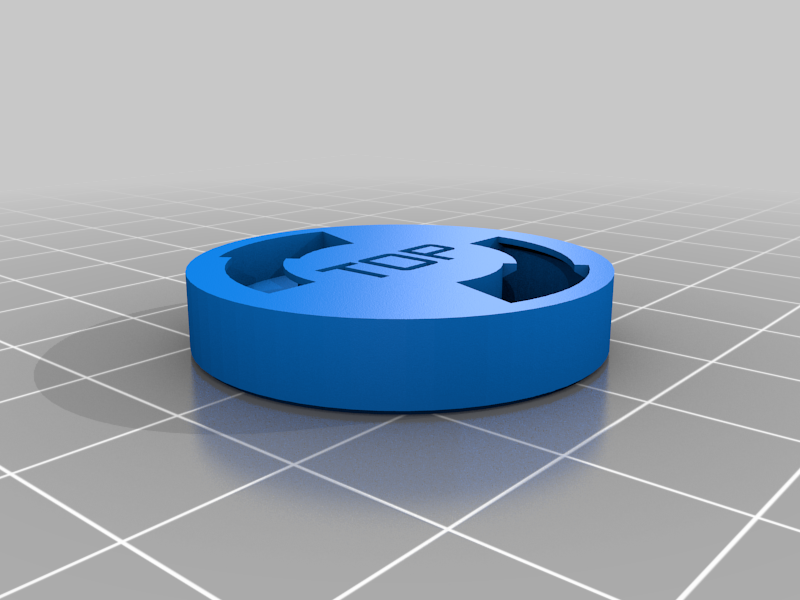

stlBottom_lock_v2.STL
130 Ko · 109 193 téléchargements
-

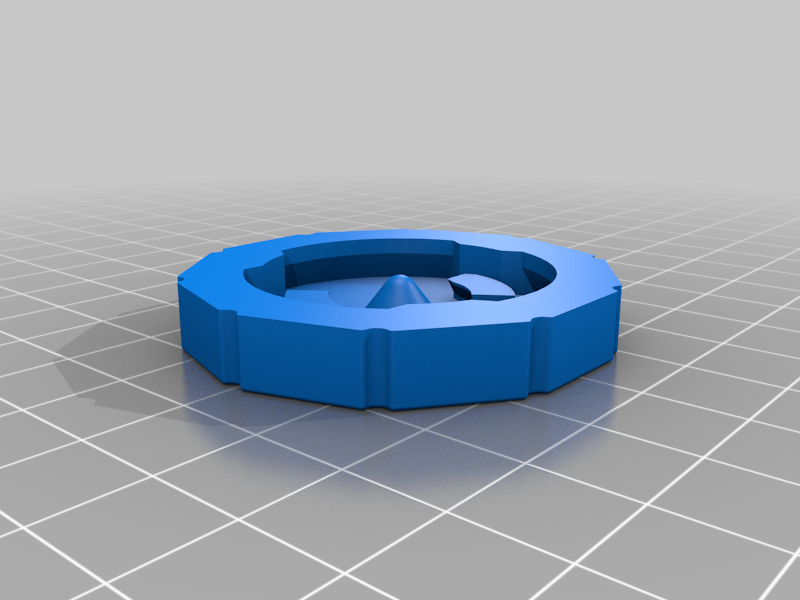

stlBottom_v3.STL
440 Ko · 109 044 téléchargements
-

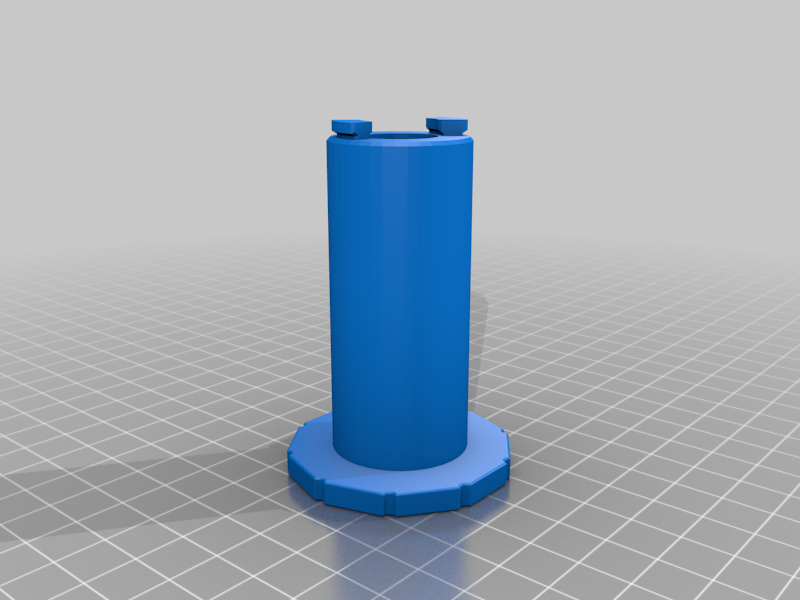

stlLocking_tool_v2.STL
839 Ko · 108 621 téléchargements
-

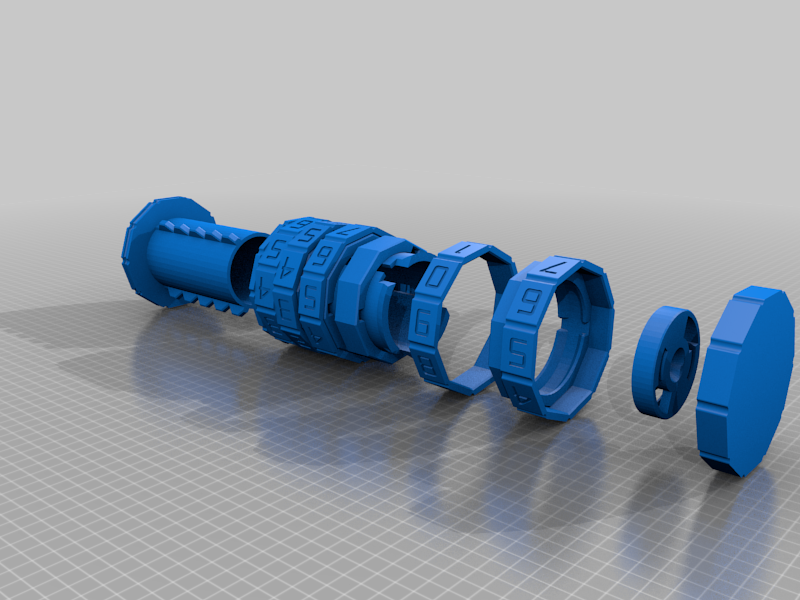

stlDO_NOT_PRINT_Exploded_Cryptex.STL
2 Mo · 108 919 téléchargements
-
stlLid_7R_v0.STL
864 Ko · 102 434 téléchargements
-
stlInner_Shaft_7R_v0.STL
98 Ko · 102 332 téléchargements
-
stlLocking_Tool_7R_v0.STL
840 Ko · 102 281 téléchargements
-
stlLid_R5_Holey_v0_.STL
1.3 Mo · 101 792 téléchargements
Description
DESCRIPTION:
A five or seven character cryptex that can be used as a small safe / money box and is ideal for storing small valuable items that need the kind of security that only comes form a pocket sized safe made of plastic.
Enjoy!
KEY FEATURES:
• 100,000 or 10,000,000 possible combinations for the 5 ring and 7 ring versions respectively.
• Each ring can be set to a custom number and can be changed at any time, by anyone possessing the combination to unlock the cryptex + Locking Tool.
• If you wish, you can design your own custom combination rings with this, easy to use Outer Ring Customizer.
• Sturdy construction. Unlike many other designs, this one features a locking component that holds the cryptex together even when open, thus stopping it from fall apart while in this state.
• Easy print. Designed specifically for the 3D printing there is very little by way of overhangs and thus no support structures are needed. Theoretically the parts should require no cleaning and can be assembled strait off the build plate. All .STL file have already been rotated for best print results.
IMPORTANT NOTES:
1) Although there are no support structures to clean up i have fount, on account of the components being a naturally snug fitting, even small imperfections in the print can cause parts to become tight or catch. So keep the craft knife or sandpaper on hand just in case :)
2) I have created a couple of remixes of this design that you might also like to check out:
Combination Safe 00 _ for the Visually Impaired (Despite the name, not all the features of this design were created exclusively for the blind users)
Combination Safe 00 - Dual Material Rings
ATTRIBUTIONS:
The font used on the Outter_Rings is "Safty" by Christoph Thürsam.
