I update the models quite often, introducing fixes and improvements,
so before printing, please check for the latest version on Thingiverse
again.

Overview

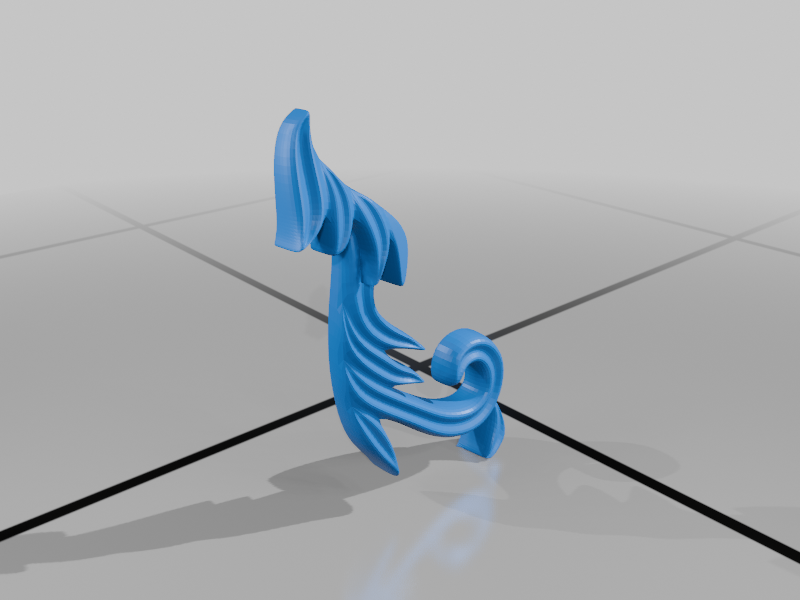

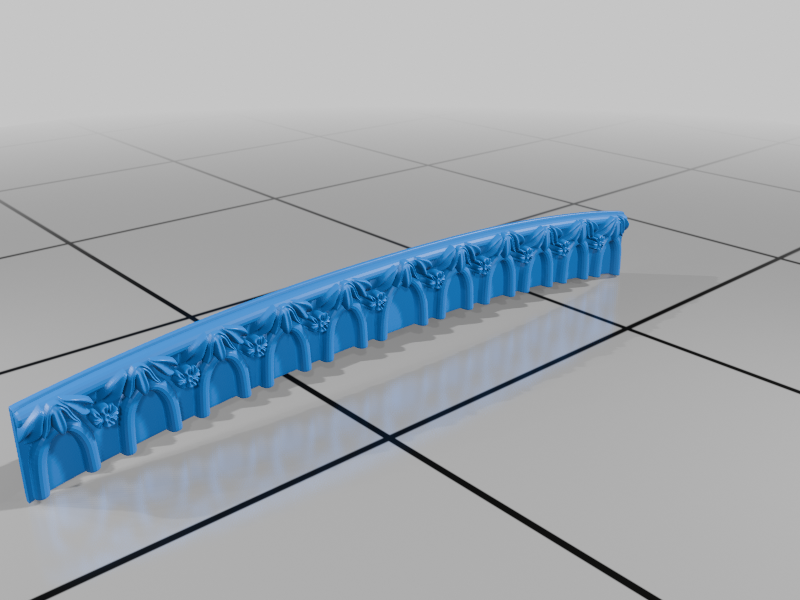

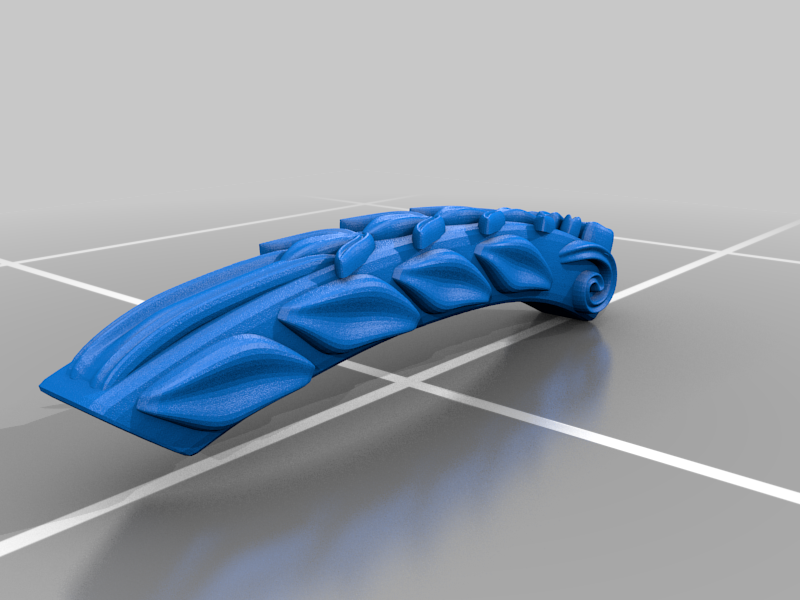

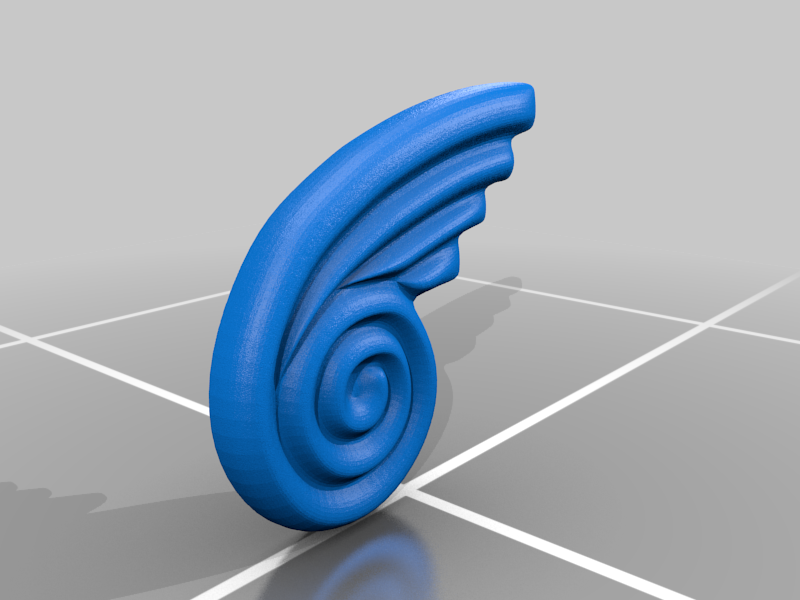

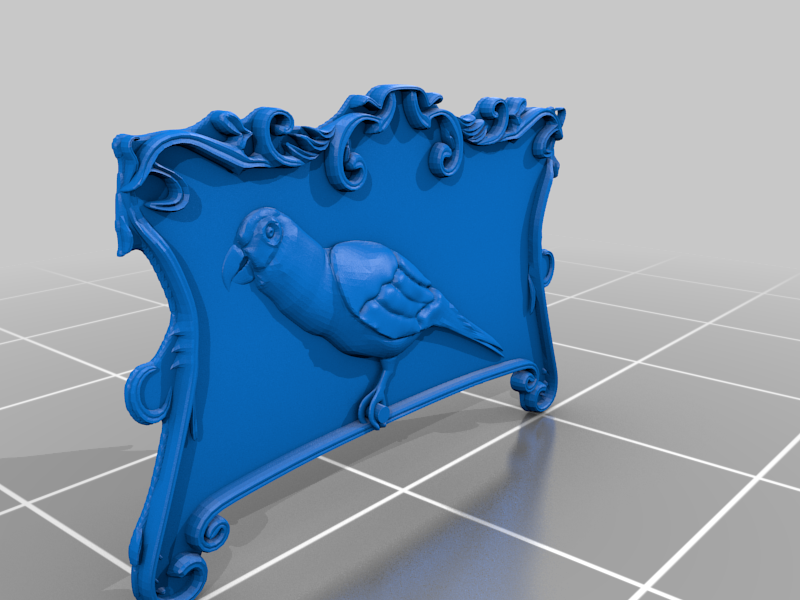

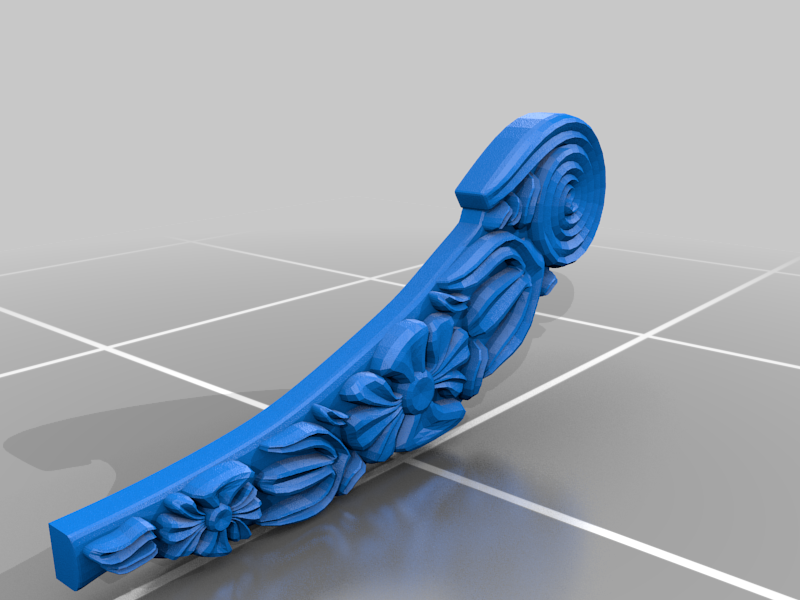

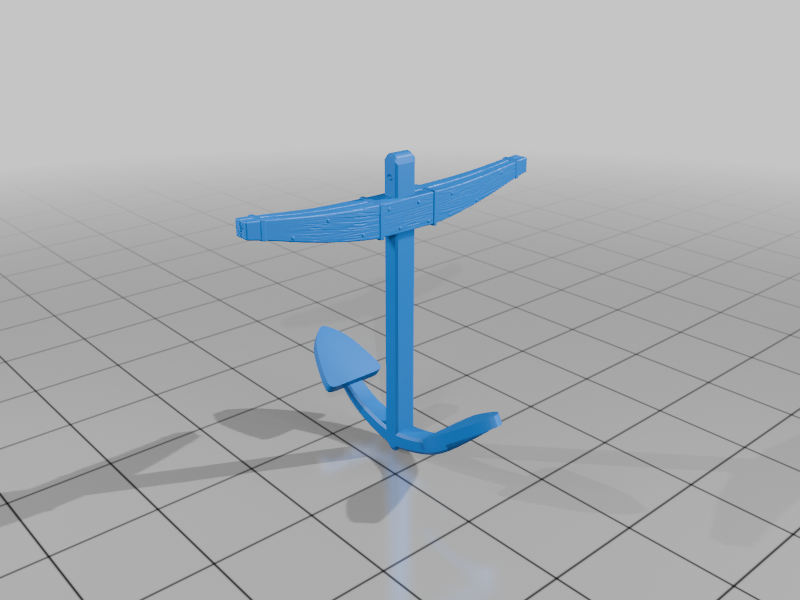

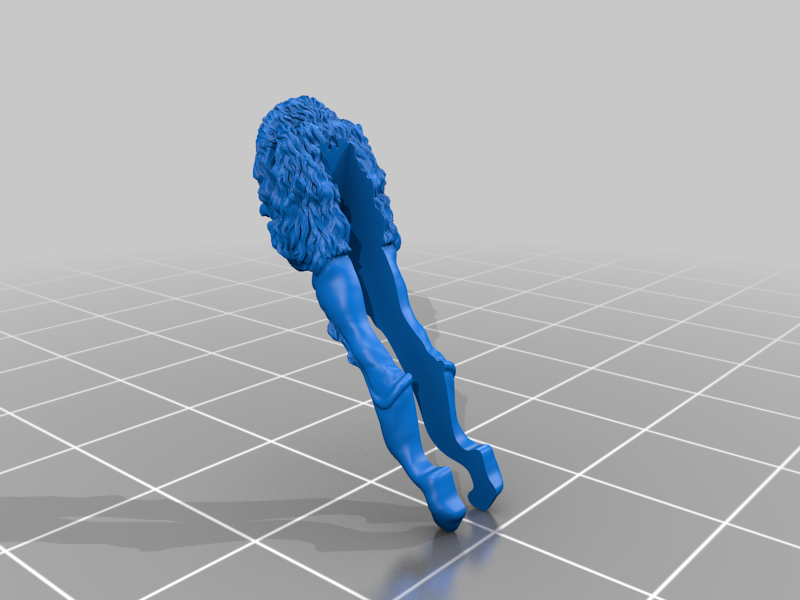

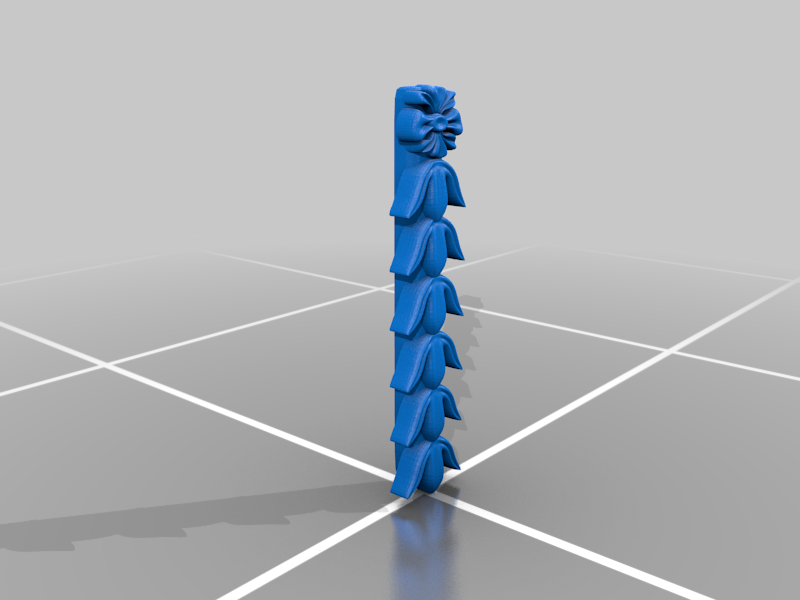

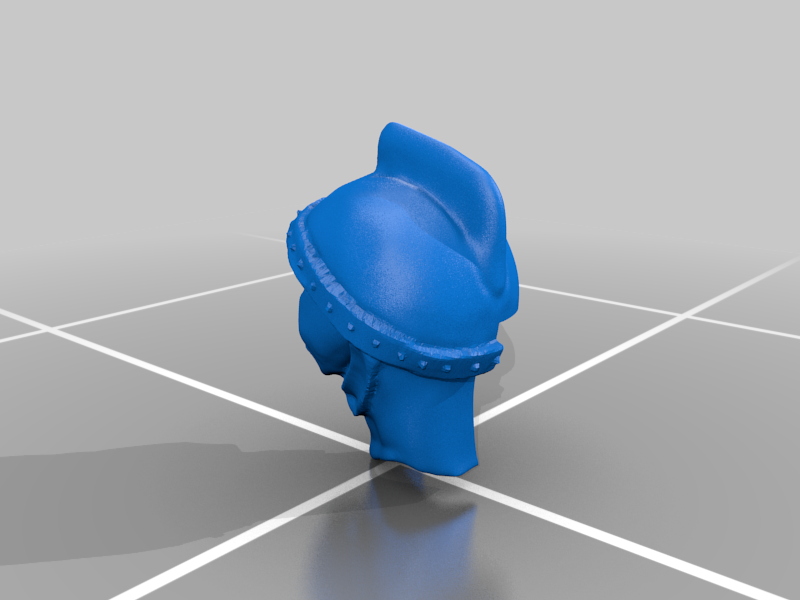

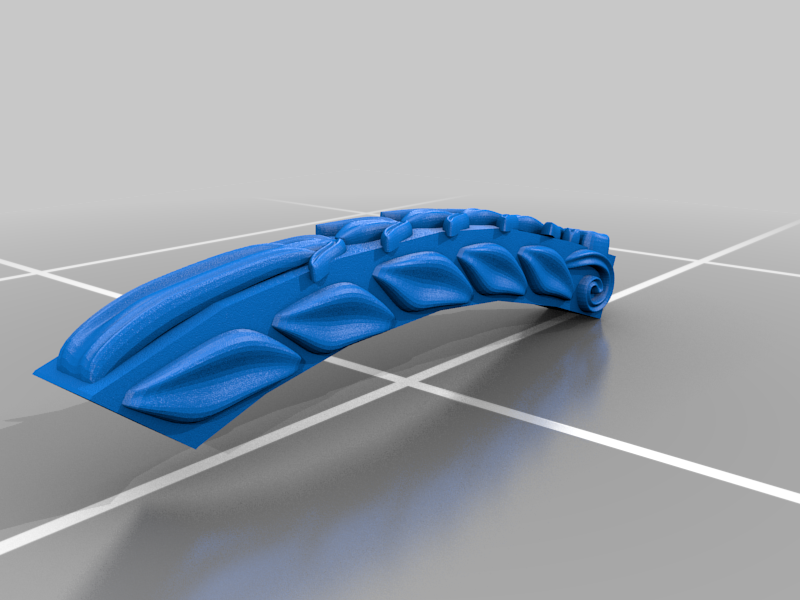

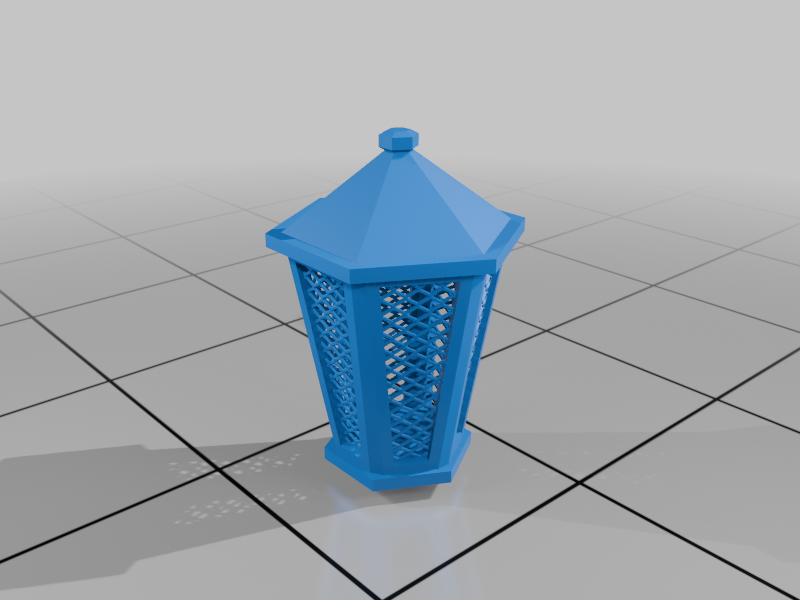

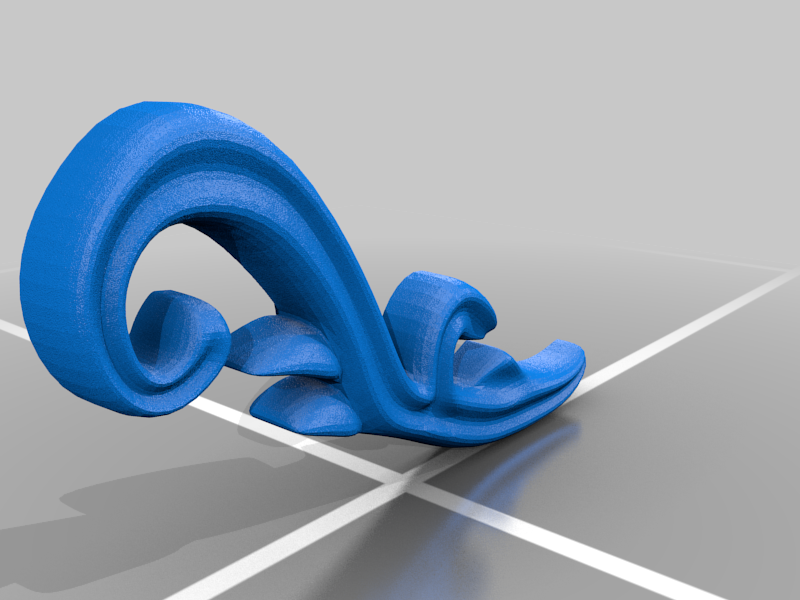

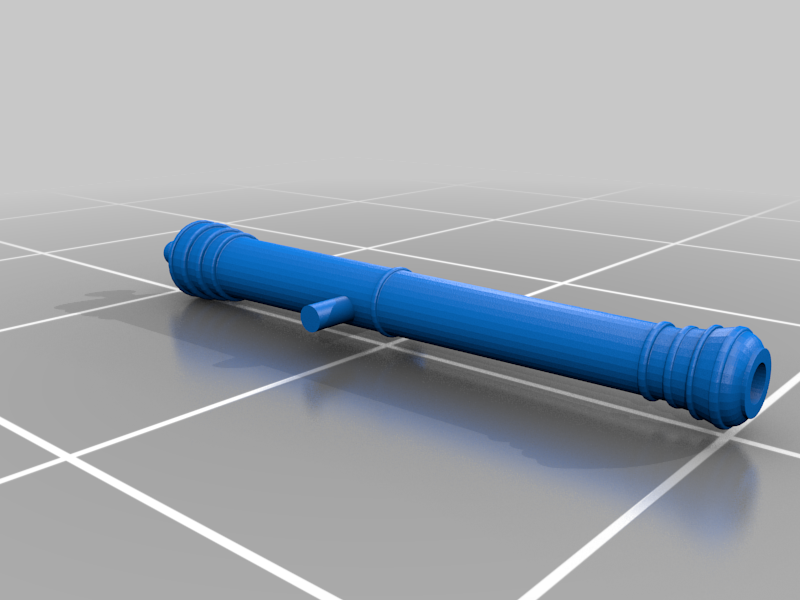

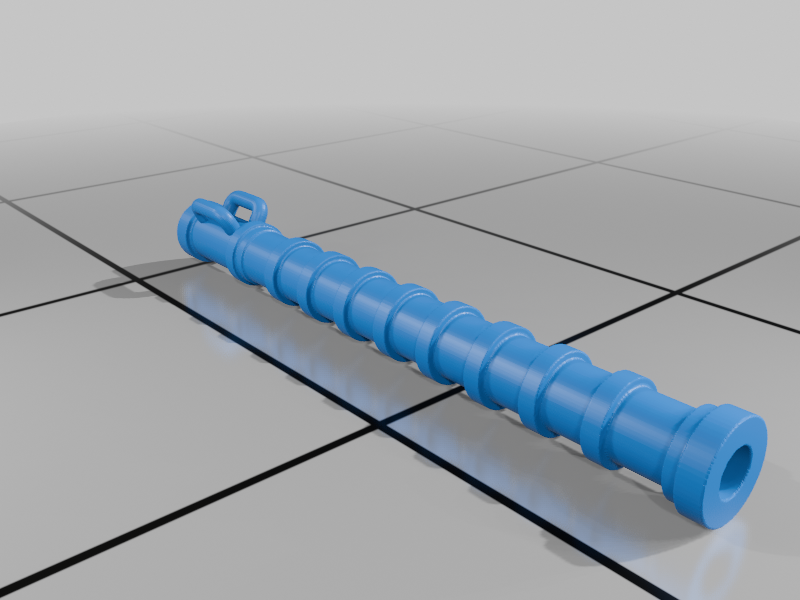

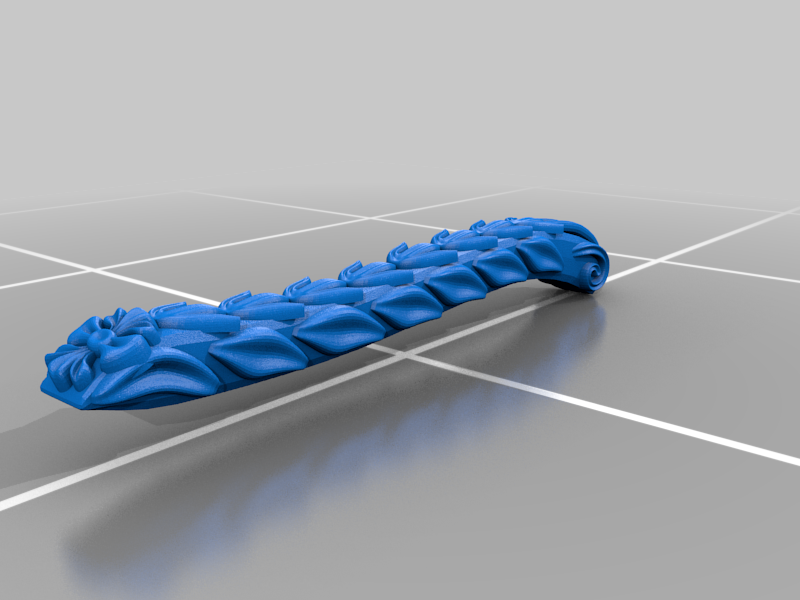

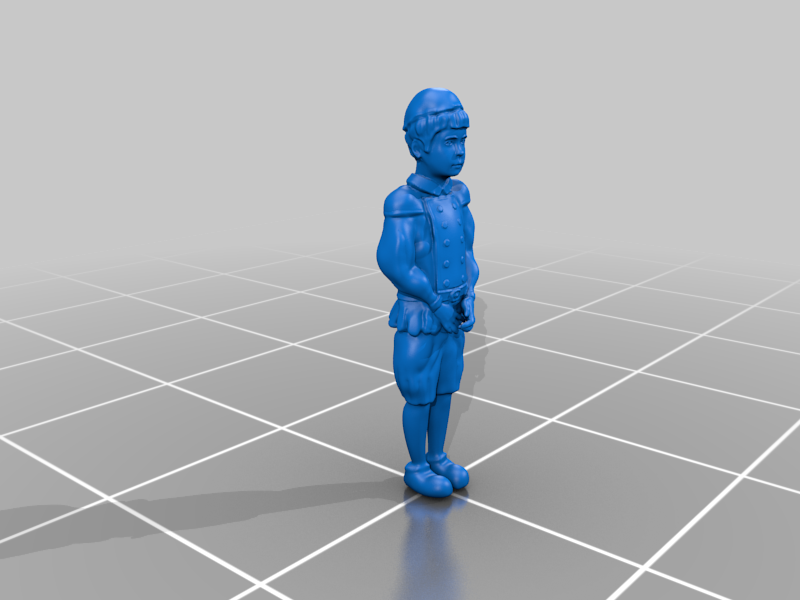

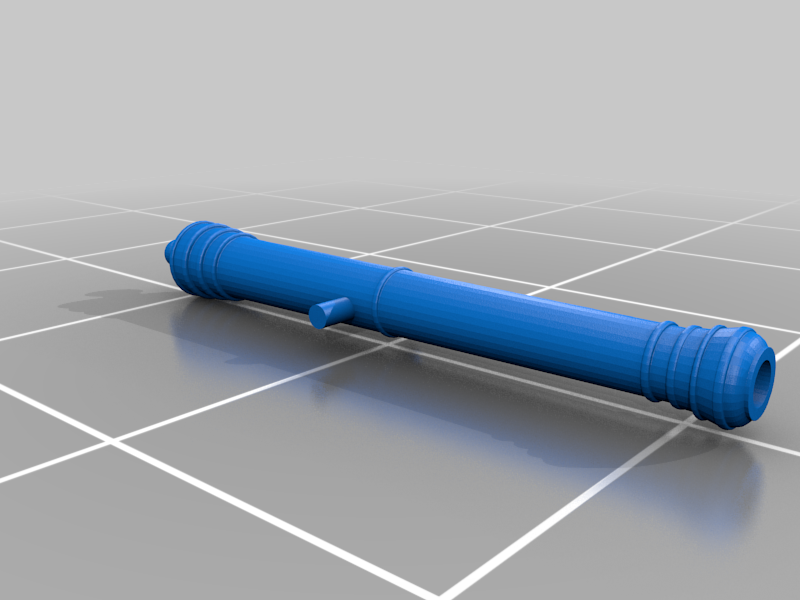

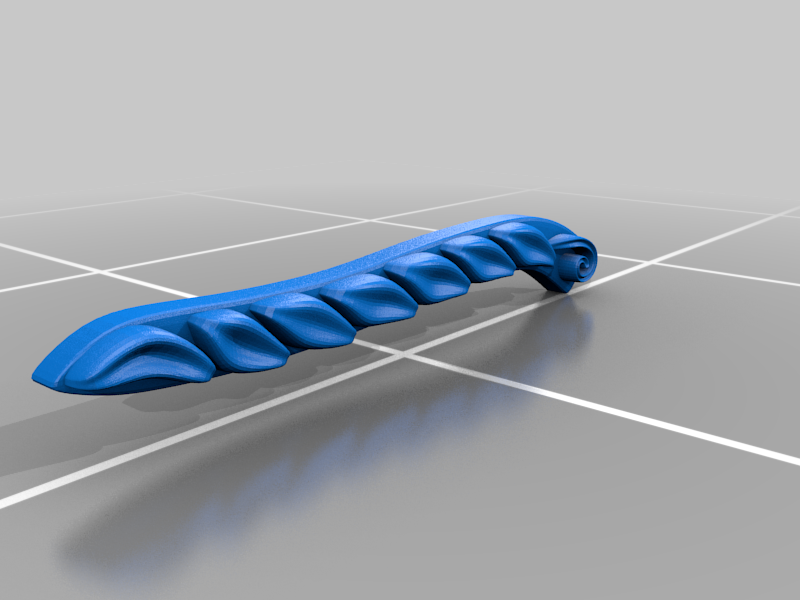

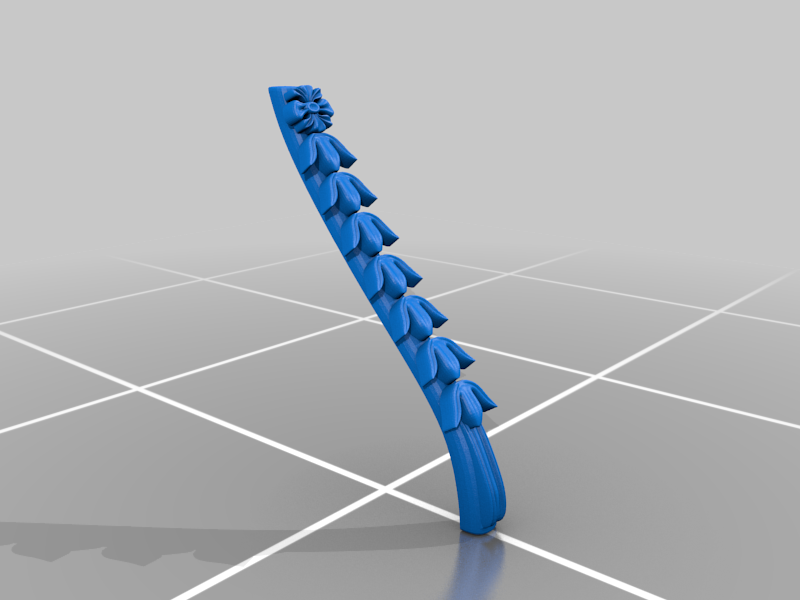

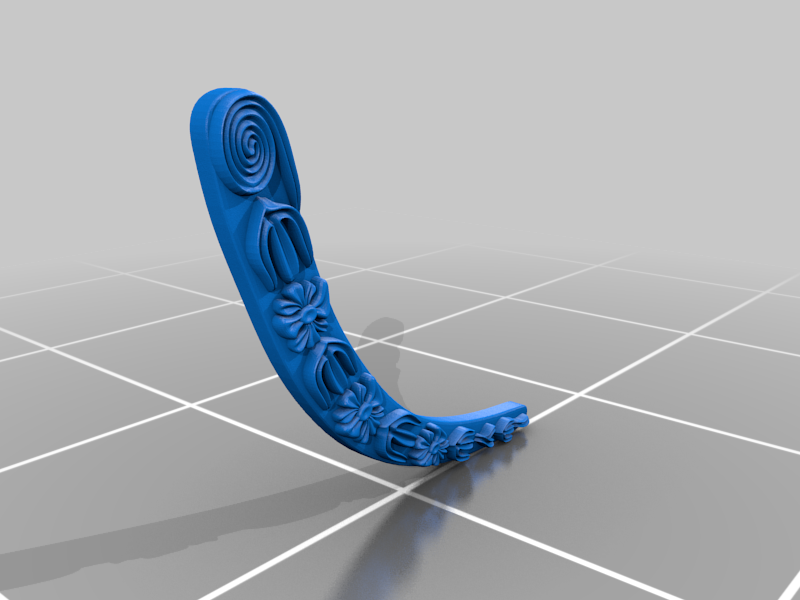

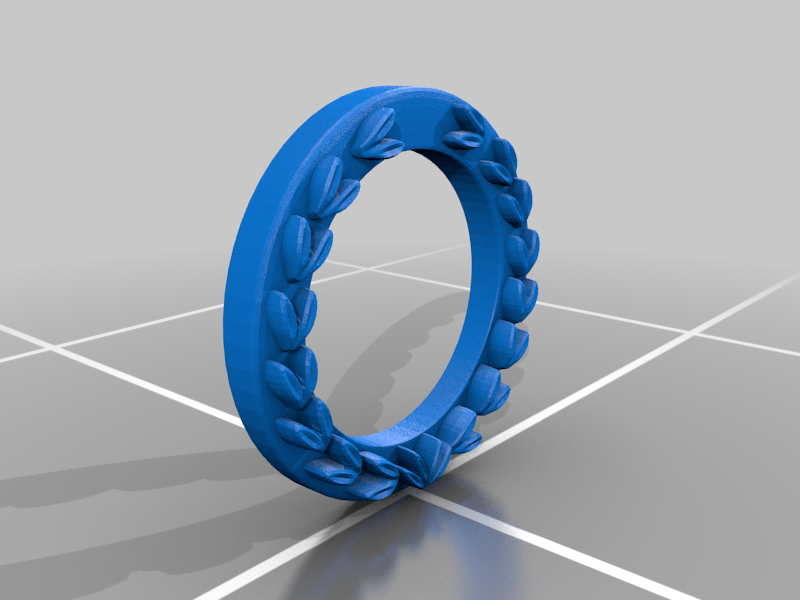

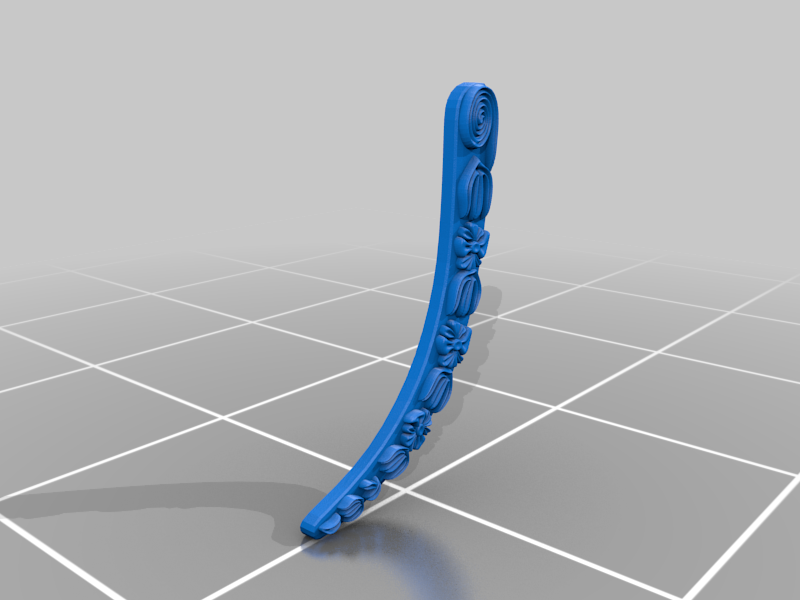

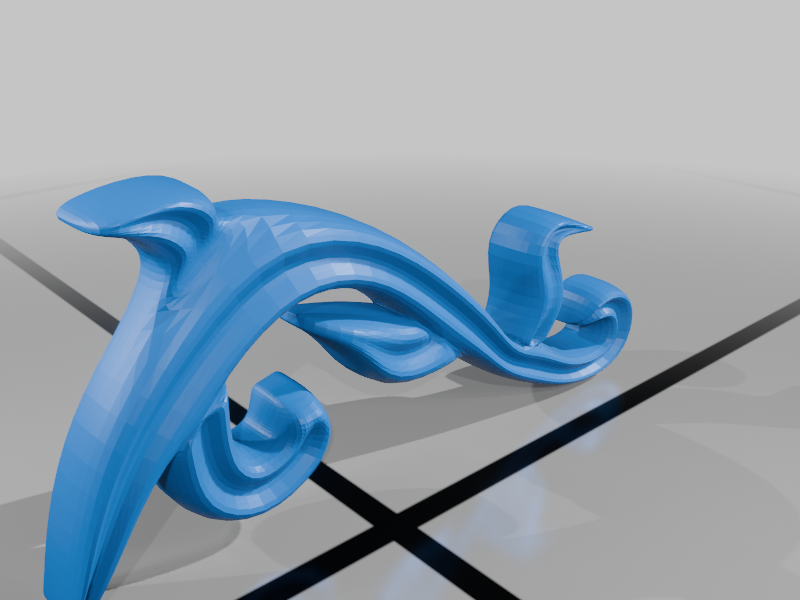

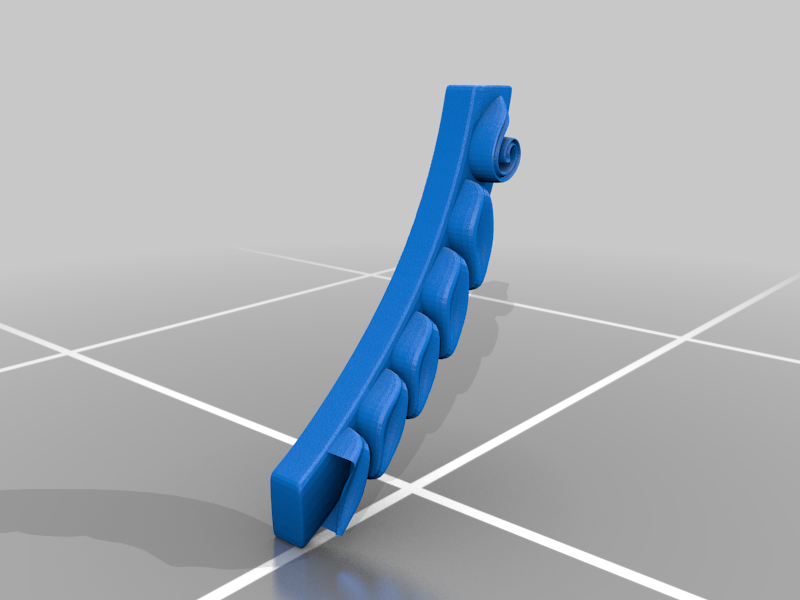

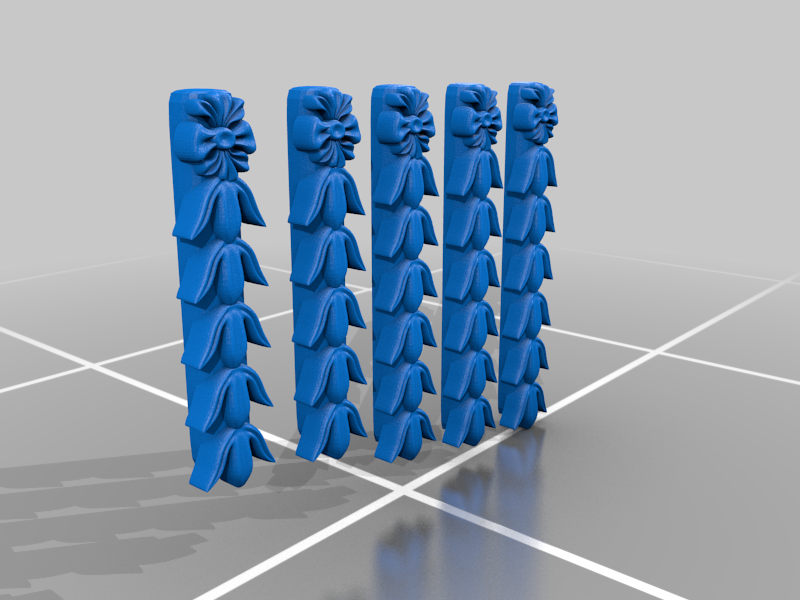

This is unofficial set of decoration elements, armament and laser-cutting templates for Shipyard's
paper model in 1:96 scale: Papegojan

https://model-shipyard.com/en/paper-models/416-papegojan-1624-5902574600042.html

These models are designed for printing on a UV LED resin 3D printer.
Some parts need to be slightly bent before gluing. To do this, place
the part in hot water (up to 100°C) for a few minutes, then bend it,
checking the fit against the mounting location.

To determine the quantity of parts, refer to the "BOM: Thing Elements"
section. Some parts are symmetrical for the right and left sides of the
model and need to be mirrored. For such parts, the "R+L" column in the
"BOM: Thing Elements" table will show the value "R+L" - please take
this into account when preparing the print.

Additional rigging elements are available separately and can be
downloaded via the link in the "BOM: Rigging Elements" section.

You can also download vector files for laser-cutting the frame parts
and deck elements. These files are located in the laser_cut.zip archive.
For more details, please refer to the "Notes: Laser Cut" section.

BOM: Thing Elements

Description of columns:
Sym - symmetrical should be mirrored to get left or right parts
R+L - number of mirrored groups of parts
Total Count - total number of parts

Part #SymR+L CountTotal Count144R+L12170R+L24171R+L24172R+L12173R+L12174R+L12176R+L12177--1178R+L12178adR+L12179R+L12180R+L12181--2182R+L12183R+L12184--1185R+L11186--4187R+L12188R+L12211R+L12212R+L12249--2250--1L1-1212L2-22L3-22BOM: Rigging Elements

Rigging elements are in the separate thing: https://www.thingiverse.com/thing:7297386
Number of sets and sizes you need for this model:

Part #CountSetsDescriptionKN152Duck 2.0mmJ1455Deadeye 2.5mmJ2455Deadeye 2.0mmB1869Single block 2.0mmB2404Single block 2.5mmB3122Single block 3.0mmB441Single block 3.5mmB561Single block 4.0mmB641Pear block 5.5mmB721Triple ramshead block 5.5mmB841Long tackle block 5.5mmB9101Long tackle block 4.0mmB1061Long tackle block 4.5mmNotes: Laser Cut

Files naming convention for laser_cut.zip package:

  • deck.svg - wooden veneer laser cut parts
  • thinckness_0_5.svg - 0.5 mm cardboard parts
  • thinckness_1_0.svg - 1.0 mm cardboard parts
  • thinckness_1_5.svg - 1.5 mm cardboard parts
  • thinckness_2_0.svg - 2.0 mm cardboard parts

Color convention:

  • black layer - Dark engraving of deck planks
  • blue layer - Nails on deck engraving (should be less dark than black layer)
  • purple layer - Cut-through lines
  • red layer - Labels and markdowns engraving layer
