GoPro Scope Mount
par Printmaster98
Fichiers imprimables (4)
-

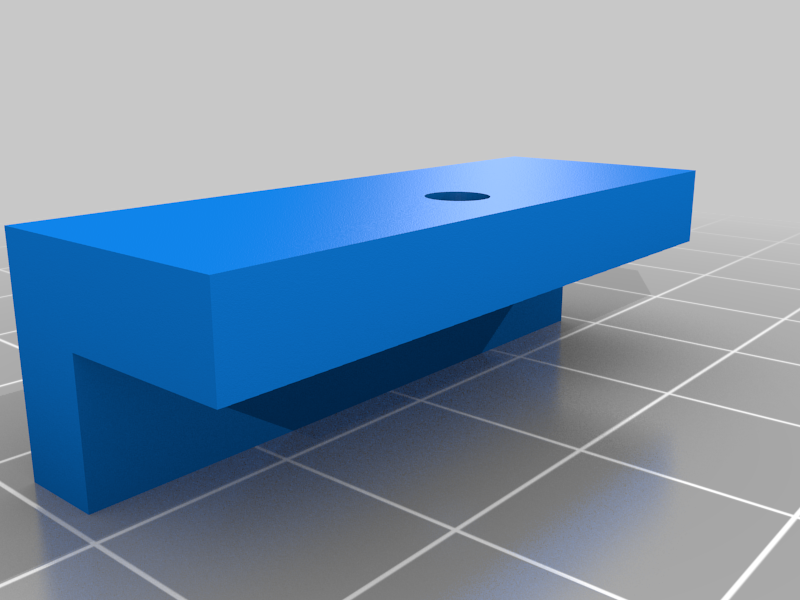

stlSope_Mount_Upper.stl
46 Ko · 7 694 téléchargements
-

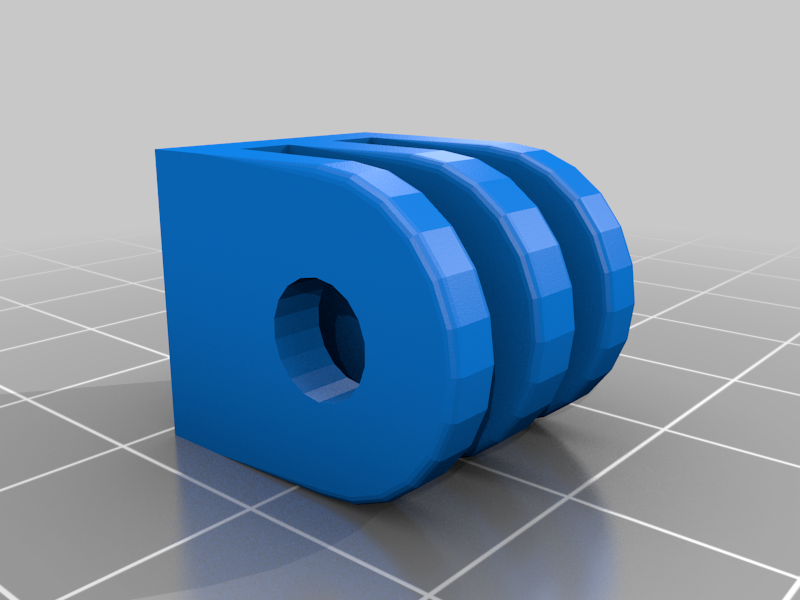

stlGoPro_Bracket.stl
204 Ko · 7 653 téléchargements
-

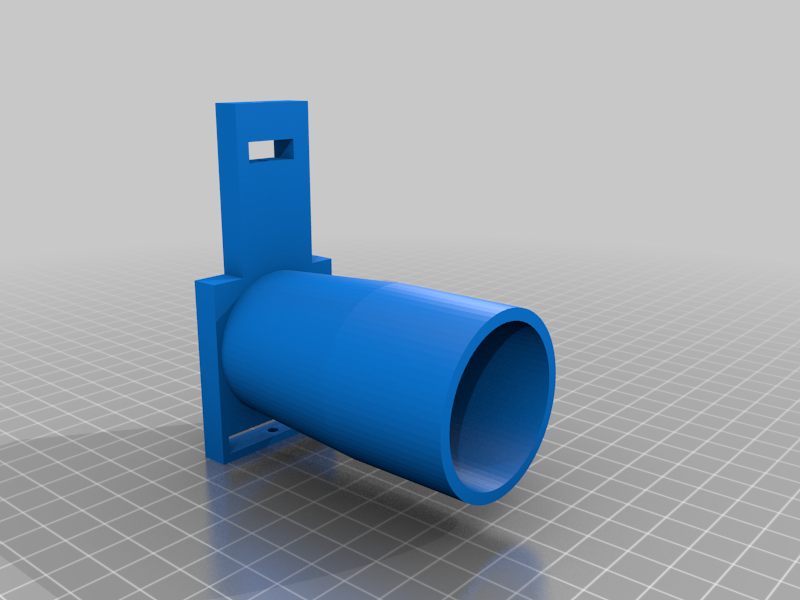

stlGoPro_Scope_Main.stl
510 Ko · 7 781 téléchargements
-

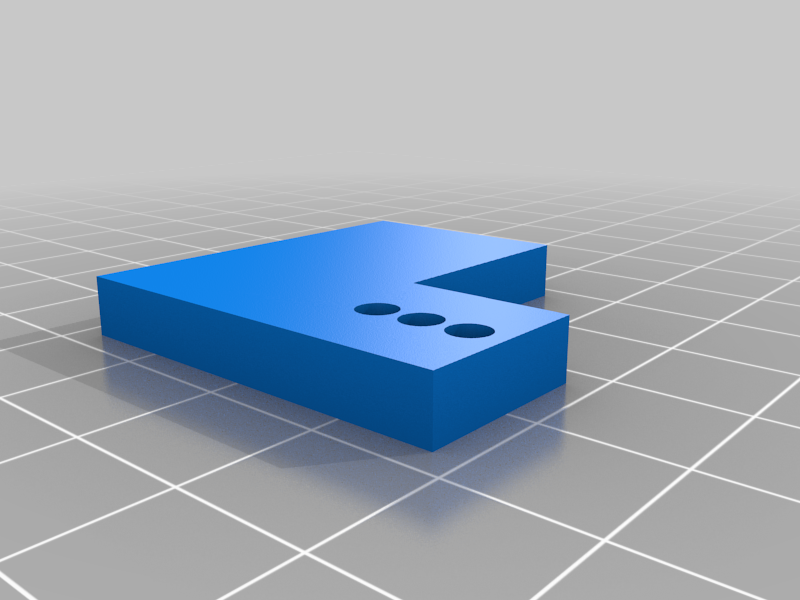

stlScope_Mount_Lower.stl
116 Ko · 7 672 téléchargements
Description
GoPro scope mount with housing. Fits scopes with 39mm eye
Pieces.
(print in Black for best image results)
Items needed for assembly
x1) 1 1/2" 6/32 bolt
x1) 1/2" 6/32 bolt
Directions:
1) Take main body and slide "Scope Mount Lower" in slot. Screw in the 1 1/2" 6/32 bolt.
2) Take main body and slide the "Scope Mount Upper" in slot. Screw in the 1/2" 6/32 bolt.
3) Glue the "GoPro Bracket" to the "Scope Mount Lower".
(ABS glue is recommended) Super Glue works fine.
