ESP8266 ESP-03 Socket

par RFZ

Fichiers imprimables (2)

  • stl

    ESP8266-03_Socket_sym_i6.stl

    167 Ko · 2 061 téléchargements

    Télécharger
  • stl

    ESP8266-03_Socket_align_i6.stl

    172 Ko · 2 030 téléchargements

    Télécharger

Description

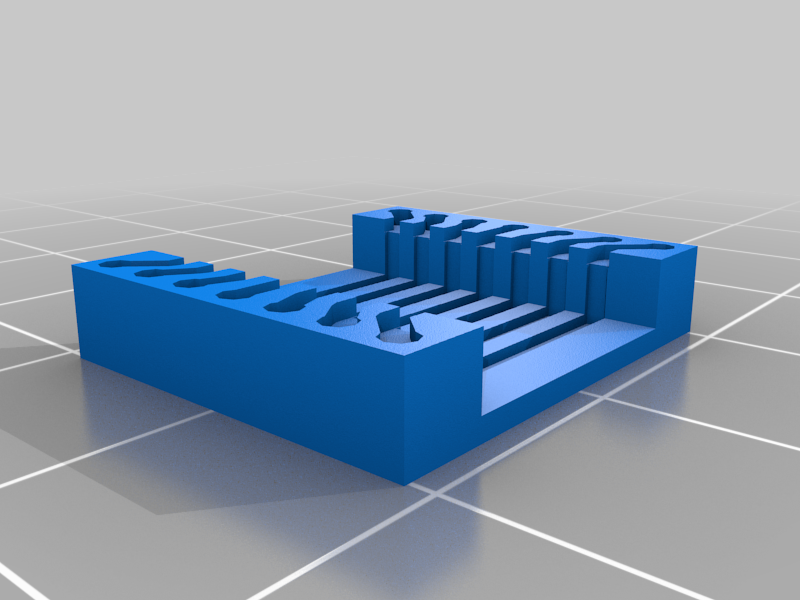

RM 2.54 / Breadboard Socket for ESP8266 ESP-03 or ESP-04.
Provided as is.
May need 0.25 nozzle or smaller.
Printed with 0.2mm layer height, 0.25mm extrusion width.
Holes don't go through! Holes that small won't print fine on my printbed, so the first layer is compact. Use 1mm drill or just a hot cable to drill through.

Instructions:

  • Print ;)
  • Drill/clean holes
  • fix socket to breadboard with ~2cm long ~0.6mm thick wires
  • bend wires 90° to the center
  • fix wires with glue
  • cut remaining wires ~3mm long and bend down ~80°
