AtomStack A5 Pro Limit Switch mounting
par SuperFagni
Fichiers imprimables (3)
-

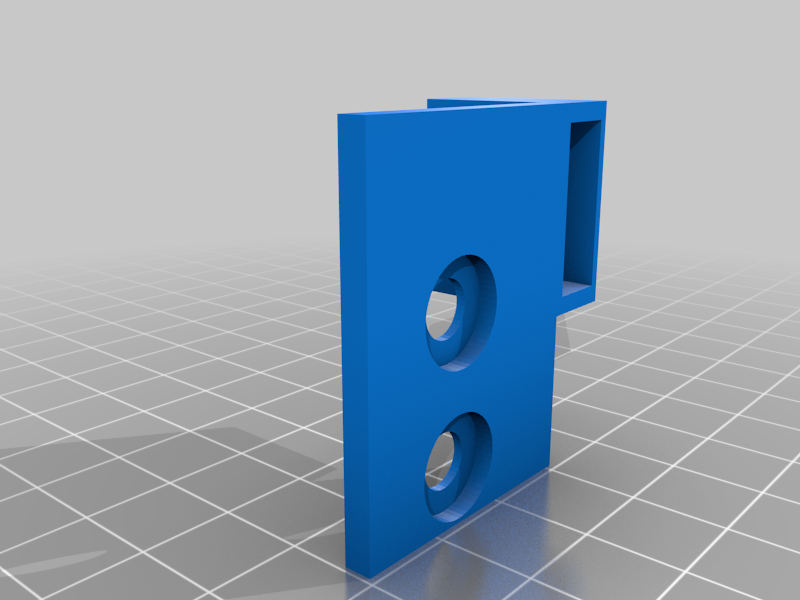

stlX-Axis.stl
43 Ko · 59 téléchargements
-

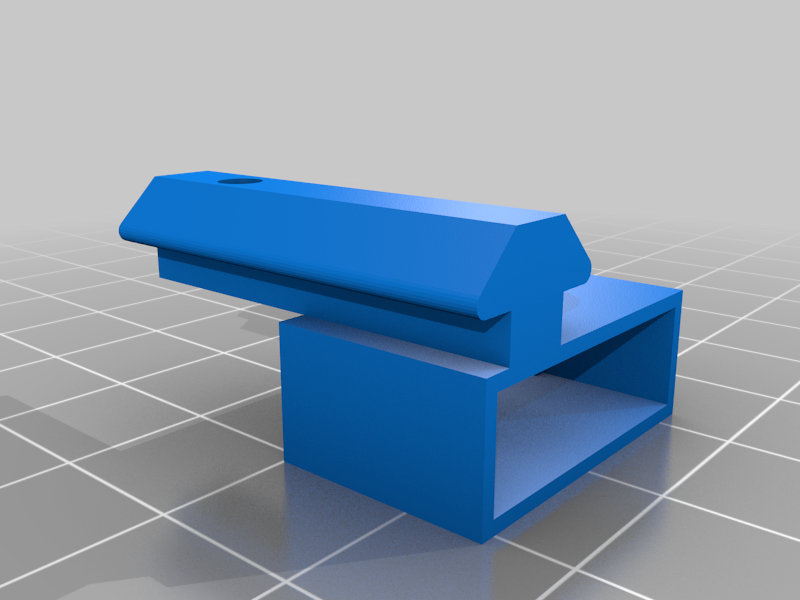

stlY-Axis_Tnut.stl
29 Ko · 58 téléchargements
-

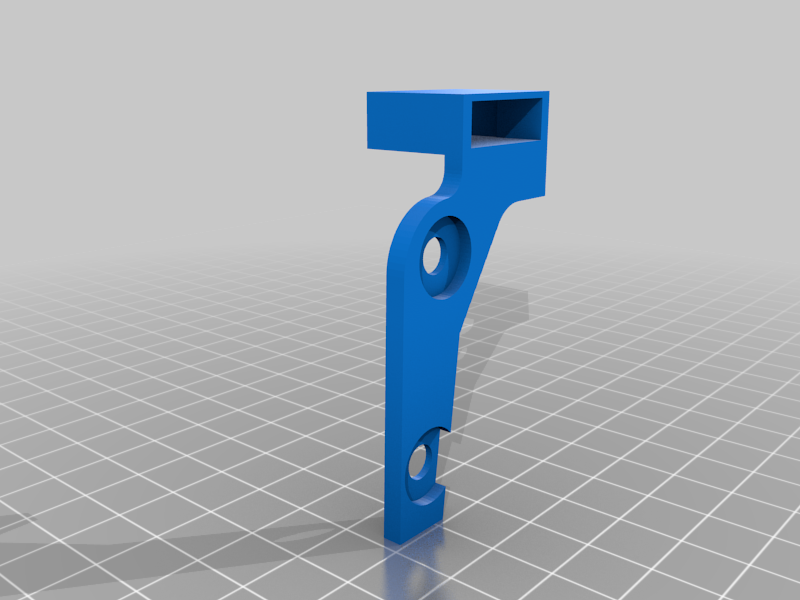

stlY-Axis_Controller.stl
38 Ko · 59 téléchargements
Description
I designed those mounts for add limit switch to my AtomStack A5 Pro laser engraver.
They use switch 20x6 mm.
I createt two different ones for Y axis, the T-Nut version is for default setting (origin at bottom left), the Controller version is in case you want to change the homing position (Upper left)
No need to drill the machine, it fit in the original holes.
