OpenStructures joint for microphone stand
par burt777
Fichiers imprimables (7)
-
stlJoint30_2a.stl
63 Ko · 712 téléchargements
-
stlJoint30_2m.stl
80 Ko · 707 téléchargements
-
stlJoint30_2b.stl
67 Ko · 699 téléchargements
-
stlJointUn2A.stl
560 Ko · 712 téléchargements
-
stlJoint30_v4M.stl
155 Ko · 7 téléchargements
-
stlJoint30_v4C.stl
160 Ko · 9 téléchargements
-
stlJoint30_v4A.stl
146 Ko · 8 téléchargements
Description

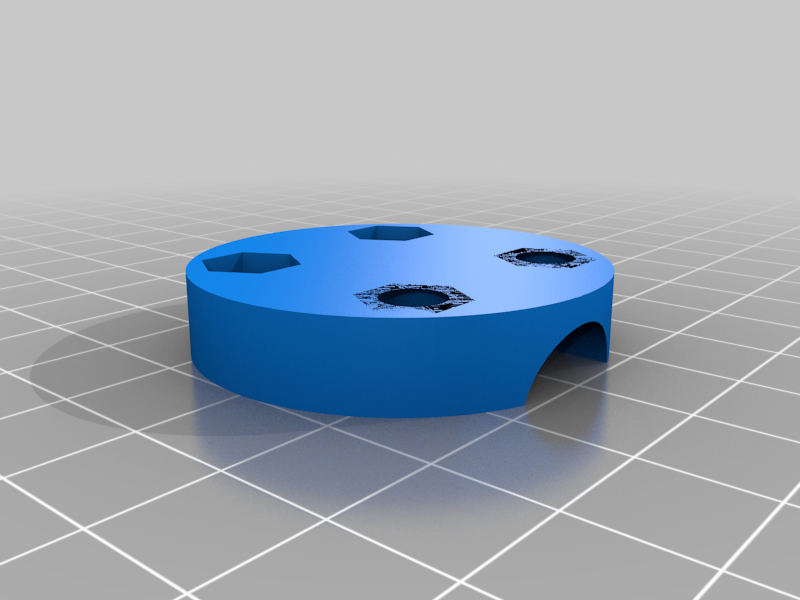

This is a set of 3 disks that can be screwed together (using 5m bolts) to form a joint for a microphone stand.
I've made one with a 30 degree angle, but that's easily changed in the code.
The position of the holes is based on the OS Grid. (http://openstructures.net/pages/9#deel2a)
The Scad file has all three parts in it, aligned the way they fit together when assembled. I printed the disks one by one, so there's 3 different .STL and .X3G files. (I'd like to know if there's a standard way to do this nicely).
It's not super-heavy duty, but it easily holds a microphone on a 1m rod.
