Cable chain
par MartinGW
Fichiers imprimables (3)
-
stlWire-chain-20mm_fixed.stl
1.1 Mo · 8 036 téléchargements
-
stlHolder_X-carriage_v2.stl
493 Ko · 7 337 téléchargements
-
stlHolder_X-motor_v2.stl
883 Ko · 6 461 téléchargements
Description
A remixed version of http://www.thingiverse.com/thing:10946 to be easier to print.

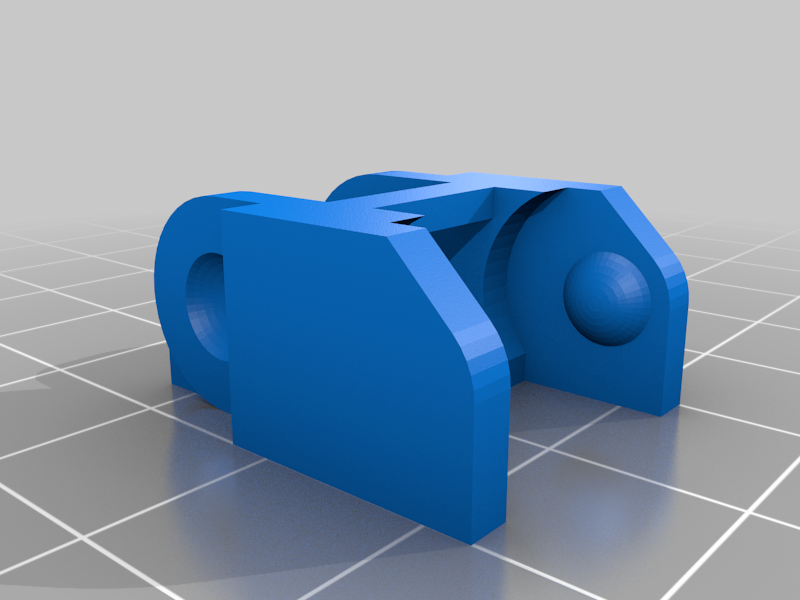

I had problems with the slight overhang in the front of the link bending upwards when printing the cable chain so I added a 1mm support under the front to keep it level.
Prints like a charm now and the support is easy to remove with a knife or a file.

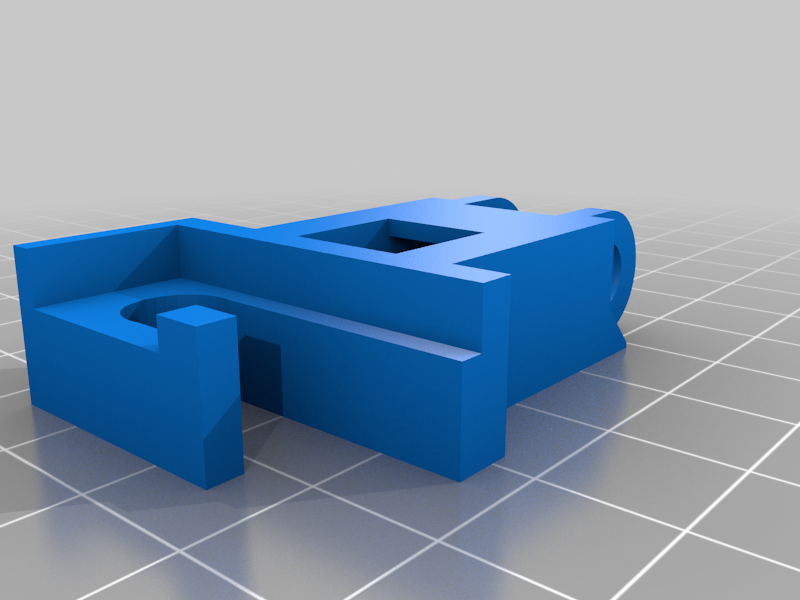

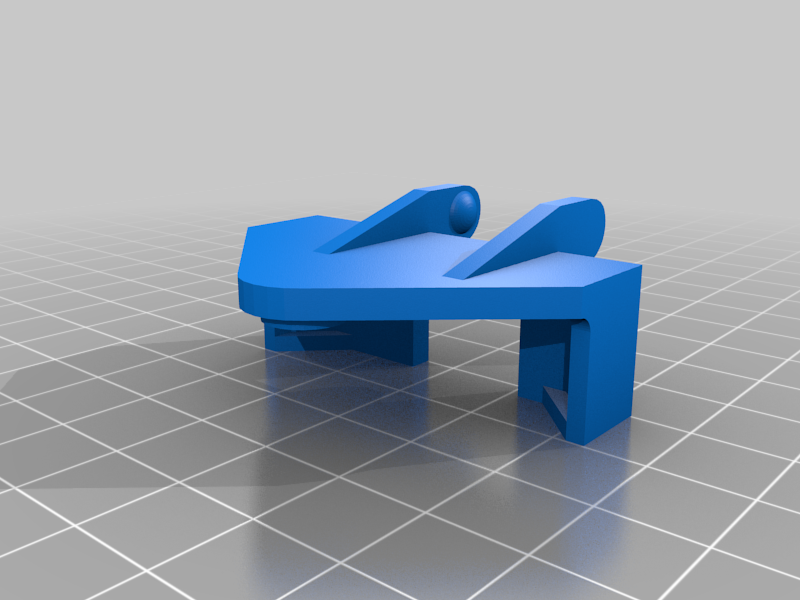

I've also added the two custom mounts that I've designed for the X-carrige of my Prusa i3. The extruder side simply clips on to the NEMA stepper motor for the extruder.
