Postage Board Microcontroller

par Mchrogers

Fichiers imprimables (3)

  • 3mf

    Postage_Board_Rev_1_Microcontroller.3mf

    328 Ko · 7 téléchargements

    Télécharger
  • step

    Postage_Board_Rev_1_Microcontroller.step

    149 Ko · 6 téléchargements

    Télécharger
  • stl

    Postage_Board_Rev_1_Microcontroller.stl

    1.2 Mo · 6 téléchargements

    Télécharger

Description

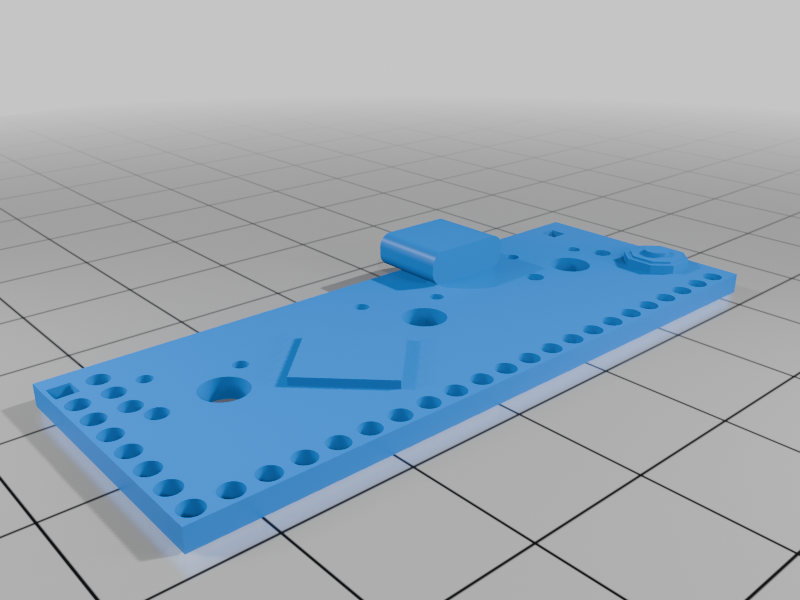

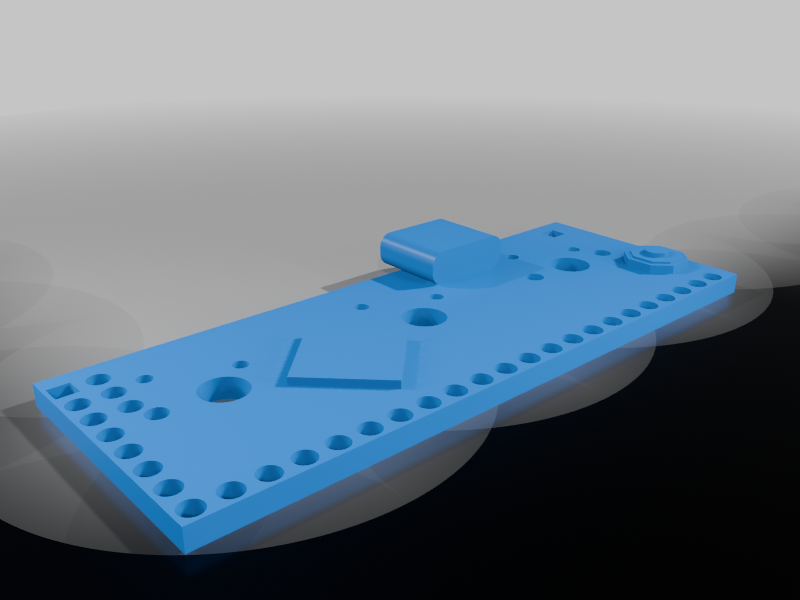

I designed a simple model for the Postage Board microcontroller, tailored for handwired keyboards. This model helps in the design process by offering a straightforward, accurate representation of the microcontroller, making it easier to integrate into custom keyboard builds.

I didnt design this board, just took measurements by hand and tested.

I included the STEP file.
