Cable clip
par LePapy
Fichiers imprimables (6)
-

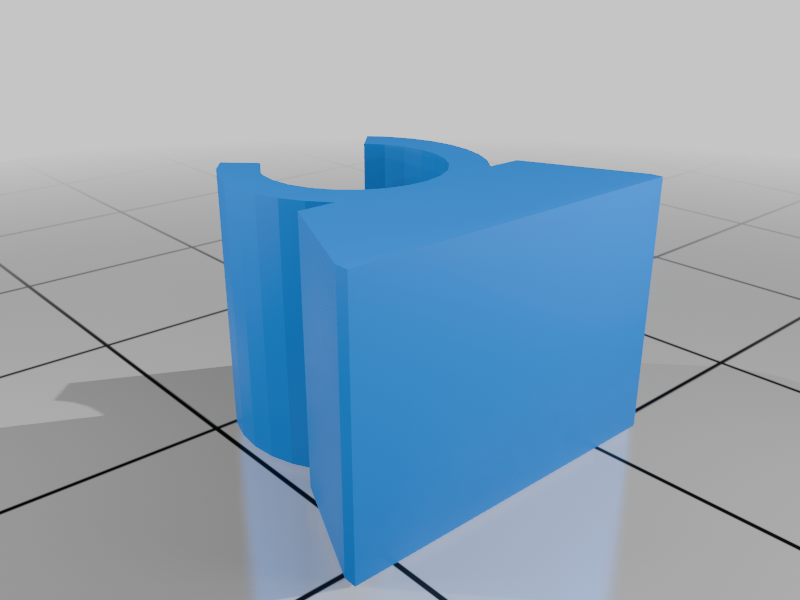

stlEthernet_Clamp_x1.stl
102 Ko · 21 téléchargements
-

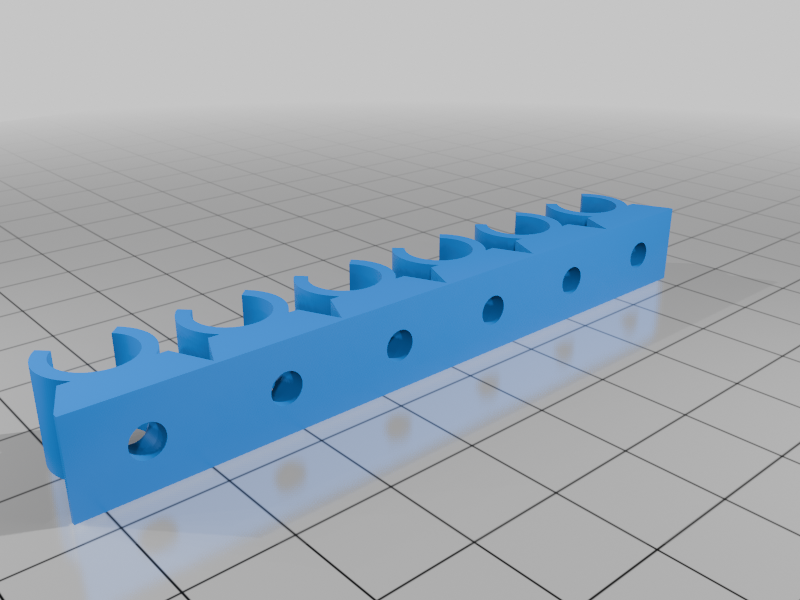

stl1.5_Clamp_x6.stl
530 Ko · 21 téléchargements
-

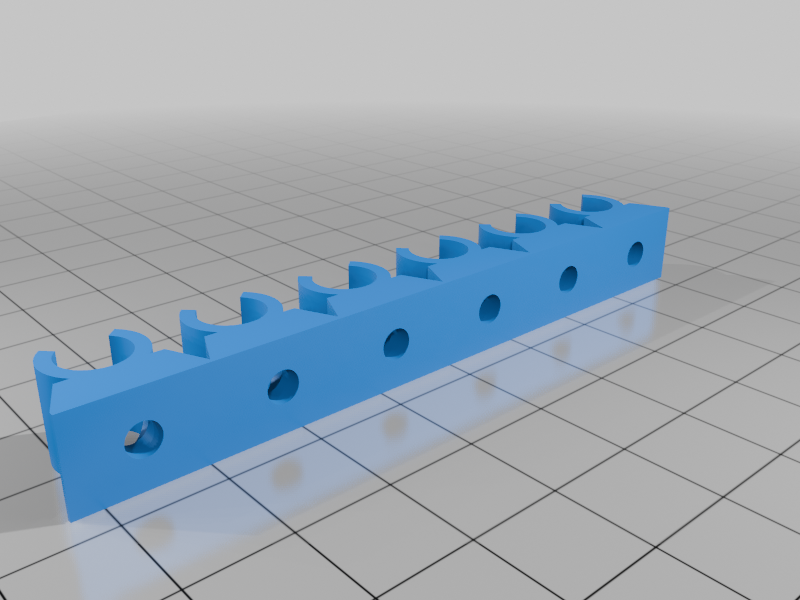

stlEthernet_Clamp_x6.stl
509 Ko · 22 téléchargements
-

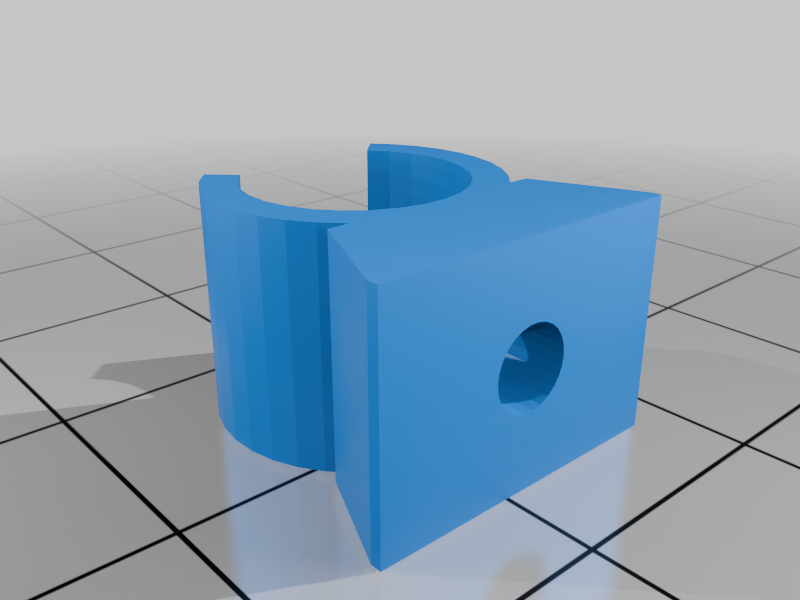

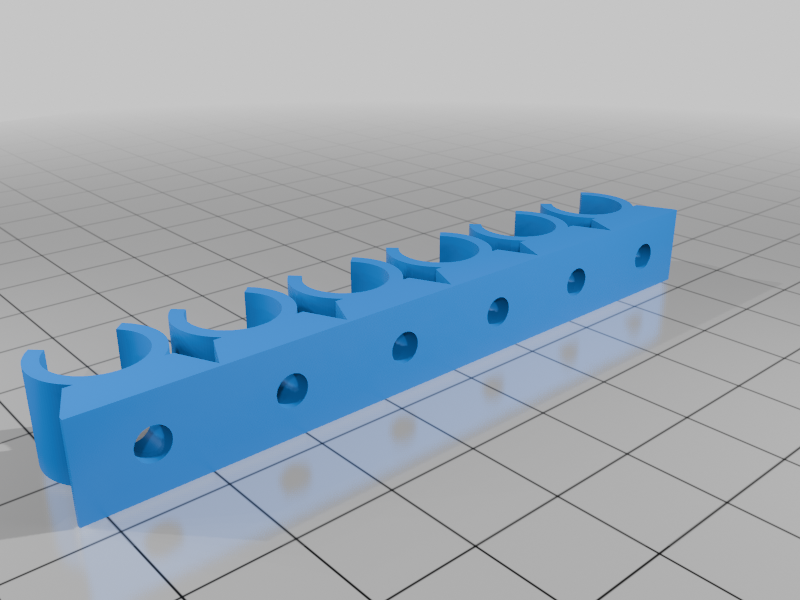

stl2.5_Clamp_x6.stl
526 Ko · 20 téléchargements
-
stl2.5_Clamp_x1.stl
21 Ko · 25 téléchargements
-
stl1.5_Clamp_x1.stl
530 Ko · 22 téléchargements
Description
These are simple cable clips to hold your cables wires.
I use them for my home renovation in order to hold electrical wires (U1000R2V 3X2,5 mm² and U1000R2V 3x1,5 mm² types), but you can also use them for bunch of different cables.
I include the FreeCAD file so you can easily customize to your own cables by only editing the parameter sheet (see screenshot).
The only 2 value to change are :
- inner diameter - that corresponds to the external diameter of your cable
- number of clamp - if you want to print a rack of several clamps to do a parallel routing of several cables.
Diameter values for U1000R2V 3X2,5 mm² , U1000R2V 3x1,5 mm² and Ethernet cables are provided in the parameter spreadsheet
Note :
- if you print a bar of several clips, you can easily split them after printing
- after changing parameter, you may need to click on "recompute object" to apply new parameter to the #D model
I used PLA but other non flexible materials should do the job too
if you do not want to crush the clip with the screw I suggest to use 100% infill and to be a bit gentle while screwing
