Polar CNC Plotter V3
par AverageEngg
Fichiers imprimables (9)
-

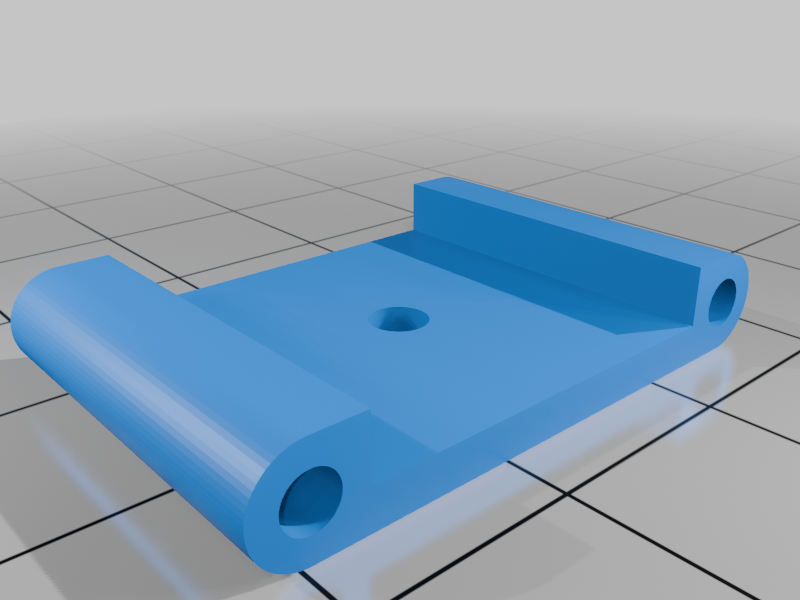

stlIdle_Bearing_support.stl
53 Ko · 158 téléchargements
-

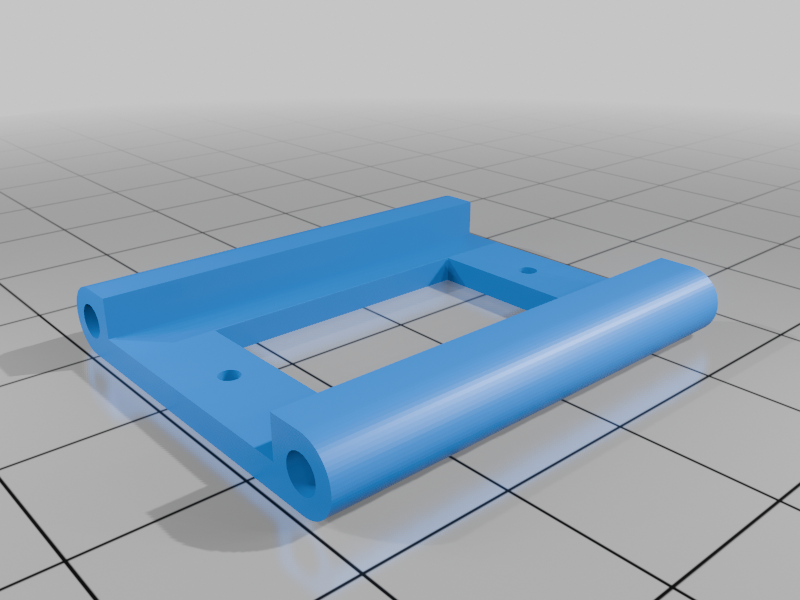

stlServo_support.stl
67 Ko · 149 téléchargements
-
stlIdler_Pulley_Ring.stl
64 Ko · 148 téléchargements
-

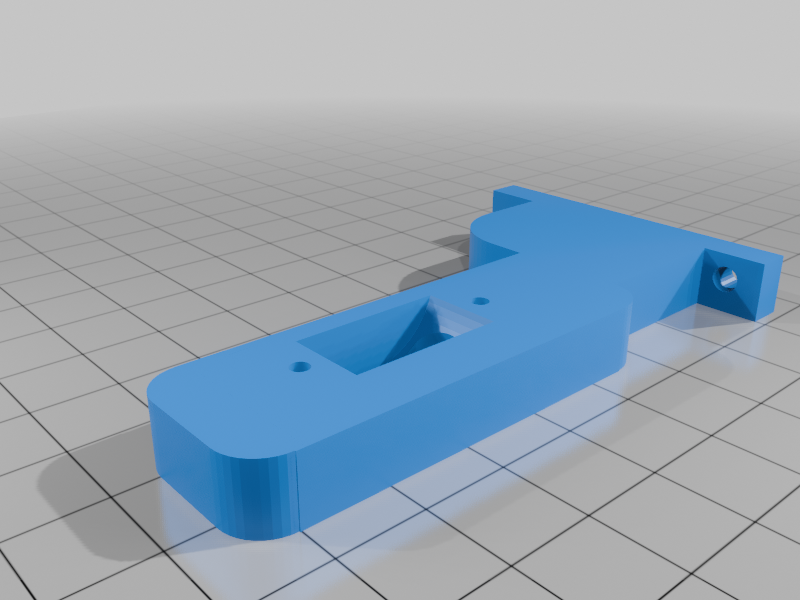

stlX-axis_Stepper_Motor_Support.stl
79 Ko · 159 téléchargements
-

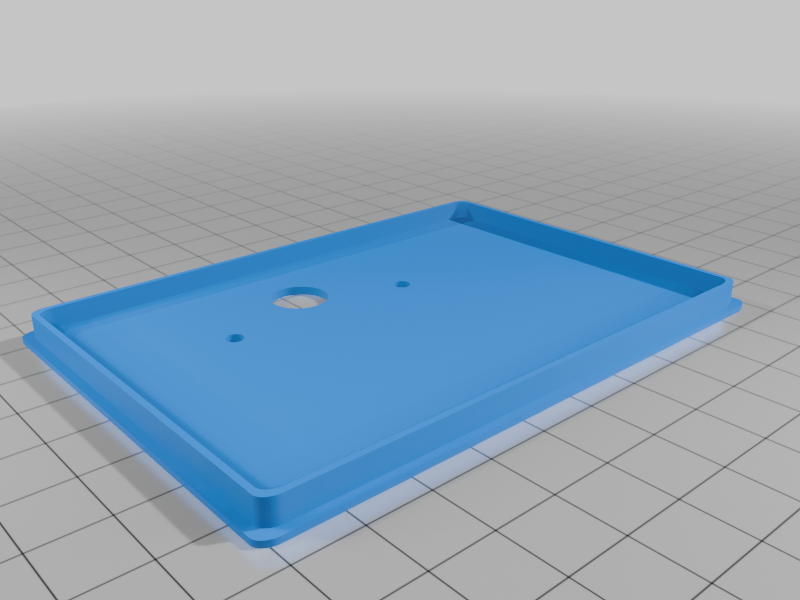

stlBox_Part_1.stl
135 Ko · 149 téléchargements
-
stlServo_Arm_with_Nut.stl
166 Ko · 165 téléchargements
-
stlHerringbone_Gear.stl
954 Ko · 173 téléchargements
-

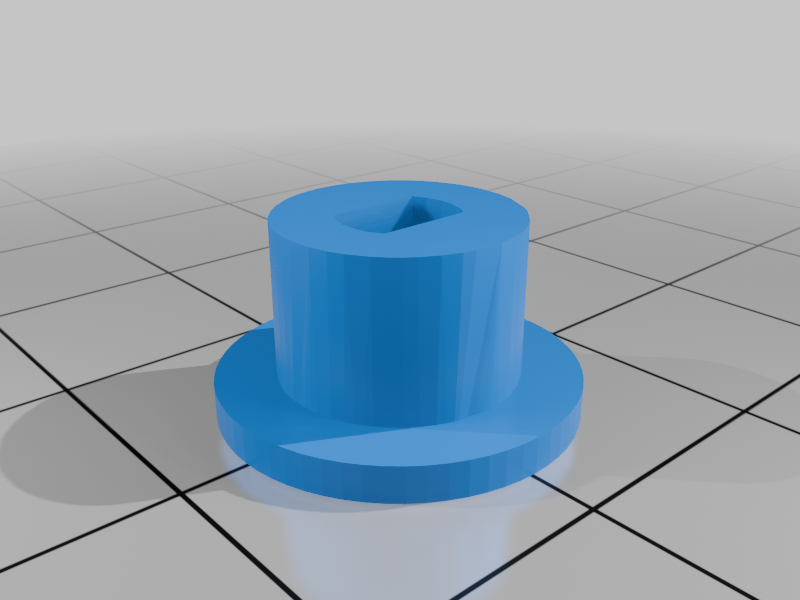

stlStepper_Motor_Pulley.stl
59 Ko · 161 téléchargements
-

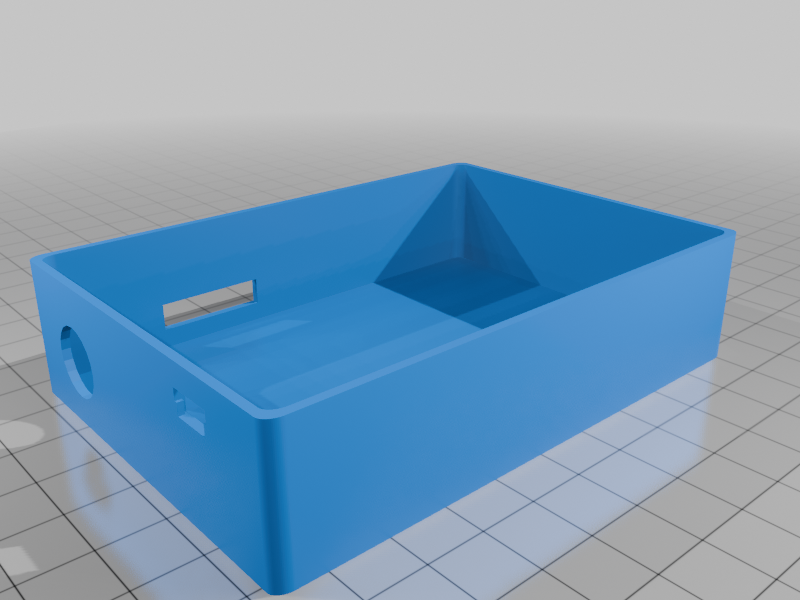

stlBox_Part_2.stl
40 Ko · 155 téléchargements
Description
The Polar CNC Plotter V3 is based on Arduino Nano and runs on GRBL firmware. It consists of two 28byj-48 Stepper motors, one servo motor and 3D printed parts that provide movement in two axes. The materials used for this project are Arduino Nano, 28byj-48 Stepper motors, servo motor, compact disc (CD), old DVD’s BLDC motor, bicycle’s spokes, bearing, string/thread and 3D printed parts. The 3D printed parts are designed in such a way that the whole machine become budget friendly, easy to build, compact, light in weight and looks cool.
