Counter-March Table Loom
par didier33170
Fichiers imprimables (28)
-

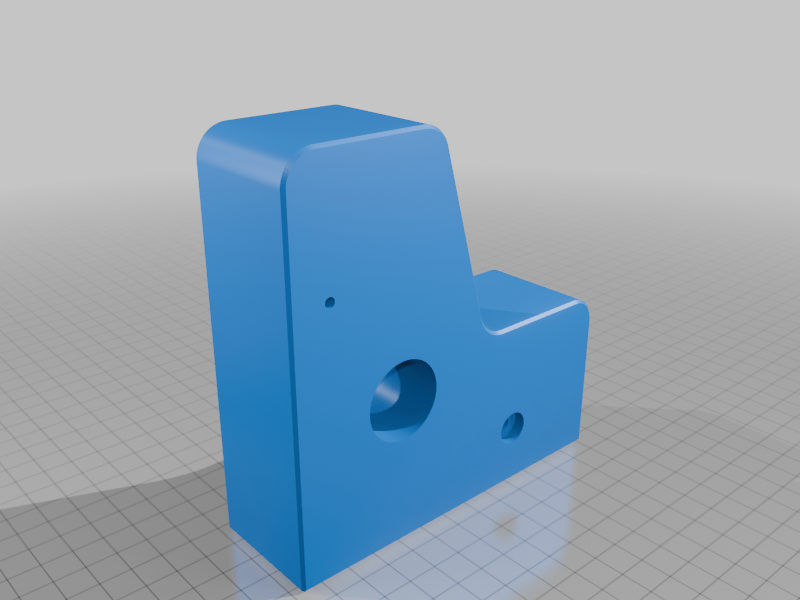

stlA_Chassis_FR.stl
471 Ko · 107 téléchargements
-

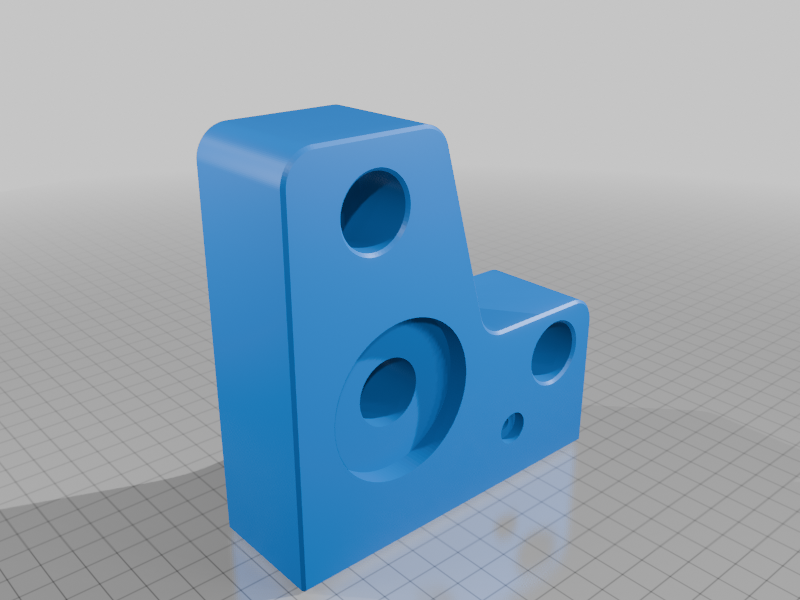

stlB_Chassis_FL.stl
420 Ko · 108 téléchargements
-

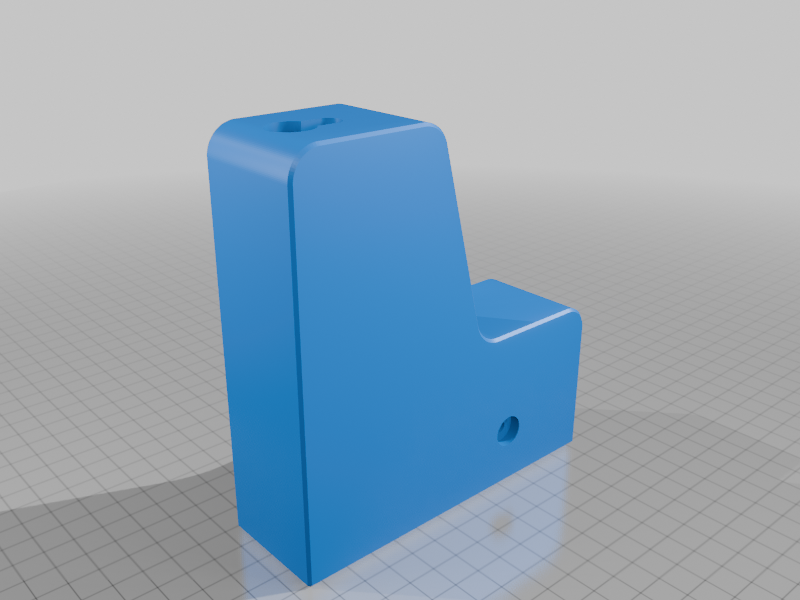

stlC2_Chassis_BL.stl
472 Ko · 104 téléchargements
-

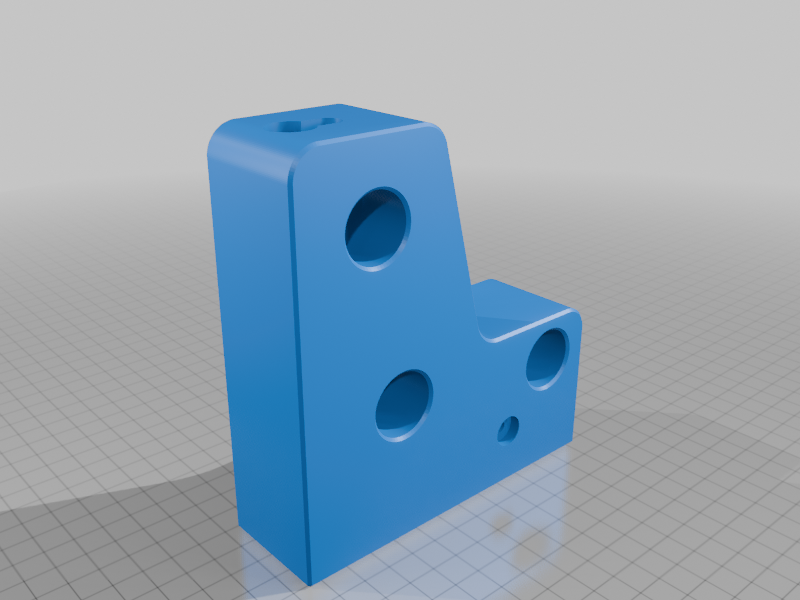

stlD2_Chassis_BR.stl
512 Ko · 105 téléchargements
-

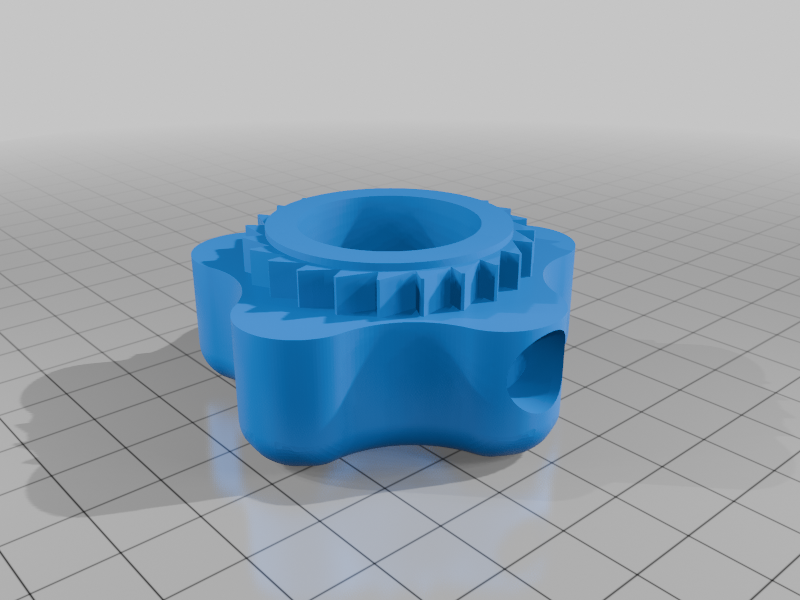

stlE_Front_Handle.stl
1.6 Mo · 31 téléchargements
-

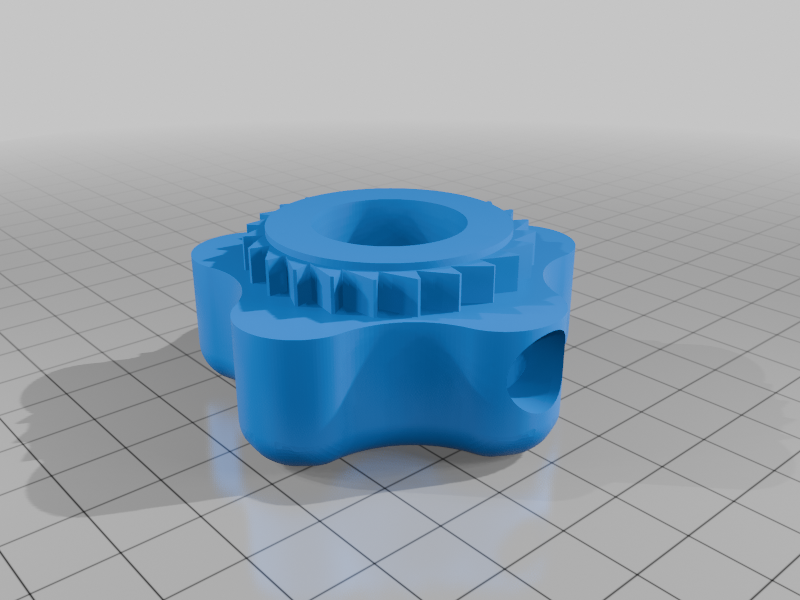

stlF_Back_Handle.stl
1.6 Mo · 31 téléchargements
-

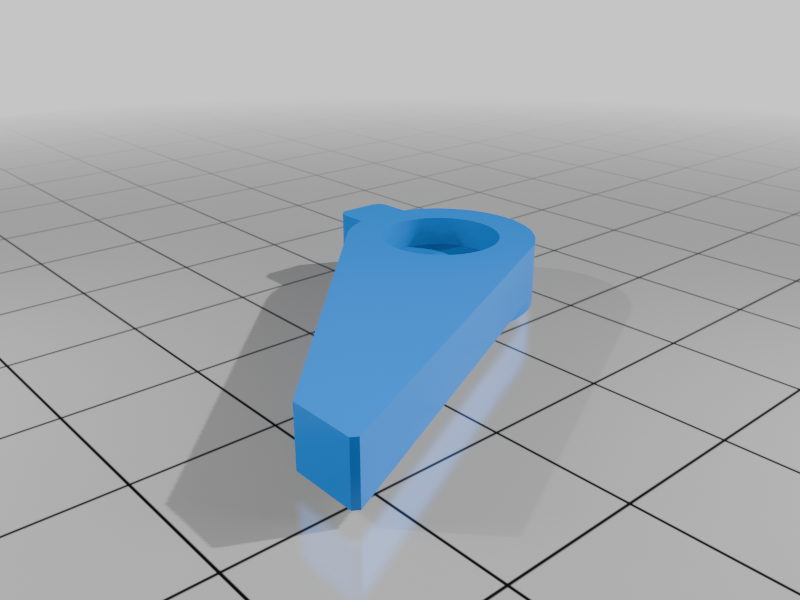

stlG_Pawl.stl
94 Ko · 107 téléchargements
-

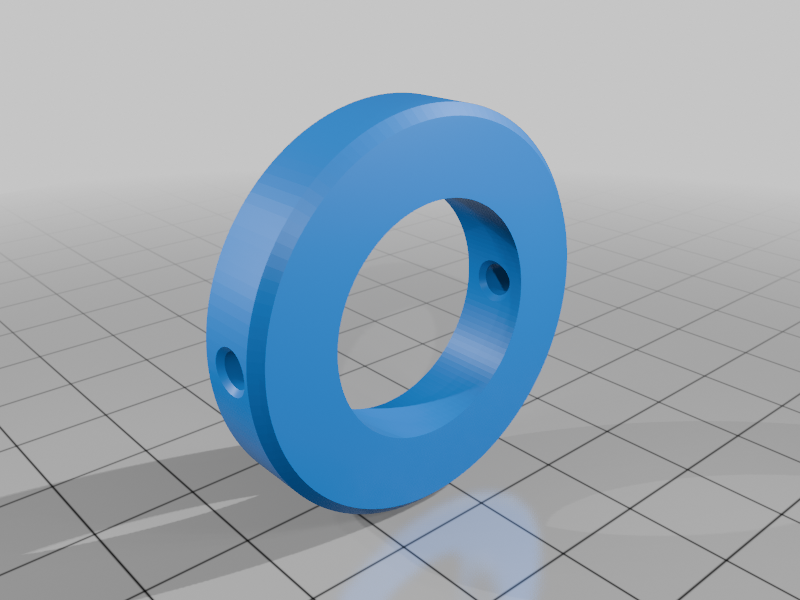

stlH_Washer.stl
187 Ko · 105 téléchargements
-

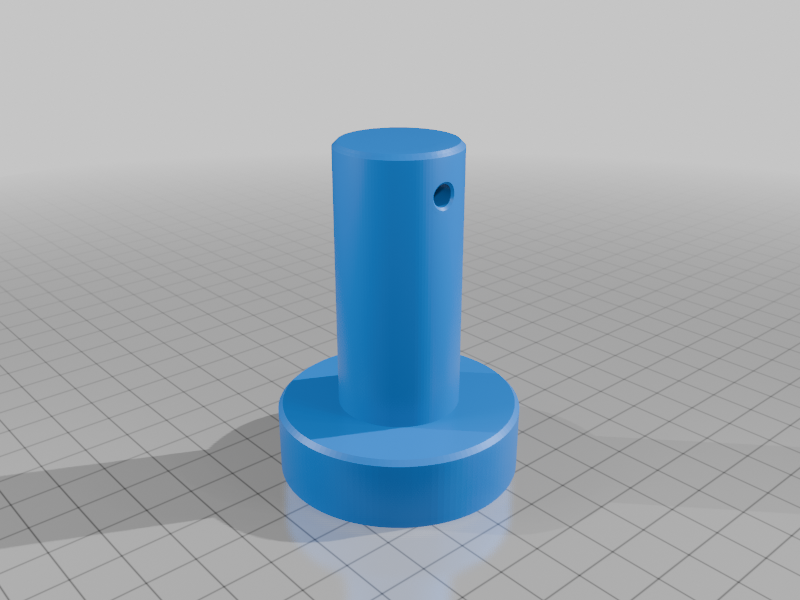

stlI_Hub_Handle.stl
230 Ko · 108 téléchargements
-

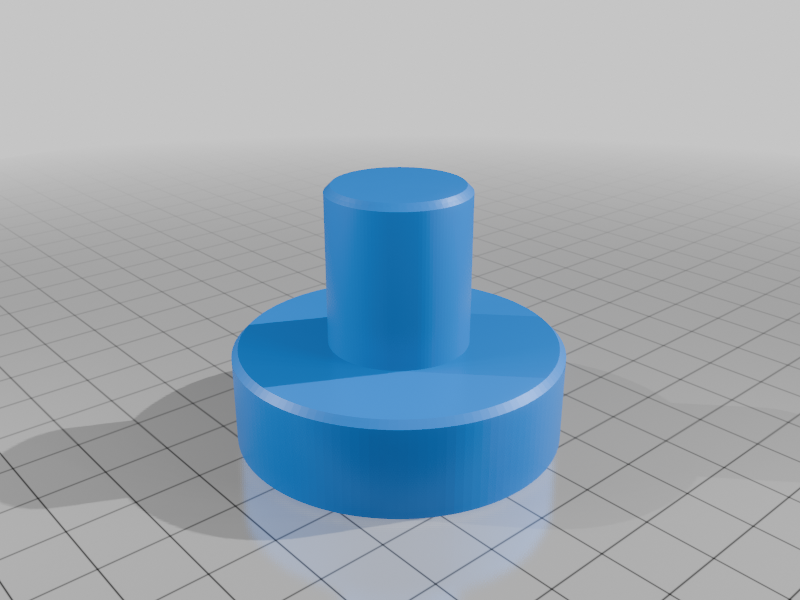

stlJ_Hub_L.stl
166 Ko · 105 téléchargements
-

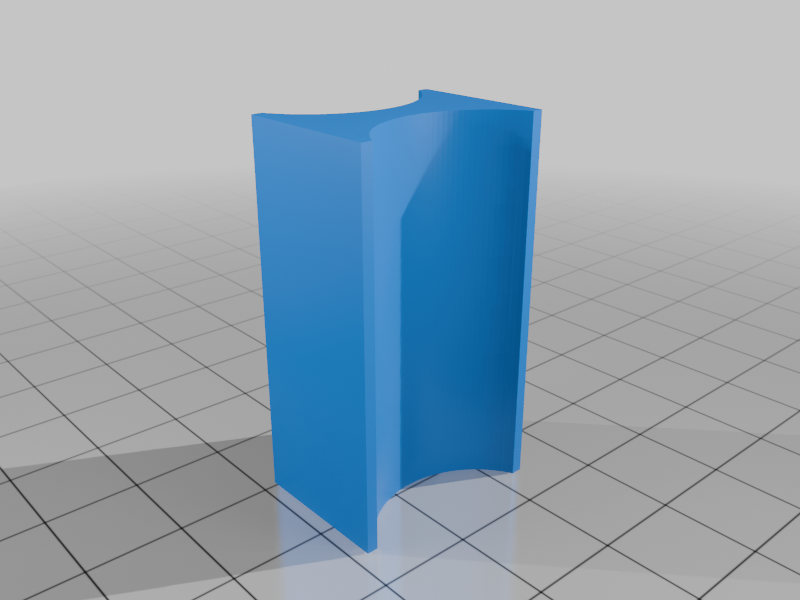

stlK_Spacer.stl
18 Ko · 107 téléchargements
-

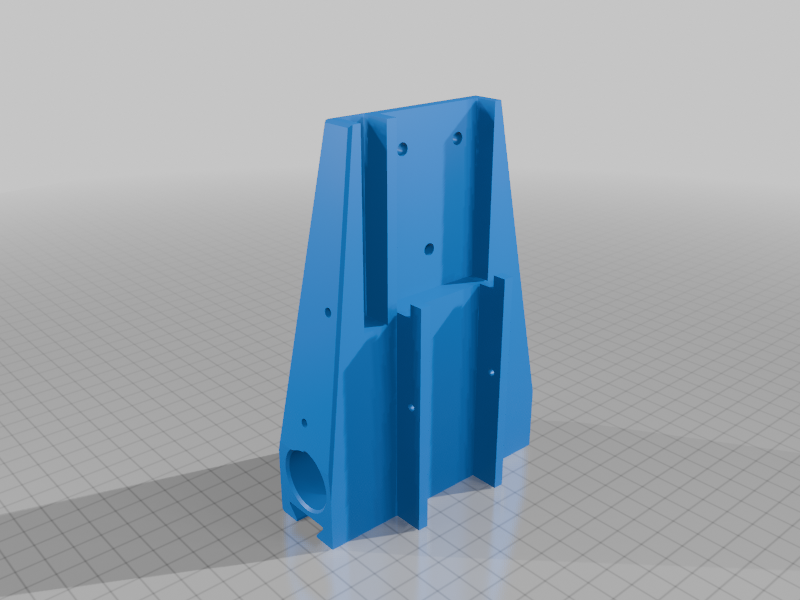

stlL3_Shaft_Rail_Support.stl
449 Ko · 109 téléchargements
-

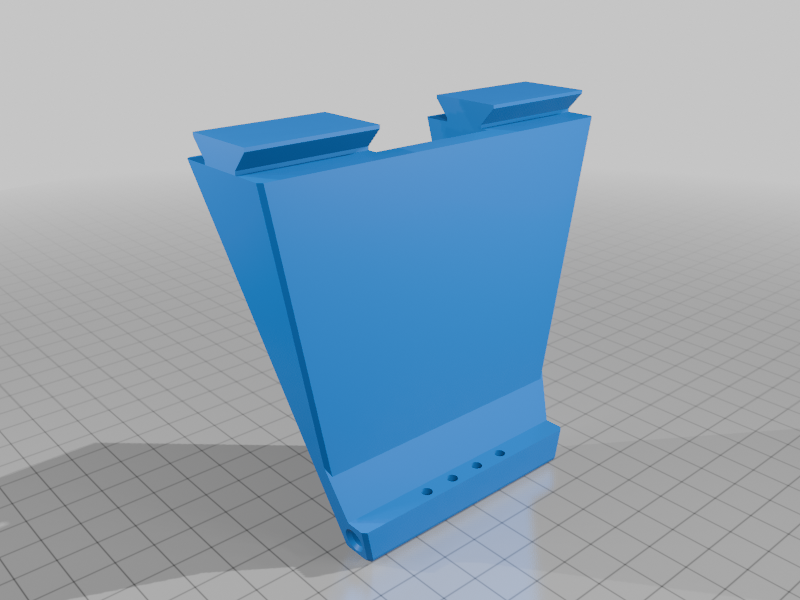

stlL4_Recall_Shaft_Support.stl
306 Ko · 107 téléchargements
-

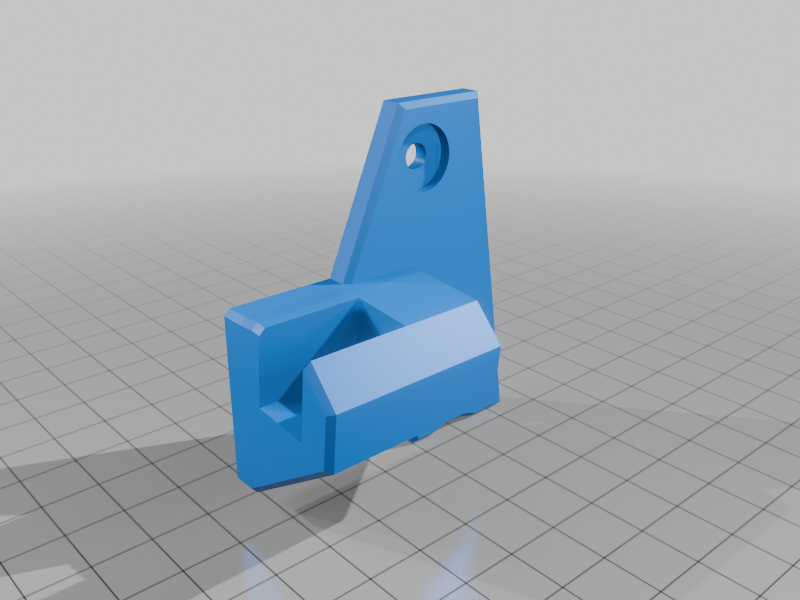

stlM2_Reed_Support.stl
110 Ko · 106 téléchargements
-

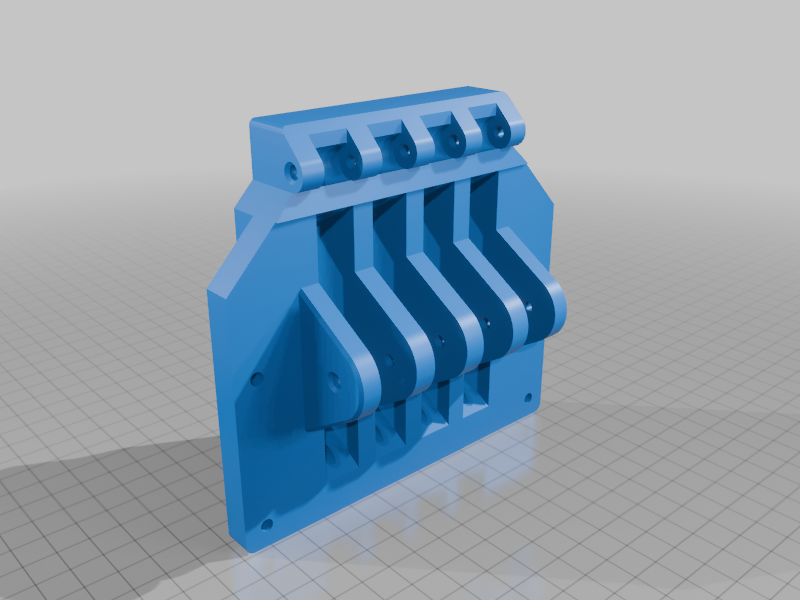

stlN4_Pulley_Support.stl
4.3 Mo · 113 téléchargements
-

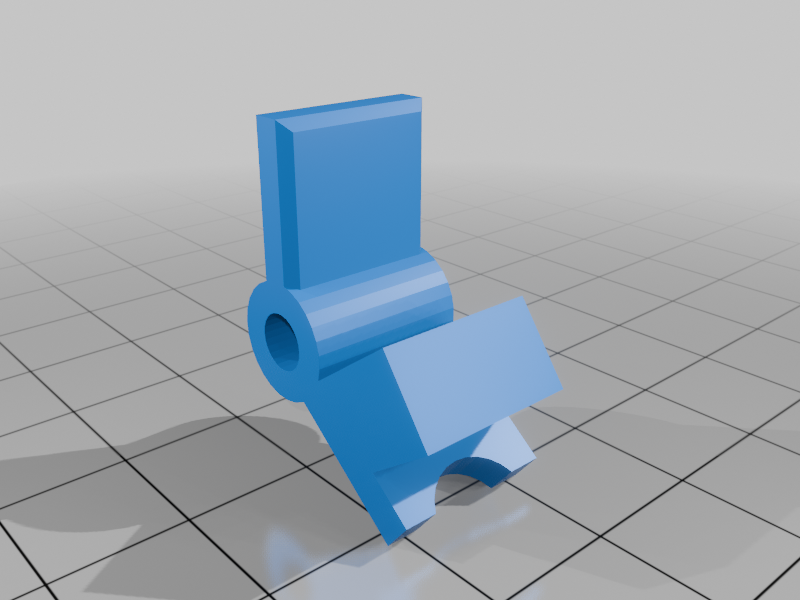

stlN5_Pulley_Blocker.stl
14 Ko · 109 téléchargements
-

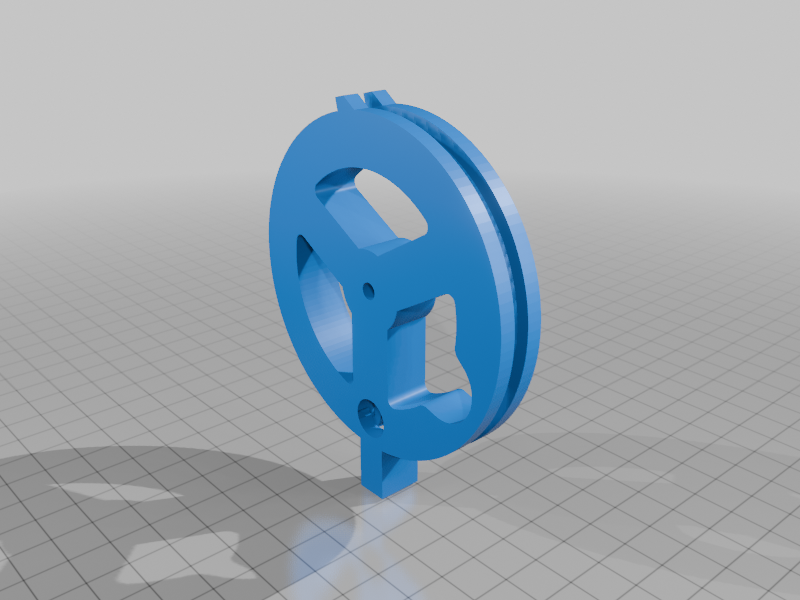

stlO3_Pulley.stl
333 Ko · 110 téléchargements
-

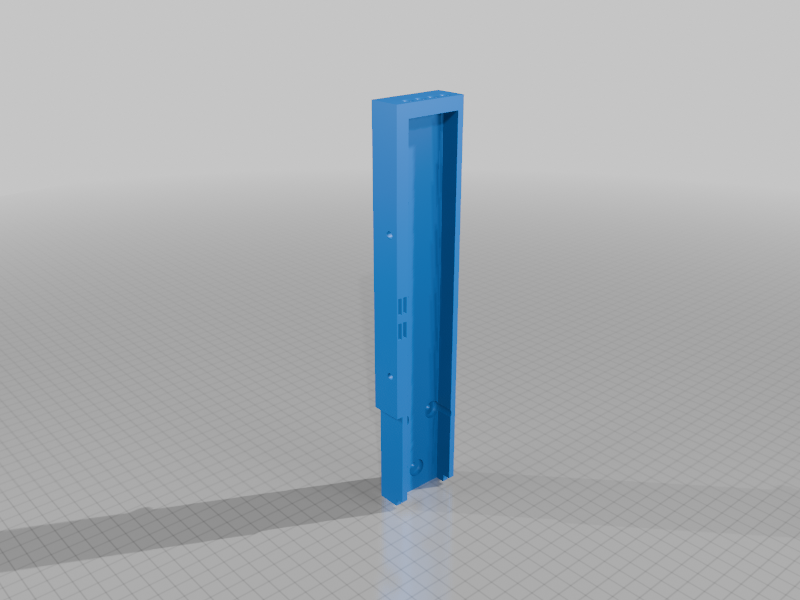

stlP3_Shaft_Rail.stl
1.9 Mo · 108 téléchargements
-

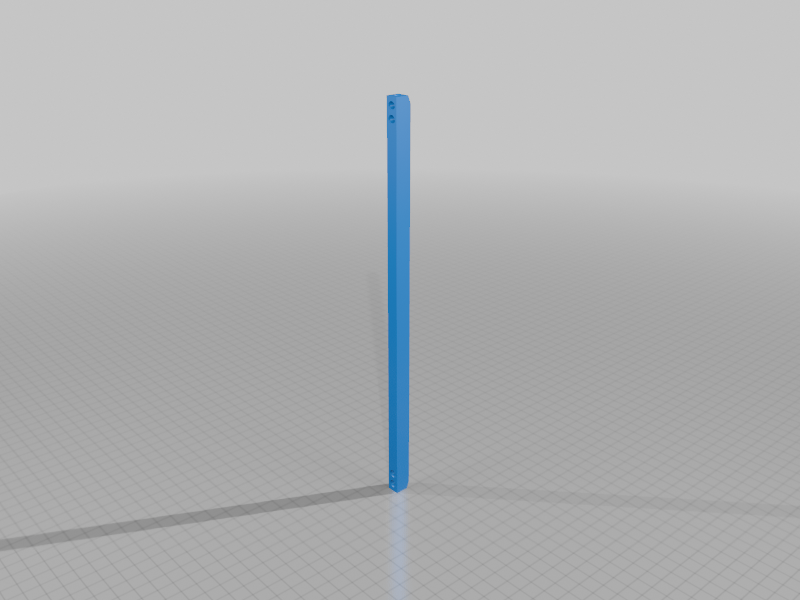

stlQ3_Shaft_Side.stl
343 Ko · 108 téléchargements
-

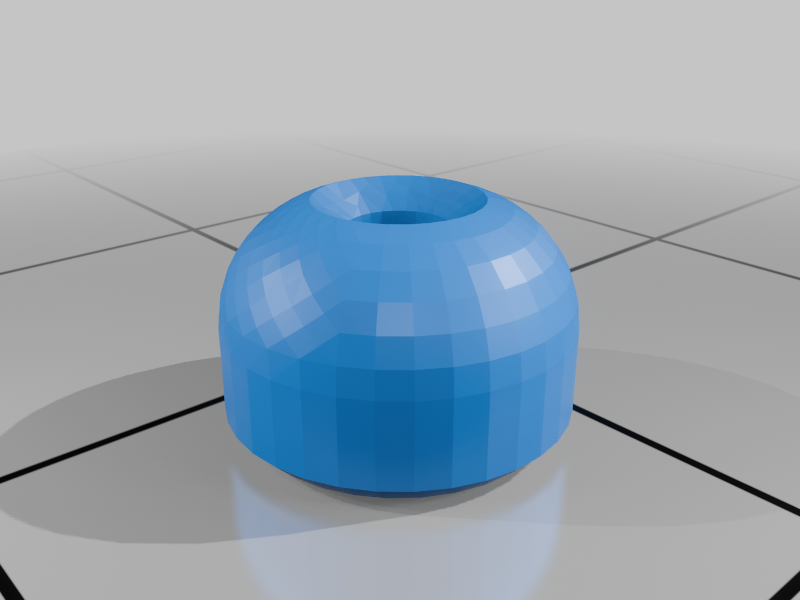

stlR1_Cord_Blocker.stl
58 Ko · 31 téléchargements
-

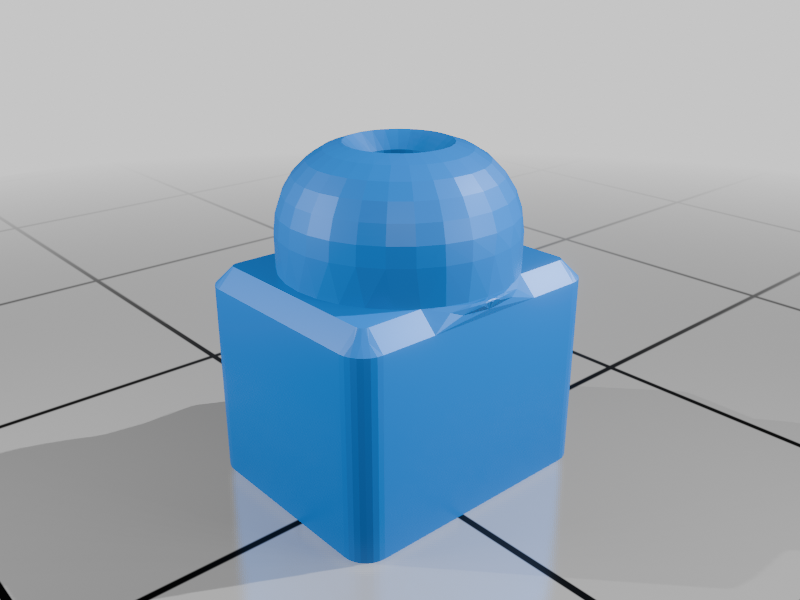

stlR2_Cord_Blocker.stl
52 Ko · 31 téléchargements
-

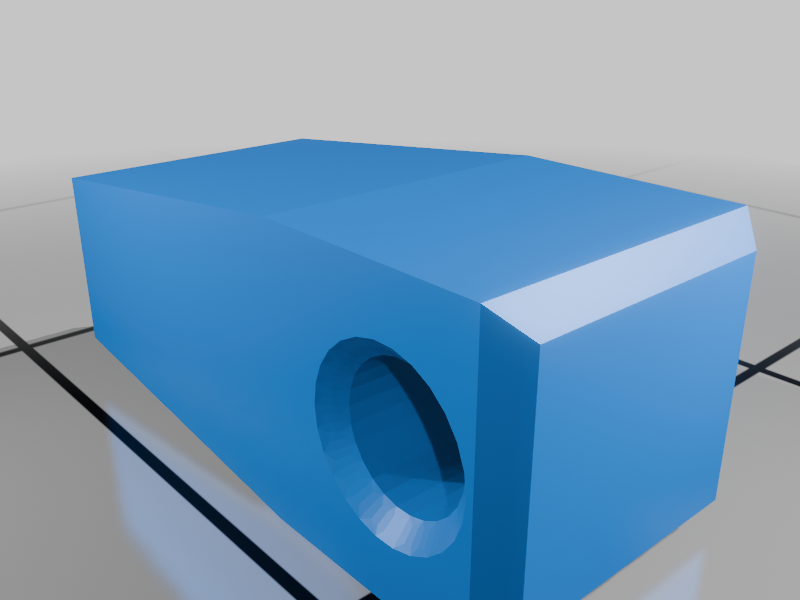

stlR3_Cord_Blocker.stl
28 Ko · 31 téléchargements
-

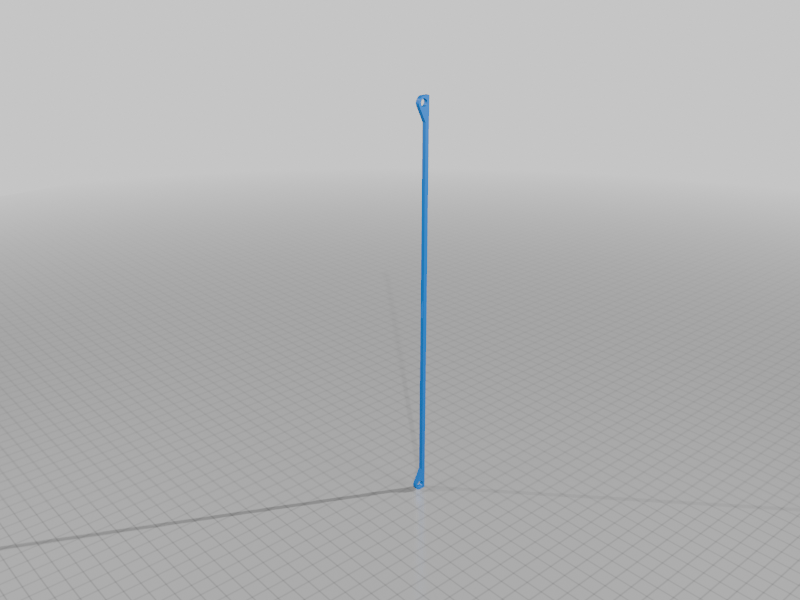

stlT2_Rigid_Heddle.stl
68 Ko · 110 téléchargements
-

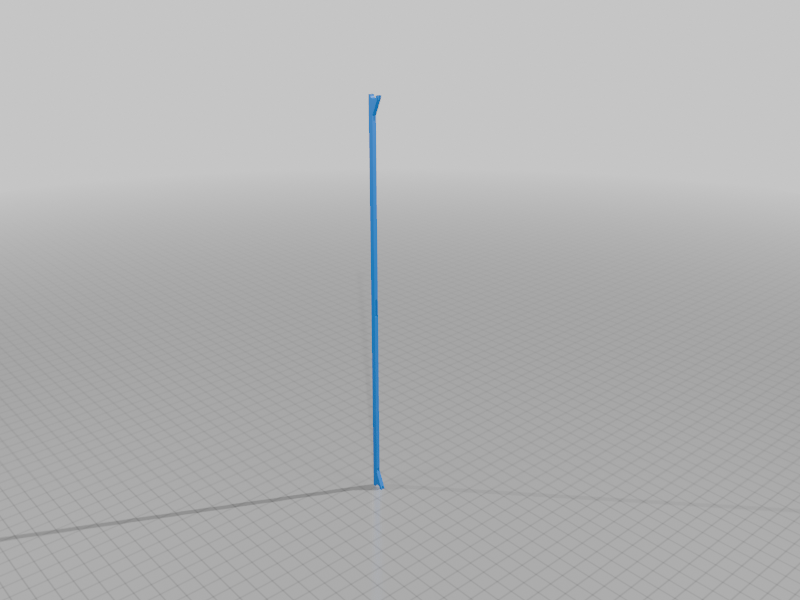

stlT4_Rigid_Heddle_Emergency.stl
87 Ko · 109 téléchargements
-

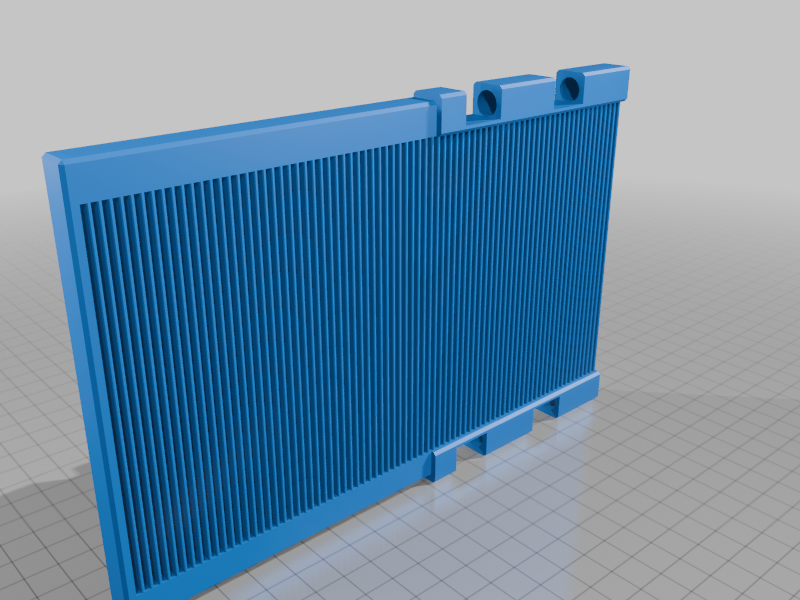

stlU3_Reed.stl
342 Ko · 112 téléchargements
-

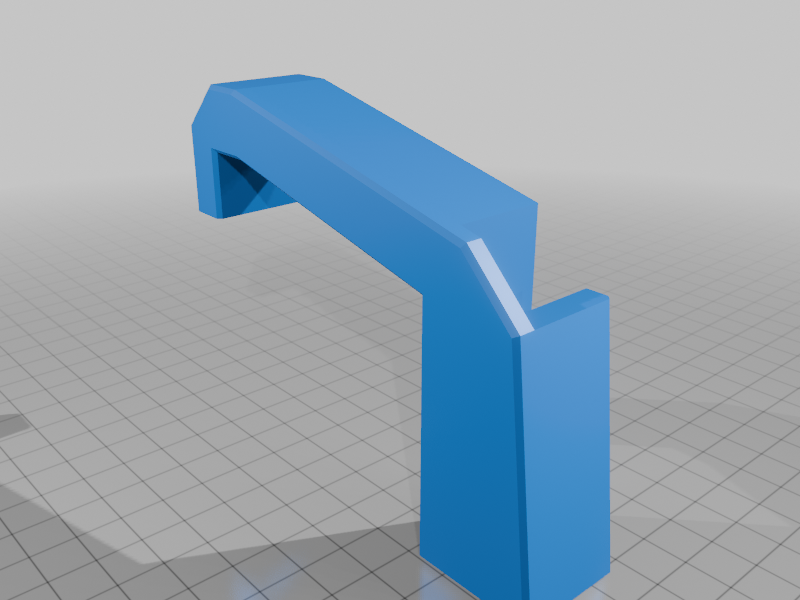

stlV2_Temporary_Reed_Support.stl
7 Ko · 106 téléchargements
-

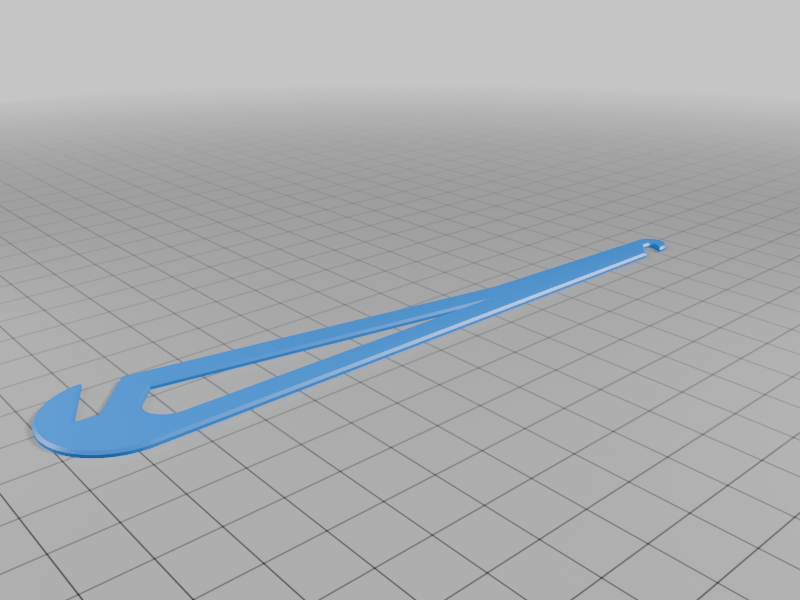

stlW_Hook_v2.stl
103 Ko · 108 téléchargements
-

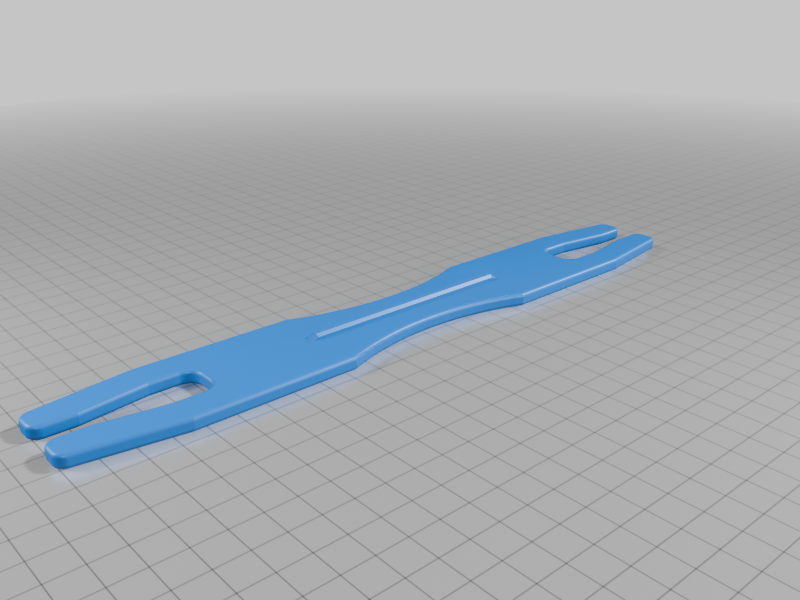

stlX_Shuttle.stl
