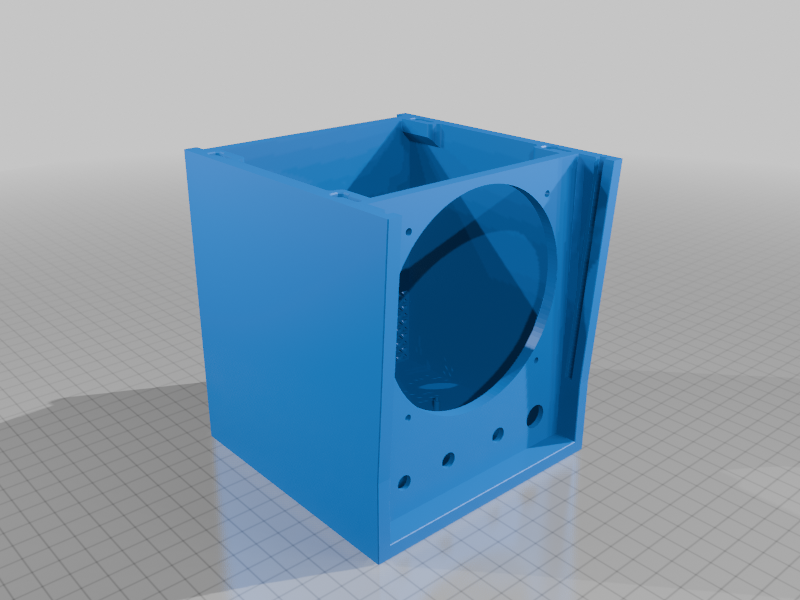

LoFi-Ruby - Ruby Guitar Amp Enclosure

This is an enclosure for a "Ruby" guitar amplifier from runoffgroove. I modified this file from the original lofipi speaker enclosure, which I really liked the design for. Note that I started with the no wood grain model, and I did not make modifications to the top panel, so you'll need to download that file from the original poster. Also, I uploaded the front cover without text so you might add your own. Thanks to runoffgroove and thenickdude for schematics/files. All rights reserved to their respective owners etc etc...

Changes I Made:

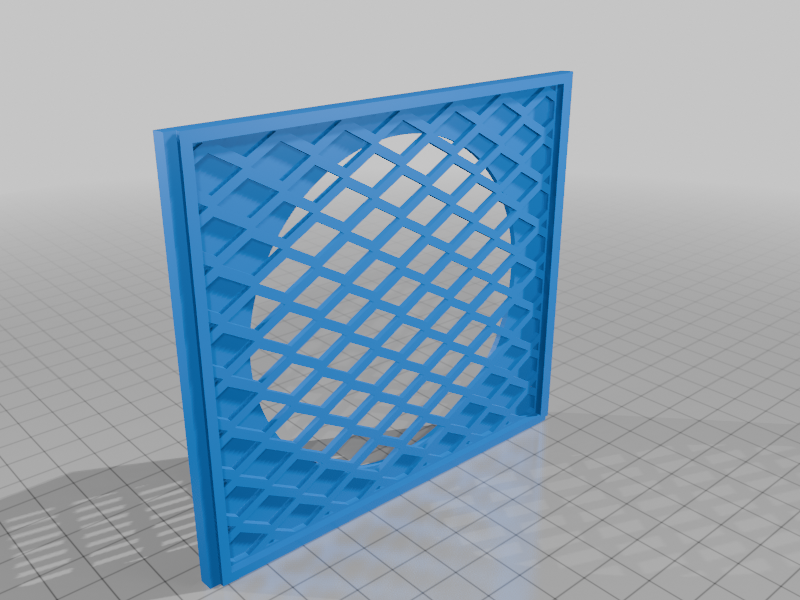

• Adjusted front cover style and fit so as not to vibrate, and reduced speaker hole size in cover as my speaker was slightly smaller

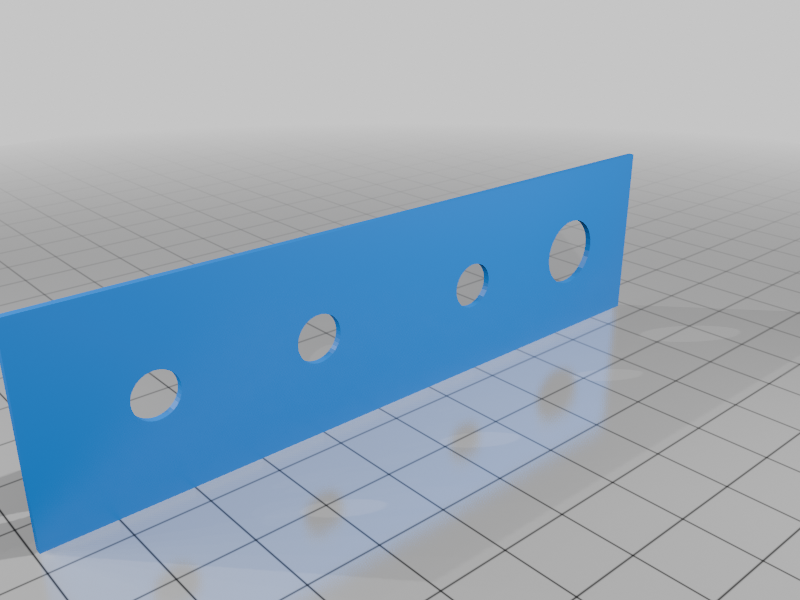

• Adjusted front IO to fit required components (switch, 2 pots, guitar jack in)
• Adjusted rear IO to remove unnecessary holes leaving only a slot for a DC jack
• Adjusted front IO panel cover to accommodate new IO
• Removed bottom fan port
• Added standoffs for a 40x60mm pcb (hot glue to permanently affix)

Notes:

• You may want to print or buy some rubber feet for this thing, because it moves around a lot if you crank it up.
• Adding some small adhesive strips of foam to the top panel stops that horrible rattling.
• Models are not oriented in their optimal printing positions. Rotate models before printing, use your common sense.
