LED Cube 4x4x4 Frames
1 / 3
Fichiers imprimables (1)
-
stlledgrid4x4.stl
323 Ko · 2 963 téléchargements
Description
Had this LED Cube I build some time ago piloted by an Arduino.

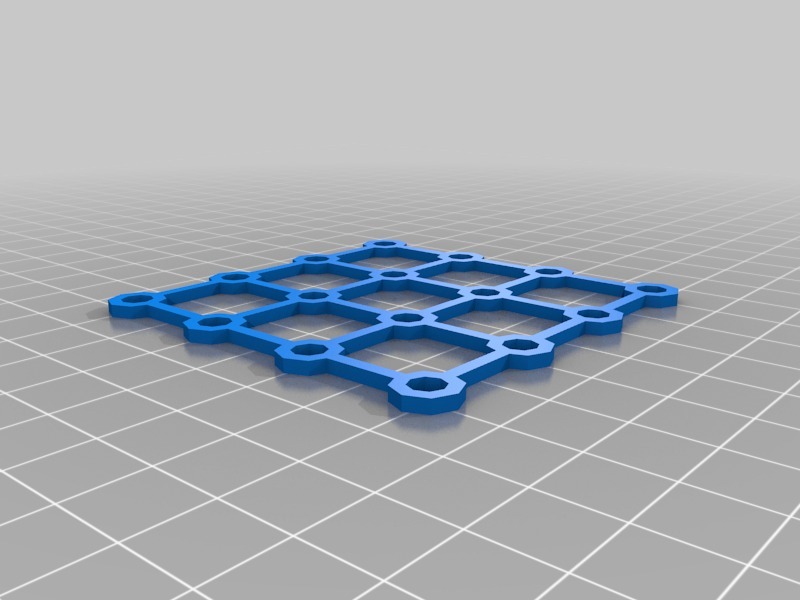

Want to make a clean version, so I started by designing a frame to hold the LED's.
My first OpenSCAD script, tried to make it as parametric as possible.
This is far from a finished cube, but the grid already comes out nicely.
The electronics use a MAX 7219 chip, piloted by Arduino, only uses 3! ports from Arduino.
