Dyke Delta
par wersy
Fichiers imprimables (47)
-
stlfuselage_1.stl
2.7 Mo · 96 téléchargements
-
stlfuselage_2.stl
776 Ko · 87 téléchargements
-

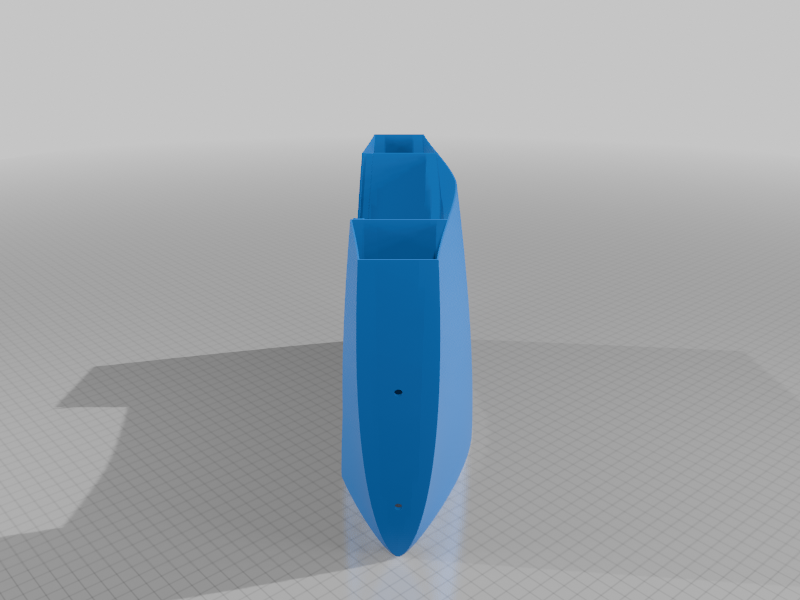

stlfuselage_3.stl
1.1 Mo · 99 téléchargements
-
stlfuselage_4_mod.stl
1.4 Mo · 27 téléchargements
-
stlconnector_1R.stl
509 Ko · 93 téléchargements
-

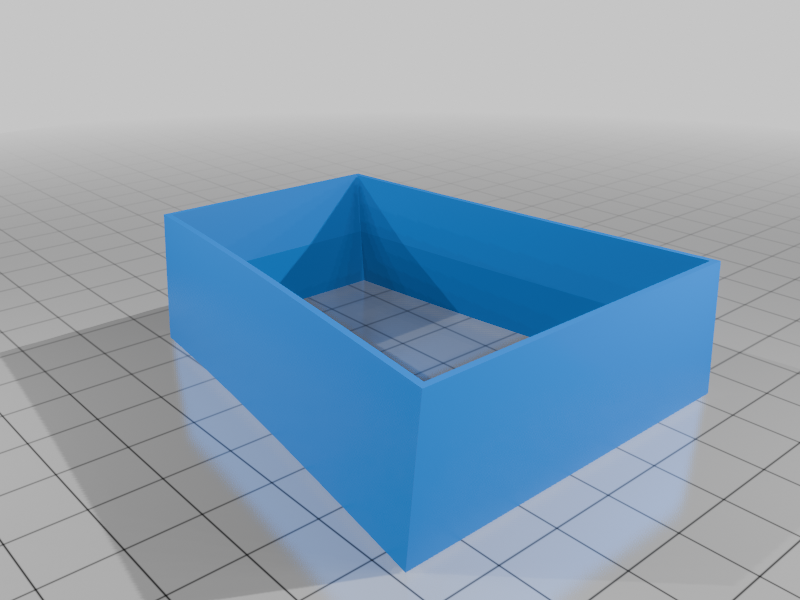

stlconnector_2R.stl
102 Ko · 92 téléchargements
-
stlconnector_1_middle.stl
402 Ko · 94 téléchargements
-

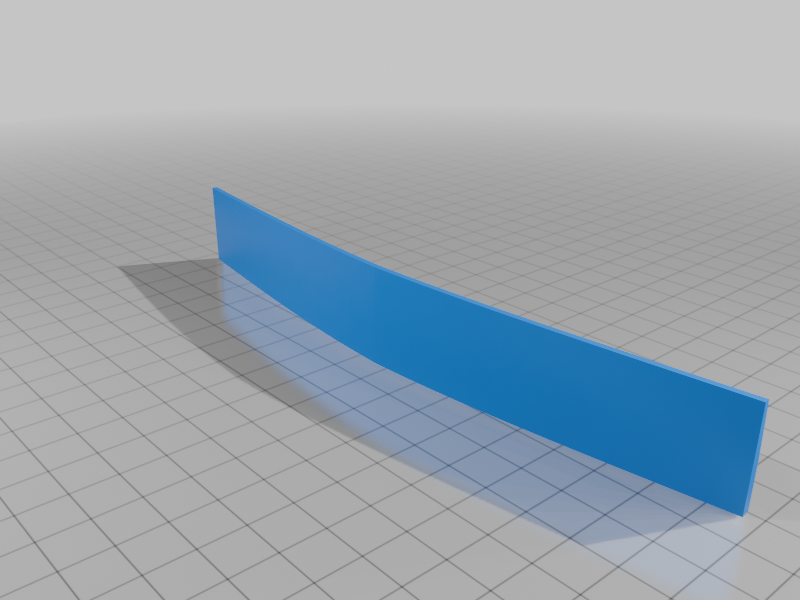

stlconnector_2_middle.stl
58 Ko · 92 téléchargements
-
stlmounting_strip.stl
262 Ko · 92 téléchargements
-

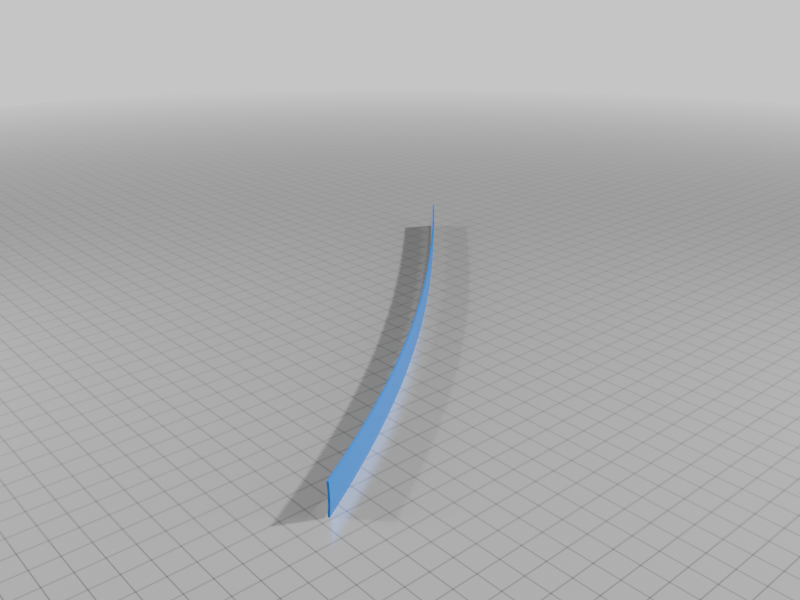

stlskid.stl
87 Ko · 91 téléchargements
-

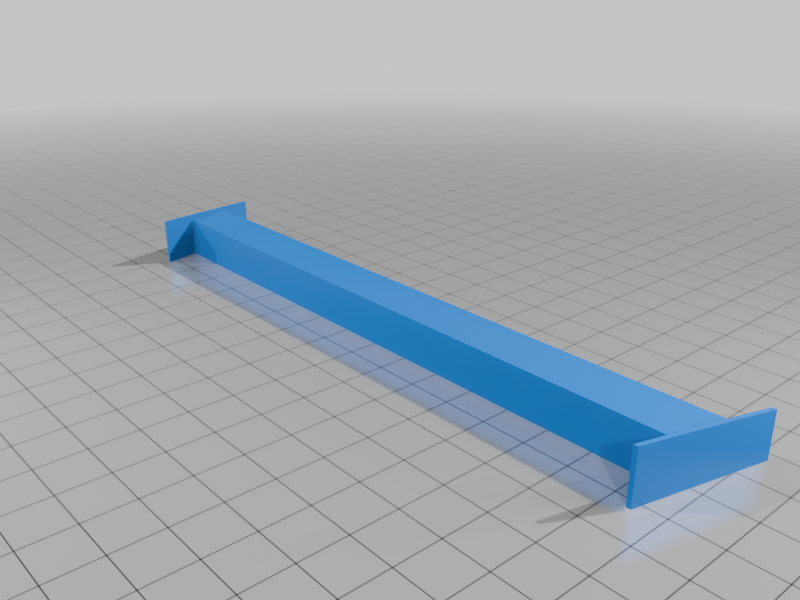

stlbeam_1.stl
4 Ko · 91 téléchargements
-

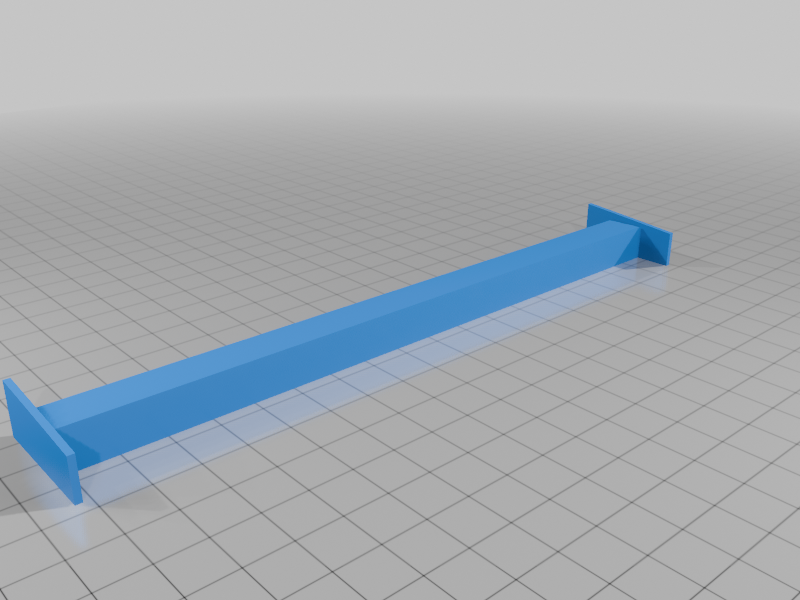

stlbeam_2.stl
3 Ko · 91 téléchargements
-

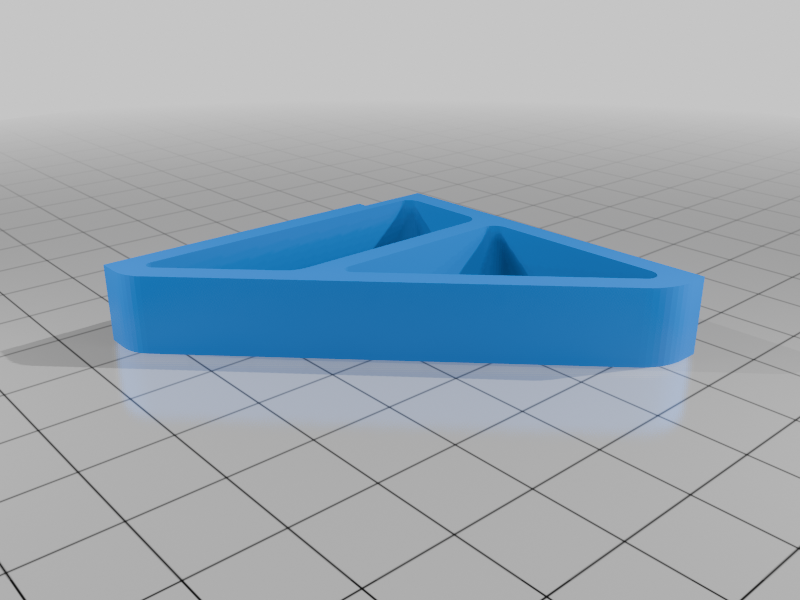

stlangle_R_0.9grd.stl
22 Ko · 92 téléchargements
-
stlair_duct_cover_R.stl
552 Ko · 92 téléchargements
-
stldownthrust_2degr.stl
147 Ko · 92 téléchargements
-

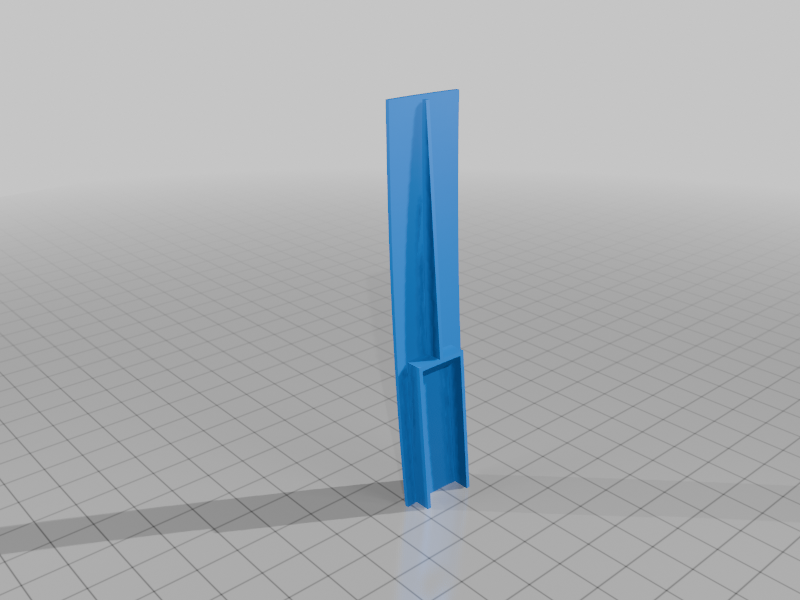

stlhook_insert.stl
111 Ko · 93 téléchargements
-

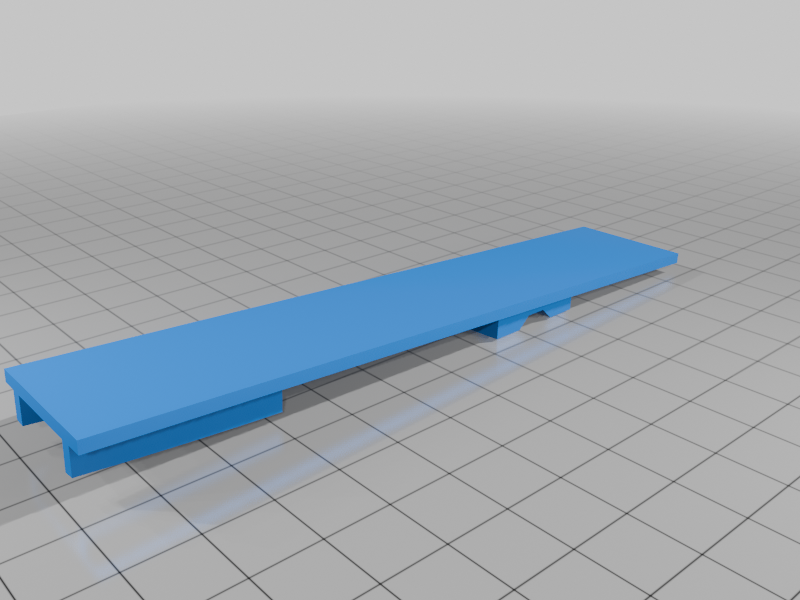

stlbattery_base.stl
53 Ko · 93 téléchargements
-
stlservo_mount_rudder.stl
46 Ko · 92 téléchargements
-
stlrudder_protection_mount_1.stl
113 Ko · 92 téléchargements
-
stlrudder_protection_mount_2.stl
42 Ko · 93 téléchargements
-

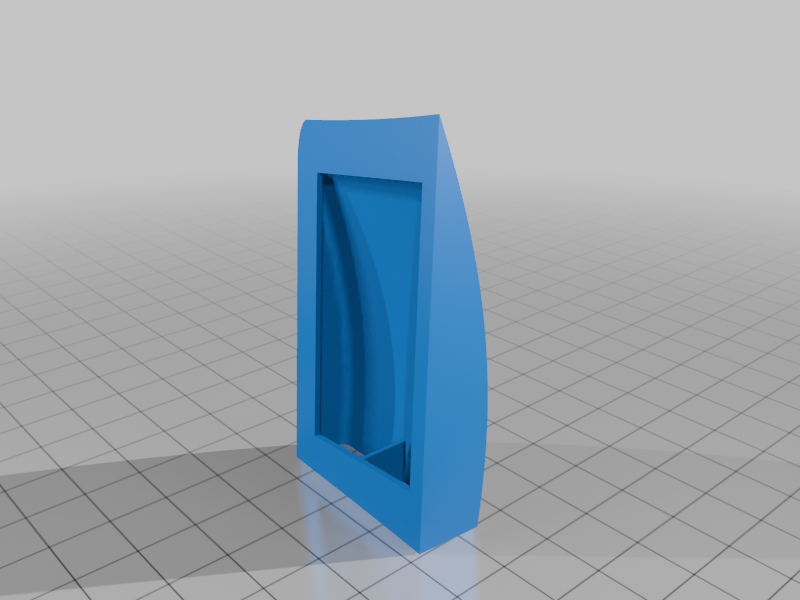

stlwind_scoop_R.stl
911 Ko · 93 téléchargements
-
stlstencel_for_wind_scoop.stl
26 Ko · 93 téléchargements
-
stlservo_pocked_R.stl
118 Ko · 90 téléchargements
-
stlServo_mount_R.stl
151 Ko · 93 téléchargements
-

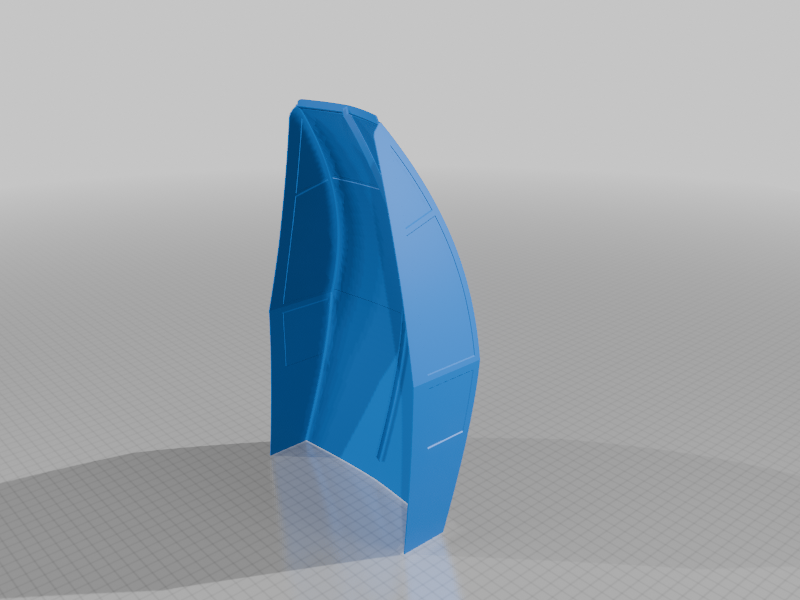

stlcanopy.stl
770 Ko · 89 téléchargements
-
stlconnector_canopy.stl
48 Ko · 92 téléchargements
-
stlelevon_bearing_cover.stl
192 Ko · 93 téléchargements
-

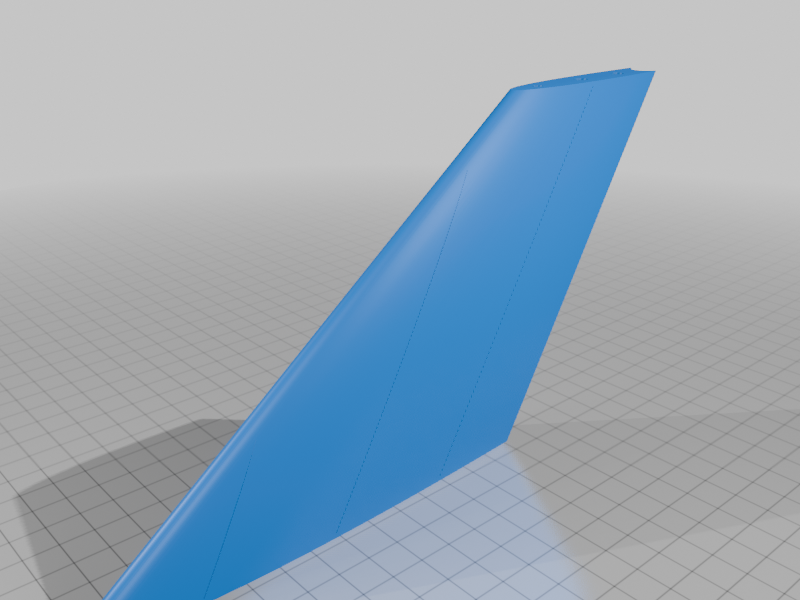

stlvertical_stabilizer.stl
538 Ko · 94 téléchargements
-

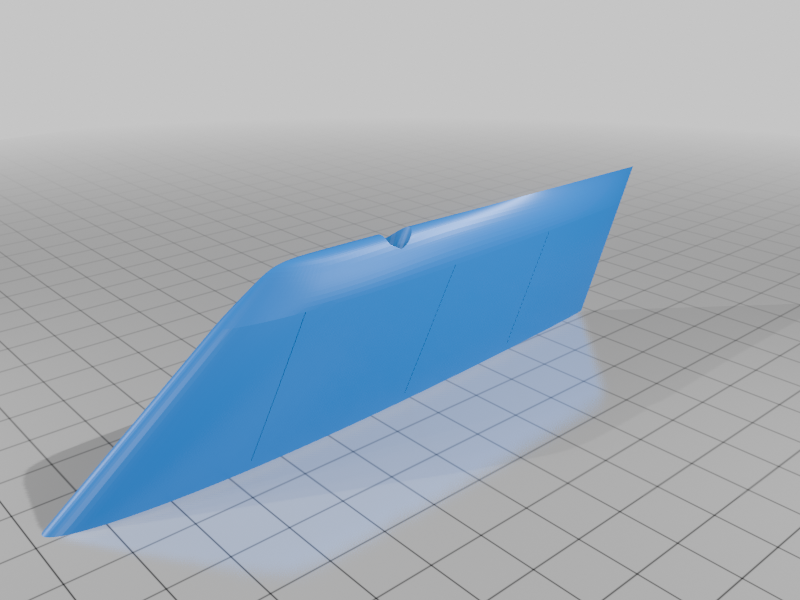

stlvertical_stabilizer_top.stl
761 Ko · 93 téléchargements
-
stlrudder_top.stl
359 Ko · 93 téléchargements
-

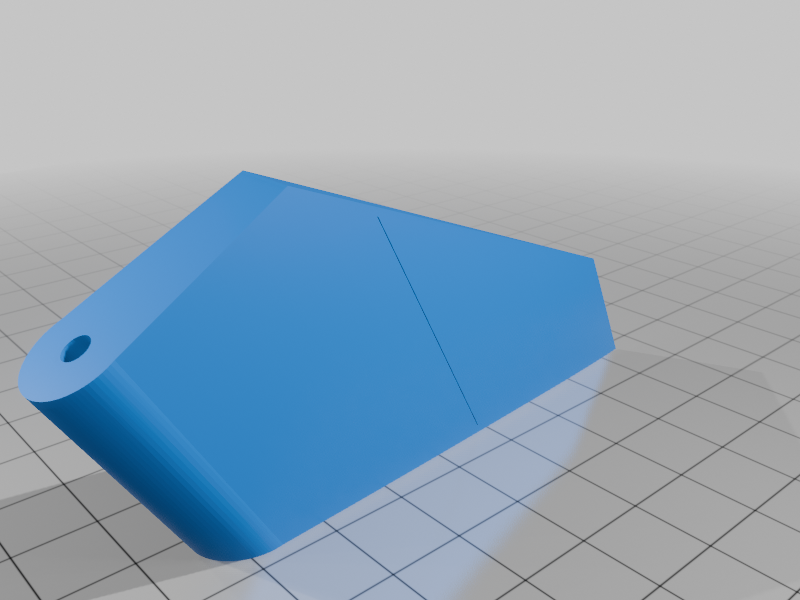

stlrudder_bottom.stl
215 Ko · 93 téléchargements
-
stlrudder_horn.stl
116 Ko · 93 téléchargements
-

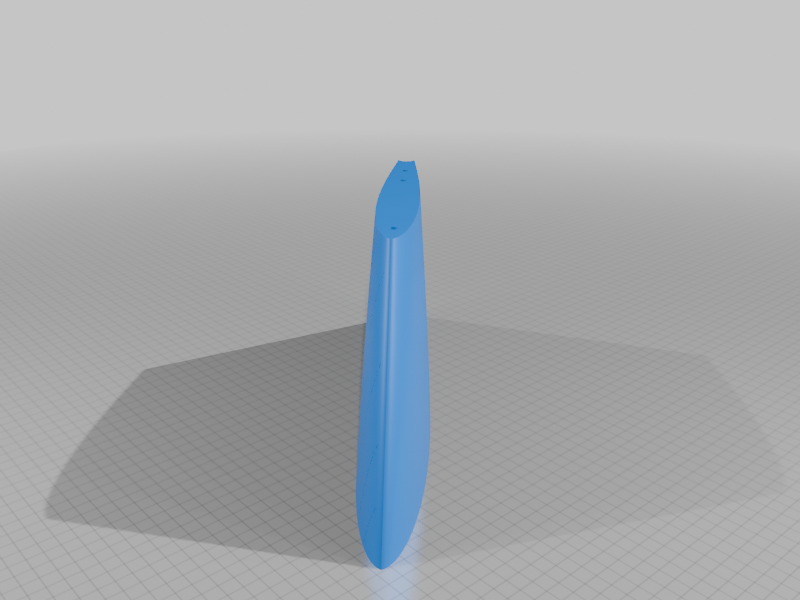

stlwing_inner_R.stl
647 Ko · 95 téléchargements
-

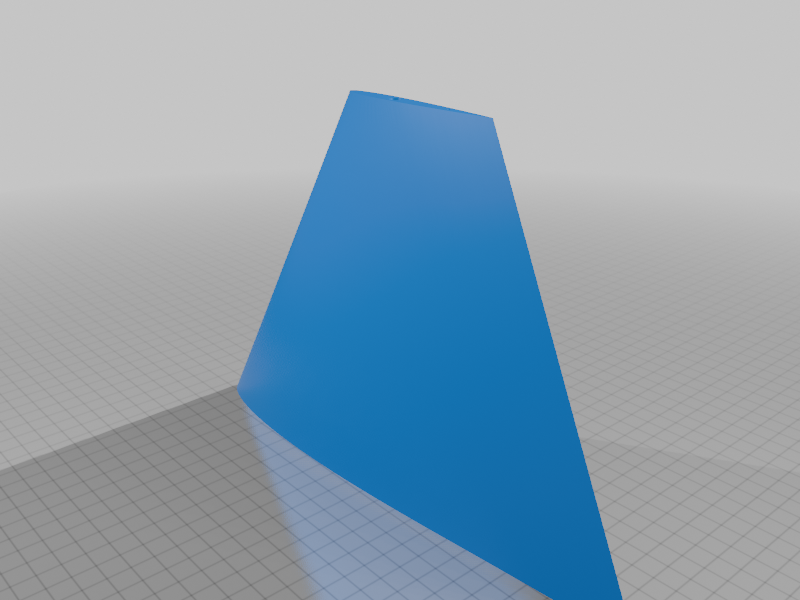

stlwing_outer_R.stl
762 Ko · 96 téléchargements
-
stlwing_end.stl
1.2 Mo · 90 téléchargements
-
stlelevon_inner_R.stl
263 Ko · 87 téléchargements
-

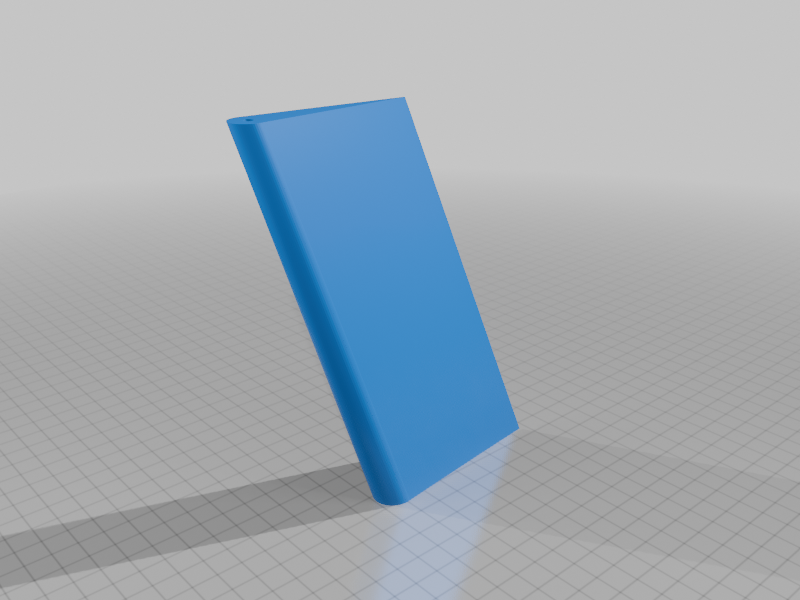

stlelevon_outer_R.stl
281 Ko · 96 téléchargements
-
stlelevon_horn_R.stl
35 Ko · 95 téléchargements
-

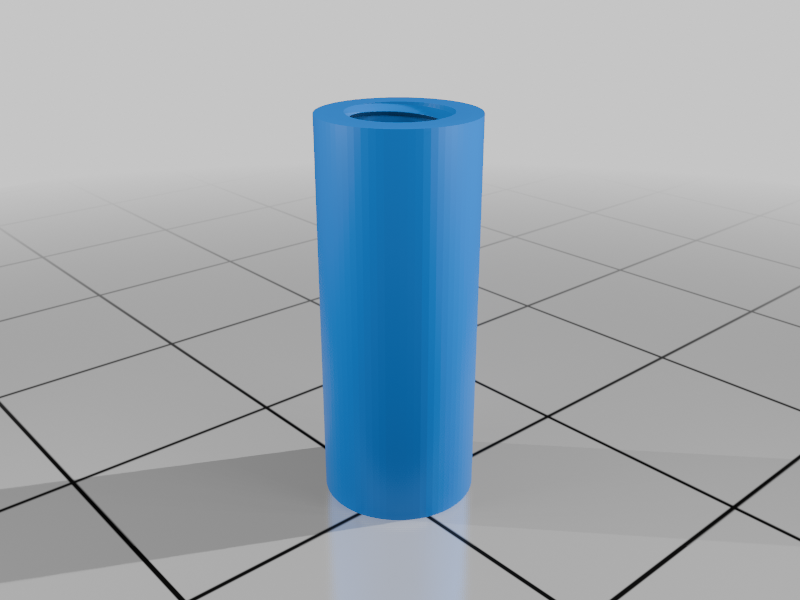

stlsocket_M4.stl
1.4 Mo · 96 téléchargements
-
stepDyke_Delta_assembly_1.step
21.4 Mo · 117 téléchargements
-
stlcanopy_front.stl
1.2 Mo · 82 téléchargements
-
stlcanopy_rear.stl
459 Ko · 82 téléchargements
-
stlfuselage_4_split_R.stl
3.3 Mo · 83 téléchargements
-

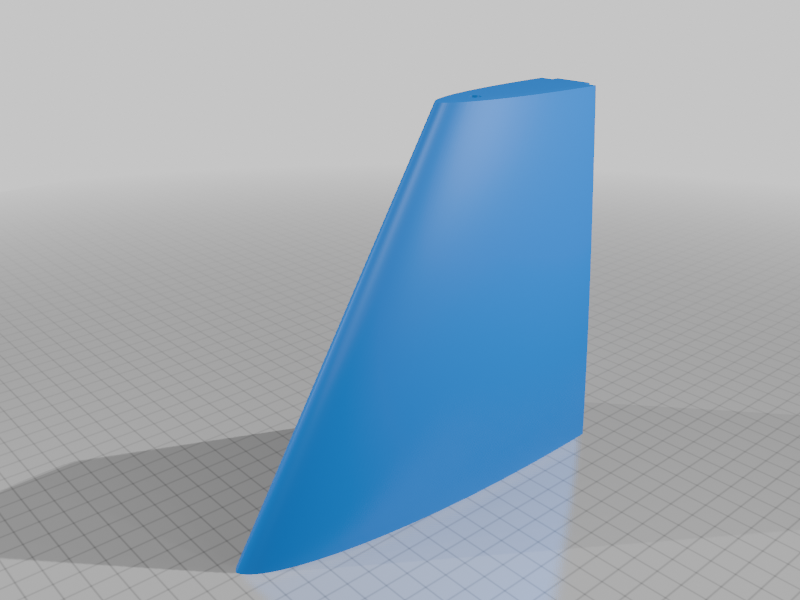

stlwing_inner_front.stl
598 Ko · 84 téléchargements
-
stlwing_inner_rear.stl
488 Ko · 85 téléchargements
-

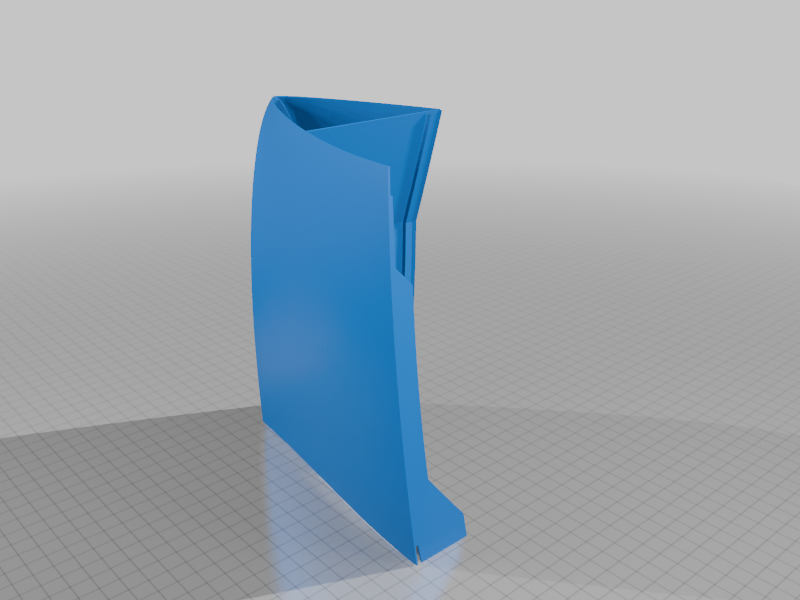

stlfuselage_3_split_R.stl
2.4 Mo · 84 téléchargements
-
stlFuselage_4_Remix_.stl
1.4 Mo · 28 téléchargements
Description
I discovered the Dyke Delta by chance.
My first thought was that there shouldn't be any problems with the centre of gravity here. The nose is long enough to manage without ballast.
I also find the concept unusual, with the passengers literally sitting in the wing.
The story behind its creation is very interesting. The aircraft was built at home in a garage. The wings can be folded over the fuselage. It fits into a garage and can be towed like a caravan. There is a detailed video about it.
In the printed version, I also placed great emphasis on ensuring that almost all parts can be replaced.
This means that everything is simply plugged in and screwed together. As a result, only defective parts need to be replaced in the event of a breakage.
The print settings can be found in the PDF file ‘printsettings’.
Furthermore, all parts are included as STEP files in the ‘Assembly’. You can open it with any CAD software and see how the parts are assembled. The gif picture shows how it looks in the free software onshape.
Update February 2026

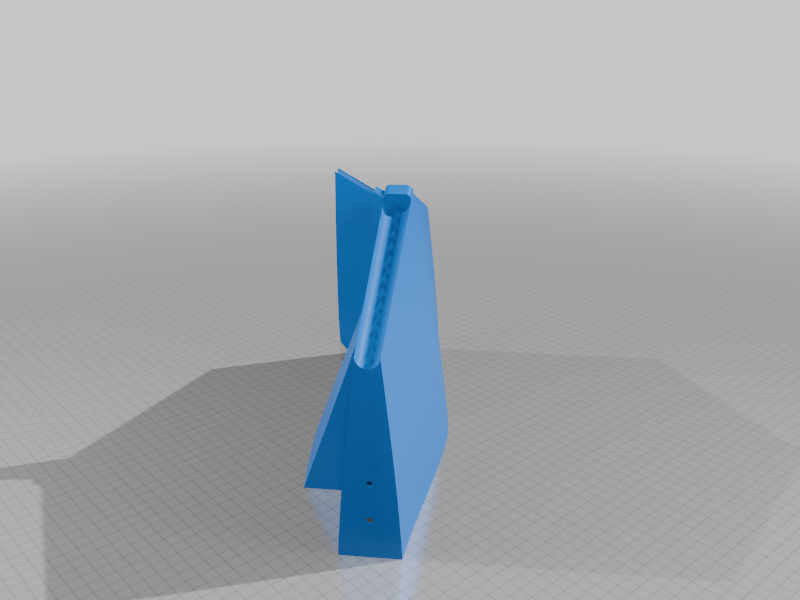

Remix of fuselage 4
At the suggestion of Haju-69, we worked together to create a remix. This eliminates the need for bearing shells for the elevon axes.

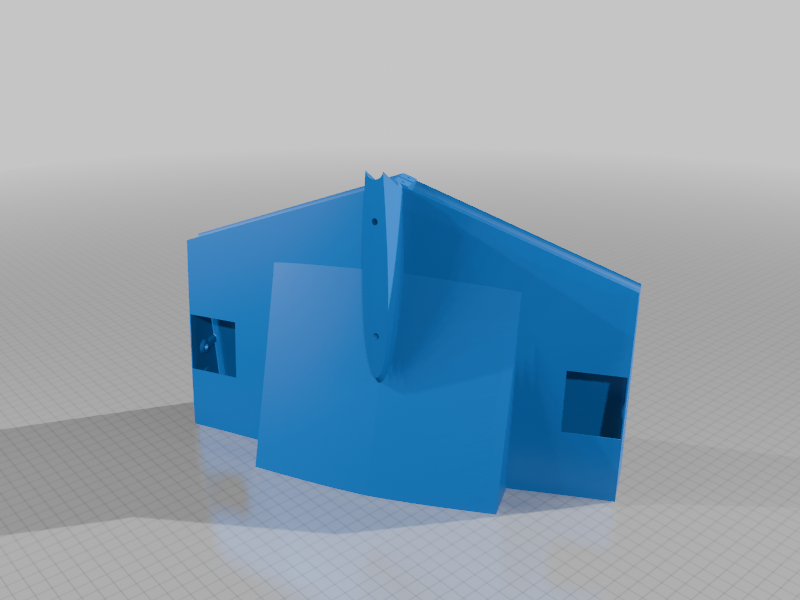

Fuselage 4 mod
Haju-69 also noticed that a hole appears in the fillet of the rudder.
I fixed this by adding an additional web.
Many thanks to Haju-69 for pointing this out.
Maidenflight
Specifications
airfoil:
wing span: 1000 mm
CoG: see image
empty weight: 700 g
overall weight: 1170 g (with 2200mAh 3S battery)
wing area: 33 dm² (estimated)
wing loading: 36 g/dm² (estimated)
motor: Turnigy 2836-1000
propeller: Aeronaut CAM Aeronaut Carbon Classic 10 x 6"
battery: Turnigy 2200 mAh 3S
motor downthrust: -2°
Edit August 30, 2025

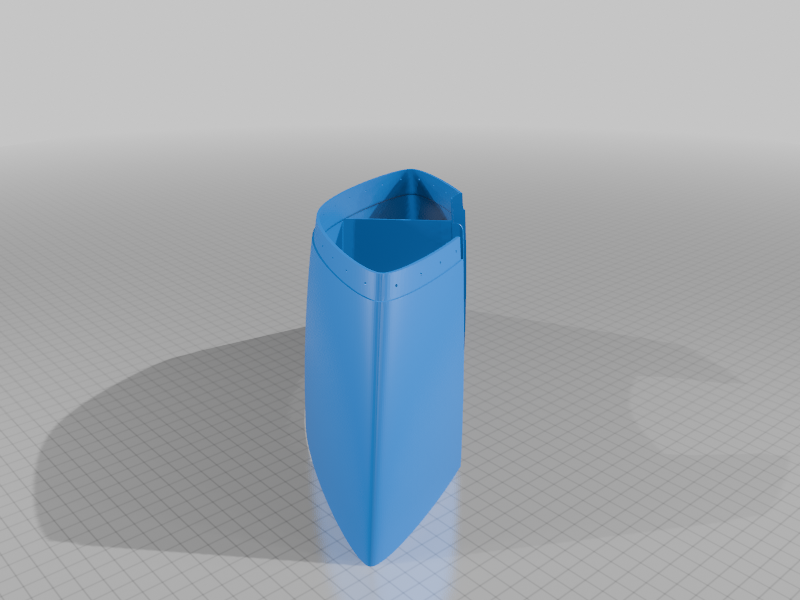

Replaced fuselage 2.stl
Edit September 2, 2025
In order to be able to use smaller printers, I have uploaded split up parts.
fuselage 3 R split.stl

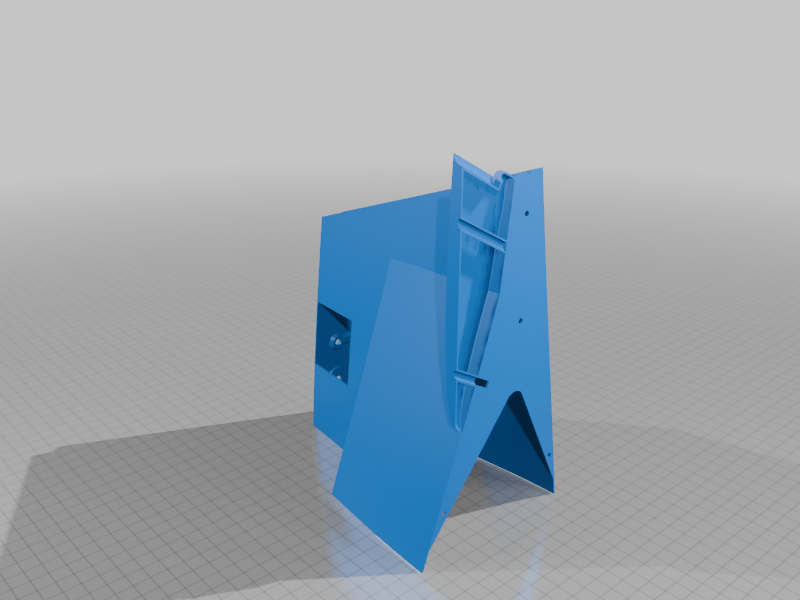

fuselage 4 R split.stl
canopy front.stl

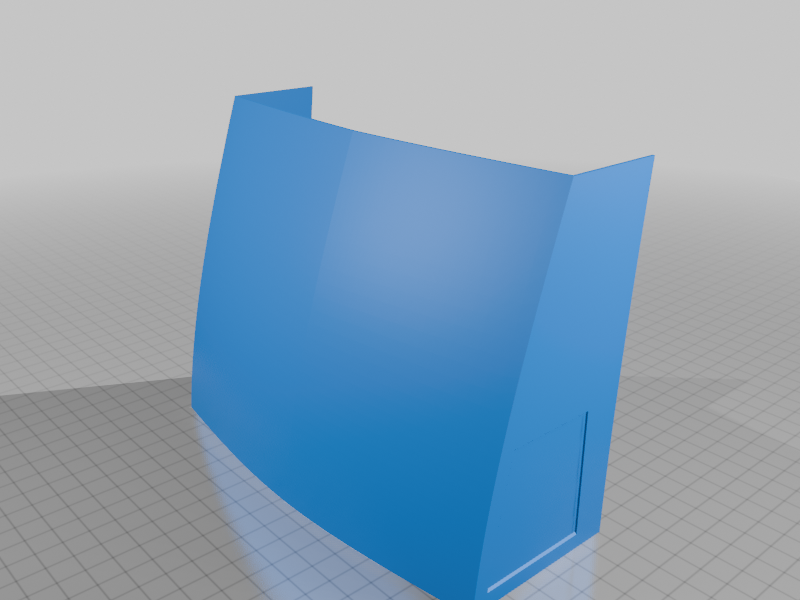

canopy rear.stl
wing inner front.stl
wing inner rear.stl
Edit December 4.2025
print settings for stabilizer
8 bottom layers
