Multi Angle Drill Guide V2

par karakedims

Fichiers imprimables (6)

  • stl

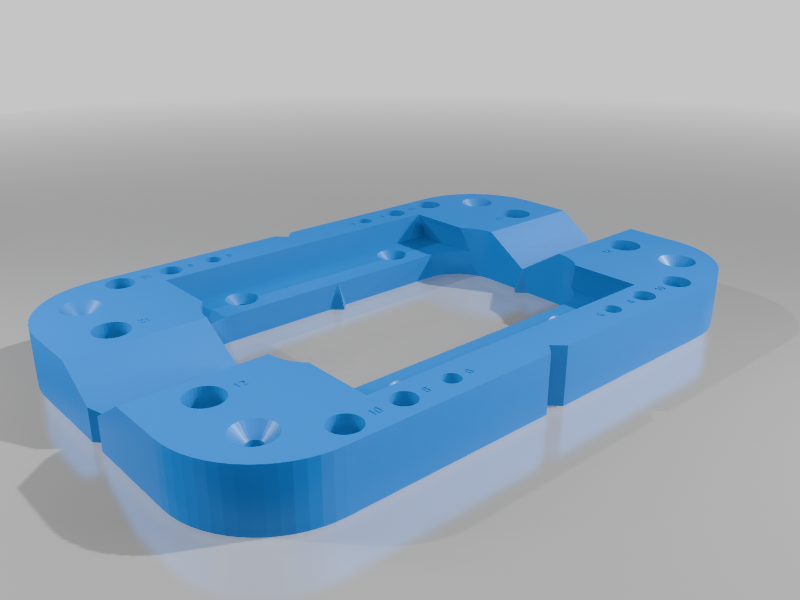

    adg_BASE.stl

    1.2 Mo · 316 téléchargements

    Télécharger
  • stl

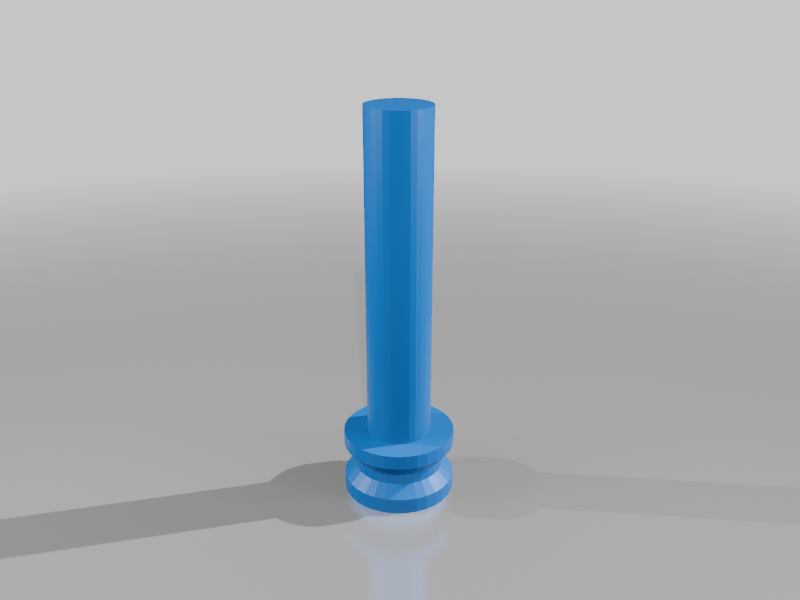

    adg_center_rig.stl

    28 Ko · 306 téléchargements

    Télécharger
  • stl

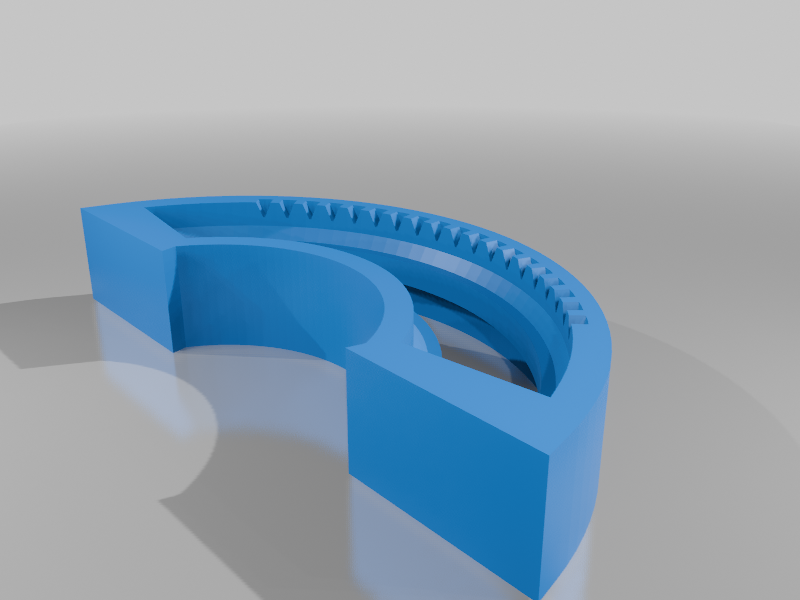

    adg_circle.stl

    5.9 Mo · 312 téléchargements

    Télécharger
  • stl

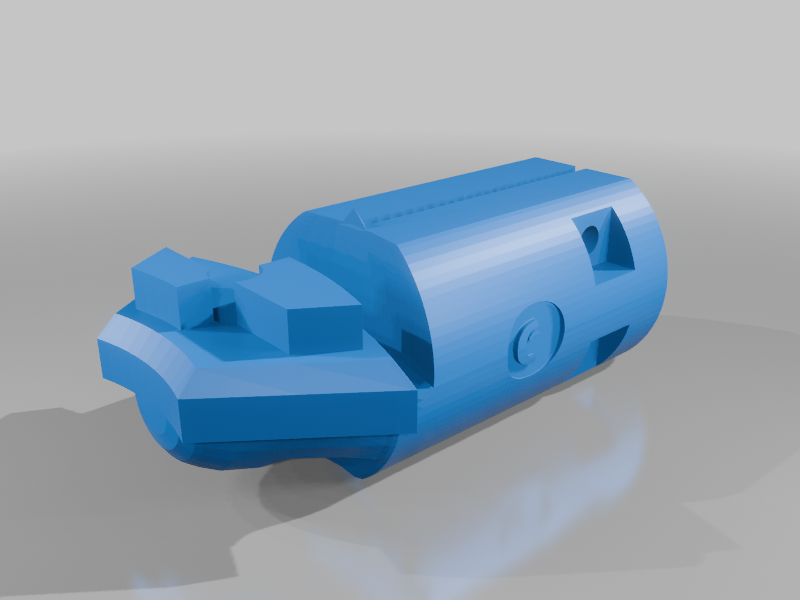

    adg_lock_and_hole_marker.stl

    308 Ko · 313 téléchargements

    Télécharger
  • stl

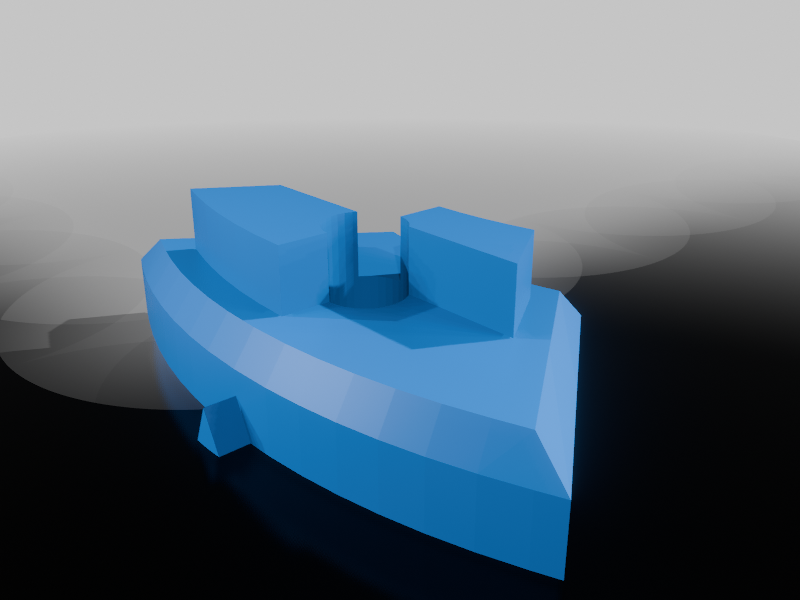

    adg_lock_nut.stl

    42 Ko · 311 téléchargements

    Télécharger
  • stl

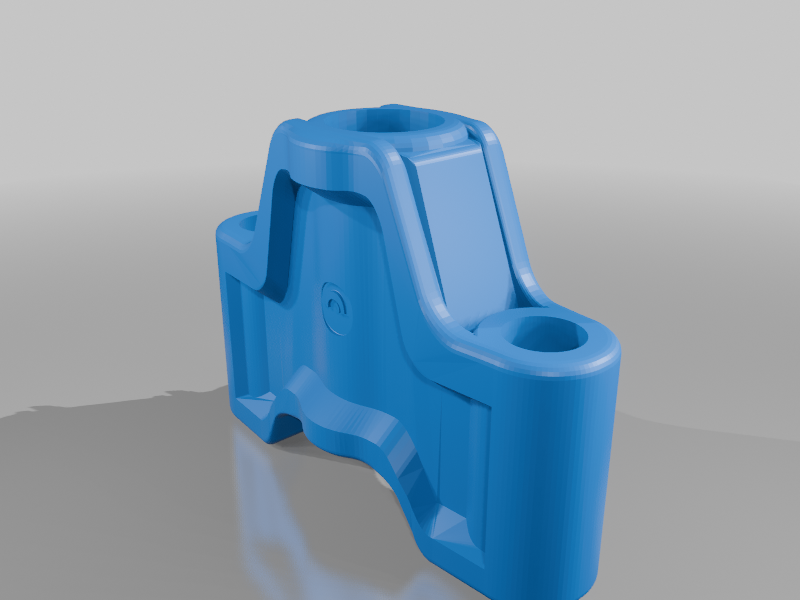

    madg_pro_slider.stl

    779 Ko · 315 téléchargements

    Télécharger

Description

It's finally ready to use in its entirety. I changed the main part for full drill depth and more stability. You can now use universal sizes for chucks, mills, and bearings, which are easier to find. For others same as the old project and if you like that version, you may keep it :)

External part list
10mm linear bearing X 4
10mm bar 30cm X 2
10mm chuck
30mm x 10mm bearing X 2 (for new design)
5mm and 6mm screws with nuts.
Pls watch the YouTube assemble video. It will help you

https://youtu.be/ckdEGbicLNI
