Parametric Dowel Bracket
par ctheroux
Fichiers imprimables (3)
-
stlParametricDowelBracketClosedRight.stl
109 Ko · 190 téléchargements
-

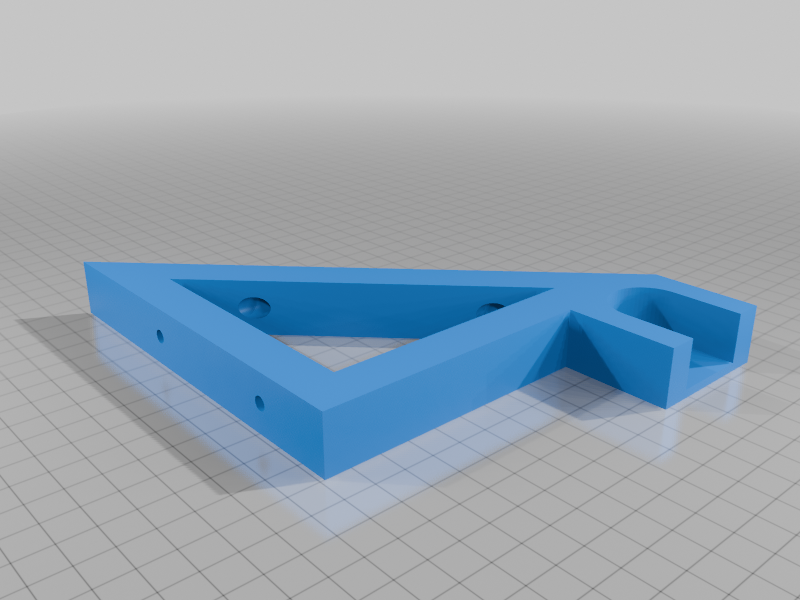

stlParametricDowelBracketClosedLeft.stl
79 Ko · 187 téléchargements
-

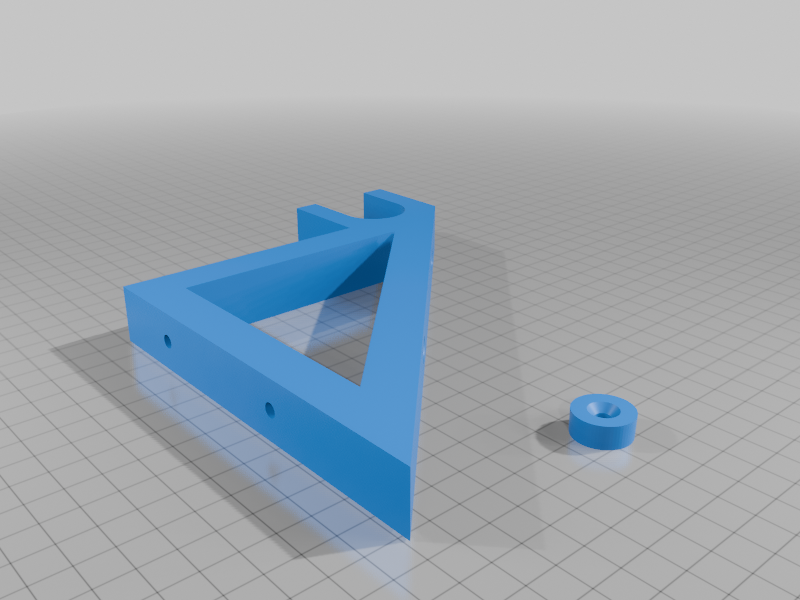

stlParametricDowelBracketOpened.stl
109 Ko · 194 téléchargements
Description
This is a parametric dowel bracket. The screw holders are printed separately to prevent the bracket from splitting if the screws are overtightened.
The example provided is designed for #8 wood screws, 1.5 inches in length, with a 12 cm distance between the center of the dowel and the back of the bracket. The DowelStopper parameter controls whether the bracket has a closed side or remains open.
Support material is not required. An infill of 30% is recommended.
This object's main web page is: https://www.ctheroux.com/parametric-dowel-bracket/.
This object was designed using openSCAD.
