"Diva" type Wave Motion Machine

This my version of the "Diva" type Wave motion machine base for 3D-printing.
It is inspired by this video by Techmoan and Hughes Wave Motion Machines LLC:
See it her: https://youtu.be/7v8Auu8-x4g?si=R0bUpPrlR2MHVDsx
https://youtu.be/2mJL152QdS8?si=3foDB3RRzKUrhMUc
https://youtu.be/mYDgs9QXTFg?si=OhlT-AkCR4f_tk6O

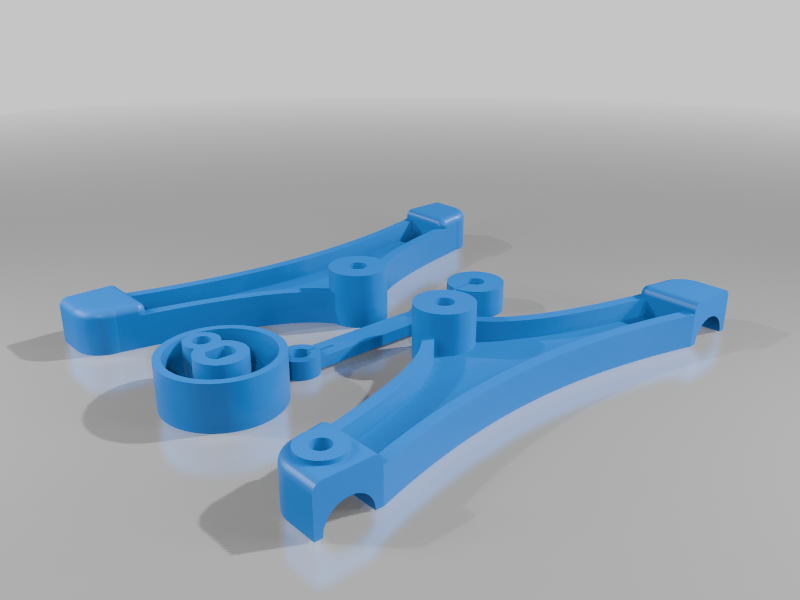

The Inner plates and the crank disc needs to be printed in PETG or other materials that withstands a littlebit more heat than PLA since the motor gets qite hot. The outer shell can be printed in PLA.

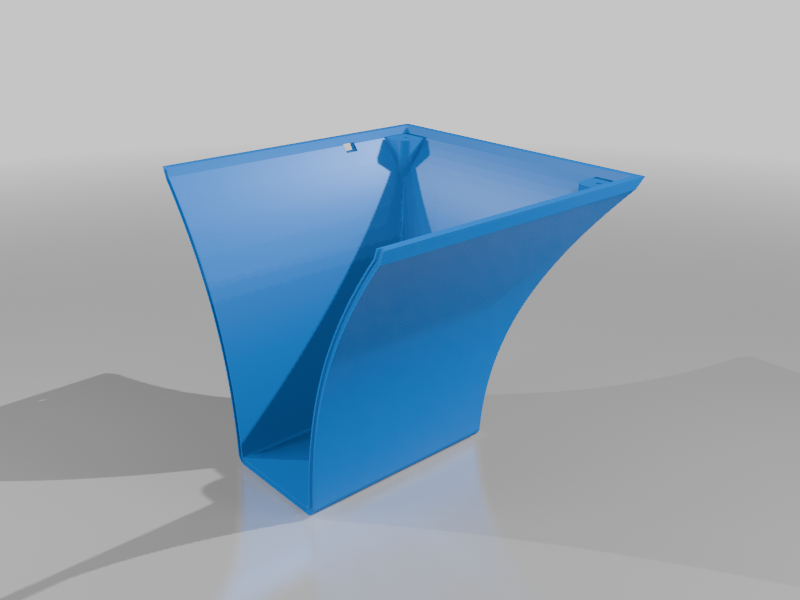

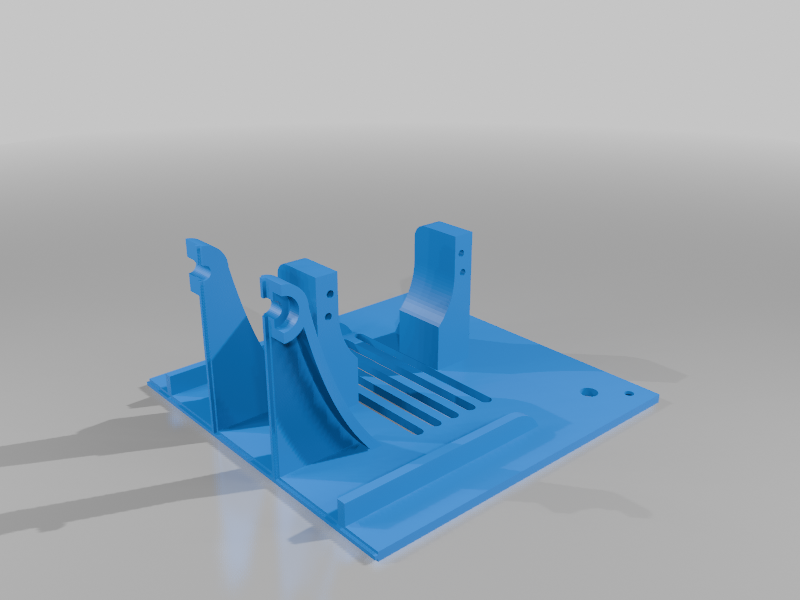

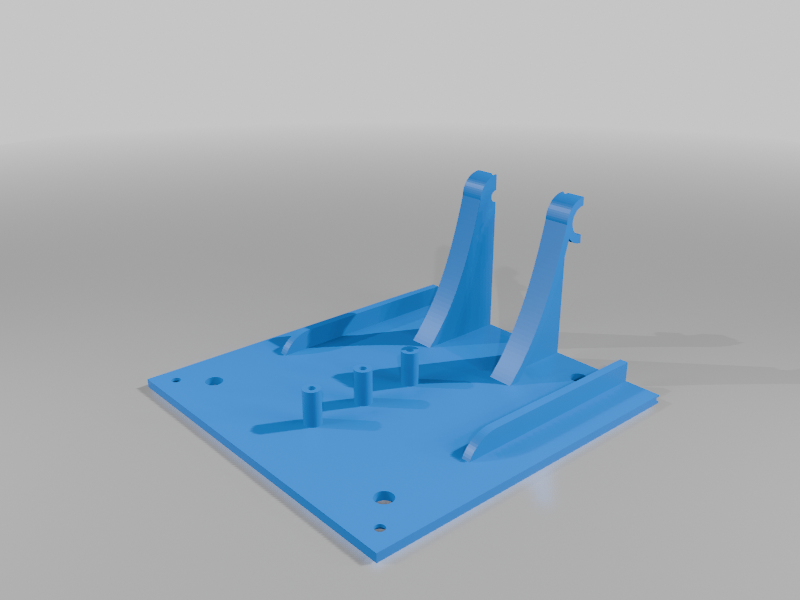

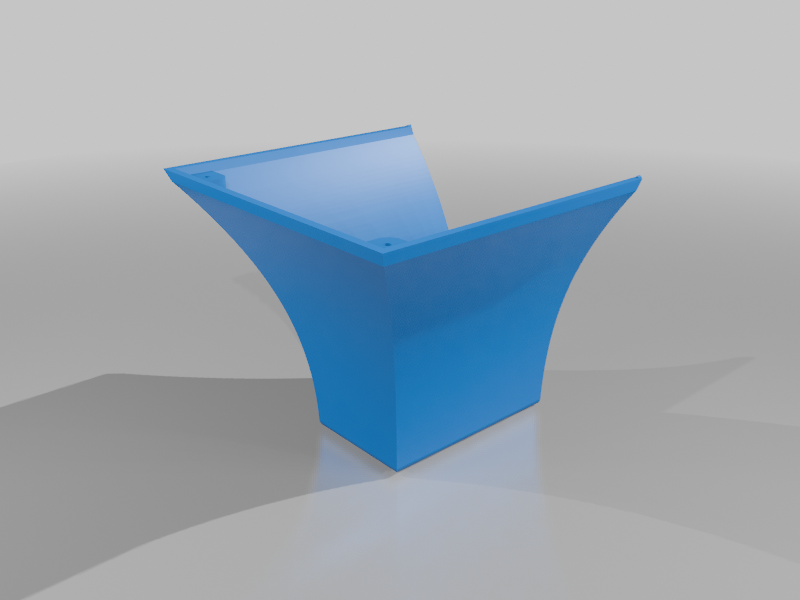

The two outer shells needs to be glued together. Same with the two bottom plates, Cradle and resting points.

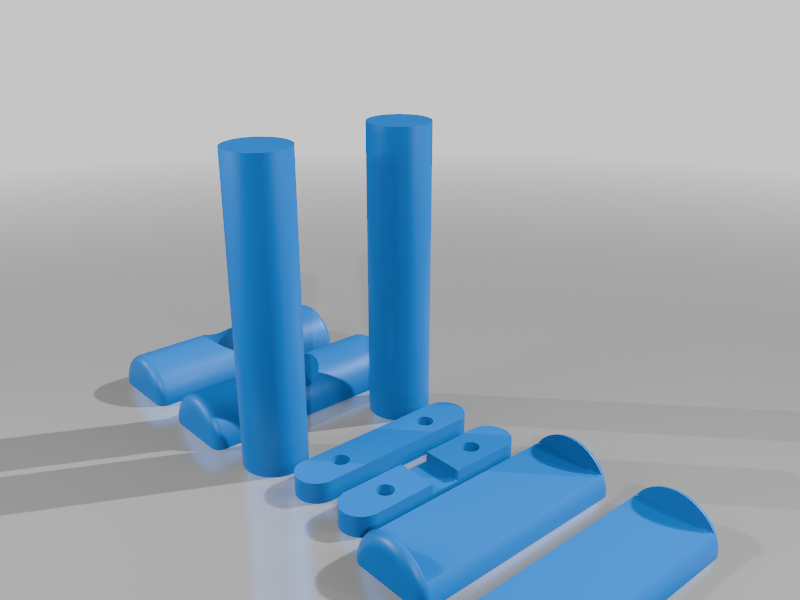

The raisers needs to be glued inside the cradle but the two resting points shall not be glued to the raisers, It needs to be detachable so the outer shell can be fitted. When you have sentered the vessel you can glue them to the vessel instead

This is what you need buy:
Motor 8-10rpm with C-type shaft: https://www.aliexpress.com/item/1005001305529072.html?spm=a2g0o.order_list.order_list_main.27.609e1802RHgtvV
Power cord: https://www.aliexpress.com/item/1005005643699414.html?spm=a2g0o.order_list.order_list_main.33.609e1802RHgtvV
Rubber feets 6mm: https://www.aliexpress.com/item/1005005303422685.html?spm=a2g0o.order_list.order_list_main.344.609e1802RHgtvV
4pcs M3 countersunc bolts, 2pcs M bolts for the motormounts and 2pcs M3 bolt for the cable clamp.
You allso need 2pcs M5 hex bolts for the con rod and one longer for the pivot point.
Electrical connector: https://www.aliexpress.com/item/1005002635711842.html?spm=a2g0o.productlist.similar_items.6.27aa77dfR6Y9ai&utparam-url=scene%3Aimage_search%7Cquery_from%3Aback_detail_bigimg%7Cx_object_id%3A1005002635711842%7C_p_origin_prod%3A&algo_pvid=17c3b00a-bcff-4f9a-8cfe-94976ce4acda&algo_exp_id=17c3b00a-bcff-4f9a-8cfe-94976ce4acda&pdp_ext_f=%7B%22order%22%3A%22356%22%2C%22fromPage%22%3A%22search%22%7D&pdp_npi=6%40dis%21NOK%2114.38%2113.88%21%21%211.45%211.40%21%402103956b17699415151455686ea110%2112000039157827404%21sea%21NO%21139952227%21X%211%210%21n_tag%3A-29919%3Bd%3A4710fdc9%3Bm03_new_user%3A-29895
Acryllic glue for the vessel: https://www.aliexpress.com/item/1005008202807045.html?spm=a2g0o.order_list.order_list_main.339.609e1802RHgtvV
Threaded acrylic screw to plug the vessel M8: https://www.aliexpress.com/item/1005008896943681.html?spm=a2g0o.order_list.order_list_main.249.609e1802RHgtvV

For the vessel you need to cut it so the outer dimmensions is 480mm x 80mm x 40mm to fit. I have built mine with Polycarbonate 4mm and glued it with both the acrylic glue that I have linked to and thick Superglue from Biltema and both was watertight. You need to sand the edges smooth and the dimmensions has to be correct to get it watertight.
I have drilled one fill hole in each end and tapped it with an M8 thread and used a screw with an O-ring to plug the fill hole.

The two fluids is Natusan clear babyoil and pure water with blue foodcoloring added. Fill the vessel with a bit over one third with colored water and the rest with baby oil.
Glue the pivot point to the vessel so that it rests at the base with equal overhangs on both sides.
