LEVELING WEDGE
par reichwec
Fichiers imprimables (6)
-
stlWEDGE.stl
30 Ko · 1 189 téléchargements
-

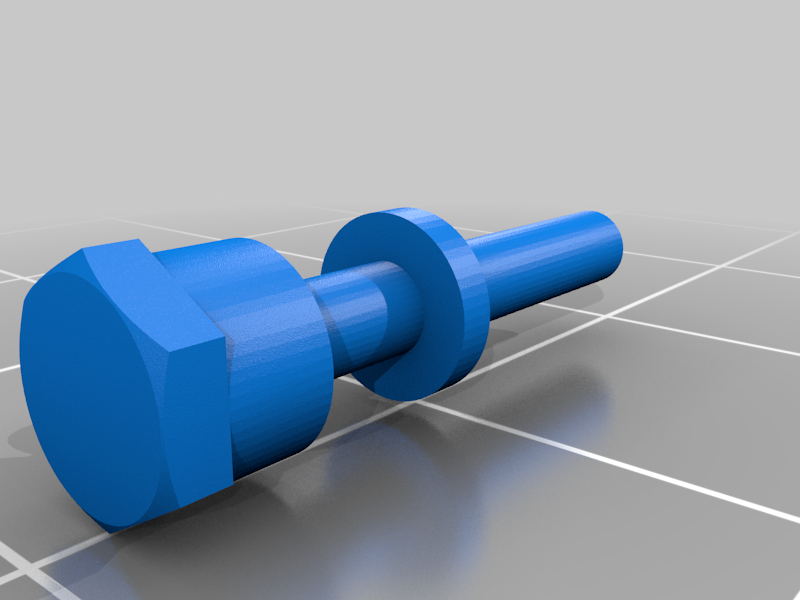

stlWEDGE_SCREW.stl
80 Ko · 1 170 téléchargements
-

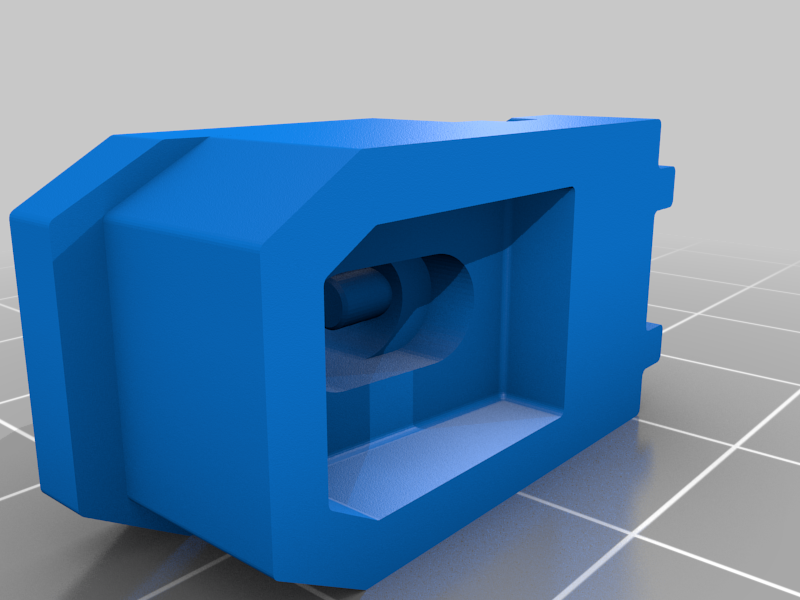

stlFINAL_ASSEMBLY.stl
1.5 Mo · 1 197 téléchargements
-

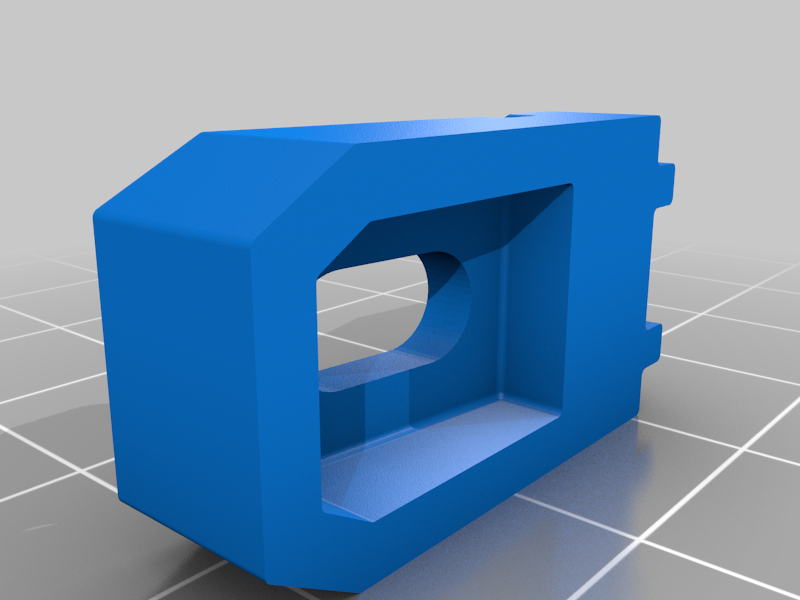

stlBASE.stl
1.3 Mo · 1 205 téléchargements
-

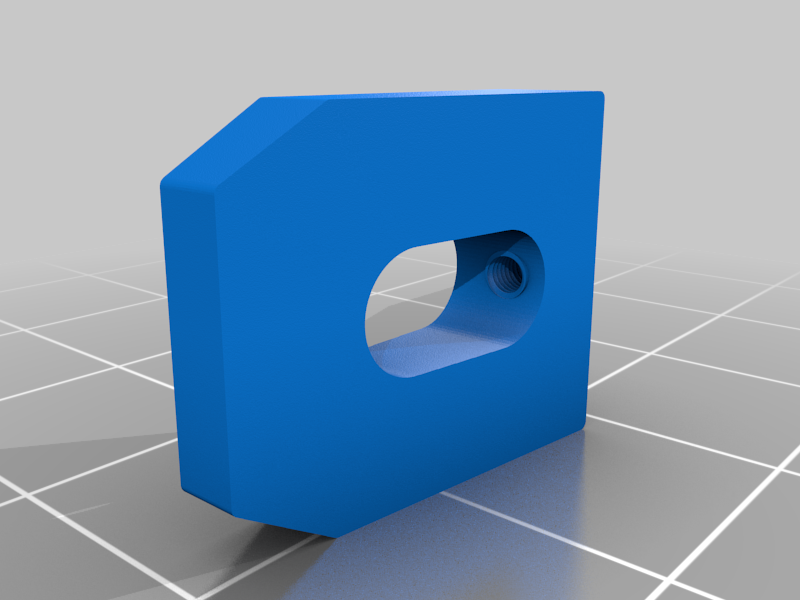

stlWEDGE_TAPPED.stl
1.3 Mo · 1 166 téléchargements
-
stlWEDGE_SCREW_THREADED.stl
3.3 Mo · 1 179 téléchargements
Description
Here is the Leveling Wedge Tool Mount. I have included the stl files as well as the inventor 2015 part files and assembly files for your use. They were modeled in US Standard inches. The assembly is there for your use as well. I would not recommend printing the assembly STL file as it is not setup to print as a single job. I have also added the wedge and the wedge screw that have actual cut threads for your use.
