Encore Mini CoreXY 3D printer
par _AlexY
Fichiers imprimables (36)
-

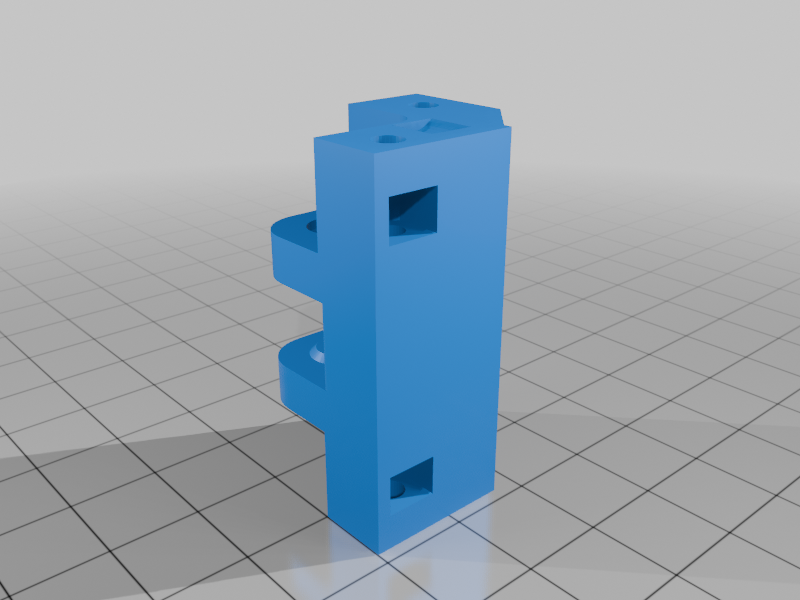

stlfront_left_idler_block.stl
118 Ko · 457 téléchargements
-

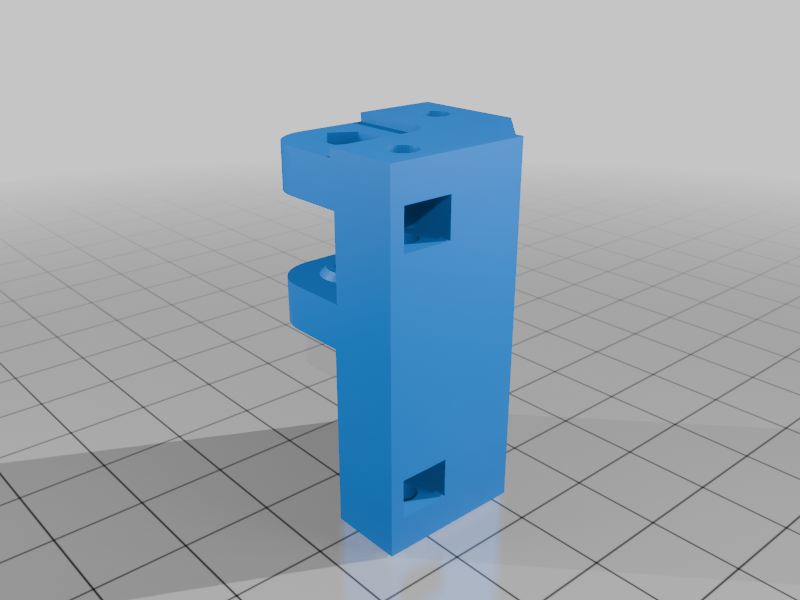

stlfront_right_idler_block.stl
119 Ko · 348 téléchargements
-

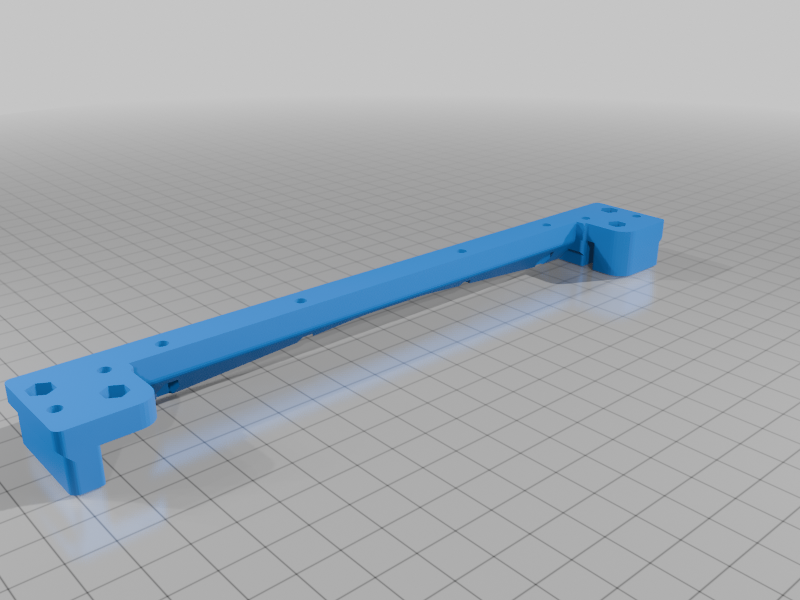

stlgantry_body.stl
144 Ko · 340 téléchargements
-

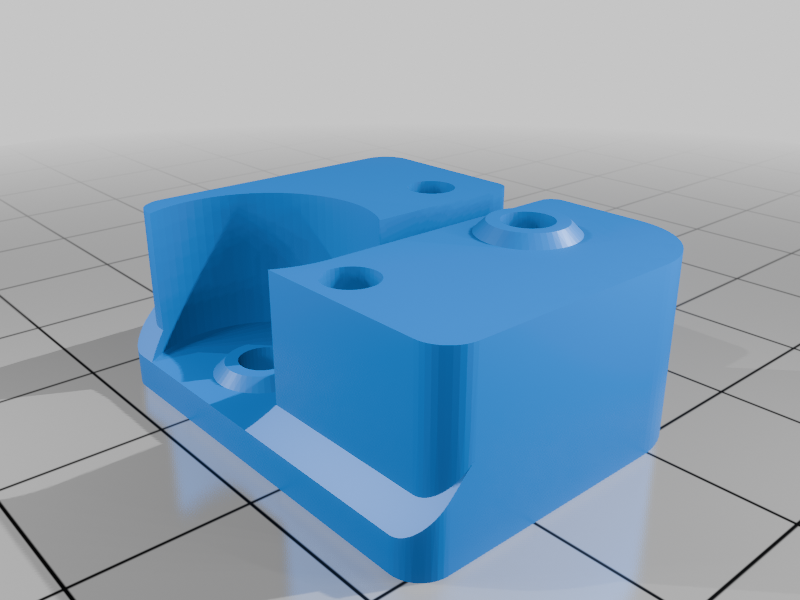

stlgantry_left_end.stl
102 Ko · 339 téléchargements
-

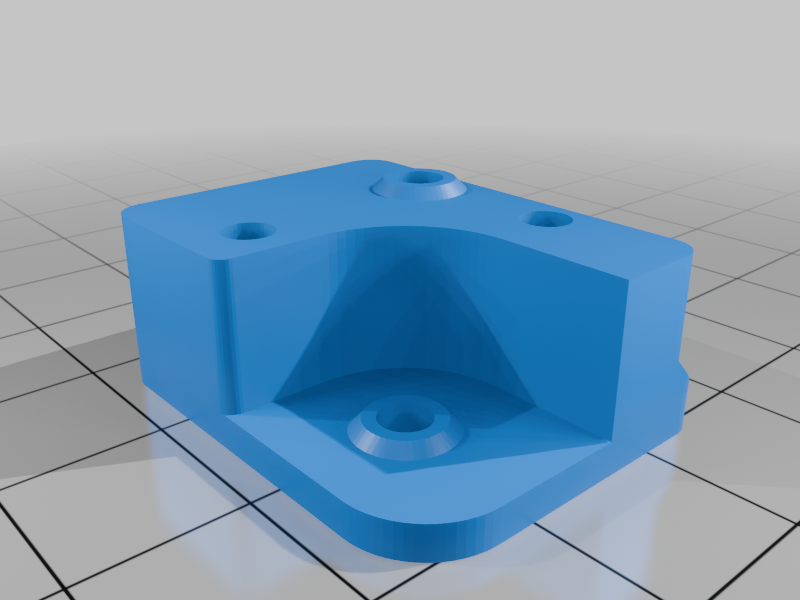

stlgantry_right_end.stl
94 Ko · 330 téléchargements
-

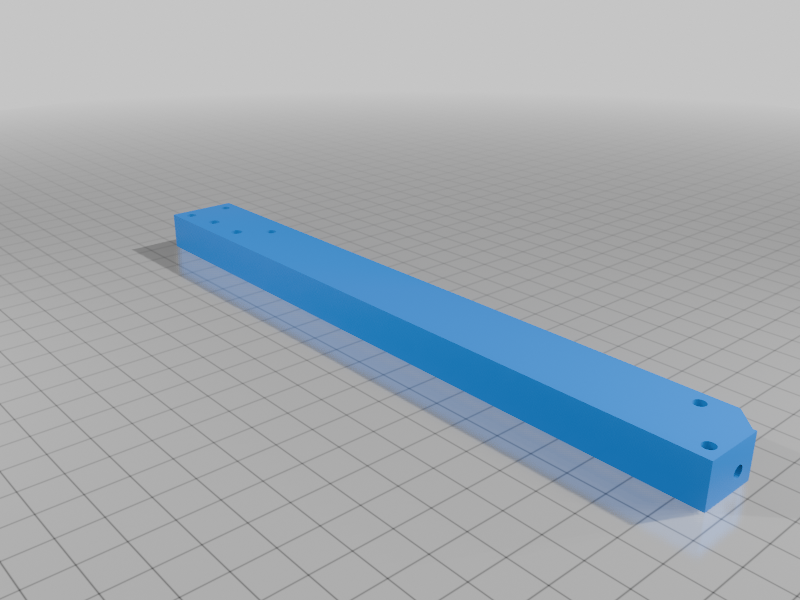

stlleft_mid_brace.stl
101 Ko · 327 téléchargements
-

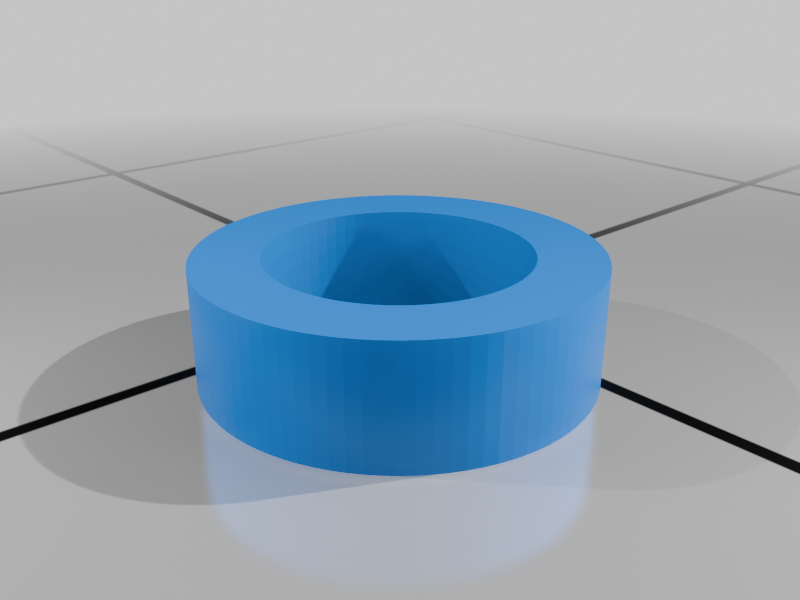

stlrear_idler_spacer.stl
32 Ko · 322 téléchargements
-

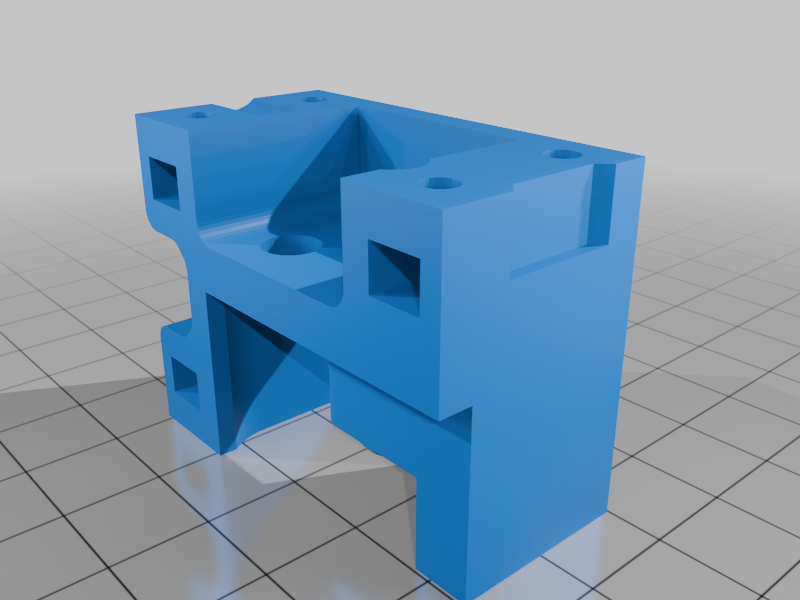

stlrear_left_idler_block.stl
170 Ko · 323 téléchargements
-

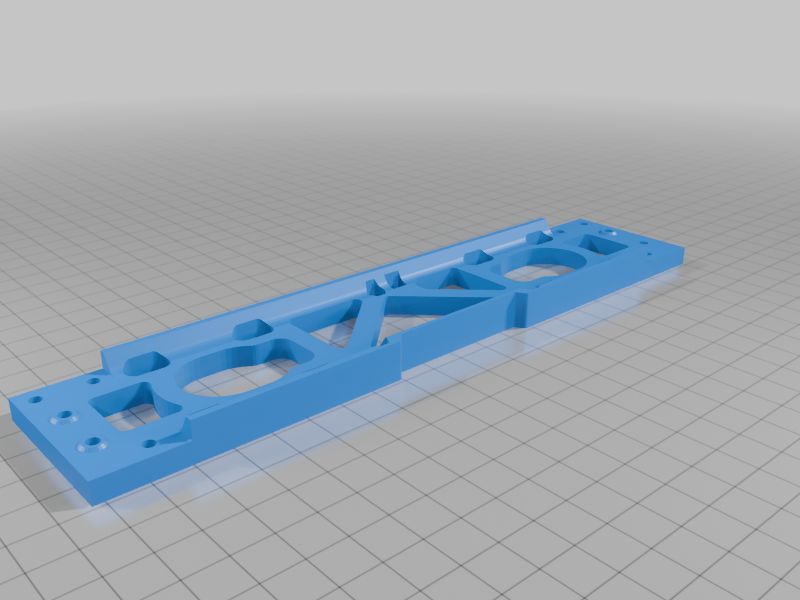

stlrear_mid_frame.stl
251 Ko · 329 téléchargements
-

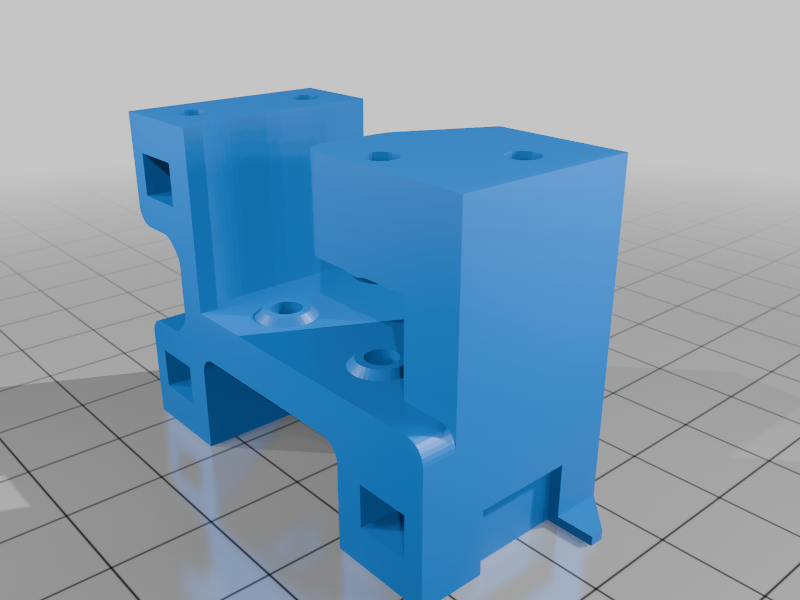

stlrear_right_idler_block.stl
184 Ko · 321 téléchargements
-

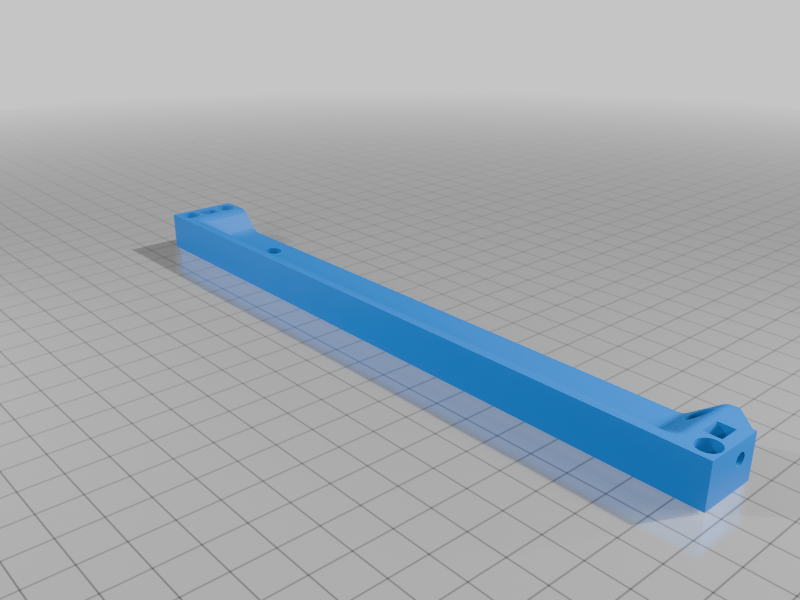

stlright_mid_brace.stl
106 Ko · 319 téléchargements
-

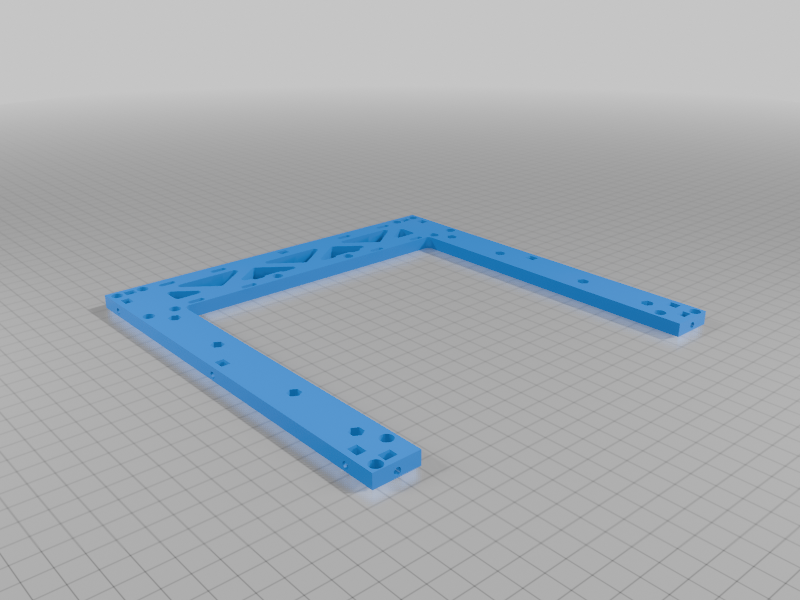

stltop_chassis.stl
347 Ko · 328 téléchargements
-

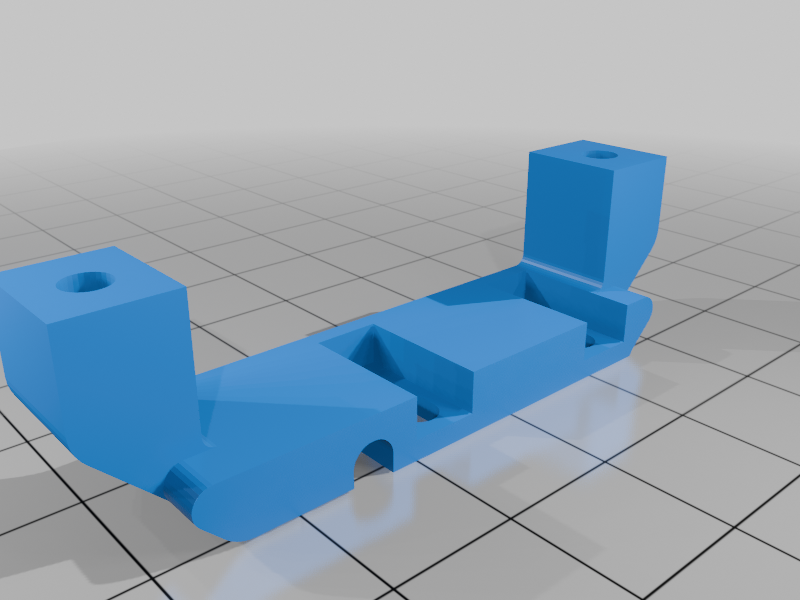

stly_endstop_bracket.stl
53 Ko · 317 téléchargements
-

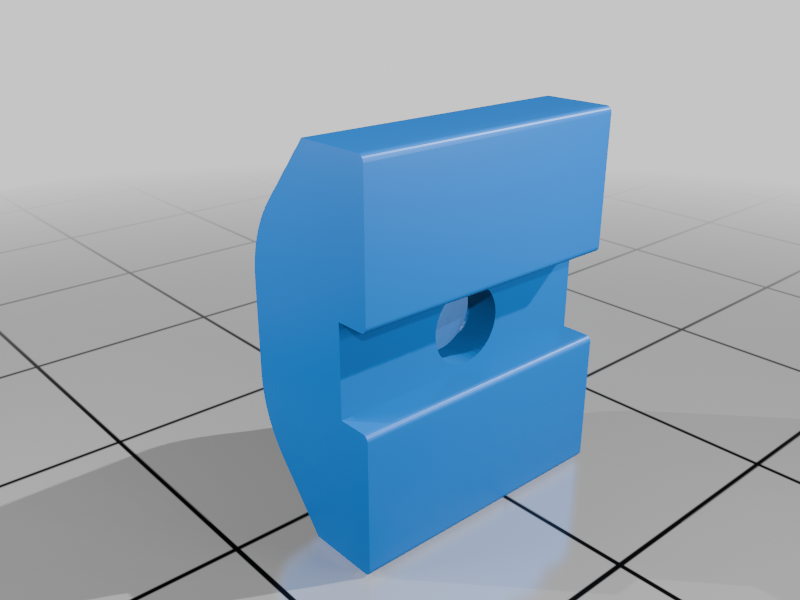

stlbelt_clamp.stl
40 Ko · 322 téléchargements
-

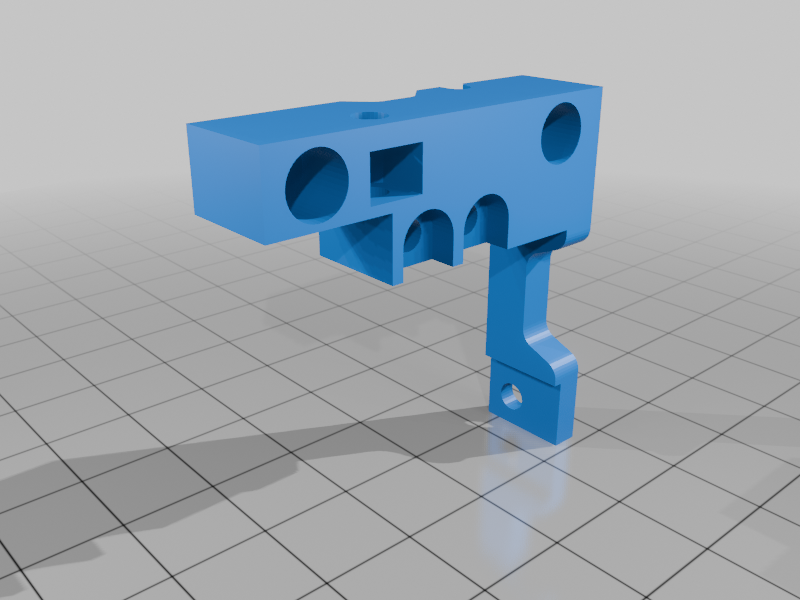

stlhotend_clamp.stl
94 Ko · 321 téléchargements
-

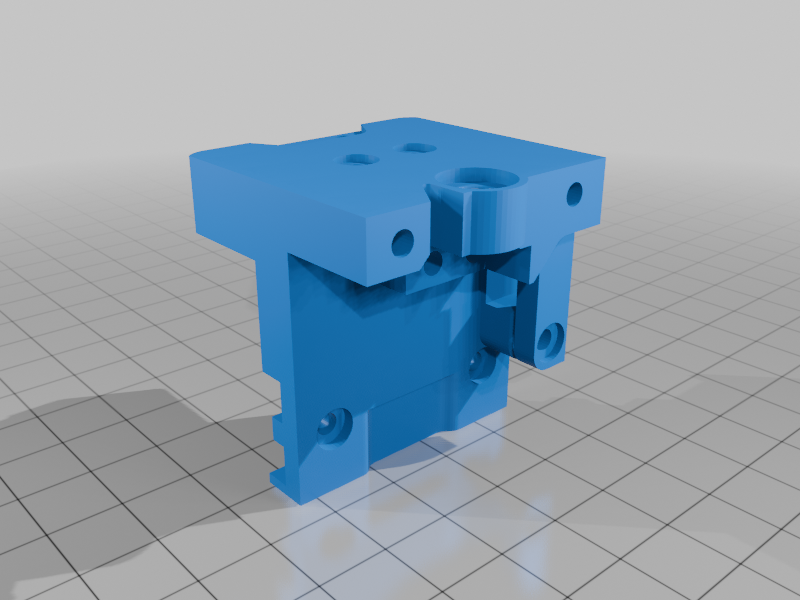

stlprint_carriage_body.stl
561 Ko · 317 téléchargements
-

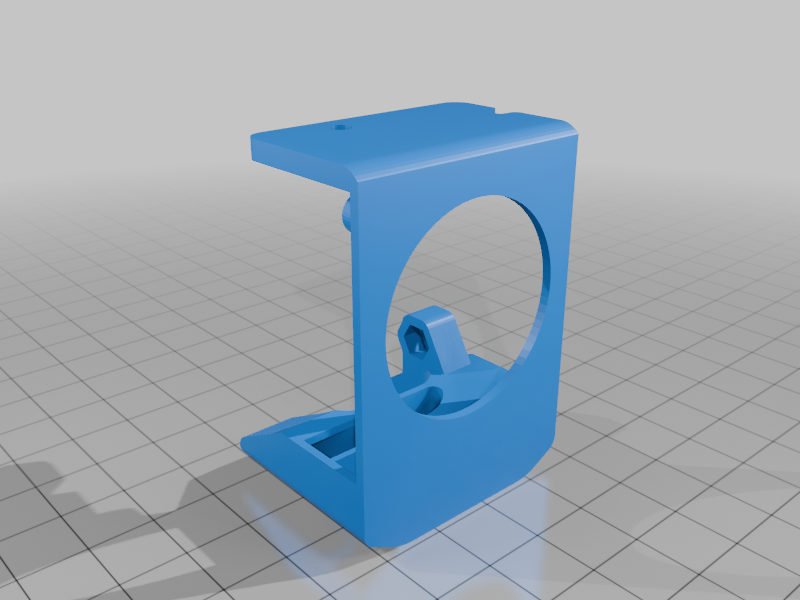

stlprint_fan_duct.stl
131 Ko · 320 téléchargements
-

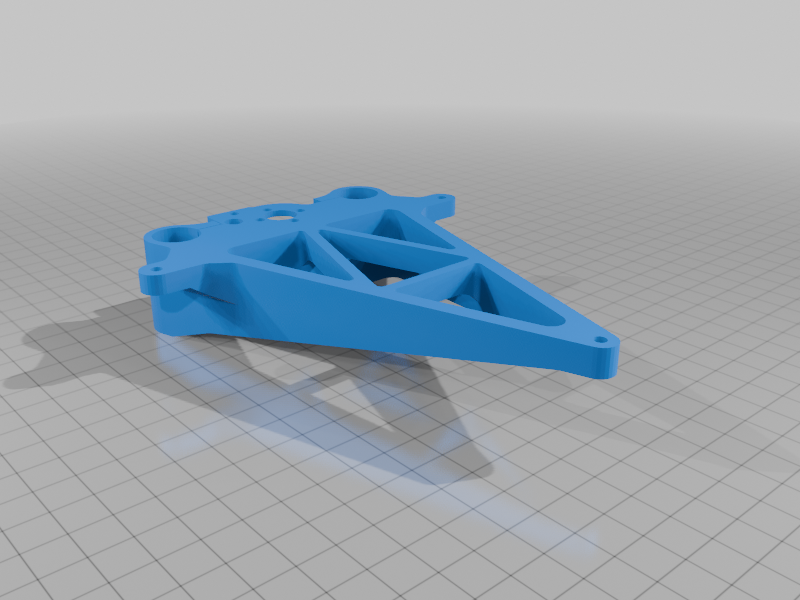

stlbed_support_frame.stl
248 Ko · 312 téléchargements
-

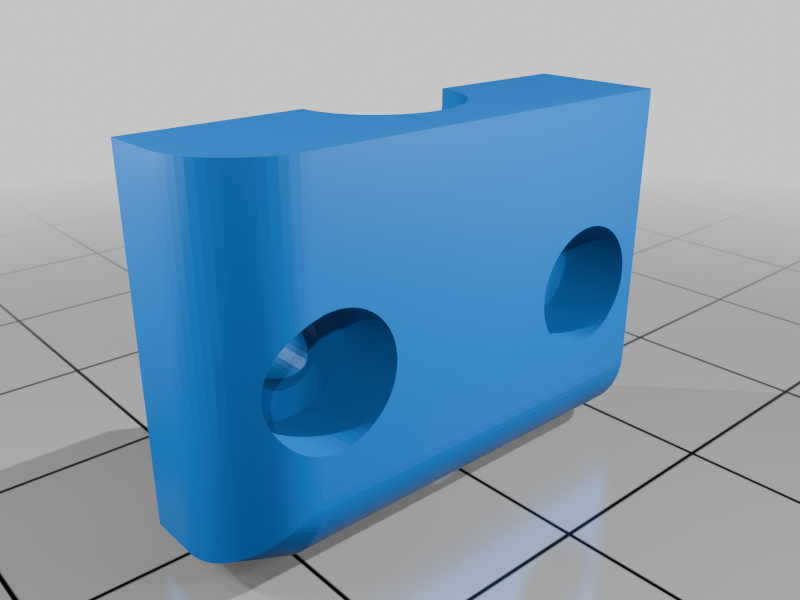

stlbottom_z_clamp_left.stl
66 Ko · 309 téléchargements
-

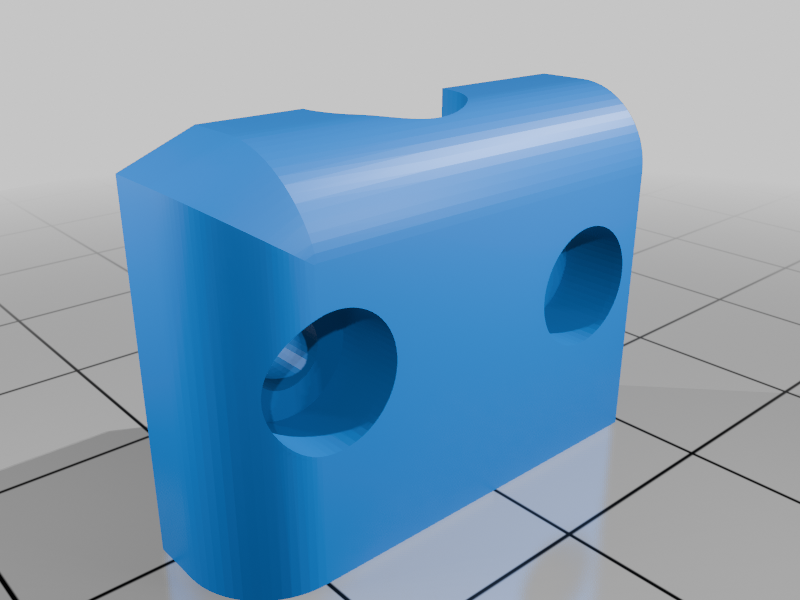

stlbottom_z_clamp_right.stl
66 Ko · 315 téléchargements
-

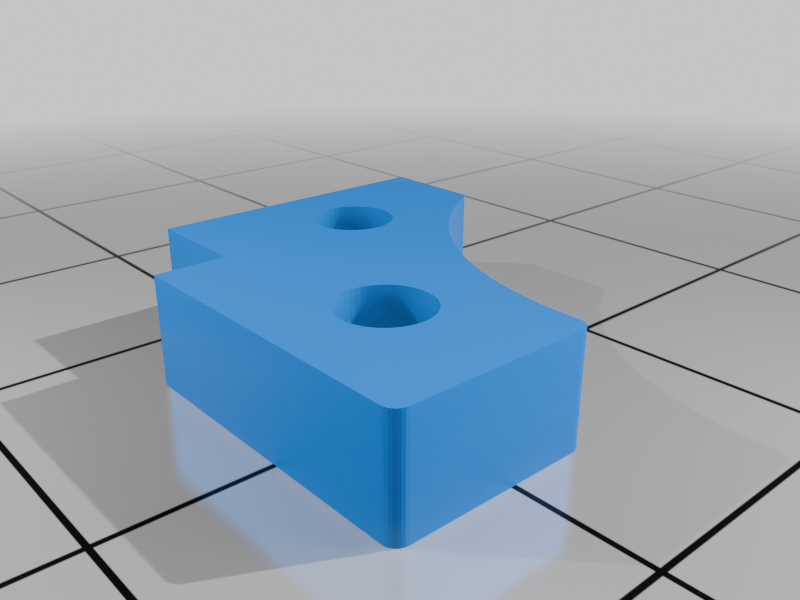

stlz_adjuster_clamp.stl
31 Ko · 313 téléchargements
-
stlz_bottom_bracket.stl
112 Ko · 319 téléchargements
-

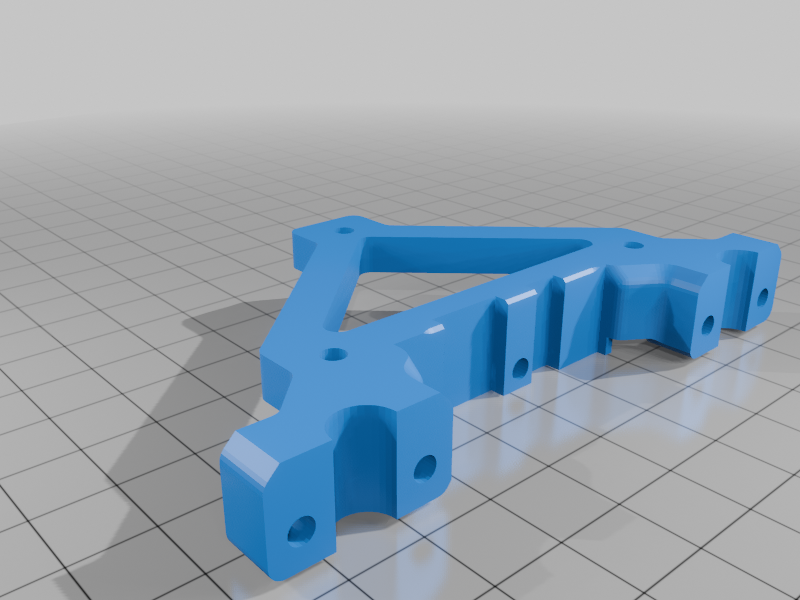

stlz_top_bracket.stl
185 Ko · 325 téléchargements
-

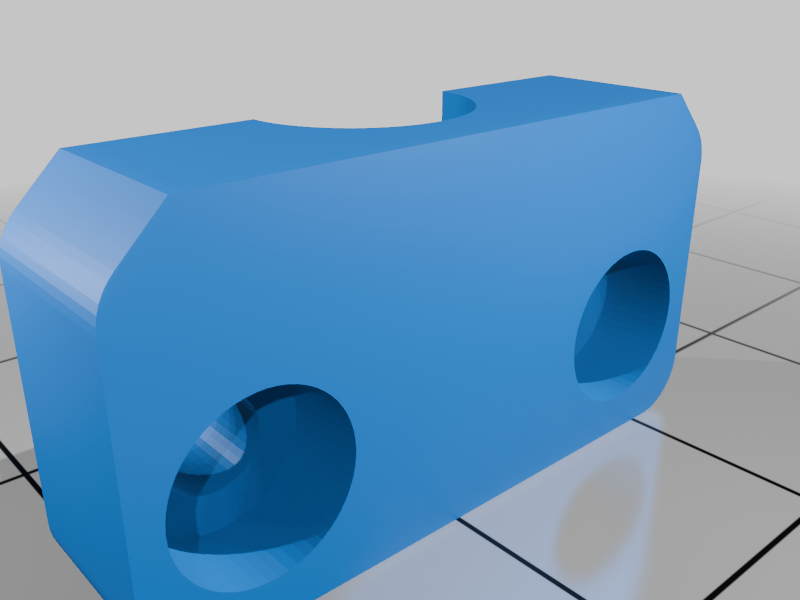

stlz_top_clamp.stl
58 Ko · 310 téléchargements
-
stlaux_fan_duct_left.stl
64 Ko · 308 téléchargements
-

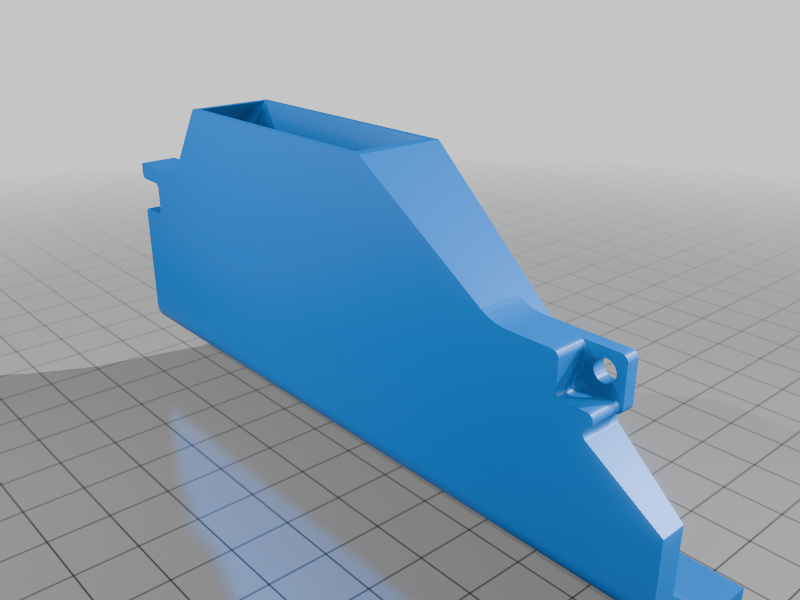

stlaux_fan_duct_right.stl
64 Ko · 312 téléchargements
-

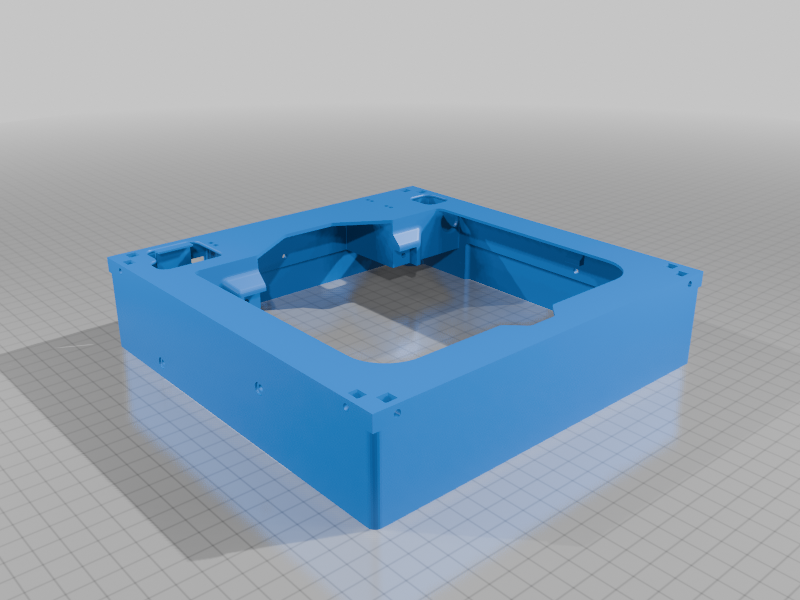

stlbottom_case_with_support.stl
525 Ko · 321 téléchargements
-
stlbottom_case.stl
469 Ko · 298 téléchargements
-

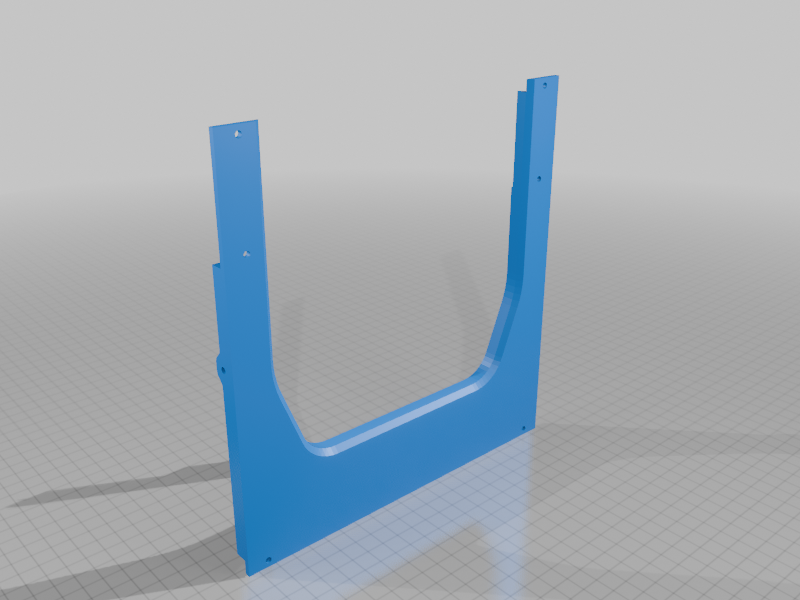

stlfront_panel.stl
216 Ko · 307 téléchargements
-

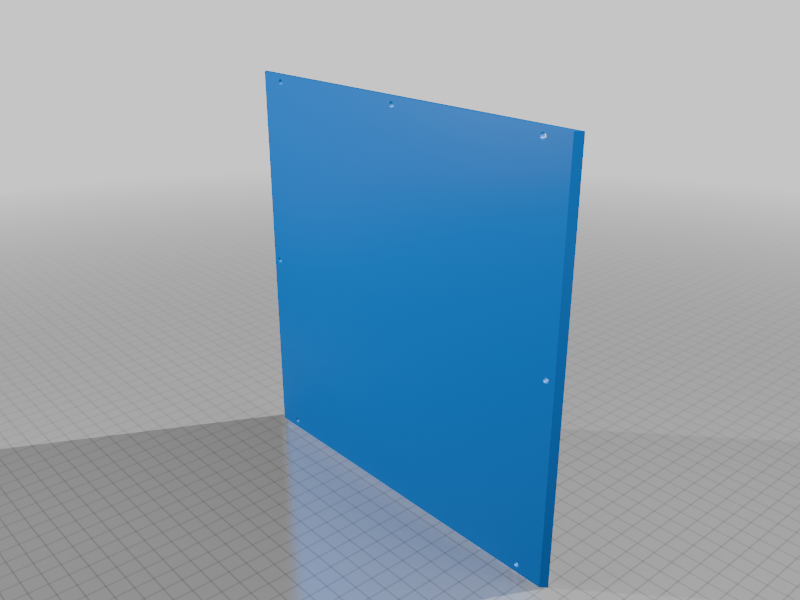

stlleft_panel_unvented.stl
144 Ko · 314 téléchargements
-

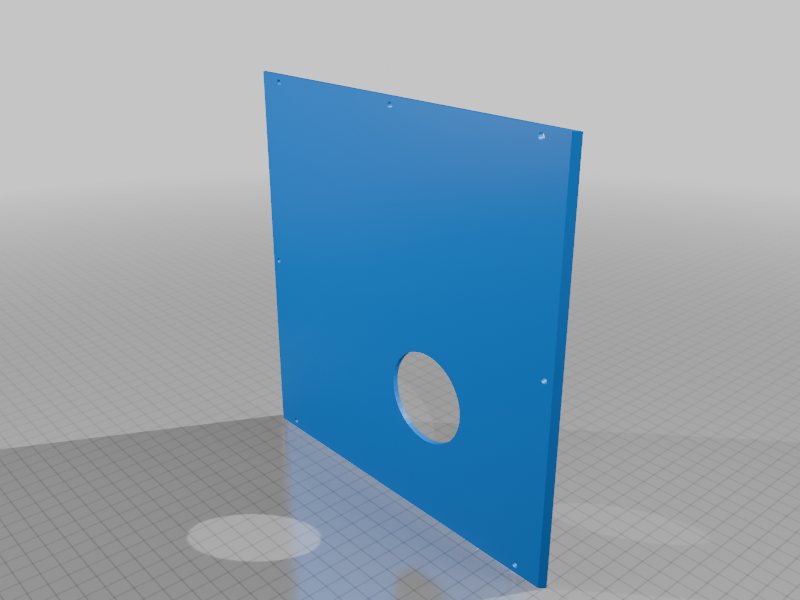

stlleft_panel_vented.stl
258 Ko · 307 téléchargements
-

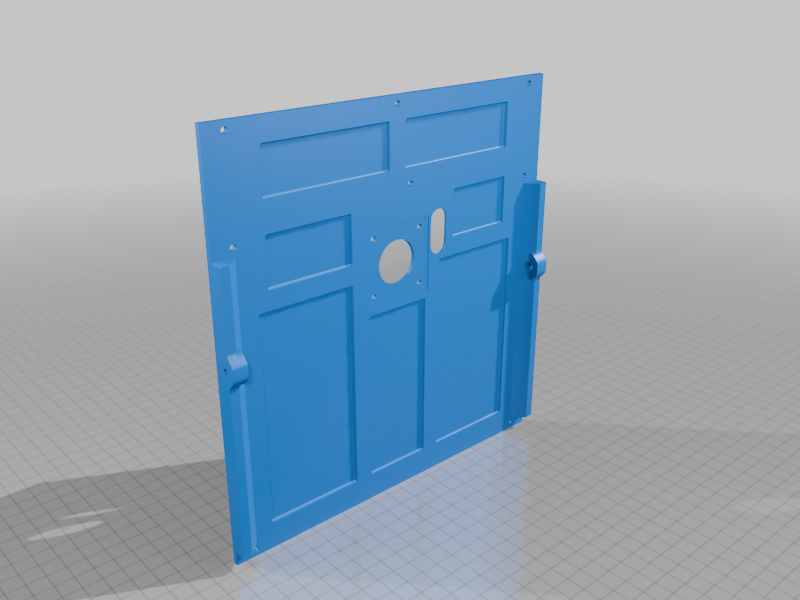

stlrear_panel.stl
343 Ko · 319 téléchargements
-
stlright_panel_unvented.stl
144 Ko · 305 téléchargements
-

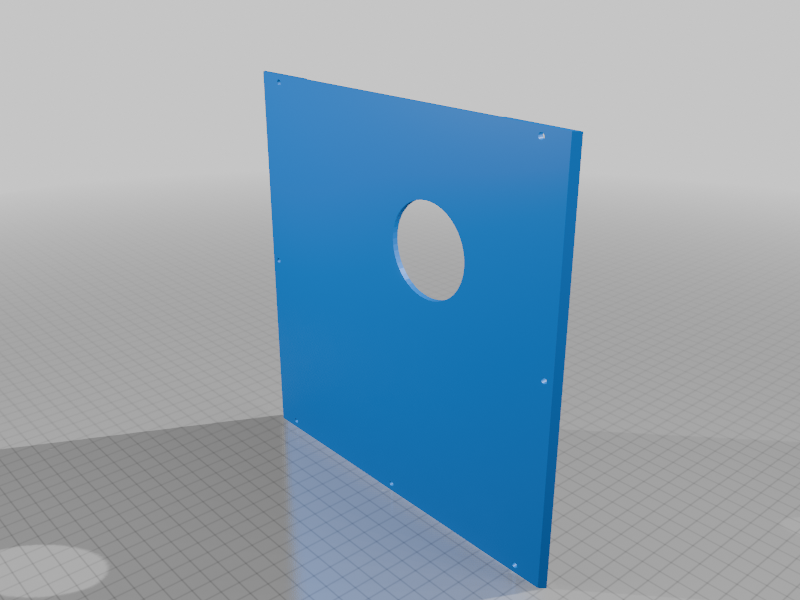

stlright_panel_vented.stl
258 Ko · 316 téléchargements
-

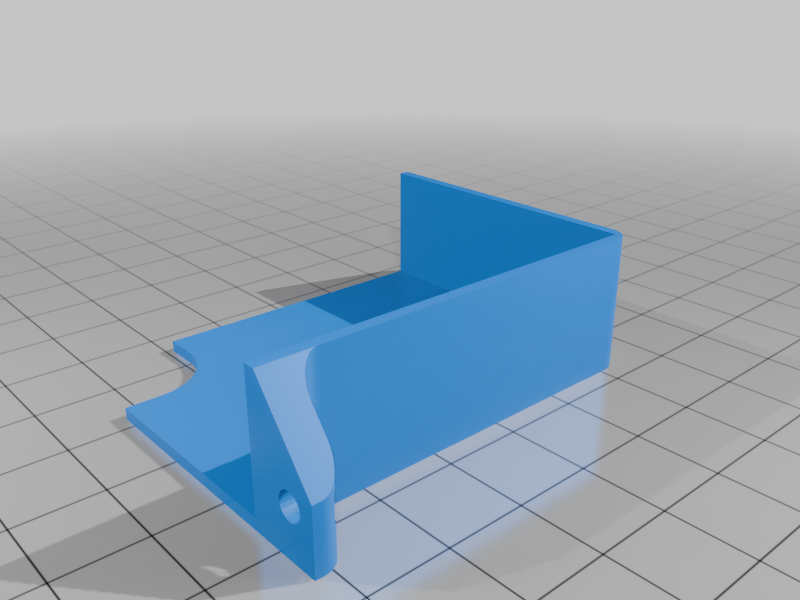

stlac_power_input_lower_cover.stl
37 Ko · 306 téléchargements
-

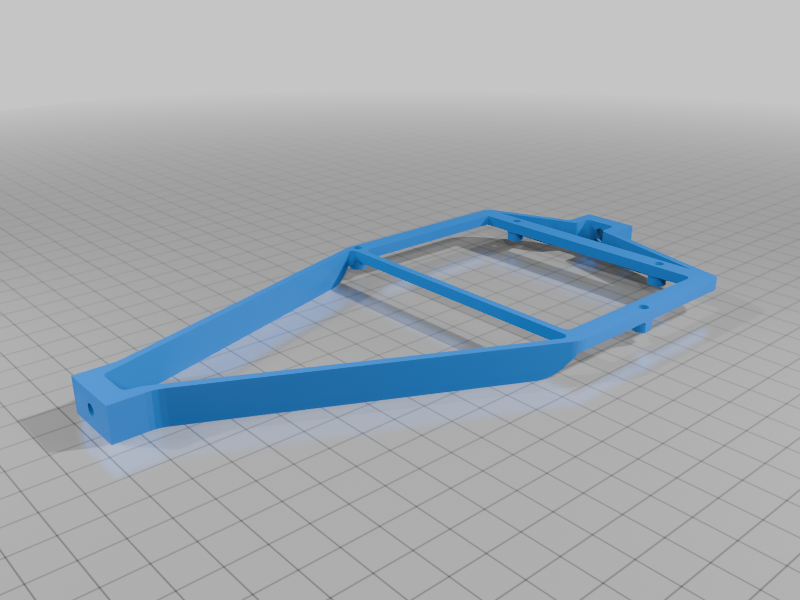

stlmainboard_bracket_-_ender_3_mount.stl
147 Ko · 301 téléchargements
Description
For the latest STLs and CAD files, please check the Github repo: https://github.com/alexyu132/encore/
Overview video: https://www.youtube.com/watch?v=9xukniyO6fI
This is my latest CoreXY design. It's a small printer with a 120x120x120mm build area. The total size is slightly smaller than a Voron 0, with a footprint approximately the size of a box of filament.
Unlike my older printer designs, this one uniquely uses an entirely 3D printed chassis, with no aluminum extrusions or custom CNC'd parts. This significantly reduces the total part cost, while the solid panel construction keeps things sufficiently rigid.
All of the printed parts are designed to fit on a 225mm bed, so common printers like the Ender 3, Bambu A1/P1, etc. should have no problem printing them.
For this design I focused on keeping things compact yet modular. Each major assembly (e.g. the CoreXY mechanism, the Z axis, and the outer panels, can be independently swapped out without major disassembly of the other assemblies.
Specs:
Build area: 120x120x120mm
Body dimensions (excl. Bowden parts): 219x221x262mm
Extrusion|:Bambu-style hotend, Bowden extruder
Motion: MGN9C X/Y gantry, 8mm linear rod Z + 8mm leadscrew
Cooling: 4015 blower (print head) + dual 7515 blower (aux)
Note: BOM and instructions currently WIP.
